OWNER’S MANUAL
LED TV
Please read this manual carefully before operating the your TV and
retain it for future reference.
LG LED TV applies LCD screen with LED backlights.
ENGLISH
19MN43D 22MN43D 24MN43D 27MA43D
24MN43T 27MA43T
2
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 LICENSES
4 INSTALLATION PROCEDURE
5 ASSEMBLING AND PREPARING
5 Unpacking
9 Parts and buttons
11 Lifting and moving the TV
12 Setting up the TV
12 - Attaching the Stand
16 - Mounting on a table
17 - Tidying cables
18 - Detaching the Stand
20 - Mounting on a wall
22 WATCHING TV
22 Turning the TV on for the first time
24 MAKING CONNECTIONS
24 Connecting an antenna
25 Connecting to a HD receiver, DVD, VCR
player or Gaming device
25 - HDMI connection
26 - HDMI to DVI connection
27 - Component connection
28 - Composite connection
29 - Euro Scart connection
30 Connecting to a USB
30 Connecting to a CI Module
31 Connecting to a wired network
32 Connecting to a PC
33 - HDMI connection
34 - HDMI to DVI connection
35 - RGB connection
36 REMOTE CONTROL
38 CUSTOMIZING SETTINGS
38 Accessing main menus
39 USING THE USER GUIDE
39 Accessing User Guide menu.
39 - Using the TV menu
39 - Using the Remote Control
40 MAINTENANCE
40 Cleaning Your TV
40 Screen and frame
40 Cabinet and stand
40 Power cord
41 Preventing “Image burn” or “Burn-in” on
your TV screen
42 TROUBLESHOOTING
42 General
43 SPECIFICATIONS
ENGLISH
3
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified® device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be
registered in order to play purchased DivX Video-on-Demand (VOD) movies.
To obtain your registration code, locate the DivX VOD section in your device
setup menu. Go to vod.divx.com for more information on how to complete
your registration.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
ENGLISH
4INSTALLATION PROCEDURE
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV.
3 Connect an external device to the TV.
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are
using.
New features may be added to this TV in the future.
NOTE
ENGLISH
5
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Unpacking

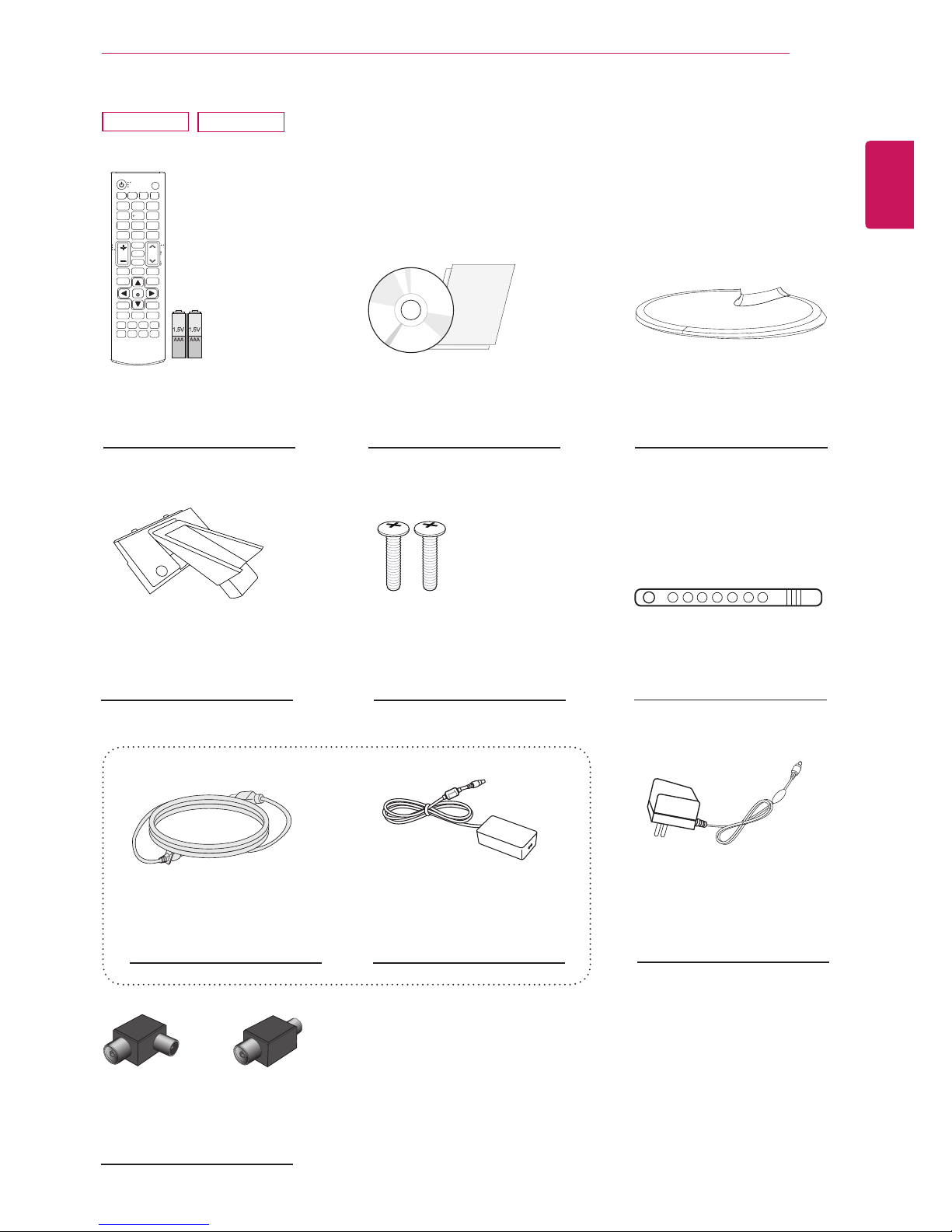

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and accessories.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
NOTE
Do not use any pirated items to ensure the safety and product life span.
Any damages or injuries by using pirated items are not covered by the warranty.
CAUTION
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick
and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory
stick does not fit into your TV’s USB port.
NOTE
*A 10 mm
*B 18 mm
A
B
A
B
ENGLISH
6ASSEMBLING AND PREPARING
Remote control
Batteries (AAA)
Power Cord.
Stand BaseCD (Owner's Manual)
Cards
Stand Body
Cable Tie.
(See p.36, See p.37)
(See p.16)
(See p.12, See p. 18)
(See p.12, See p. 18) (See p.17)
24MN43T 24MN43D 22MN43D
19MN43D
AC-DC Adapter.
or
(See p.16)
AC-DC Adapter.
(Depending on the country)
(See p.16)
(Depending on the country)
(Depending on the country)
Isolator
or
ENGLISH
7
ASSEMBLING AND PREPARING
Remote control
Batteries (AAA)
Power Cord.
Stand BaseCD (Owner's Manual)
Cards
Cable Tie.
(See p.36, See p.37)
(See p.16)
(See p. 14, See p. 19)
(See p. 14, See p. 19) (See p.17)
27MA43T
27MA43D
Screws for Assembly
2 EA
(See p. 14, See p. 19)
Stand Body
AC-DC Adapter.
or
(See p.16)
AC-DC Adapter.
(Depending on the country)
(See p.16)
(Depending on the country)
(Depending on the country)
Isolator
or
ENGLISH
8ASSEMBLING AND PREPARING
NOTE
Antenna Isolator Installation Guide
-Use this to install TV in a place where there is a voltage difference between TV Set and GND of
antenna signal.
»If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact
might be heated and excessive heat might cause an accident.
-You can improve the safety when watching TV by efficiently removing power voltage from TV
antenna. It is recommended to mount the isolator to the wall. If it cannot be mounted to the wall,
mount it on the TV. Avoid disconnecting the antenna Isolator after installation.
-Before starting, be sure that the TV antenna is connected.
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
or
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains
connection or through other equipment with a connection to protective earthing - and to a cable
distribution system using coaxial cable, may in some circumstances create a fire hazard. Connection to
a cable distribution system has therefore to be provided through a device providing electrical isolation
below a certain frequency range (galvanic isolator, see EN 60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
ENGLISH
9
ASSEMBLING AND PREPARING
Parts and buttons
All of the buttons are touch sensitive and can be operated through simple touch with your finger.
NOTE
Touch button Description
Scrolls through the saved programmes.
Adjusts the volume level.
OK Selects the highlighted menu option or confirms an input.
SETTINGS Accesses the main menus, or saves your input and exits the menus.
INPUT Changes the input source.
/ ITurns the power on or off.
Remote Control Sensor
Standby Light
Lighting On:
When Power is turned off
Lighting Off:
When Power is turned on
Touch Buttons
ENGLISH
10 ASSEMBLING AND PREPARING
LAN
24MN43T
24MN43D 22MN43D
27MA43T
19MN43D 27MA43D
Connection panel (See p.24)
Only UK
or
(Depending on the
model)
