LG 65LS53A Manuel utilisateur
2TABLE OF CONTENTS
ENGLISH
TABLE OF CONTENTS
3 LICENSES
4 ASSEMBLY AND
PREPARATION
4 Accessories
5 Optional Accessories
7 Parts and Buttons
8 Connecting the Stand
8 Connecting the Speakers
10 Connecting IR & Light Sensor
10 Portrait Layout
11 Installing on a Wall
13 REMOTE CONTROL
15 MAKING CONNECTIONS
15 Connecting to a PC
16 External Device Connection
18 Using the Input List
18 ENTERTAINMENT
18 Using My Media
18 - Connecting USB storage devices
20 - Files Supported by My Media
23 - Viewing Videos
25 - Viewing Photos
25 - Listening to Music
26 - Settings
27 SuperSign Contents
27 Information
27 File Manager
28 Picture ID Settings
29 USER SETTINGS
29 Main Menu Settings
29 - Quick Settings
30 - Picture Settings
34 - Sound Settings
35 - Network Settings
38 - General Settings
39 TROUBLESHOOTING
41 PRODUCT SPECIFICATIONS
57 IR CODES
59 TO CONTROL MULTIPLE
PRODUCTS
59 Connecting the cable
59 RS-232C Configurations
59 Communication Parameter
60 Command Reference List
62 Transmission/Reception Protocol
WARNING: This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling.
3
LICENSES
ENGLISH
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
Manufactured under license from Dolby Laboratories. Dolby and the double-D
symbol are trademarks of Dolby Laboratories.
•The warranty will not cover any damage caused by using the product in an excessively dusty
environment.
NOTE
For DTS patents, see http://patents.dts.com. Manufactured under license from
DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are
registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. ©
DTS, Inc. All Rights Reserved.
This DivX Certified® device has passed rigorous testing to ensure it plays
DivX® video. To play purchased DivX movies, first register your device at vod.
divx.com. Find your registration code in the DivX VOD section of your device
setup menu.
DivX Certified® to play DivX® video up to HD 1080p, including premium
content.
DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC
and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274.
4ASSEMBLY AND PREPARATION
ENGLISH

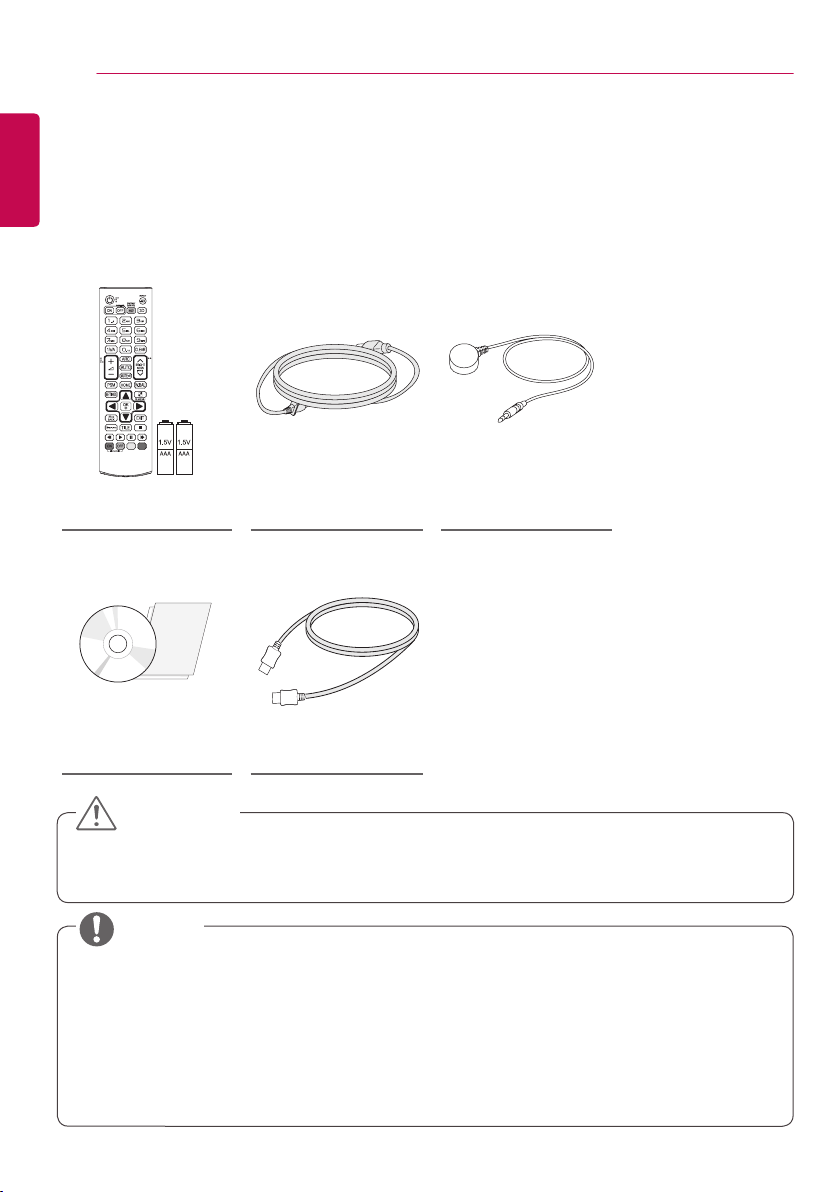

Accessories
Please check whether all the components are included in the box before using the product. If there are any
missing components, contact the retail store where you purchased the product. The illustrations in this manual
may differ from the actual product and accessories.
Remote Control,
Batteries (AAA) 2EA Power Cord IR & Light Sensor
CD (Owner’s Manual)/
Card HDMI Cable
ASSEMBLY AND PREPARATION
•Always use genuine components to ensure safety and product performance.
•The product warranty will not cover damage or injury caused by the use of counterfeit components.
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to
upgrade of product functions.
•SuperSign Software & Manual
- Downloading from the LG Electronics website.
- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest
software for your model.
CAUTION
NOTE
5
ASSEMBLY AND PREPARATION
ENGLISH

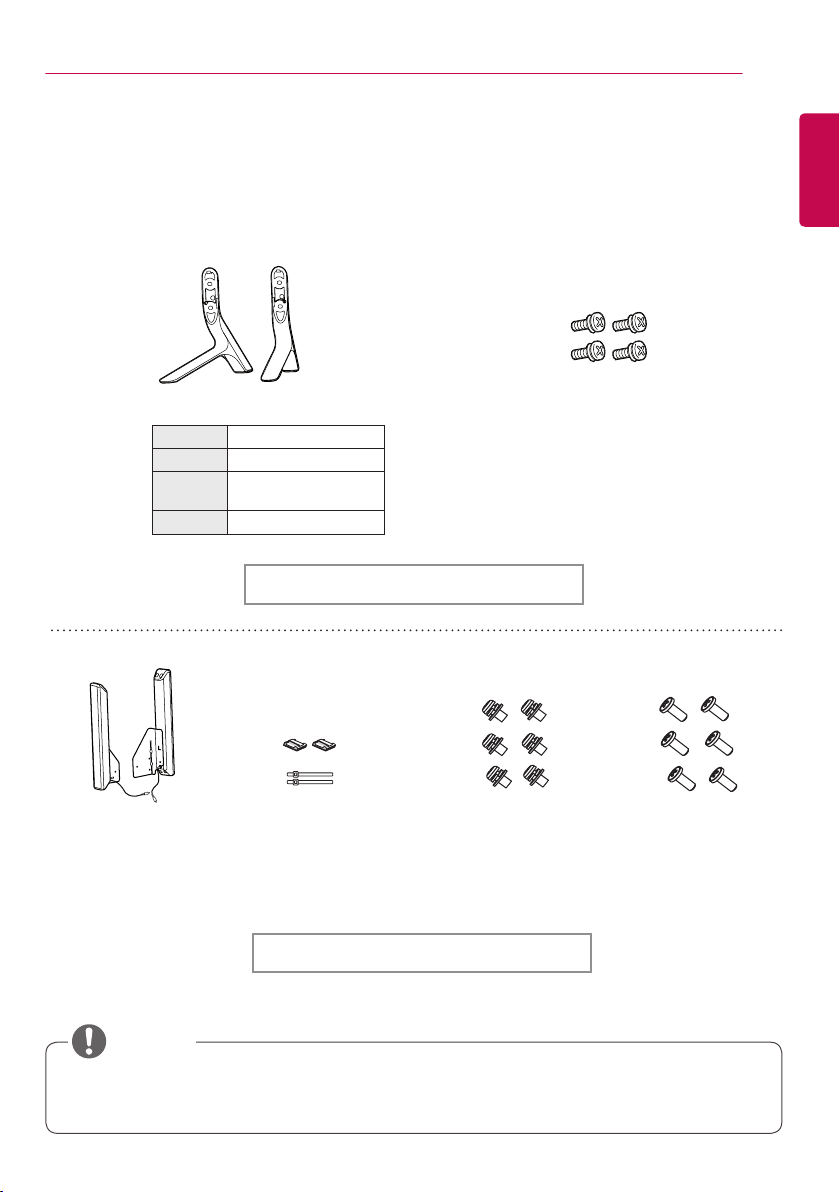

Optional Accessories
Without prior notice, optional accessories are subject to change to improve the performance of the
product, and new accessories may be added. The illustrations in this manual may differ from the actual
product and accessories.
•Cable holder/Cable tie may not be available in some areas or for some models.
•Optional accessories are available for some models. If necessary, please purchase them separately.
Cable Holders/
Cable Ties
Screws
Diameter 4.0 mm x Pitch 0.7 mm x
Length 14 mm (including spring washer)
Speakers
SP-2100
Stand kit
Speaker kit
Screws
Diameter 4.0 mm x Pitch
0.7 mm x Length 8 mm
(including spring washer)
Screws
Diameter 4.0 mm x Pitch
1.6 mm x Length 10 mm
NOTE
Stand
ST-321T 32LS53A
ST-421T 42LS53A/ 42LS55A
ST-471T 47LS53A/ 47LS55A
55LS53A/ 55LS55A
ST-651T 65LS53A
6ASSEMBLY AND PREPARATION
ENGLISH
Screws Owner’s Manual
(supplied on CD-ROM) /
Card
Media Player
MP500/MP700
Media Player kit
•Optional accessories are available for some models. If necessary, please purchase them separately.
•Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.
NOTE
Pixel sensor kit
KT-SP0
Wi-Fi Dongle kit
AN-WF500
7
ASSEMBLY AND PREPARATION
ENGLISH
PIXEL
SENSOR
IR&LIGHT
SENSOR
3.3V 0.25mA
___
---
1
2
6
5
4
3
Parts and Buttons
Connection
Panel
Screen
Buttons
No. Description
1Adjusts up and down.
2Moves left and right.
3Displays the current signal and mode.
4Accesses the main menus, or saves your input and exits the menus.
5Change the input signal.
6Turns the power on or off.
8ASSEMBLY AND PREPARATION
ENGLISH
2Use the screws to secure the stand to the
back of the product as shown below.

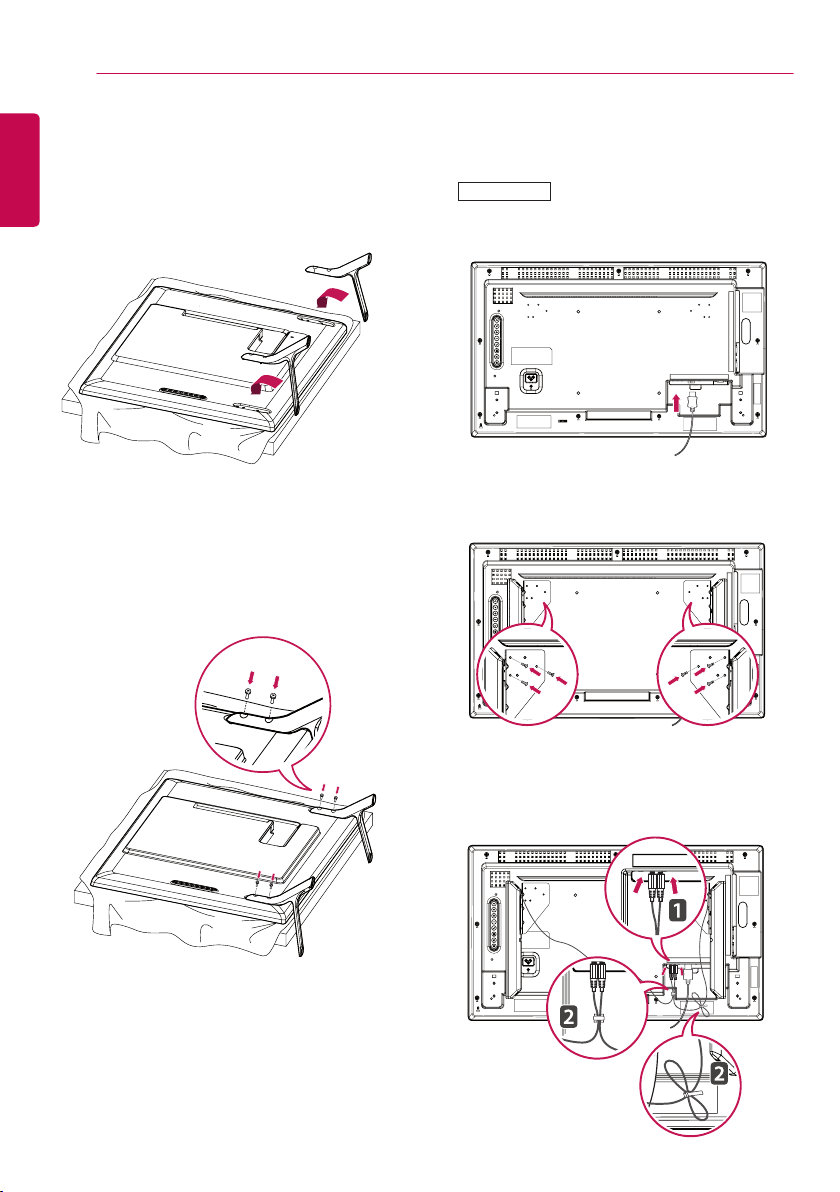

Connecting the Stand
- For certain models only.
1Place a soft cloth on the table and place the
product with the screen facing downward.
Connecting the Speakers
- For certain models only.
1Connect an input signal cable before
installing the speakers.
3Connect the speaker cables noting the
correct polarity. Use cable holders and cable
ties to organize the speaker cables.
2Mount the speakers by using screws as
shown below. Make sure the power cable is
disconnected before making a connection.
32LS53A
9
ASSEMBLY AND PREPARATION
ENGLISH
1Connect an input signal cable before
installing the speakers.
3Connect the speaker cables noting the
correct polarity. Use cable holders and cable
ties to organize the speaker cables.
2Mount the speakers by using screws as
shown below. Make sure the power cable is
disconnected before making a connection.
42LS55A
42LS53A
47LS55A
47LS53A
55LS55A
55LS53A
65LS53A •Please turn off the power before removing
the cable. Connecting or removing the
speaker cable while turned on may result in
no sound.
NOTE
10 ASSEMBLY AND PREPARATION
ENGLISH
Connecting IR & Light Sensor
When you connect the cable to the product,
the feature for receiving remote control signals
is activated. The IR & light sensor is magnetic.
Attach it to the front edge of the product for use.
[Front]
Portrait Layout
When installing in a portrait layout, rotate the
monitor counterclockwise 90 degrees (when
facing the screen).
The Kensington security system connector is
located at the back of the monitor. For more
information on installation and use of this
system, refer to the manual provided with the
Kensington security system or visit
http://www.
kensington.com
.
Connect the Kensington security system cable
between the monitor and a table.
•The Kensington security system is optional.
You can obtain additional accessories from
most electronics retail stores.
Using Kensington Lock
NOTE
PIXEL
SENSOR
IR&LIGHT
SENSOR
3.3V 0.25mA
___
---
CAUTION
CAUTION
