LG 55EH5C Guide de démarrage rapide

55EH5C

www.lg.com

P/No.: MFL69588401 (1608-REV01)

Printed in Korea

*MFL69588401*

Please read this manual carefully before operating your set and retain it

for future reference.

EASY SETUP GUIDE

LG Digital

Signage

(MONITOR SIGNAGE)

https://youtu.be/6t5lcuROngM

ENG

ENGLISH

AAA

FRONT

(M4 x L8)

(M3 x L4.5)

(Φ3 x L6) (Φ3 x L10) (M4 x L10)

ENGENGLISH

You can download the web manuals for this product at the following websites.

(Keyword: EH5C)

•www.lgecommercial.com

•www.lg.com

SuperSign: www.lgecommercial.com/supersign

ENG

ENGLISH

Network

DVI OUT

DP OUT

HDMI OUT

ENGENGLISH

Network

DVI OUT

DP OUT

HDMI OUT

ENG

ENGLISH

1 Open the product box, then remove the packaging materials and the T-con box in the order they appear.

T-con box

2 Connect the cables to the Signage box. At this stage, the HDMI cable with the label marked ‘FRONT’ must be

connected to the upper part and the Rear cable must be connected to the lower part.

In the case of 16/22 pin cables, connect the cable with the red mark to the upper part. Connect the 16/22 pin

cable with the longer neck to the display set.

FRONT

ENGENGLISH

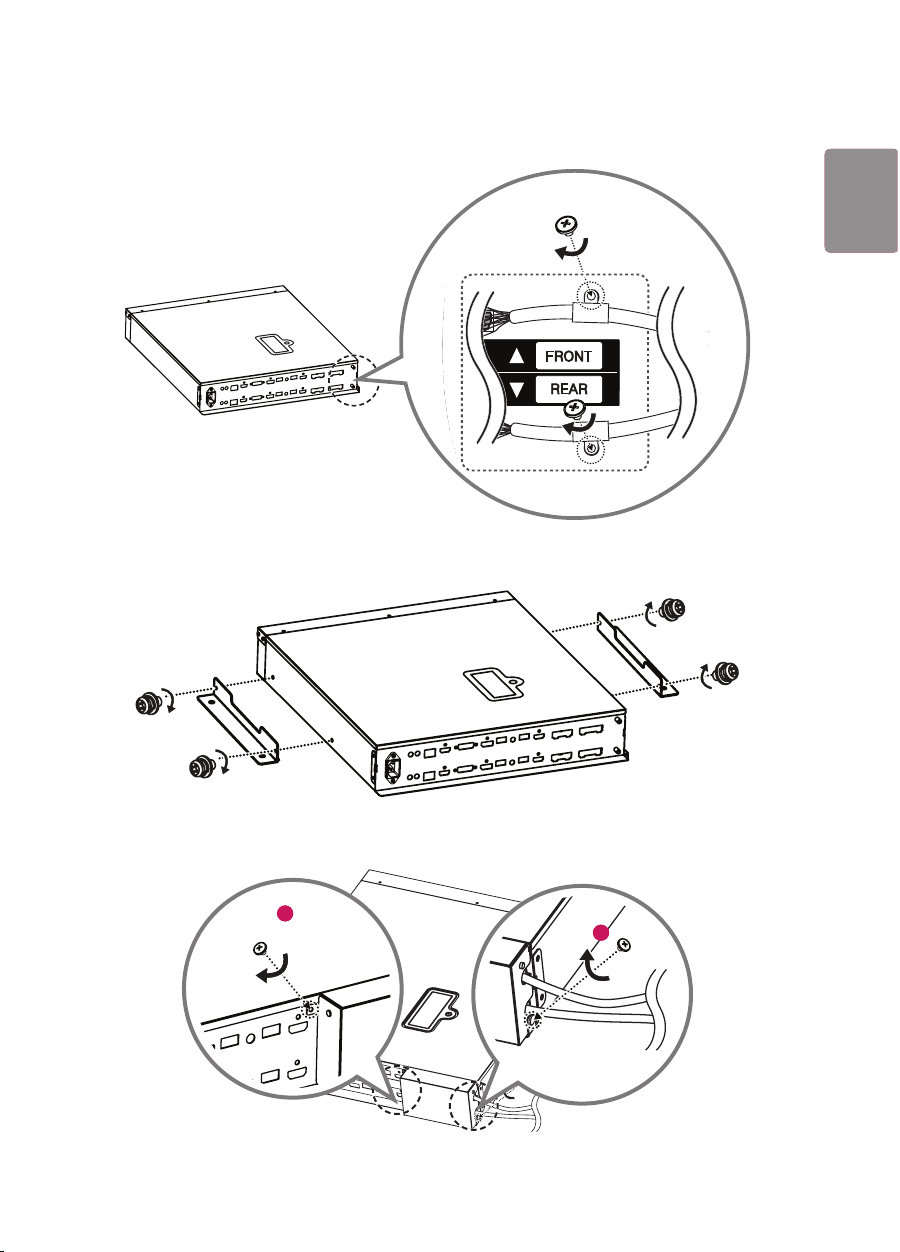

3 Attach the 16/22 pin cables using the 2 screws (M3 x L4.5).

4 If installing onto a ceiling or wall, attach the mounting brackets to the Signage box using four screws (M4 x L8).

5 Position the jack cover to fit the cables to the cut spaces and then attach it using the 2 screws (M3 x L4.5).

ENG

ENGLISH

6 Fold the connectors on the opposite side of the 16/22 pin cables to make them parallel to the cable.

7 Insert the connectors of the 16/22 pin cables into the tubes.

8 Pass the cables through the hole in the middle of the SET.

FRONT

ENGENGLISH

9 Connect the HDMI cable with the label marked ‘FRONT’ to the FRONT side. Insert the 16/22 pin cable with the red

mark to the cable holder and connect it using a screw (M3 x L4.5).

FRONT

Connect the HDMI cable (without the label marked ‘FRONT’) to the REAR side. Insert the 16/22 pin cable (without

the red mark) to the cable holder and connect it using a screw (M3 x L4.5).

When installing the product to a stand (excluding a ceiling mount or a wall mount), remove the 2 screws, change

the direction of the LG logo, and then reassemble it.

ENG

ENGLISH

Cover the FRONT side with the T-con box cover (with the IR receiver) and attach it using 4 screws (Φ3 x L6) on the

opposite side.

Cover the REAR side with the other T-con box cover and attach it using 2 screws (Φ3 x L10).
