OWNER’S MANUAL
LG Digital Signage
(MONITOR SIGNAGE)
55TR3DK-B
65TR3DK-B
75TR3DK-B
86TR3DK-B
55TR3DK-I
65TR3DK-I
75TR3DK-I
86TR3DK-I
55TR3DK-E
65TR3DK-E
75TR3DK-E
86TR3DK-E
www.lg.com
Copyright © 2022 LG Electronics Inc. All Rights Reserved.
Please read this manual carefully before operating your set and retain it for future
reference.
2
ENGLISH
TABLE OF CONTENTS
BASIC .............................................3
- Checking the Accessories ............................................3
- Learning the Buttons......................................................4
GETTING READY ...........................5
- Precaution When Using the Touch Pen ................5
CHECKING BEFORE
INSTALLATION ..............................6
- Installation Orientation .................................................6
- Installation Location........................................................7
- Wall Mount Holder ..........................................................8
PRECAUTIONS FOR USE...............9
- Dust..........................................................................................9
- Afterimage ...........................................................................9
PRODUCT SPECIFICATIONS...... 11
LICENSES.................................... 18
3
ENGLISH
Warning: This equipment is compliant with Class A of CISPR 32. In a residential environment this equipment may cause
radio interference.
BASIC
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.

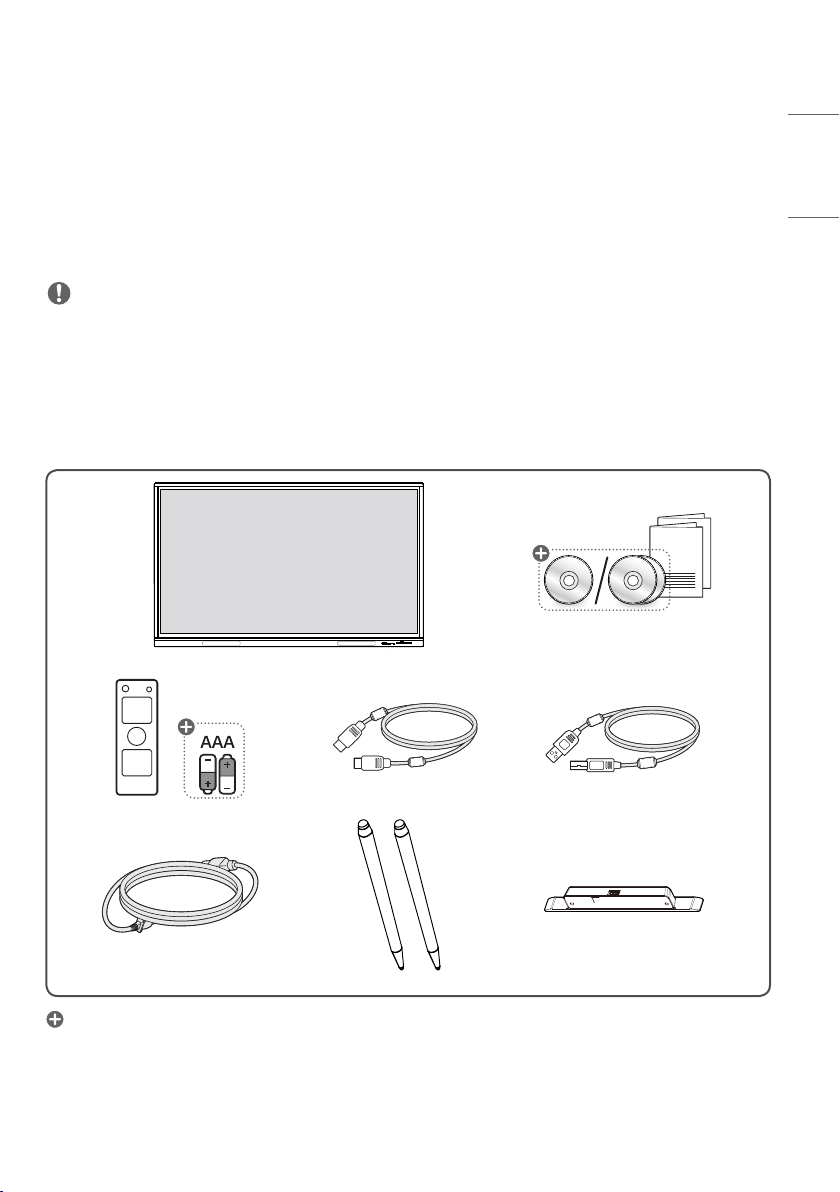

Checking the Accessories
Depending on country
4
ENGLISH

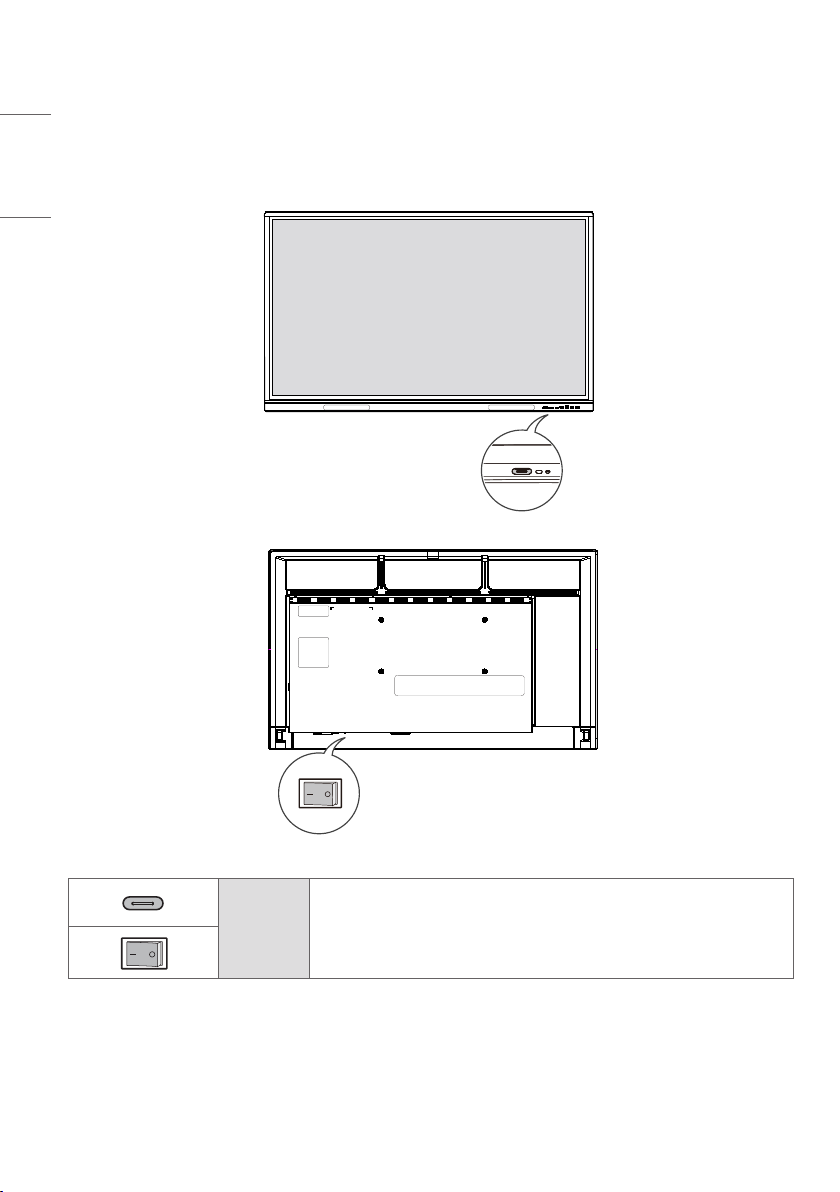

Learning the Buttons
The image may be different according to the model.
Power Turns the power on or off.
5
ENGLISH
GETTING READY
CAUTION
•Always use genuine components to ensure safety and product performance.
•The product warranty will not cover damage or injury caused by the use of counterfeit components.
NOTE
•The accessories provided with your product may vary depending on the model or region.
•Product specifications or contents in this manual may be changed without prior notice due to upgrade of product
functions.

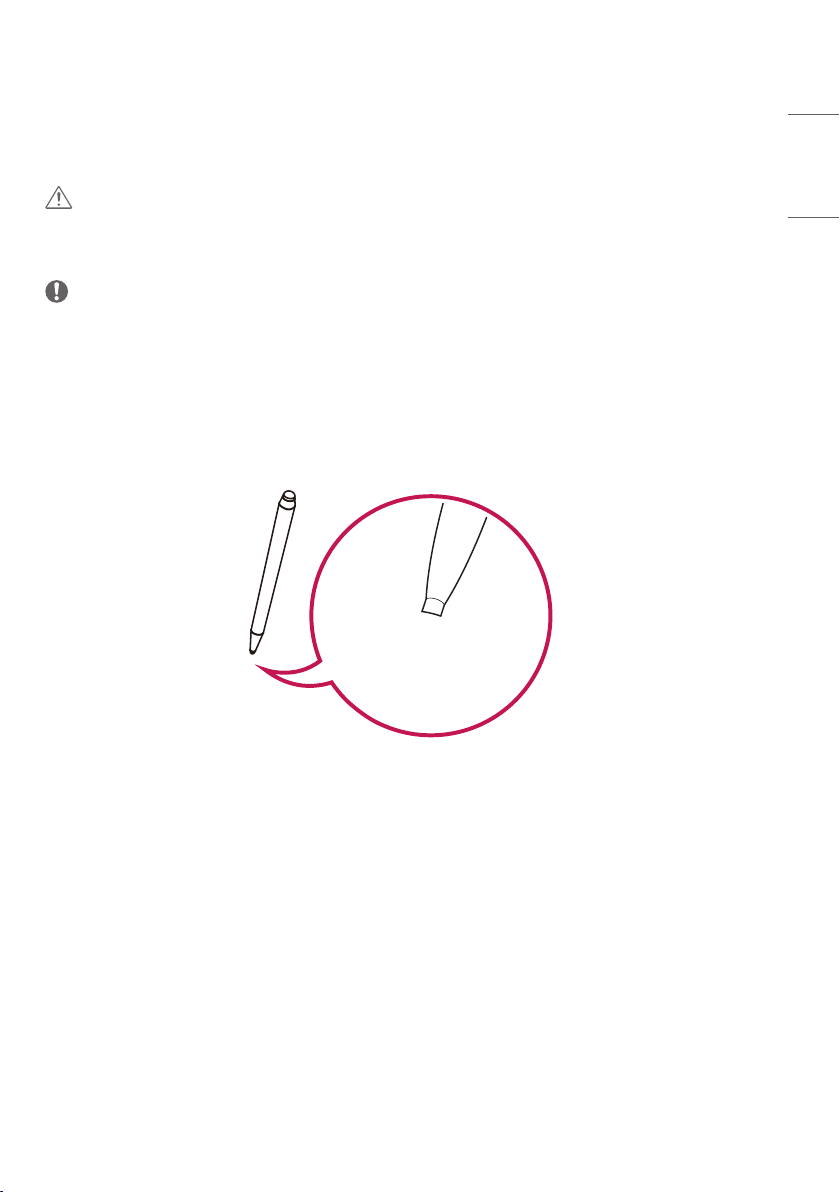

Precaution When Using the Touch Pen
When the touch pen is worn as shown in the figure, replace it.
6
ENGLISH
CHECKING BEFORE INSTALLATION
We are not responsible for product damage caused by failure to follow the guide.

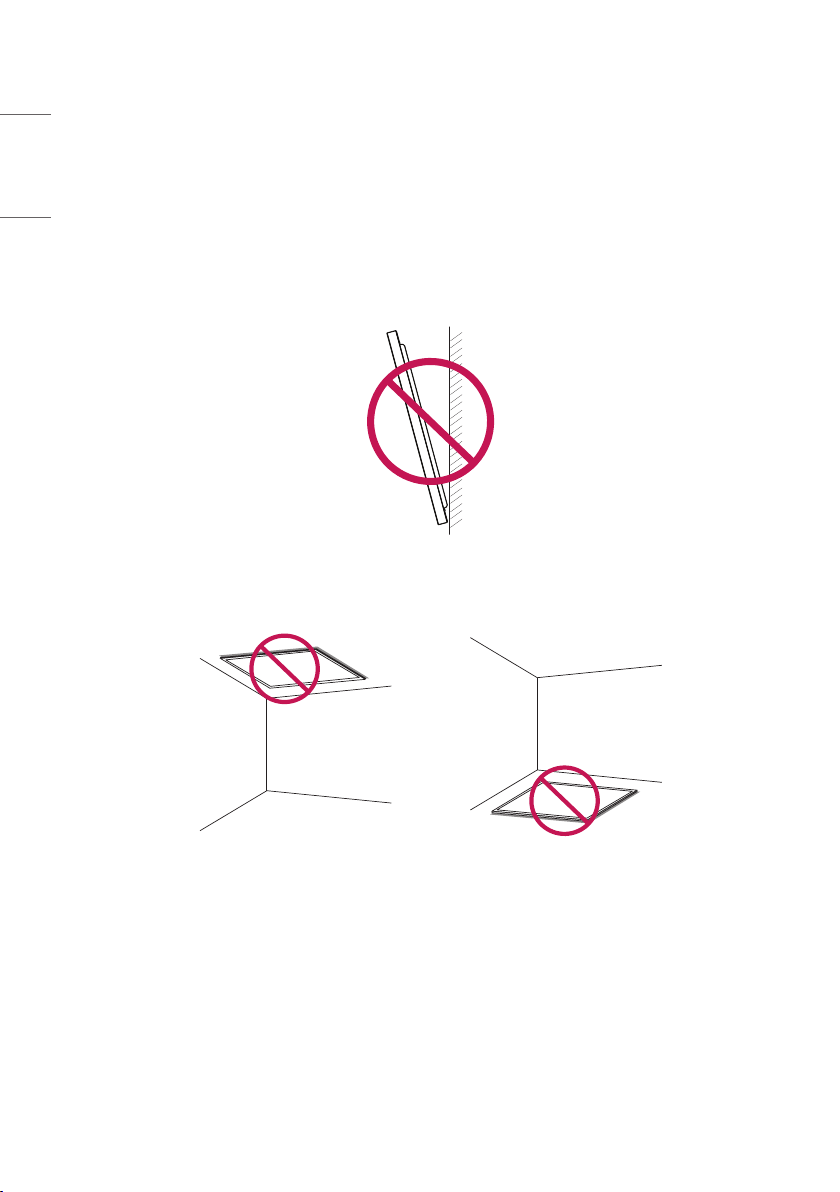

Installation Orientation
Tilt Angle
40 mm
15˚
Ceiling, Floor Orientation
7
ENGLISH

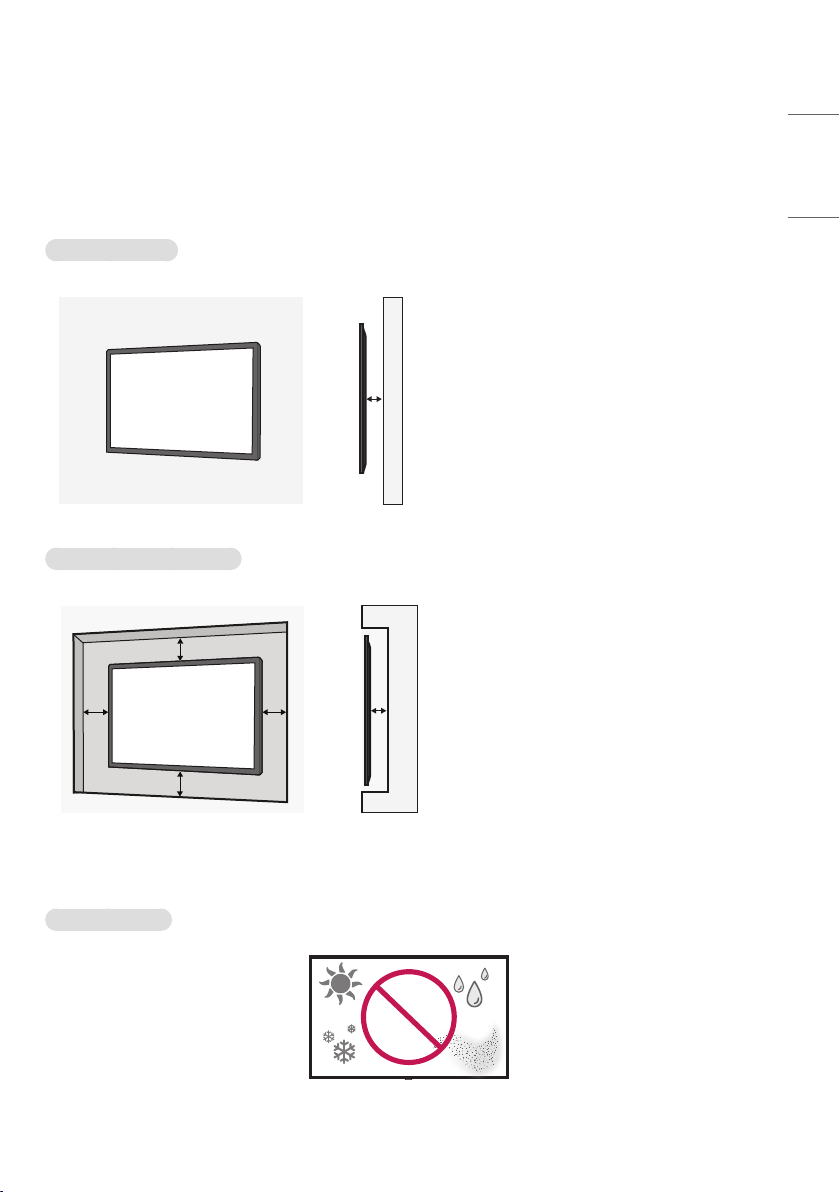

Installation Location
We are not responsible for product damage caused by failure to follow the guide.
Indoor
Installing on a Wall
A
C
B
BB
A
A: 100mm (3.9inches) or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Installing on a Recessed Wall
A
C
B
BB
A
A: 100mm (3.9inches) or more
B: 100mm (3.9inches) or more
C: 100mm (3.9inches) or more
•The warranty will not cover any damage
caused by using the product in direct sunlight
on the front panel.
Outdoor
Outdoor Enclosed
8
ENGLISH
Wall Mount Holder
To install the monitor on a wall, attach a wall mount holder (optional) to the back of the monitor.
Take caution, and ensure that the wall mount holder (optional) is securely fixed to the monitor and to the wall.
The VESA dimensions of the wall mount by model are as follows.
A
B
Model
VESA Dimensions
(A x B) (mm) Standard
Dimensions
Length (Maximum)
(mm) Quantity
VESA Dimensions
(A x B) (inches)
Length (Maximum)
(inches)
55TR3DK-B
55TR3DK-I
55TR3DK-E
400x200
M8
25
4
15.7x7.8 0.9
65TR3DK-B
65TR3DK-I
65TR3DK-E
600x400
M8
25
4
23.6x15.7 0.9
75TR3DK-B
75TR3DK-I
75TR3DK-E
800x400
M8
25
4
31.4x15.7 0.9
86TR3DK-B
86TR3DK-I
86TR3DK-E
800x600
M8
25
4
31.4x23.6 0.9
CAUTION
•Disconnect the power cord first, and then move or install the monitor. Otherwise, it may result in electric shock.
•If the monitor is installed on a ceiling or inclined wall, it may fall and result in injury.
•Damage to the monitor by tightening the screws too tightly may void your warranty.
•Use screws and wall mount plates conforming to VESA standards. Breakage or personal injury due to use or misuse of
inappropriate components is not covered by the warranty of this product.
NOTE
•Using screws longer than the indicated depth may damage the inside of the product. Be sure to use the proper length.
•For more information on installation, please refer to the user manual for the wall mount.
9
ENGLISH
PRECAUTIONS FOR USE
Dust
The warranty will not cover any damage caused by using the product in an excessively dusty environment.
Afterimage
•After-image appears when the product is turned off.
- Pixels may be damaged rapidly if a still image is displayed on the screen for a long period of time. Use the screen-
saver function.
- Switching from a screen with high differences in luminance (black and white or grey) to a darker screen may cause
an afterimage. This is normal due to the display characteristics of this product.
•When the LCD screen is in a still pattern for extended periods of use, a slight voltage difference may occur between
the electrodes that operate the liquid crystal (LC). The voltage difference between the electrodes increases over time
and tends to keep the liquid crystal aligned in one direction. At this time, the previous image remains, which is called an
afterimage.
•Afterimages do not occur when continuously changing images are used but take place when a certain screen is fixed
for a long time. The following are operational recommendations for reducing the occurrence of afterimages when
using a fixed screen. The maximum recommended time for switching the screen is 12 hours. Shorter cycles are better
for preventing afterimages.
10
ENGLISH
•Recommended Usage Condition
1 Change the background color and text color at equal intervals.
- Afterimages occur less when the colors to be changed are complementary to one another.
A
A
AA
A
A
ITO or MoTi Pixel Layer
2 Switch the screen at equal time intervals.
- Take caution, and ensure that text or images from before the screen change are not left in the same location after
the screen change.
