LG 55LS53A Manuel utilisateur

OWNER’S MANUAL

MONITOR SIGNAGE

Please read this manual carefully before operating the your set and retain it

for future reference.

www.lg.com

MONITOR SIGNAGE MODELS

42LS55A

47LS55A

55LS55A

32LS53A

42LS53A

47LS53A

55LS53A

65LS53A

2TABLE OF CONTENTS

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 ASSEMBLY AND

PREPARATION

4 Accessories

5 Optional Accessories

7 Parts and Buttons

8 Connecting the Stand

9 Connecting the Speakers

10 Connecting IR & Light Sensor

10 Portrait Layout

11 Installing on a Wall

13 REMOTE CONTROL

15 MAKING CONNECTIONS

15 Connecting to a PC

16 External Device Connection

18 Using the Input List

18 ENTERTAINMENT

18 Using My Media

18 - Connecting USB storage devices

20 - Files Supported by My Media

23 - Viewing Videos

25 - Viewing Photos

25 - Listening to Music

26 - Settings

27 SuperSign Contents

27 Information

27 File Manager

28 Picture ID Settings

29 USER SETTINGS

29 Main Menu Settings

29 - Quick Settings

30 - Picture Setting

34 - Sound Settings

35 - Network Settings

38 - General Settings

39 TROUBLESHOOTING

41 PRODUCT SPECIFICATIONS

57 IR CODES

59 TO CONTROL MULTIPLE

PRODUCTS

59 Connecting the cable

59 RS-232C Configurations

59 Communication Parameter

60 Command Reference List

62 Transmission/Reception Protocol

LICENSES

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the

HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in

the United States and other countries.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

•The warranty will not cover any damage caused by using the product in an excessively dusty

environment.

NOTE

For DTS patents, see http://patents.dts.com. Manufactured under license from

DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol together are

registered trademarks, and DTS 2.0 Channel is a trademark of DTS, Inc. ©

This DivX Certified® device has passed rigorous testing to ensure it plays

DivX® video. To play purchased DivX movies, first register your device at vod.

divx.com. Find your registration code in the DivX VOD section of your device

setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium

content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC

and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274.

4ASSEMBLY AND PREPARATION

ENGLISH

Accessories

Please check whether all the components are included in the box before using the product. If there are any

missing components, contact the retail store where you purchased the product. The illustrations in this manual

may differ from the actual product and accessories.

Remote Control,

Batteries (AAA) 2EA Power Cord IR & Light Sensor

CD (Owner’s Manual)/

Card HDMI Cable

ASSEMBLY AND PREPARATION

•Always use genuine components to ensure safety and product performance.

•The product warranty will not cover damage or injury caused by the use of counterfeit components.

•The accessories provided with your product may vary depending on the model or region.

•Product specifications or contents in this manual may be changed without prior notice due to

upgrade of product functions.

•SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest

software for your model.

CAUTION

NOTE

ASSEMBLY AND PREPARATION

ENGLISH

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the

product, and new accessories may be added. The illustrations in this manual may differ from the actual

product and accessories.

•Cable holder/Cable tie may not be available in some areas or for some models.

•Optional accessories are available for some models. If necessary, please purchase them separately.

Cable Holders/

Cable Ties

Screws

Diameter 4.0 mm x Pitch 0.7 mm x

Length 14 mm (including spring washer)

Speakers

SP-2100

Stand kit

Speaker kit

Screws

Diameter 4.0 mm x Pitch

0.7 mm x Length 8 mm

(including spring washer)

Screws

Diameter 4.0 mm x Pitch

1.6 mm x Length 10 mm

NOTE

Stand

ST-321T 32LS53A

ST-421T 42LS53A/ 42LS55A

ST-471T 47LS53A/ 47LS55A

55LS53A/ 55LS55A

ST-651T 65LS53A

6ASSEMBLY AND PREPARATION

ENGLISH

Screws Owner’s Manual

(supplied on CD-ROM) /

Card

Media Player

MP500/MP700

Media Player kit

•Optional accessories are available for some models. If necessary, please purchase them separately.

•Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.

NOTE

Pixel sensor kit

KT-SP0

Wi-Fi Dongle kit

AN-WF500

ASSEMBLY AND PREPARATION

ENGLISH

PIXEL

SENSOR

IR&LIGHT

SENSOR

3.3V 0.25mA

___

---

Parts and Buttons

Connection

Panel

Screen

Buttons

No. Description

1Adjusts up and down.

2Moves left and right.

3Displays the current signal and mode.

4Accesses the main menus, or saves your input and exits the menus.

5Change the input signal.

6Turns the power on or off.

8ASSEMBLY AND PREPARATION

ENGLISH

2Use the screws to secure the stand to the

back of the product as shown below.

Connecting the Stand

- For certain models only.

1Place a soft cloth on the table and place the

product with the screen facing downward.

ASSEMBLY AND PREPARATION

ENGLISH

Connecting the Speakers

- For certain models only.

1Connect an input signal cable before

installing the speakers.

1Connect an input signal cable before

installing the speakers.

3Connect the speaker cables noting the

correct polarity. Use cable holders and cable

ties to organize the speaker cables.

3Connect the speaker cables noting the

correct polarity. Use cable holders and cable

ties to organize the speaker cables.

2Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

2Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

32LS53A

42LS55A

42LS53A

47LS55A

47LS53A

55LS55A

55LS53A

65LS53A

10 ASSEMBLY AND PREPARATION

ENGLISH

Connecting IR & Light Sensor

When you connect the cable to the product,

the feature for receiving remote control signals

is activated. The IR & light sensor is magnetic.

Attach it to the front edge of the product for use.

[Front]

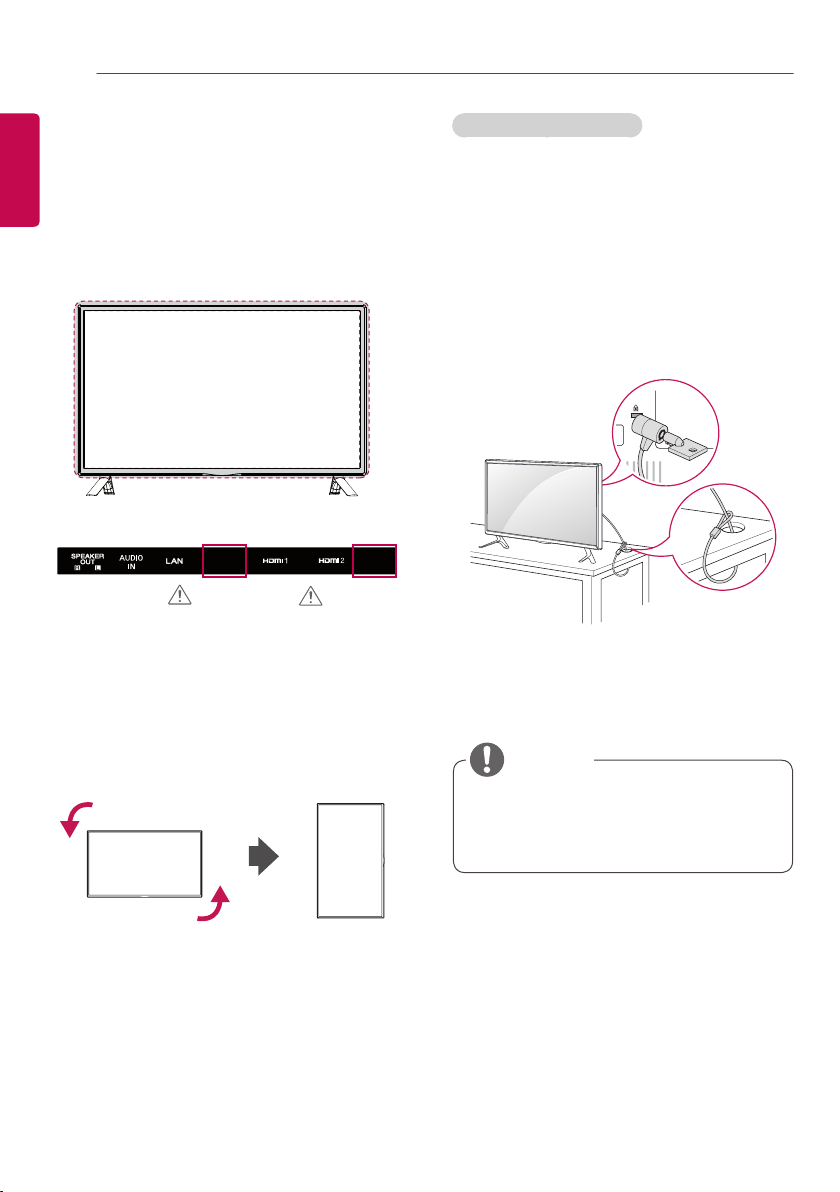

Portrait Layout

When installing in a portrait layout, rotate the

monitor counterclockwise 90 degrees (when

facing the screen).

The Kensington security system connector is

located at the back of the monitor. For more

information on installation and use of this

system, refer to the manual provided with the

Kensington security system or visit

http://www.

kensington.com

Connect the Kensington security system cable

between the monitor and a table.

•The Kensington security system is optional.

You can obtain additional accessories from

most electronics retail stores.

Using Kensington Lock

NOTE

PIXEL

SENSOR

IR&LIGHT

SENSOR

3.3V 0.25mA

___

---

CAUTION
