LG 42SH7DB Manuel utilisateur

www.lg.com

OWNER’S MANUAL

Please read this manual carefully before operating your set and retain it for

future reference.

42SH7DB

49SH7DB

55SH7DB

LG Digital

Signage

(MONITOR SIGNAGE)

ENGLISH

TABLE OF CONTENTS

3 LICENSES

4 ASSEMBLY AND PREPARATION

4 Optional Accessories

6 Parts and Buttons

6 Connecting the Stand

7 Connecting the Speakers

7 Connecting IR & Light Sensor

8 Portrait Layout

9 Attaching and Removing the LG Logo

Bracket

10 Installing on a Wall

12 REMOTE CONTROL

14 Displaying the Device Name

Connected to an Input Port

14 White Balance Adjust Menu

15 MAKING CONNECTIONS

15 Connecting to a PC

15 External Device Connection

17 Daisy Chain Monitors

18 TROUBLESHOOTING

21 PRODUCT SPECIFICATIONS

ENGLISH

LICENSES

Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI

logo are trademarks or registered trademarks of HDMI Licensing LLC in the United

States and other countries.

This DivX Certified® device has passed rigorous testing to ensure it plays DivX®

video. To play purchased DivX movies, first register your device at vod.divx.com.

Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

DivX®, DivX Certified®and associated logos are trademarks of DivX, LLC and are

used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;

7,515,710; 7,519,274.

Manufactured under license from Dolby Laboratories. Dolby and the double-D

symbol are trademarks of Dolby Laboratories.

•The warranty will not cover any damage caused by using the product in an excessively dusty environment.

NOTE

ENGLISH

ASSEMBLY AND PREPARATION

Optional Accessories

Without prior notice, optional accessories are subject to change to improve the performance of the product,

and new accessories may be added. The illustrations in this manual may differ from the actual product and

accessories.

Cable Holders/

Cable Ties

Screws

Diameter 4.0 mm x Pitch 0.7 mm x

Length 10 mm (including spring washer)

Speakers

SP-2100

Stand kit

Speaker kit

Screws

Diameter 4.0 mm x

Pitch 0.7 mm x Length 8 mm

(including spring washer)

Screws

Diameter 4.0 mm x

Pitch 1.6 mm x

Length 10 mm

•Always use genuine components to ensure safety and product performance.

•The product warranty will not cover damage or injury caused by the use of counterfeit components.

CAUTION

•The accessories provided with your product may vary depending on the model or region.

•Product specifications or contents in this manual may be changed without prior notice due to upgrade of

product functions.

•SuperSign Software & Manual

- Downloading from the LG Electronics website.

- Visit the LG Electronics website (www.lgecommercial.com/supersign) and download the latest software for

your model.

NOTE

Stand

ST-200T

ENGLISH

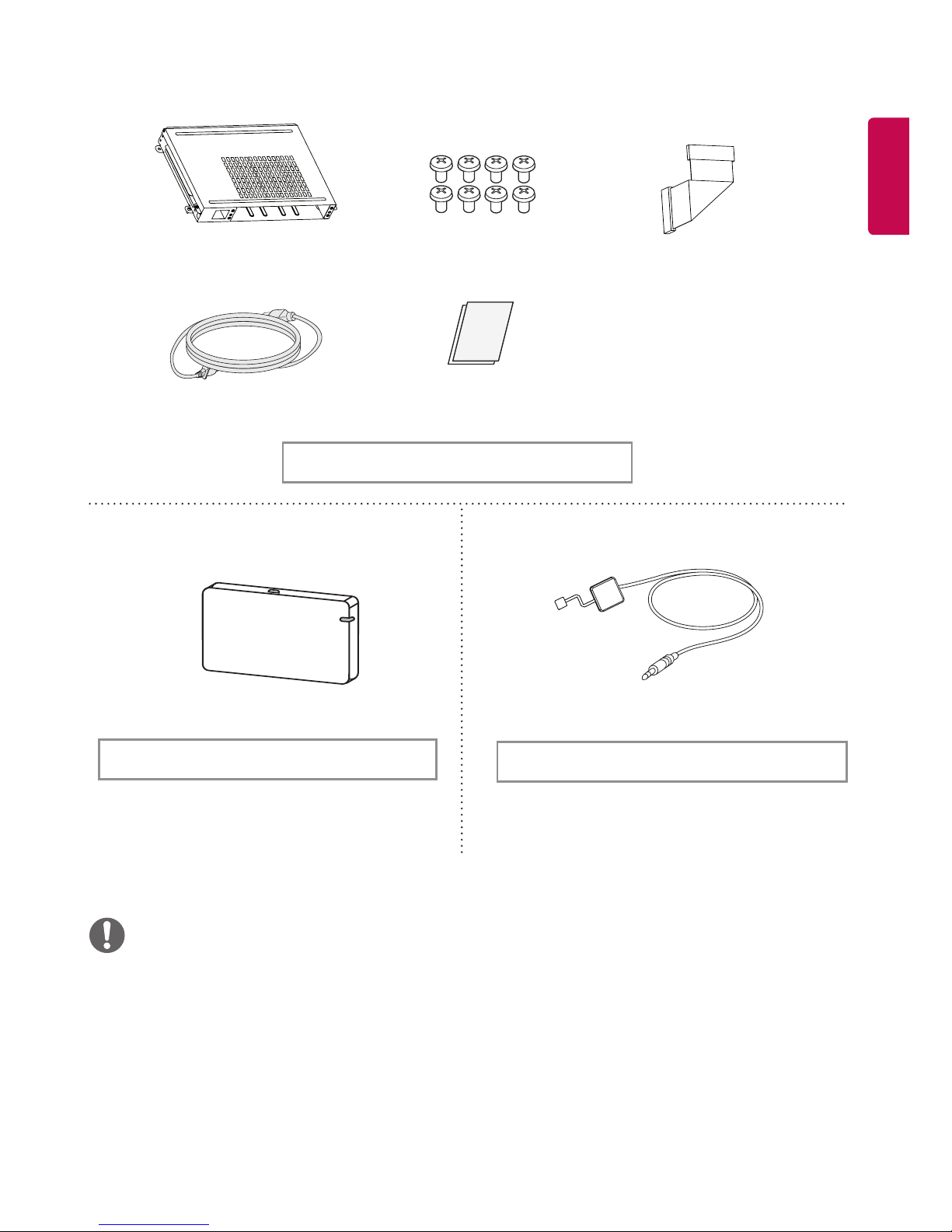

•Cable holder/Cable tie may not be available in some areas or for some models.

•Optional accessories are available for some models. If necessary, please purchase them separately.

•Pixel sensor is sold separately. You can obtain additional accessories from your local retail store.

NOTE

Screws

Card (Easy Setup Guide)

KT-OPSA

OPS kit

Connecting

Cable

Power Cord

Pixel sensor kit

KT-SP0

Wi-Fi Dongle kit

AN-WF500

ENGLISH

Parts and Buttons

- The image may be different according to the

model

Buttons

Connecting the Stand

- For certain models only.

- The image may be different according to the

model

y:Changes the input source.

Accesses the main menus, or saves your

input and exits the menus.

Adjust the up and down.

y: Moves left and right.

Displays the current signal and mode.

y/I: Turns the power on or off.

ENGLISH

Connecting the Speakers

- For certain models only.

- The image may be different according to the

model.

1Connect an input signal cable before installing

the speakers.

3Connect the speaker cables noting the correct

polarity. Use cable holders and cable ties to

organize the speaker cables.

2Mount the speakers by using screws as

shown below. Make sure the power cable is

disconnected before making a connection.

Connecting IR & Light Sensor

When you connect the cable to the product, the

feature for receiving remote control signals is

activated. The IR & light sensor is magnetic. Attach

it to the front edge of the product for use.

[Front]

•Please turn off the power before removing the

cable. Connecting or removing the speaker

cable while turned on may result in no sound.

NOTE

CAUTION CAUTION

•The signal strength of the IR and Light sensor

will decrease if the sensor is not placed in front

of the product.

NOTE

ENGLISH

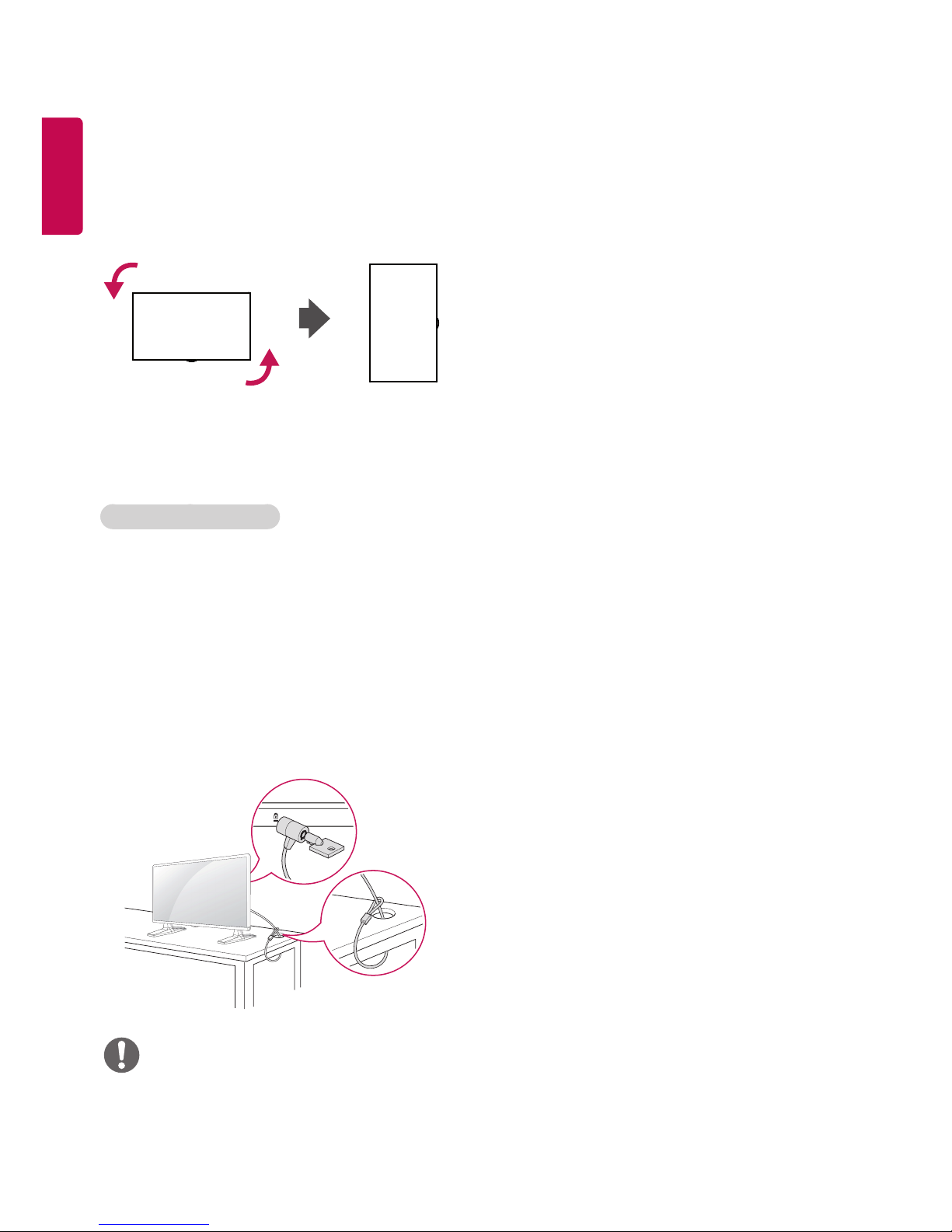

Portrait Layout

When installing in a portrait layout, rotate the

monitor counterclockwise 90 degrees (when facing

the screen).

(This is not available for all models.)

The Kensington security system connector is

located at the back of the monitor. For more

information on installation and use of this system,

refer to the manual provided with the Kensington

security system or visit

http://www.kensington.

com

Connect the Kensington security system cable

between the monitor and a table.

Using Kensington Lock

•The Kensington security system is optional. You

can obtain additional accessories from most

electronics retail stores.

NOTE

ENGLISH

Attaching and Removing the LG Logo Bracket

- For certain models only.

- The image may be different according to the model.

Removing the LG Logo

1 Lay a clean cloth on the floor, and then put

the monitor on it with the screen face down.

Remove the two screws that secure the LG

Logo Bracket to the bottom of the rear side of

the monitor using a screwdriver.

2After removing the screws, remove the LG

Logo. When re-attaching the LG Logo, follow

the process in reverse order.

Attaching the LG Logo on the right side

1 Lay a clean cloth on the floor, and then put

the monitor on it with the screen face down.

Remove the two screws that secure the LG

Logo Bracket to the bottom of the rear side of

the monitor using a screwdriver.

2After removing the screws, remove the LG

Logo. Attach the LG Logo Bracket with the two

screws, aligning it with the holes at the right

side.

LG Logo Bracket

ENGLISH

Installing on a Wall

For proper ventilation, allow a clearance of 100

mm on each side and from the wall. Detailed

installation instructions are available from your

dealer, see the optional Tilt Wall Mounting Bracket

Installation and Setup Guide.

To install your monitor on a wall, attach a wall

mounting bracket (optional part) to the back of the

monitor.

Make sure that the wall mounting bracket is

securely fixed to the monitor and to the wall.

1Use only screws and wall mounting brackets

that conform to VESA standards.

2Screws which are longer than standard length

may damage the inside of the monitor.

3A non-VESA standard screw may damage

the product and cause the monitor to fall. LG

Electronics is not liable for any accidents related

to the use of non-standard screws.

4Please use VESA standard as below.

•785 mm and above

* Fixing screws: Diameter 6.0 mm x Pitch

1.0 mm x Length 12 mm

100 mm

100 mm 100 mm

•Disconnect the power cord before moving or installing the monitor to avoid risk of electric shock.

•If you install the monitor on a ceiling or slanted wall, it may fall and result in injury. Use an authorized LG wall

mount and contact your local dealer or qualified personnel to assist with the installation.

•Do not over tighten the screws as this may damage the monitor and void your warranty.

•Use only screws and wall mounting brackets that meet the VESA standard. Any damage or injuries caused by

misuse or use of improper accessories are not covered by the warranty.

•To prevent injury, this apparatus must be securely attached to the wall in accordance with the installation

instructions. (This pertains only to Australia and New Zealand.)

CAUTION

•The wall mount kit includes the installation guide and all necessary parts.

•The wall mounting bracket is optional. You can obtain additional accessories from your local dealer.

•The length of screws required may differ depending on the wall mount. Be sure to use the correct length.

•For more information, please refer to the guide provided with the wall mount.

NOTE

785 mm
