LG LG-RD2630 Manuel utilisateur

LG-RD2630

User Guide

P/N : MMBB0195901 (1.0) G

mmiiHHkkkkssDDrrkkeekkxxZZnnff''kkZZddkk

eekkWWMMyy%%LG-RD2630

RD2630_Slim_Cover 1/9/06 9:05 AM Page 1

LG-RD2630

User Guide

P/N : MMBB0195901 (1.0) H

mmiiHHkkkkssDDrrkkeekkxxZZnnff''kkZZddkk

eekkWWMMyy%%LG-RD2630

RD2630_Slim_Cover 1/9/06 9:05 AM Page 2

Phone Components . . . . . . . . . . . . . .2

Onscreen Icons . . . . . . . . . . . . . . . . . .4

Using the Battery and Charger . . . .5

Installing and Removing the Battery 5

Charging the Battery . . . . . . . . . . . . . . .6

Battery Charge Level . . . . . . . . . . . . . .6

Turning the Phone On and Off . . . . .7

Changing the display language . . . .7

Airplane Mode . . . . . . . . . . . . . . . . . . .7

Making a Call . . . . . . . . . . . . . . . . . . . .8

Receiving Calls . . . . . . . . . . . . . . . . . .8

Menu Tree . . . . . . . . . . . . . . . . . . . . . . .9

Entering Information Using T9 Text

Input . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Typing In T9 Mode . . . . . . . . . . . . . . . .10

Typing In ABC (Multi-tap) Mode . . .10

123 (Numbers) Mode . . . . . . . . . . . . .11

Symbol/Smileys Mode . . . . . . . . . . . .11

To Edit in Hindi Mode . . . . . . . . . . . .11

Write Text . . . . . . . . . . . . . . . . . . . . . .12

Write E-mail . . . . . . . . . . . . . . . . . . . .14

1234 Services . . . . . . . . . . . . . . . . . . .16

Introduction . . . . . . . . . . . . . . . . . . . .17

Menu Features . . . . . . . . . . . . . . . . .18

Safety Information . . . . . . . . . . . . . .27

Charger and Adapter Safety . . . . . . .27

Battery Information and Care . . . . . .27

General Notice . . . . . . . . . . . . . . . . . . .27

LIMITED WARRANTY

STATEMENT . . . . . . . . . . . . . . . . . . . .28

Service Center List . . . . . . . . . . . . . .30

- 1-

CCoonntteennttss

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 1

- 2-

Phone Components

The following shows key components of your mobile phone.

Headset Jack

Service LED

Soft Key1

Clear Key

CALL Key

Vibrate Mode Key

Microphone

Soft Key2

4 Way Navigation

Key

LCD Screen

END / PWR Key

Alphanumeric

Keypad

Charger Port

Earpiece

Data Port

Key Guard Key

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 2

LCD Screen Displays messages & indicator icons.

Soft Key 1

Used to display the function setting menu. Accepts the

highlighted choice when navigating through a menu.

Soft Key 2

Press this key once in a menu, to go back one level.

CALL Key Allows user to place or answer calls.

END/PWR Key

Used to turn power on/off and to end a call. Using this

key, you can return to the main menu display screen.

When you press once, when a call is received, the phone

stops ringing or vibrating depending on the mode it is

in. Press twice to reject the call.

Alphanumeric Keypad These keys enable you to enter numbers and characters

and choose menu items.

4 Way Navigation Key This Navigation key allows quick access to

Messages and Voice Mail notification messages.

Ring Tone, R World, Profiles.

Clear Key Press to delete a single space or character. Press and

hold to delete entire words.

Vibrate Mode Key In standby mode, set the vibrate mode by pressing and

holding the key about 2 seconds.

Soft Keys

(the names of the

functions of these

keys appear at the

bottom of the screen)

- 3-

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 3

- 4-

Onscreen Icons

The phone screen displays several onscreen icons which appear when

the phone is powered on.

Icons Descriptions

Displays the strength of the signal received by the phone and current

signal strength is indicated by the number of bars displayed on the

screen.

No service

The phone is not receiving a system signal.

Indicates that a Text Message or E-Mail Messges or Voice Mail has

been received

In Vibrate mode.

In Silent mode.

In General mode.

In use. A call is in progress.

*No icon indicates the phone is in standby mode.

Charge level. Indicates battery charge level.

In Alarm mode.

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 4

Using the Battery and Charger

Charge the battery fully before the initial use of the phone.

The phone comes with a rechargeable battery. Keep the battery charged

while not in use in order to maximize talk and standby time when using

the phone.

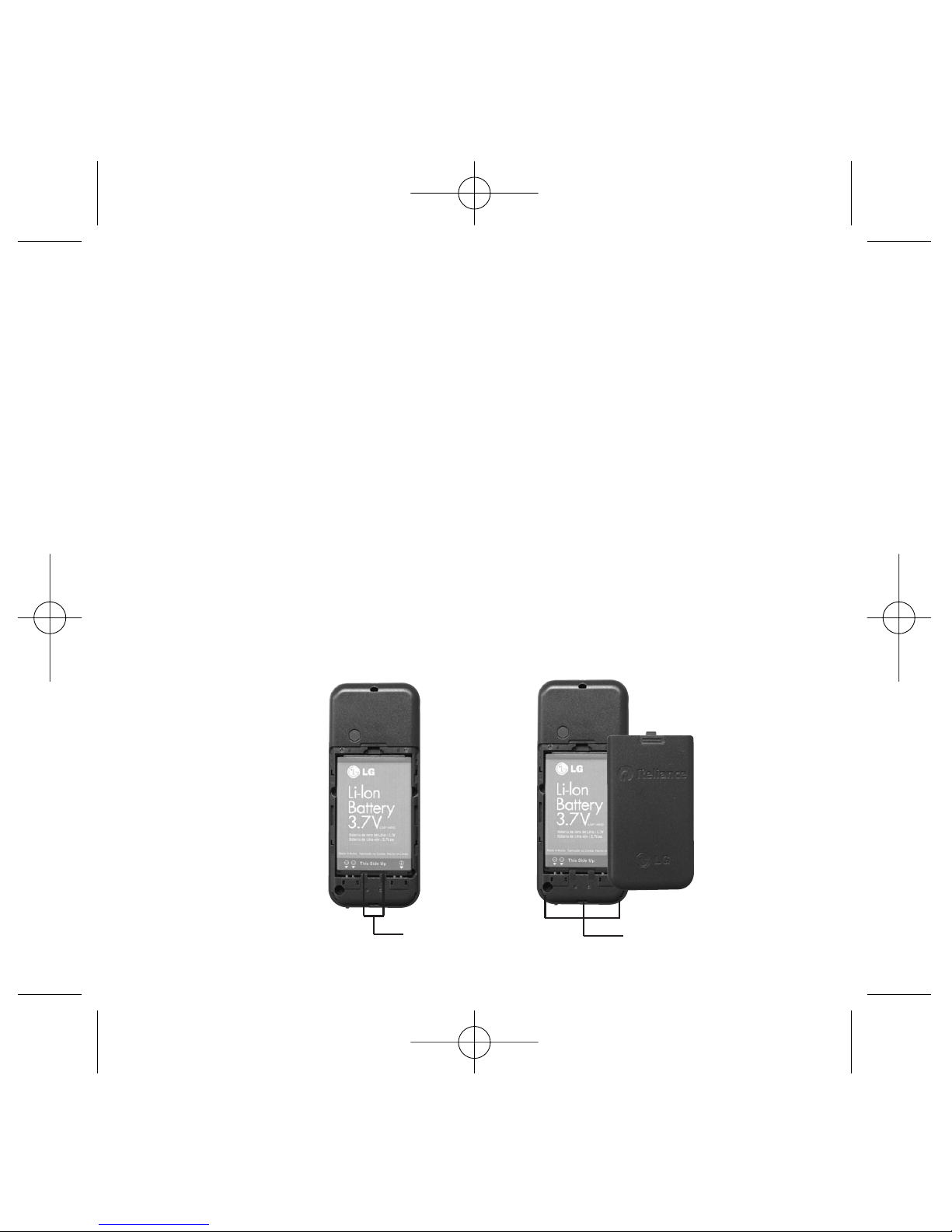

Installing and Removing the Battery



To install, insert the battery into the opening on the back of the phone,

and insert the bottom of battery into groove at the bottom of the

handset. Gently press down the cover until the latch snaps into place.



To remove, push the back cover down. Push the tab with one hand and

lift the top of the battery to separate.

- 5-

Groove Slot

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 5

- 6-

Charging the Battery

To use the AC adapter charger provided with your phone:

1. Plug the AC adapter into the electrical outlet.

2. Insert the round end of the adapter into the AC adapter jack on the

bottom of the phone. (Make sure the battery is installed.)

As the phone charges, the battery icon continually displays a progression

from empty ( ) to full ( ).

It takes about three hours to fully recharge a completely rundown

battery. When fully charged, battery icon indicates charging by twinkling.

Battery Charge Level

The battery charge level is shown at the top right of the LCD screen.

When the battery charge level becomes low, the low battery sensor will

alert you in three ways: sounding an audible tone, blinking the battery

icon outline, and displaying Recharge the battery If the battery charge

level becomes exceedingly low, the phone will automatically switch off

and any function in progress will not be saved.

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 6

- 7-

Turning the Phone On and Off

1) Install a charged battery pack or connect the phone to an external power

source such as the cigarette lighter charger, car kit or AC Adaptor.

2) Hold down the Key for 2 seconds until the LCD screen flashes.

NNootteeAs any other communication device, avoid any unnecessary

contact with the antenna while your phone is turned on.

Changing the display language

1) In standby mode, press Soft Key 1 Menu.

2) Press , .

3) Set English@ffggUUnnhhwith and then press Soft Key 1.

Airplane Mode

When your phone is in Airplane Mode, it cannot send or receive any calls

or access online information. You may use the phone’s other features,

such as Game, Scheduler, Memo, etc. When Airplane Mode is enabled,

a message “Airplane Mode” is displayed on the screen.

1) In standby mode, press Soft Key 1 Menu, , , .

2) Select On or Off and press Soft Key 1.

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 7

- 8-

Making a Call

Every time you make a call, follow these steps:

1) Make sure that the phone is turned on. If not, hold down for

2 seconds.

2) Type the phone number and then press .

•

If the phone is locked, type the lock code.

3) To end the call press .

Receiving Calls

1) When the phone rings or vibrate (if the Vibrate Mode is enabled),

press any key (except ) or depending on the Call settings.

•

When you press once, when a call is received, the phone stops

ringing or vibrating depending on the mode it is in. Press twice

to disconnect.

2) To end an answered call press .

RD2630_Slim_Eng.qxd 1/9/06 9:22 AM Page 8
