LG LG-DM515 Manuel utilisateur

USER GUIDE

(LG-DM515)

For more information about RF exposure, please visit the FCC website at www.fcc.gov

FCC RF EXPOSURE INFORMATION

In August 1996 the Federal Communications Commission (FCC) of the United States

with its action in Report and Order FCC 96-326 adopted an updated safety standard

for human exposure to radio frequency electromagnetic energy emitted by FCC

regulated transmitters. Those guidelines are consistent with the safety standard

previously set by both U.S. and international standards bodies. The design of this

phone complies with the FCC guidelines and these international standards.

Use only the supplied or an approved antenna. Unauthorized antennas,

modifications, or attachments could impair call quality, damage the phone, or result in

violation of FCC regulations.

Do not use the phone with a damaged antenna. If a damaged antenna comes into

contact with the skin, a minor burn may result. Please contact your local dealer for

replacement antenna.

Body-worn Operation

This device was tested for typical body-worn operations with the back of the

phone kept 2.0 cm. from the body. To maintain compliance with FCC RF

exposure compliance requirements, use only belt-clips, holsters or similar

accessories that maintain a 2.0 cm. separation distance between the user’s

body and the back of the phone, including the antenna, whether extended or

retracted. The use of third-party belt-clips, holsters and similar accessories

should not contain metallic components in its assembly. The use of

accessories that do not satisfy these requirements may not comply with FCC

RF exposure compliance requirements, and should be avoided.

WARNING! Read this information before using your phone

CHAPTER 1. THE NAME AND FUNCTIONS

Hold Icon

Signal strength(RSSI)

In use

No service

Short message(voice)

Short message(text)

Digital service is avaible

Roaming

Vibrator enabled

Battery level

Silent call alert

CHAPTER 2. BASIC FUNCTIONS

Turning the Phone On and Off

1. Connect the terminal to the charged battery or the external power supply.

2. Press the [END/PWR] key for about 1.5 seconds until a red right appears on the upper side

of the terminal.

< Turning the Terminal Off >

1. Press the [END/PWR] key until the end message appears on the LCD, and then stop pressing

the key.

2. If an antenna is stretched, push it in for safety.

Making a Call

<Method1> Entering the Entire Phone Number

1. If the terminal is turned off, turn it on.

2. Enter the phone number.

(Enter the area code, if necessary.)

3. Press the [SEND] key.

-If the terminal is locked on, enter the password to unlock the terminal. Then, attempt the

call again.

-If the call is not connected, “Call Failed”signal will be indicated on the LCD.

4. Press the [END] key.

<Method2> Using Phone Book Entry

1. Enter the phone entry number, and press the [SEND] key or press

the related phone entry number for some time. Then, the call will be

attempted.

e.g.) Press the [2] key for some time, then call will be connected to the phone number stored

in the Entry #2.

2. If you are not sure of the phone entry number, select the Soft Key(Search) with the Right soft

key. Press Right navigate key, till “Phonebook”folder.

3. Select search phonebook criteria(Find by name, number, address or group).

4. Search the Phone Book address number or name requested in the Phone Book to attempt a

call to the phone number stored in it.

<Method3> Using the Recent Call History

1. Select the Soft Key(Search) with the Right Button..

2. If the screen changes, place the cursor on the Call History. Then, press the Soft Key(Select)

with the Right Button.

3. If the “Outgoing”, “Incoming”, and “Missed” are indicated on the screen, select the menu

requested. Ten phone numbers of the recent calls are stored in each menu. Place the cursor on

the menu requested, and press the Soft Key(Select) with the right Mouse Button.

4. The phone number list appears on the screen. Then, search and place the cursor on the phone

number or name requested, and press the [SEND] key.

Correcting Dialing Mistakes

1. Press the CLR Key.

2. Press the CLR Key for one second, then all the number or character requested will be erased.

Receiving Calls

1. Press any key except for the [END/PWR] key to receive a call.

ΗPress the END Key once to stop the bell or vibration.

ΗΗ Press the END Key twice to end the incoming call

2. When the call completes, press the [END/PWR] key.

3. Or close the folder.

Mute

1. Press the Soft Key(MENU) with the Left Mouse Button during the call.

Redialing Last Outgoing Number

1. Just press [SEND] key two times to redial the last outgoing number. Then, the call will be

attempted.

<Method 2> using the Call History

1. Press the Soft Key(Search) with the Right Button.

2. Place the cursor on the Call history menu on the screen, and press the Soft Key(Select) with

the Right Mouse Button.

3. Then, three menus will appear.

“Outgoing”: Ten last outgoing calls are stored in this menu.

“Incoming”:Ten last incoming calls are stored in this menu

“Missed”: Ten last missed calls are stored in this menu

2. If a popup menu appears on the screen,

place the cursor on the Mute menu and

press the Soft Key(Select) with the Right

Mouse Button to select the Mute state

(The message”Mute”will be indicated

the screen.)

3. Select “Mute”menu again to clear the

function. The popup menu will appear.

Select the Unmute menu.(The message “Mute”

will be disappear on the screen

4. Place the cursor on the menu requested, and press the Soft Key(Select) with the Right

Mouse Button.

e.g.) Place the cursor on the “Outgoing” menu and press the Soft Key (Select) with the

Right Mouse Button.

5. The phone number list will appear. Place the cursor on the phone number or name requested,

and press the [SEND] key. Then, the call will be attempted.

Adjusting the Volume

It is possible to adjust the speaker volume, ring volume, and the Ring Type with the volume

buttons on the upper left side of the terminal.

-It is possible to adjust the speaker volume during the call.

-It is possible to adjust the key tone volume in a idle state.

-It is possible to adjust the ring volume during the ringing time.

-It is possible to adjust the ring volume from the Sound item on the Menu screen also.

( F[MENU] [Ring vol/type][Ring volume] or [MENU]-3)

If you turn the ring volume down to the minimum, silent annunciator ( ) will be indicated on

the LCD and no ringing sound will be sent out.

-Adjust the Ring Type on the Sound item on the Menu screen.

(F[MENU] [Ring vol/type][Bell/Vibrate] or [MENU]-1)

CHAPTER 3. PHONE BOOK FEATURES

Two types of Phone Books

This service enables easier use of the outgoing or incoming phone numbers because it is

possible to store up to 200 phone numbers in the memory. It is possible to store the phone

numbers either in the Personal Phone Book memory or in the Recent Call History List

Personal Phone Book Memory

It is possible to store up to 4 phone numbers of 32 digits including name up to 12 characters in

each entry of the Phone Book.

1. Enter the number to be stored. (Up to 32 characters)

2. Press the Soft Key(Save) with the Left Mouse

3. Select a type.

4. Enter the name up to 16 characters. (Verify the number of characters and press the [save]

key.) If you do not want to enter the name,press the [save] key without entering characters.

5. Designate the Entry number. Then, an empty Entry number will be designated automatically.

If you do not want this Entry number, designate another Entry number. If an existing phone

number occupies the memory of the designated Entry number, a message will appear to

verify if you want to overlap the existing one with a new one. If you select the [ok] key, the

existing phone number will be erased in the entry, and a new one will be stored. If you want

to maintain the existing phone number, designate another entry number.

6. Messages will appear to set the Secret function in turn. If you set the Secretfunction to the

memory address, you will be unable to see the phone number.

Entering Characters

You will be provided with 4 types of modes (English Lower, English Upper, Digit, Symbol) to

enter the characters. Use the mode key(left softkey) to change among the modes while entering

the characters. The present mode is indicated on the left softkey screen. Whenever you press the

left softkey, the modes will change in the order of “ENG”-“eng”-“Digit”-“Symbol”. Select

the mode before you enter the characters, and enter the characters.

1. When the mode is ready for entry, the cursor (“|“)will be indicated on the space for entry.

(If you enter one character, the cursor will move to the following space automatically and

wait for entry.)

2. Use the right side (è) key in the “ENG”-“eng”state to place a space among the characters.

3. Verify if the

cursor is

placed

where the

character is

to be entered, and change the mode by using left softkey.

4. Verify if the mode requested is indicated on the left softkey screen, and enter the character.

5. Use 8 keys of [2]~[9] to enter the character in the “eng”and “ENG”mode. One key is

designated with three or more than three characters. Therefore, press each key repeatedly for

a short period of time until the character requested appears. For example, if you want to enter

a character “K”,set the “ENG”mode with the left softkeys and then press [5] key twice for

short time continuously.

6. Enter the numbers of 0~9 with ten keys from [0] to [9] in a “DIG”mode.

(Reference: The “ENG”, “eng”and “DIG”modes remain in the same state even after you

enter a character, while the “Symbol” mode automatically change into an “eng”mode after

you enter one character.)

7. Enter a special code or icon in the “Symbol” mode. An icon set is indicated in the order of 12

keypads with the Navigation Button in a “Symbol”mode. Press the key corresponding to the

symbol (icon) to be entered in reference of them, and then the symbol (icon) will be entered

on the space where the cursor is placed. Press the Navigation Button(up, down, left, right) in

the symbol mode, and then another set of symbols (icons) will be indicated on the screen.

The symbol (icon) set is composed of various type of sets. If the symbol (icon) set requested

is indicated, use the keypad to enter the symbol (icon).

8. Use the [CRL] Key to erase the input character. Press it for a short period of time to erase the

last input character, and press it for some time to erase all the input characters.

9. If you complete entry of the characters, use the Navigation Button to move to other items.

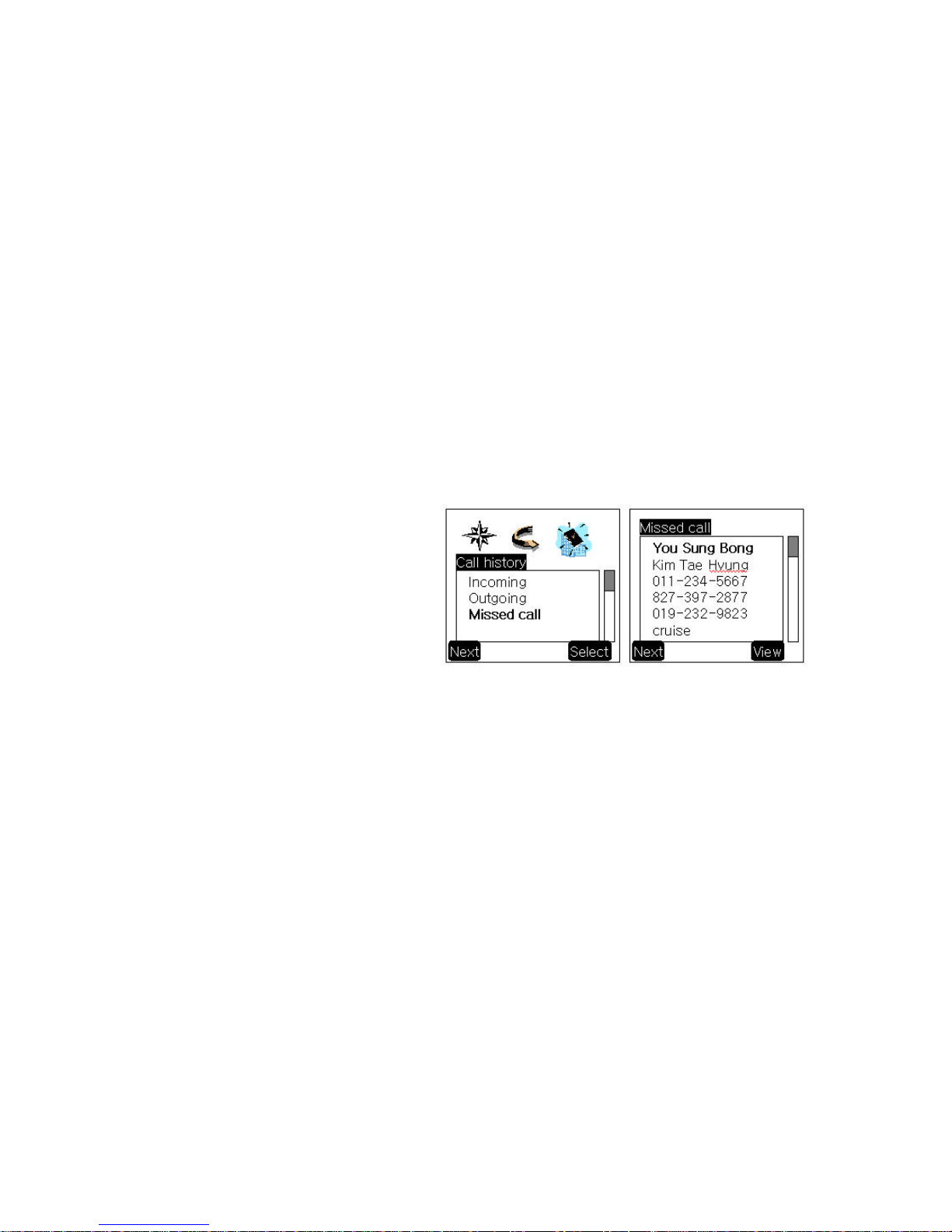

Recent Call History List

This service enables easy and fast redialing with its function to store ten last outgoing calls,

incoming calls, missed calls and added phone numbers (numbers stored by the scratch pad

function).

1. Press the Soft Key(Search) with

the Right Mouse Button of the

screen.

2. Place the cursor on the Call history

of the screen, and press the Soft

Key(Select) key with the Right

Mouse Button.

3. Then, three menus will appear on

the screen.

-“Outgoing”: Ten last outgoing calls are stored in this service.

-“Incoming”:Ten last incoming calls are stored in it.

-“Missed”: Ten last missed calls are stored in it.

Select one of the three menus.

4. Then the corresponding phone number list will appear. Place the cursor on the number

requested and press the [SEND] key to attempt a call.
