Window-Type Air Conditioner Owner’s Manual

TABLE OF CONTENTS

FOR YOUR RECORDS

Write the model and serial numbers here:

Model #

Serial #

You can find them on a label on the side of each unit.

Dealer's Name

Date Purchased

■Staple your receipt to this page in the event you need

it to prove date of purchase or for warranty issues.

READ THIS MANUAL

Inside you will find many helpful hints on how to use

and maintain your air conditioner properly. Just a little

preventive care on your part can save you a great deal

of time and money over the life of your air conditioner.

You'll find many answers to common problems in the

chart of troubleshooting tips. If you review our chart of

Troubleshooting Tips first, you may not need to call

for service at all.

PRECAUTION

•Contact the authorized service technician for repair or

maintenance of this unit.

• Contact the installer for installation of this unit.

• The air conditioner is not intended for use by young

children or invalids without supervision.

• Young children should be supervised to ensure that

they do not play with the air conditioner.

• When the power cord is to be replaced, replacement

work shall be performed by authorized personnel only

using only genuine replacement parts.

• Installation work must be performed in accordance with

the National Electric Code by qualified and authorized

personnel only.

1. Safety Precautions

2. Operating Instructions

3. Care and Maintenance

4. Hardware Installation

5. Common Issues

Precautions

Safety

Precautions

ENGLISH

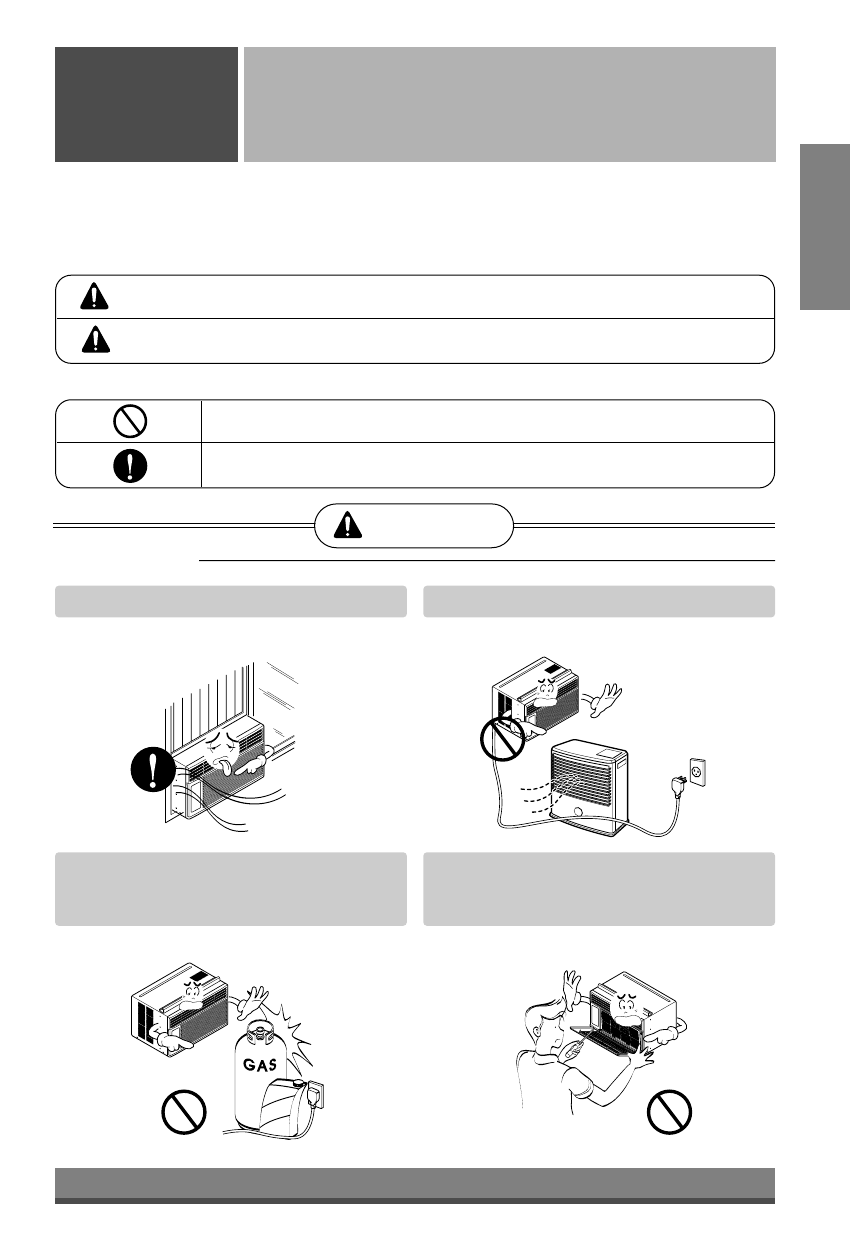

To prevent injury to the user or other people and property damage, the following instructions must

be followed.

■Incorrect operation due to ignoring instruction will cause harm or damage. The seriousness is

classified by the following indications.

WARNING

CAUTION

This symbol indicates the possibility of death or serious injury.

This symbol indicates the possibility of injury or damage to properties only.

■Meanings of symbols used in this manual are as shown below.

Be sure not to do.

Be sure to follow the instruction.

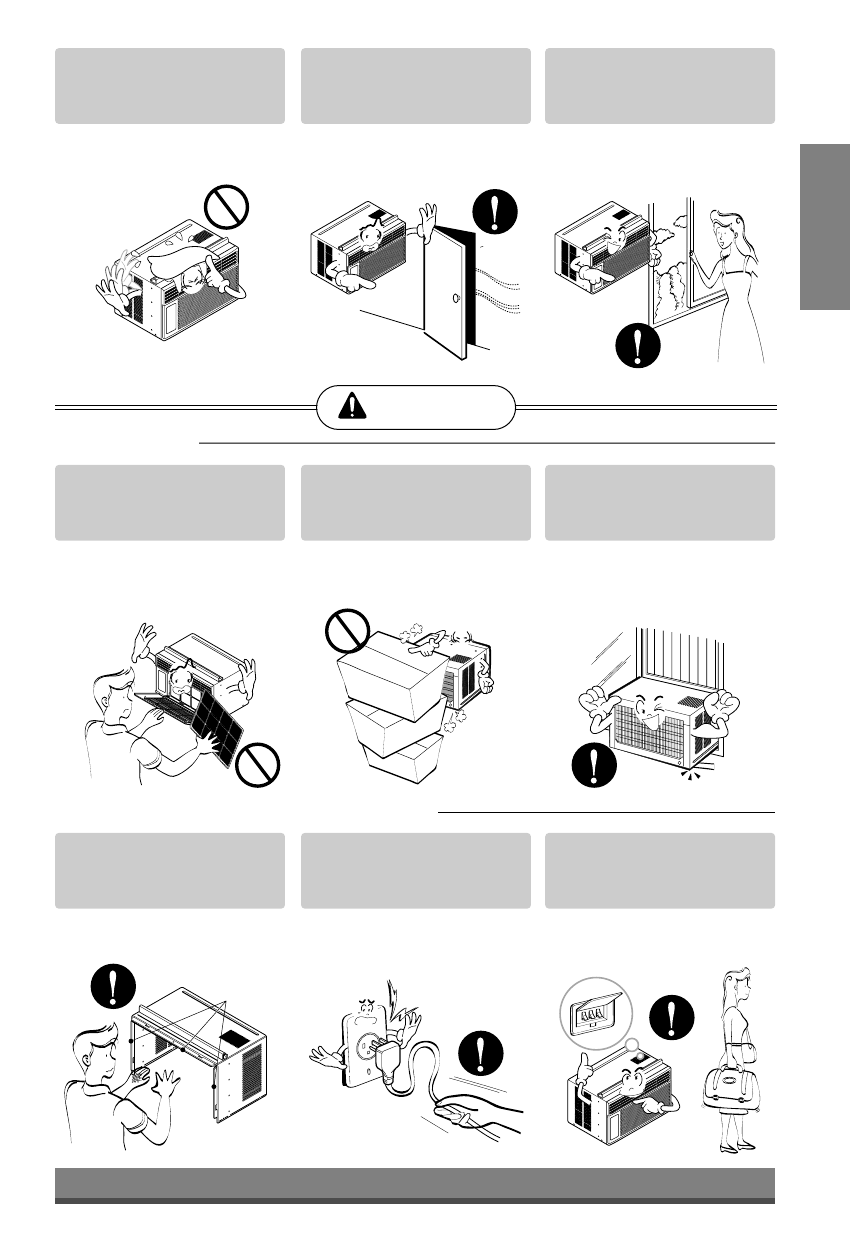

WARNING

■Installation

Always install the expansion panel(s).

• No installation may cause fire and electric

shock accident.

Do not place the power cord near a heater.

• It may cause fire and electric shock.

Do not use the power cord near flammable

gas or combustibles such as gasoline,

benzene, thinner, etc.

• It may cause explosion or fire.

Do not disassemble or modify products.

• It may cause failure and electric shock.

Gasolin

■Operation

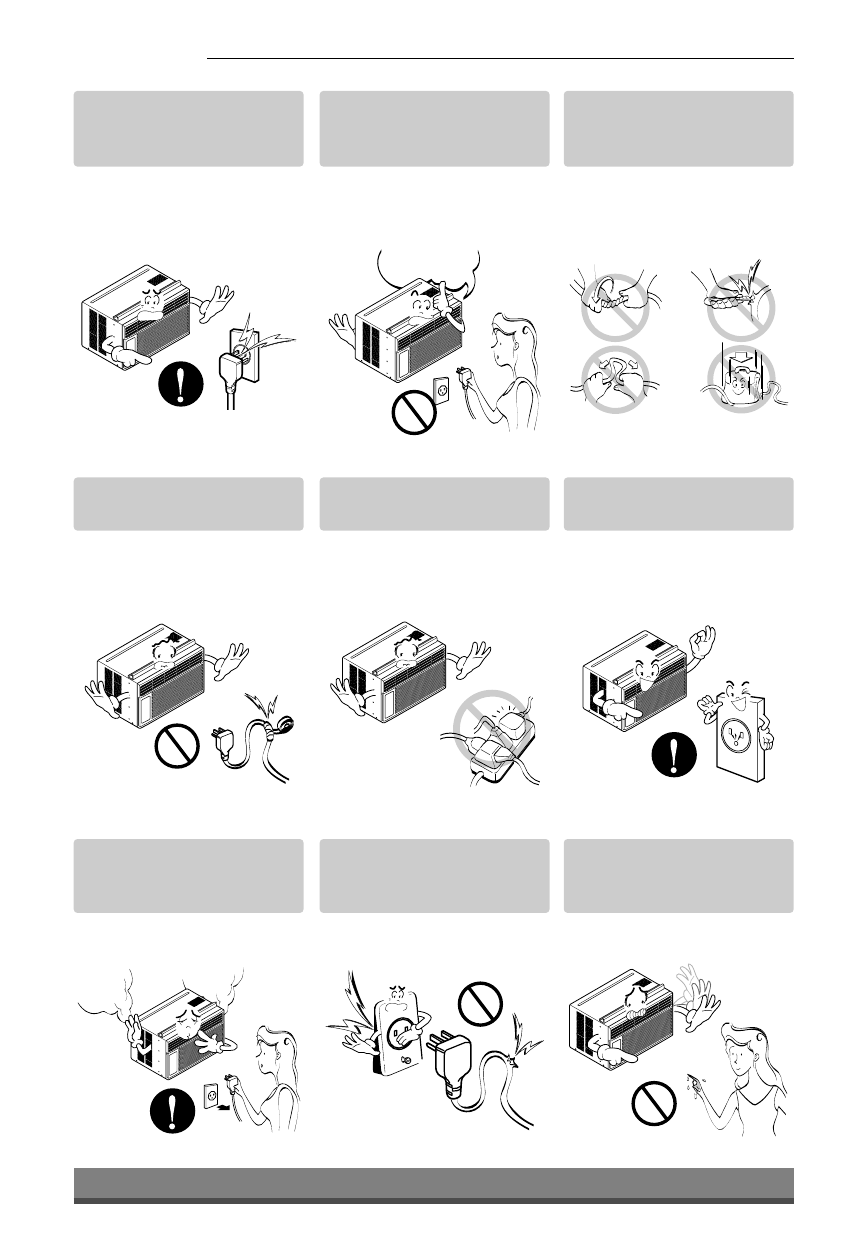

Plug in the power plug

properly.

• Otherwise, it will cause

electric shock or fire due to

heat generation or electric

shock.

Do not operate or stop the

unit by inserting or pulling

out the power plug.

• It will cause electric shock or

fire due to heat generation.

Do not damage or use an

unspecified power cord.

• It will cause electric shock or

fire.

Do not modify power cord

length.

• It will cause electric shock or

fire due to heat generation.

Do not share the outlet with

other appliances.

• It will cause electric shock or

fire due to heat generation.

Always plug into a

grounded outlet.

• No grounding may cause

electric shock (See

Installation Manual).

Unplug the unit if strange

sounds, odors, or smoke

come from it.

• Otherwise it may cause fire

and electric shock accident.

Do not use the socket if it is

loose or damaged.

• It may cause fire and electric

shock.

Do not operate with wet

hands or in damp

environment.

• It will cause electric shock.

ENGLISH

Do not allow water to run

into electric parts.

• It will cause failure of machine

or electric shock.

Leave the door closed while

the air conditioner is

running.

• It is not designed to cool the

entire house.

Do not operate the air

conditioner if you smell gas.

• It may cause explosion, fire,

and burn.

Never touch the metal parts

of the unit when removing

the filter.

• They are sharp and may

cause injury.

Do not block the inlet or

outlet.

• It may cause failure of

appliance or accident.

Ensure that the outer case

is not damaged by age or

wear.

• If leaving appliance damaged,

there is concern of damage

due to the falling of product.

Be cautious not to touch the

sharp edges when

installing.

• It may cause injury.

Hold the plug by the head

when taking it out.

• It may cause electric shock

and damage.

Turn off the main power

switch when not using it for

a long time.

• Prevent accidental startup

and the possibility of injury.

CAUTION

■Installation

Sharp

edges

■Operation

Do not place heavy object

on the power cord and take

care so that the cord should

not be pressed.

•There is danger of fire or

electric shock.

If water enters the product,

turn off the the power switch

of the main body of appliance.

Contact service center after

taking the power-plug out

from the socket.

Do not clean the air

conditioner with water.

•Water may enter the unit and

degrade the insulation. It may

cause an electric shock.

Turn off the power and

breaker firstly when

cleansing the unit.

•Since the fan rotates at high

speed during operation, it

may cause injury.

Do not put a pet or house

plant where it will be

exposed to direct air flow.

•This could injure the pet or

plant.

Do not use this appliance for

special purposes such as

cooling pets, foods, precision

machinery, or objects of art.

•It is an air conditioner, not a

precision refrigeration system.

Always insert the filter

securely.

Clean it every two weeks.

•Operation without filters will

cause failure.

Use a soft cloth to clean. Do

not use wax, thinner, or a

strong detergent.

•The appearance of the air

conditioner may deteriorate,

change color, or develop

surface flaws.

Do not drink water drained

from air conditioner. / Do

not direct airflow at room

occupants only.

•It contains containments and

will make you sick. / This

could damage your health.

Wax

Thinner

Thermostat Operation

FAN FAN

Thermostat

Warmer Cooler

Heater

Operation

NOTICE

: Optional

ENGLISH

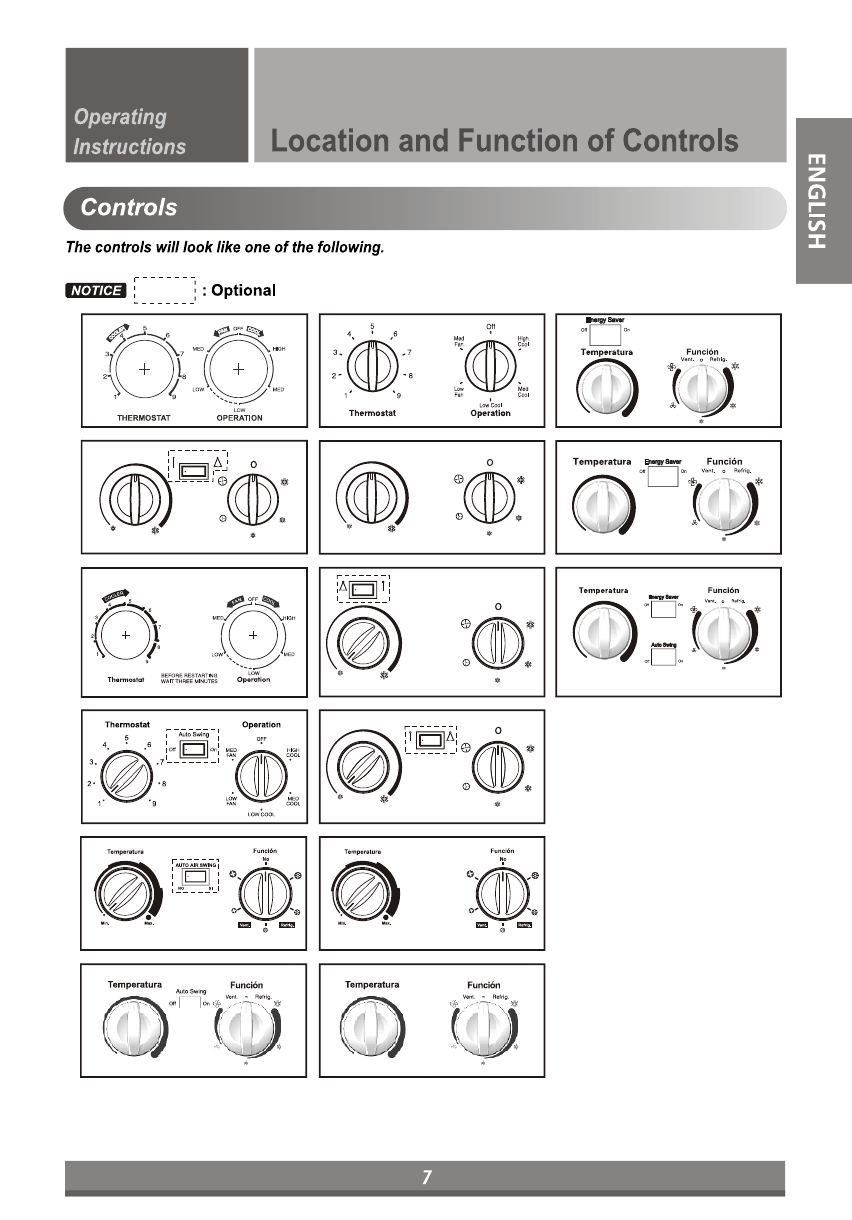

Controls

■

AUTO SWING (Optional)

ON ( ) :

Air swing is operated while OPERATION

knob is set to the COOL or HEAT position.

OFF( ) : Stops the operation of air swing.

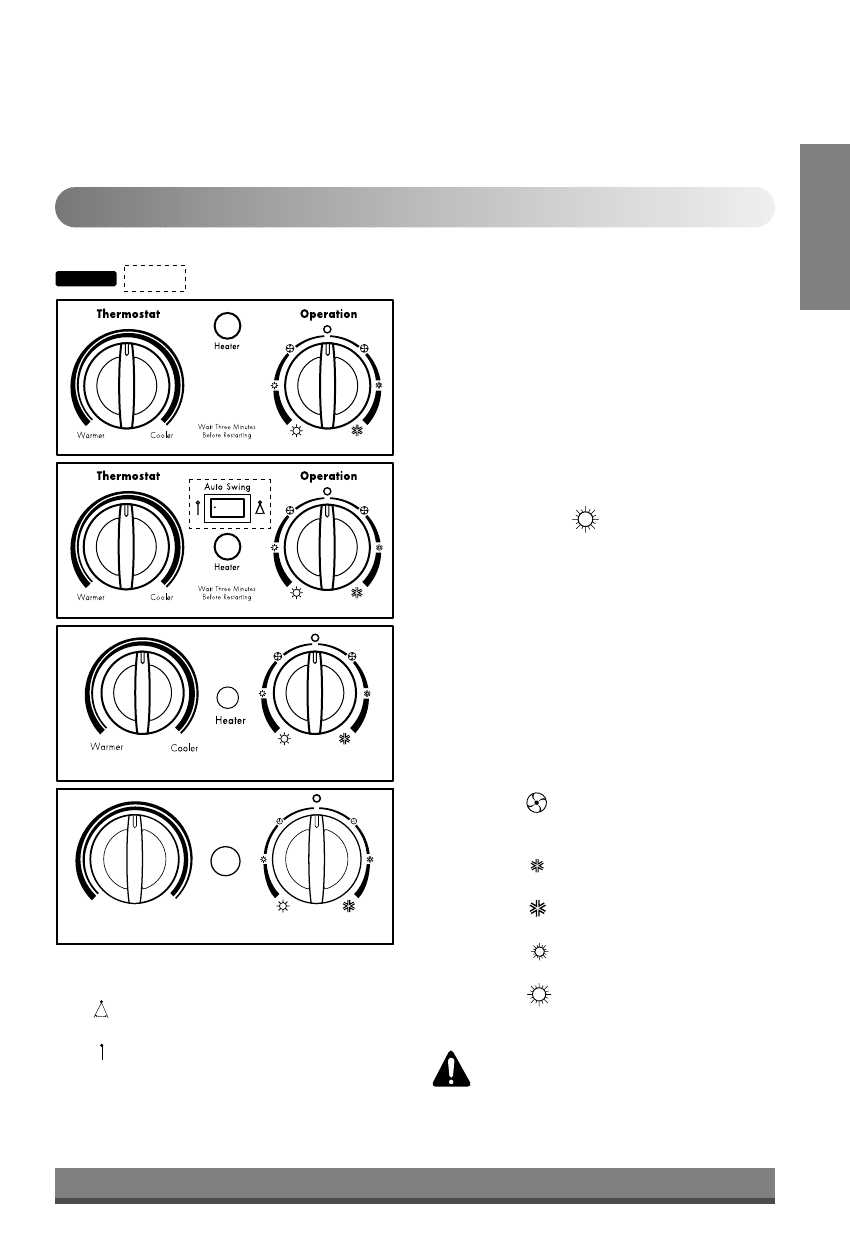

■THERMOSTAT

Turn the thermostat control to the desired

setting. The control position is a normal setting for

average conditions. You can change this setting, if

necessary, in accordance with your temperature

preference.

The thermostat automatically controls cooling or

heating, but the fan runs continuously

whenever the air conditioner is in operation. If the

room is too warm, turn the thermostat

control clockwise. If the room is too cool, turn the

thermostat control counterclockwise.

■HEATER ( ) LAMP

When the unit sets heating operation condition, the

green lamp is lighted.

When the frost settles on the heat exchanger of the

outside, defrosting is made automatically and the

green lamp is turned off.

The unit may give a "hiss" and the fan motor stops for

1 to 10 minutes.

This should not be regarded as a problem.

After defrosting, the heating operation begins again.

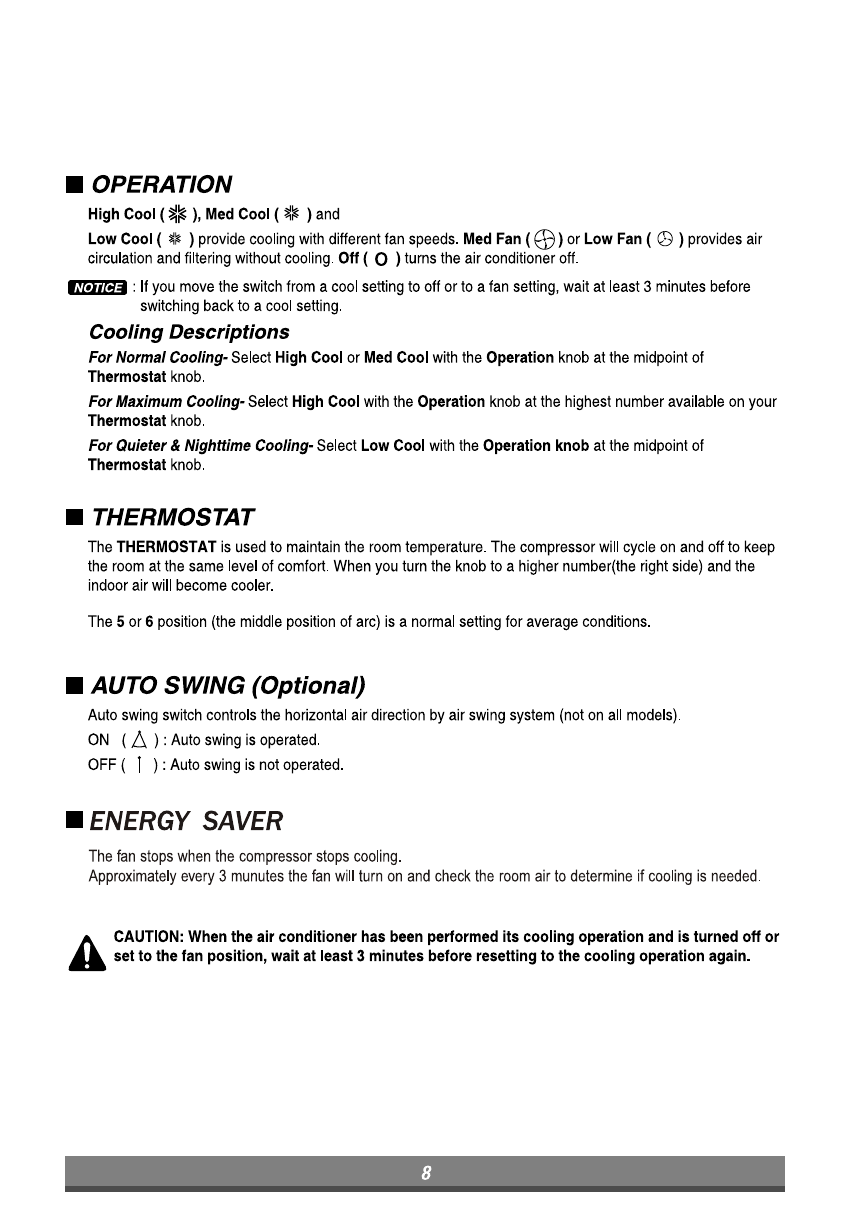

■OPERATION

OFF ( ) : Turns the air conditioner off.

LOW FAN ( ) : Permits the low fan speed

operation without cooling

(heating).

LOW COOL ( ) : Permits cooling with the low fan

speed operation.

HIGH COOL ( ) : Permits cooling with the high

fan speed operation.

LOW HEAT ( ) : Permits heating with the low

fan speed operation.

HIGH HEAT ( ) : Permits heating with the high

fan speed operation.

CAUTION : When the air conditioner has

been performed its cooling operation and

is turned off or set to the fan position, wait

at least 3 minutes before resetting to the

cooling operation again.

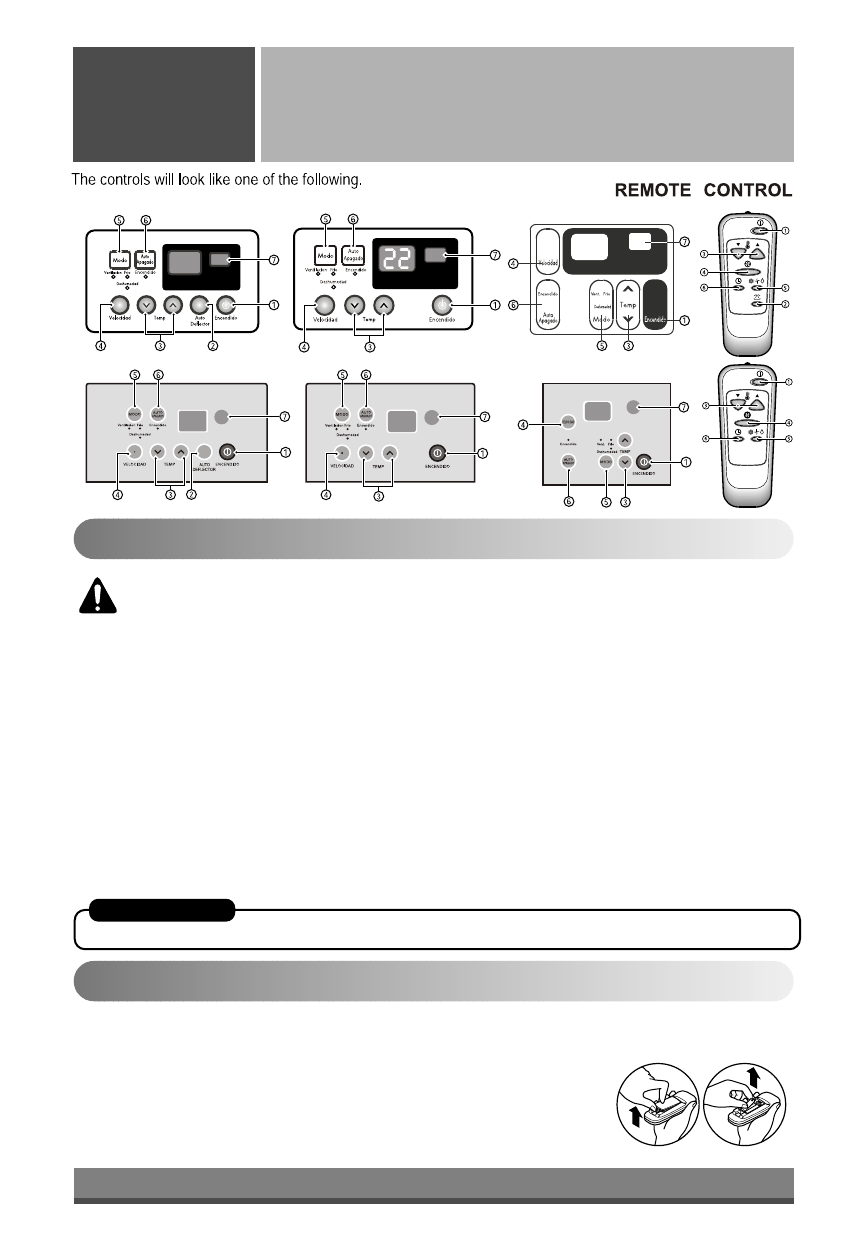

The controls will look like one of the following.

Remote Control Operation

Operating

Instructions

Controls

How to Insert the Batteries

CAUTION: The Remote Control unit will not function properly if strong light strikes the sensor

window of the air conditioner or it there are obstacles between the Remote Control unit and the

air conditioner.

1. POWER BUTTON

Operation starts, when this button is pressed and stops when you press the button again.

2. AUTO SWING (Optional)

The vertical louver swings horizontally by the automatic system and stops when you press the button again.

3. ROOM TEMPERATURE SETTING BUTTON

Control the room temperature within a range of 16°C to 30°C

4. FAN SPEED SELECTOR

Select the fan speed in three steps {High[F3] →Low[F1] →Med[F2] →High[F3]...}.

5. OPERATION MODE SELECTION BUTTON

Select Cooling, Fan, or Dehumidification mode with this button.

6. ON/OFF TIMER BUTTON

Set the time of starting and stopping operation. The timer is set by 1 hour.

7. SIGNAL RECEIVER

AUTO RESTART

In failure of electric power, the unit runs as previous setting operation.

1. Remove the cover from the back of

the remote controller.

2. Insert the two batteries.

3. Re-attach the cover.

•Do not use rechargeable batteries, such batteries differ from

standard dry cells in shape, dimensions, and performance.

•Remove the batteries from the

remote controller if the air

conditioner is not going to be

used for an extended length

of time.

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels LG Climatiseur

LG LP6011ER Manuel utilisateur

LG LT143CNR Manuel utilisateur

LG LT-E1860FJ/FH Manuel utilisateur

LG MULTI V IV ARNU07GTU 2 Series Manuel utilisateur

LG USUH2465NW0 Manuel utilisateur

LG AS-W0964DH0/GH0 Manuel utilisateur

LG LW1512ERS Manuel utilisateur

LG LV-B2461CL Manuel utilisateur

LG LP-H602ME0 Manuel utilisateur

LG LW1013CR Manuel utilisateur

LG L2-C366BA0 Manuel utilisateur

LG AKWW0243AA0 Manuel utilisateur

LG LB8000ER Manuel utilisateur

LG LT081CNR Manuel utilisateur

LG LS180HEV Manuel utilisateur

LG TCM 18 Manuel utilisateur

LG ARNH10GK2A2 Manuel utilisateur

LG LP1215GXR Instructions de montage

LG ZTNW48GMLA0 Manuel utilisateur

LG Art Cool LS120CE Manuel utilisateur

LG S3828P Manuel utilisateur

LG Multi V Standard Gen 4 Series Manuel utilisateur

LG ARNU 073 SER2 Manuel d'installation et d'exploitation

LG LW1210HR Manuel utilisateur

Manuels Climatiseur populaires d'autres marques

Spheros

Spheros CC 355 Manuel utilisateur

Bosch

Bosch Climate 5000 SCI 24 CAS/ OU- OUE Manuel utilisateur

Panasonic

Panasonic CS-E12HKEW Manuel utilisateur

nedis

nedis ACMB1WT7 Manuel utilisateur

Samsung

Samsung AR KV Series Mode d’emploi

Daikin

Daikin FCFV50A Manuel utilisateur

Fujitsu

Fujitsu Inverter ASBA30JFC Manuel utilisateur

Toshiba

Toshiba RAS-M10SMUV-E Manuel utilisateur

Daikin

Daikin FXLQ20MAVE Manuel utilisateur

Hitachi

Hitachi RAS-E24CAK Manuel utilisateur

CIAT

CIAT Magister 2 Series Mode d’emploi

Bestron

Bestron AAC6000 Manuel utilisateur

Hisense

Hisense 7K Manuel technique

Frigidaire

Frigidaire FFRE0533S1E0 Manuel utilisateur

Samsung

Samsung AS09HM3N Manuel utilisateur

Frigidaire

Frigidaire CRA073PU11 Manuel du propriétaire

Soleus Air

Soleus Air GB-PAC-08E4 Manuel utilisateur

McQuay

McQuay MCK020A Manuel utilisateur
