LG PS-M550WP Manuel utilisateur

MODEL: PS-M550WP

CAUTION

BEFORE SERVICING THE UNIT, READ THE SAFETY PRECAUTIONS IN THIS MANUAL.

삼흥

정판

P/NO : MFL31520606

February, 2007

Printed in Korea

AIR PURIFIER

SERVICE MANUAL

Website http://biz.lgservice.com

CONTENTS

-2-

SECTION

PAGE 3~5

SECTION

PAGE 6

SECTION

PAGE 7

SECTION

PAGE 8~16

SECTION

PAGE 17~21

SECTION

PAGE 22

SECTION

PAGE 23~27

SECTION

PAGE 28~30

SECTION

PAGE 31

Safety instructions

Logics

Major Specifications of each

Model

Operations/Functions Manual

Main Components

Disassemble/Assemble and

Repair Instruction

Electric diagram

Troubleshooting and inspection

direction

PCB Circuit Diagram/Parts

Layout

Exploded View/

Svc Components inventory

SECTION

PAGE 32

Replacement Parts List

-3-

1Safety instructions

For your safety, the information in this manual must be followed to minimize the risk of fire or explosion, electric

shock, or to prevent property damage, personal injury, or death.

When Installation

Warning : This symbol will alert you to hazards or unsafe practices which could cause bodily injury or

property damage.

Caution : This symbol will alert you to the possibility of improper use that may result in damage.

Read instructions to avoid damage or injury.

󳢯If the power cord becomes worn or damaged, the cord should only be replaced by a qualified service technician

using genuine replacement parts.

󳢯Do not plug other appliances into the same outlet. Overloading of any outlet can cause a fire or create an electrical

shock hazard.

󳢯Do not remove the round grounding prong from the plug.

󳢯Do not operate this or any electrical appliance when you smell gas.

󳢯Do not operate with wet hands or in a damp environment.

󳢯Do not disassemble or modify the air purifier or the power cord.

󳢯Do not use this or any appliance near flammable gases or liquids or other combustibles, such as gasoline, benzene,

thinner, etc.

󳢯If you hear abnormal sounds or smell smoke, immediately unplug your Air Purifier and have the unit checked by a

qualified technician.

󳢯Make sure the Air Purifier and cord is positioned where it does not create a tripping hazard. Do not roll heavy

furniture over the top of the cord.

󳢯Do not use near open flames.

󳢯

Keep this product out of the direct rays of the sun or other heat sources. Do not use the unit near water sources that could allow

moisture to enter the unit. Overheating and/or water infiltration could lead to a fire or shock hazard and could result in failure of the

product.

Warning

Warning / Caution

-4-

1Safety instructions

In-Use

󳢯Make sure the power cord is plugged firmly and completely into the outlet.

󳢯Do not operate with wet hands.

󳢯If the power cord ever becomes frayed or damaged, do not attempt to repair. The cord should be replaced by a

qualified technician.

󳢯Never pull the power plug away from outlet by pulling on the wire. Always grasp the cord by the receptacle end.

󳢯Do not install a place where there are much industrial Oil dust or metallic dust.

󳢯If may cause fire and failure of product.

󳢯When the power code is damaged, it should be repaired by the qualified person to prevent any risk.

󳢯It may cause electric shock, fire or failure of product.

󳢯Never pour or allow water to run onto or into the unit; it could damage internal components and create a shock

and fire hazard.

󳢯Keep objects such as curtains away from the air openings in the unit. The openings must be free from

obstruction for the unit to work efficiently.

󳢯Do not run power cords under carpeting or other coverings which could fray the cord and expose the wires.

Frayed cords are a shock and fire hazard.

󳢯Do not place the power cord or Air Purifier near a heater, radiator, or other heat source.

󳢯This air purifier is not designed for use by young children. Young children should be supervised to ensure that

they do not play with or climb on the air purifier.

󳢯Do not use your Air Purifier to remove hair spray and insecticides from a room. These chemicals not only clog

the filters but could damage the unit.

󳢯Secure the air purifier to prevent it from rolling on smooth floors. When moving the product, insure that the

power cord is unplugged from the wall.

󳢯Do not move the air purifier by pulling or pushing on the front panel.

󳢯Do not use the top of the unit for storage. Keep liquids away from the top of the unit.

󳢯Other than cleaning and replacing the filters, there are no user replaceable components in your Air Purifier.

Service of this unit should be referred to a qualified service technician.

󳢯Do not apply pressure to the front panel of the air purifier.

󳢯Keep hands and objects away from the air inlet and outlet.

󳢯Do not clean the unit by submerging in water. Water in the unit will damage the insulation and create an

electrical shock hazard. If water enters the unit, unplug immediately and contact Customer Service.

-5-

1Safety instructions

Caution

When Installation

In-Use

󳢯When using the unit, maintain a distance of at least 3 feet between the Air Purifier and any Television or audio

product.

󳢯Avoid installing the Air Purifier in direct sunlight and never operate the unit near or around open flames or other

heat sources.

󳢯Never use your Air Purifier to remove toxic gasses (such as Carbon Monoxide, Natural or Liquified Petroleum

Gasses).

󳢯

Do not use your Air Purifier to remove food odors while cooking. Airborne oils that are released during cooking will plug the

filters. Wait until cooking is completed before operating your Air Purifier.

󳢯Install the unit on a stable, flat surface. Do not drop the unit.

󳢯Maintain a minimum distance of 5 ft from any heat producing light source. For proper ventilation, maintain a

distance of 6 inches or more from a wall.

󳢯Do not use except AC 120V.

󳢯It may cause fire or electrical shock.

󳢯This unit is not designed to remove combustion by-products such as those produced by open flame burners.

Toxic substances such as carbon monoxide should be ventilated from the room by either using an exhaust fan or

by opening a window.

󳢯Your air purifier is not designed to be used in moving vehicles such as cars, RV's or boats.

󳢯

To prevent damage to plants or injury to pets, make sure they are not exposed to direct air flow from the air purifier. This unit is

not intended to be used for the preservation of art objects or precision machinery.

󳢯Clean with a soft cloth and mild detergent. Filter should be cleaned once a month.

󳢯Do not start or stop operation by plugging in or unplugging the power cord.

󳢯

Always turn off and unplug the air purifier when it will not be used for extended periods of time. This conserves energy and

reduces the chance of accidents.

󳢯Clean filters on a regular basis. Improper filter maintenance can cause premature failure of the product.

󳢯Turn off and unplug the unit before disassembling the unit for cleaning.

󳢯A damaged filter can create an electrical hazard.

󳢯If a humidifier is used in the same room as your Air Purifier, keep the humidifier a safe distance away from the Air

Purifier. Moisture from the humidifier could clog the filters and create an electrical shock hazard.

󳢯

Do not use your Air Purifier to remove food odors while cooking. Airborne oils that are released during cooking will plug the

filters. Wait until cooking is completed before operating your Air Purifier.

󳢯Do not open the front panel during the operation of the product.

󳢯Opening the front panel stops the operation.

󳢯Keep batteries out of reach of children.

󳢯After washing your filters, make sure they are completely dry before reinserting them into the Air Purifier. Do not run

your Air Purifier with wet filters.

󳢯Keep flammable products away from your Air Purifier. Failure to keep flammable products away from your purifier

could lead to premature failure or create a fire hazard.

-6-

2Logics

Terminology

1-1. Negative ion

(1) What is a negative ion?

Atomic element in the air with negative electrons

that releases a refreshing feeling. It can be found

in a forest, waterfalls, thermal spring and etc. If

the atom loses an electron, it turns into a positive

ion. If the atom gains an electron, it turns into an

negative ion.

(2) The platinum three-dimensional anti-

bacteria system.

99.9% highly purified platinum catalyst filter

completely removes those factors which could

cause the sickhouse syndrome such as VOCs,

harmful chemical element and its mell.

1-2. VOCs (Volatile organic

compounds)

(1) What is VOCs?

Carcinogenic substances that cause allergies or

respiratory ailments, such as a paint, adhesives,

spray, construction materials, wax, carpet, and

etc. Unlike the general perception that only cheap

construction materials emit VOCs, high quality

new constructions may also emit VOCs. It may

stay remained in a closet or inside of furniture

even after several years.

Filters Introduction

(1) Pre-filter

One filter performs antibiotic treatment, anti mold

treatment, and dust removal, providing a purified

air.

(2) Photo-Catalyst Plasma Filter

Photo-Catalyst Plasma Filter removes

microscopic motes, odor, yellow-dusts, and

allergy causing substance through a 3 stage

process, plasma generation part, dust collecting

part, and photo-catalyst filter

(3) Anti-allergic Filter.

The anti-allergic filter could absorbs and

decomposes the ingredients which causes the

allergy, having the allergy preventive effect also

removing the odor and anti-bacteria effect.

(4) Washable HEPA Filter

HEPA filter polluted by acarid deadbody, pollen,

small dust and float mildew, animal bodyhair etc.

can be washed.

(5) Washable Deodorization Filter

This filter was processed with activation treatment

for stronger adsorption function (characteristic of

charcoal). This deodorization filter has higher

level of negative ion, minerals, far infrared lays

generation ability than charcoal.

-7-

Major specifications on each model

Model name

Power Supply

Measurement(W×H×D)

Application Space

Weight

Color

Design

Power usage

Noise

Wind speed(CMM)

Negative ion Generation

Inhale system

Purifying system

Major Filter System

Filter composition

Remote controller

Sensor

Display

Display Information

Operation Mode

Function Selection

Wind Speed

PS-M550WP

120V~60Hz

410mm×550mm×250mm

45m2

9.5kg

White

Easy design for convenient operation

35W(Turbo)

Turbo(44dB)

Turbo(5.5CMM)

Generate 1million super negative ions

Multi surface inhale system

Three dimension filter system

Pre-filte r- Anti-allergic filter - Washable HEPA filter -

Super Negative ion/ Sterilization

Washable part - Replacement part

Ez remote controller

Digital 2 Sensor(dust, smell)

Digital Wide LED display

Dust, Smell, Purity level, Fan speed, Filter Checking, Function

Selection, Operation Mode, Reservation time

Speed, Automatic, Yellow Sandstorm, Sleeping

Negative ion, Sterilization

Turbo-Strong-Soft-Weak

-8-

Operations/Functions Manual

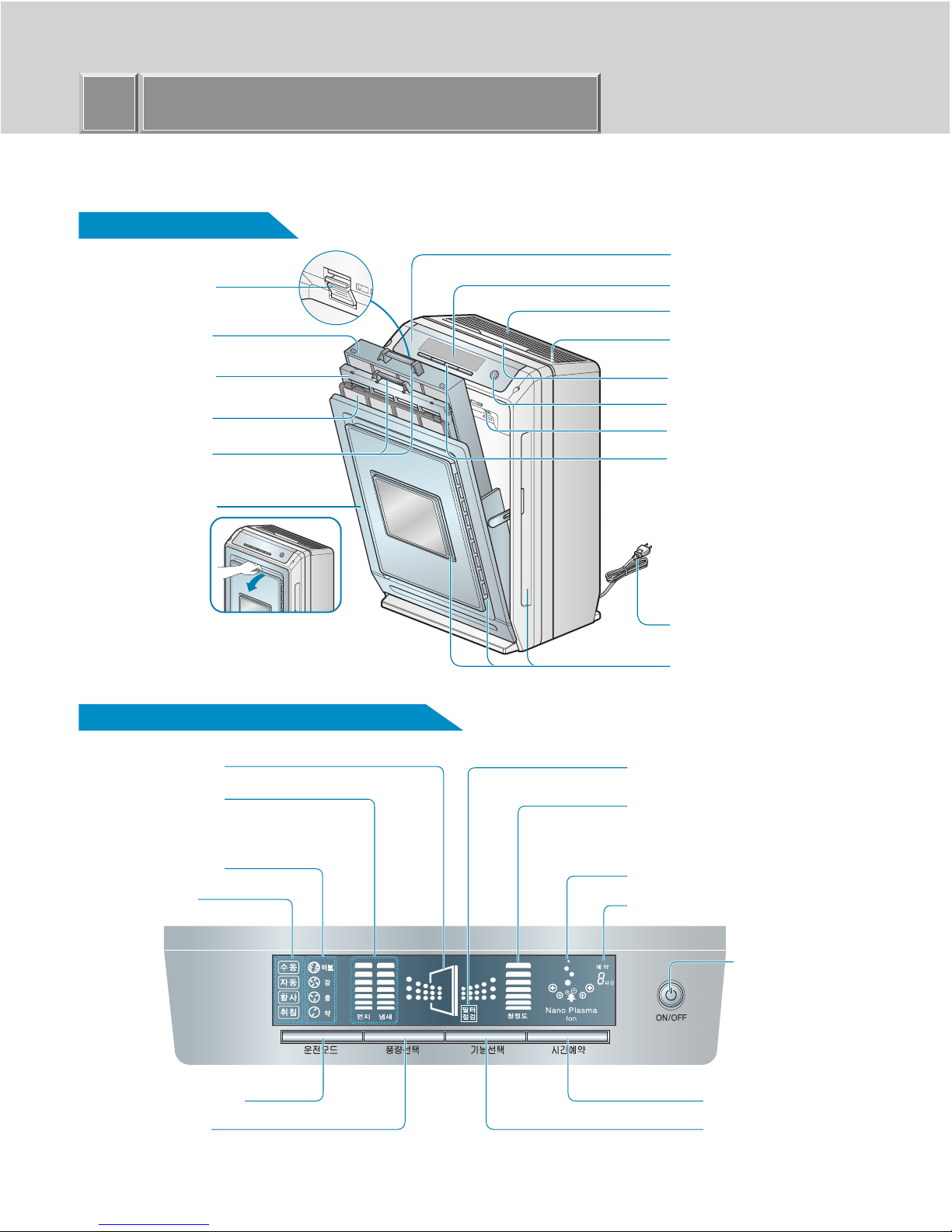

Spare part Name

Remote Control Receiver

Dust Sensor

Filter Case

Photo-Catalyst

Plasma Filter

Pre-Filter

Filter Handle

Front Panel

Display

Air Outlet

Safty Net:

–The inside of air outlet

Handle

Power On/Off Button

Odor Sensor

Controller

Power Plug

Air Inlet

Mainframe

Operation indicator and controller

Off timer indicator

Power On/Off button

Off timer button

Function button

Negative ion/ sterilization indicator

Purity level indicator

Level reflects how well the air purifier is

cleaning the air.

Filter self-checking indicator

Check the filter when indicated by the light.

Operation indicator

Fan speed indicator

Operation Mode button

Fan speed button

Operation mode

indicator

Dust/Odor indicator

Reflects how well air is moving

through the unit.

-9-

Operations/Functions Manual

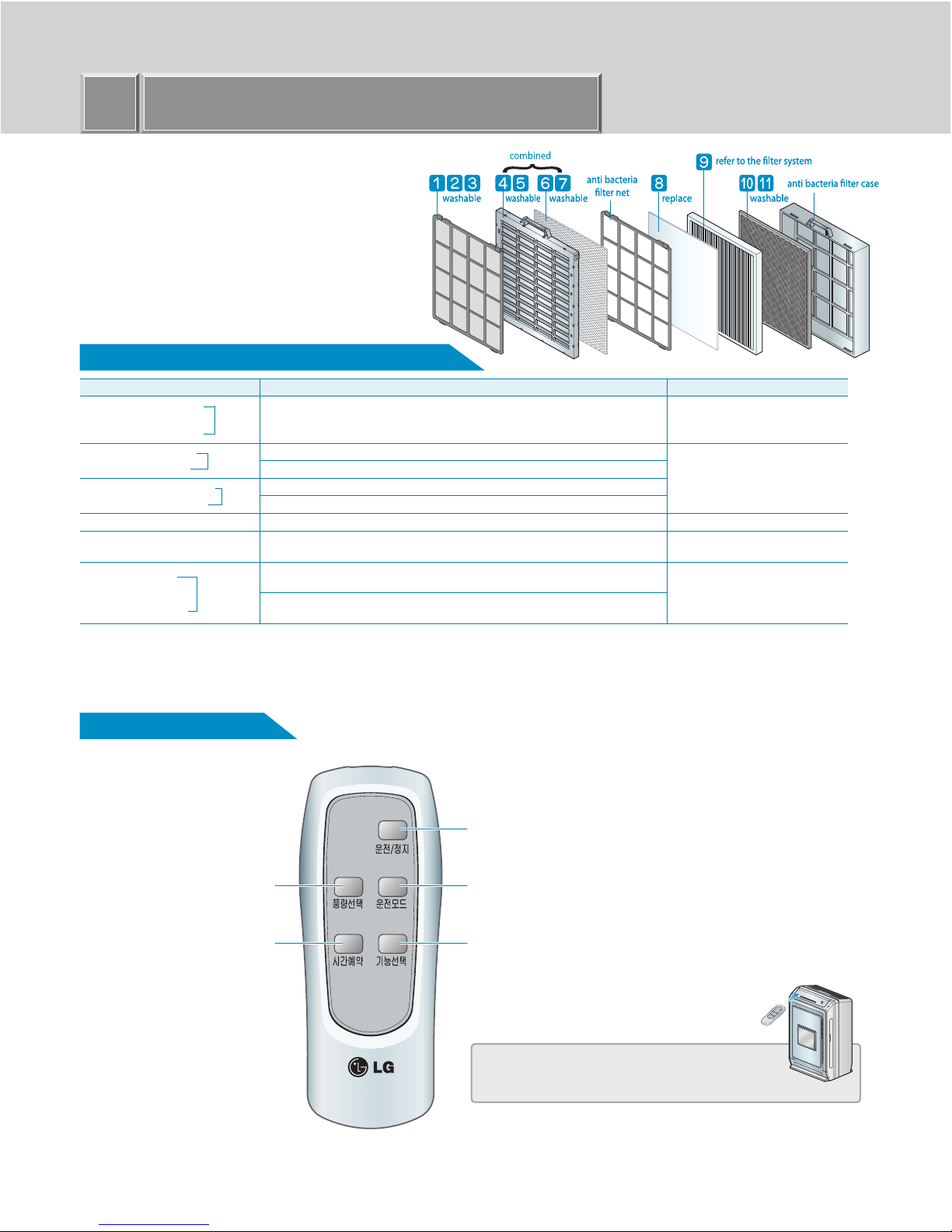

Filter system (include the filter part only)

Remote Controller

󱎲

󱎳

󱎴

Removes large particles

Anti-bacteria function

Anti- mildew function

󱎵

󱎶

Plasma dust-absorb filter

Plasma deodorant filter

Filters large particles such as pollen, soot, and mildew.

Absorbs odors and dust.

Additional odor absorption and large particle filtering.

Remove odor particles, VOCs, smoke smell, musty smell, decompose malodor ingredients and chemicals.

This filter has anti-bacteria, anti-mildew, and large particle filtering functions.

In extreme filtering conditions, these filters may have to be cleaned or

replaced more often.

Pre-filter

Plasma filter

󱎷

󱎸

Photo-catalyst anti-bacteria filter

Photo-catalyst deodorant filter

󱎹

Anti-allergic filter

Absorbs and eliminates allergens.

󱎺

Washable HEPA filter

Washable HEPA filter removes pollens, dirt particles, dust and mildew

from the air.

Eliminates food, pet and other odors. Removes alkaline, acid and organic

compound odors.

This filter uses jewelry grade platinum and should be disposed of properly

when discarded.

Photo-

catalyst

filter

󱎻

󱎼

Washable carbon

Catalyst function

Nano Platinum filter

※Allow the filter to dry completely before reinstalling. If not completely dried, it may cause the air purifier to malfunction or cause bad odors to be emitted during use.

※A replacement filter (Anti-Allergic Filter) can be purchased at an LG service center.

Washable

deodorization

filter

Filter name Function

Washing/Replacement cycle

Once a month

6~12 months replacement cycle

Every 6 months

Power On/Off

Turns the air purifier on and off

Fan speed button

Set Fan speed

Off timer button

Adjust the timer delay time

Mode

Switches the operation speed, auto mode,

sand mode and sleep timer.

Function selection button

When turned on, the unit produces negative

ions which can help sterilize the air.

Remote Control

Must be aimed at the remote control receiver window on

the main unit.

-10-

Operations/Functions Manual

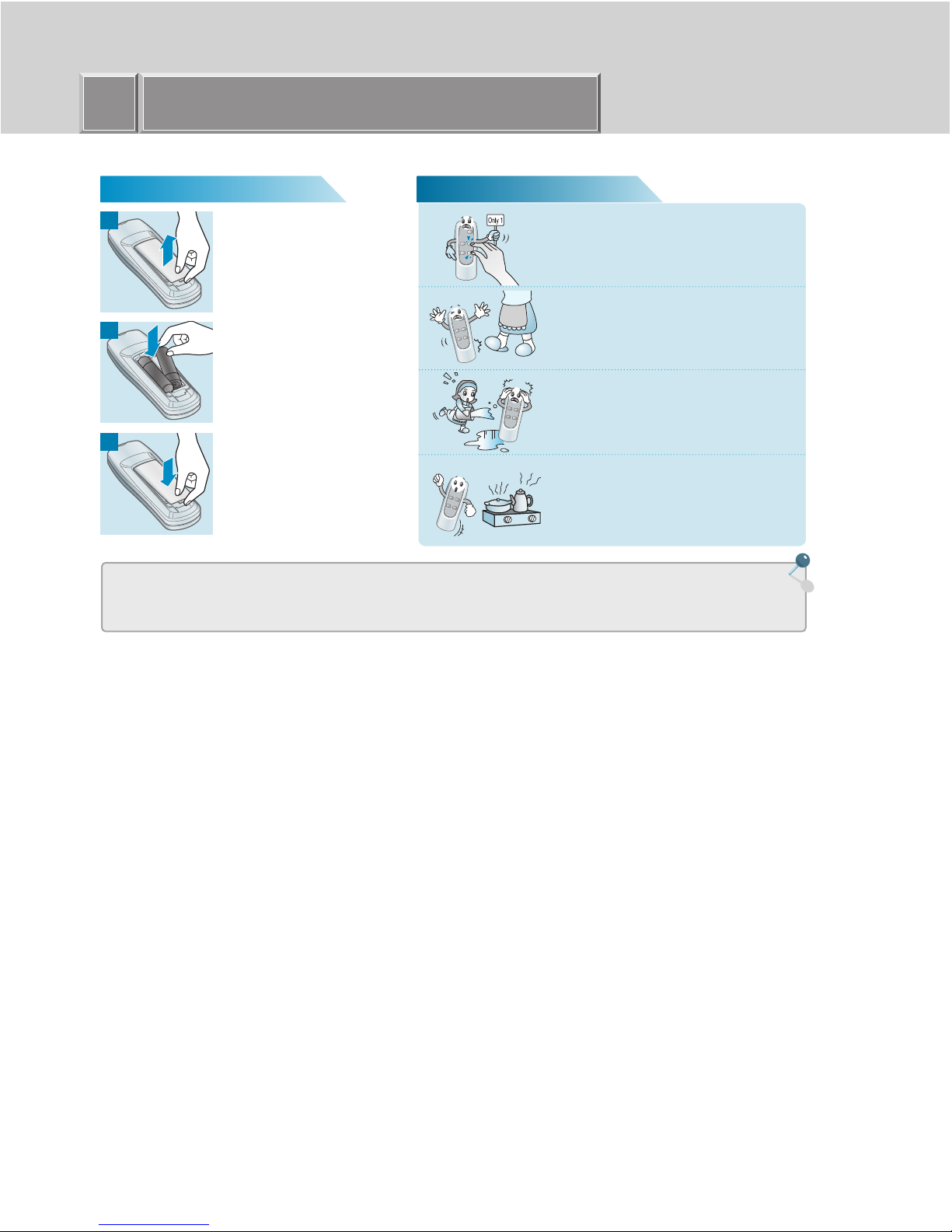

Battery Installation Caution

• Remove batteries when the air purifier is stored for extended periods of time.

• If controller fails to work after new batteries are installed, contact an LG service center for service.

• If controller fails to work, replace the batteries. Always replace both batteries at the same time. Do not mix old and

new batteries.

Press locking tab on the battery

cover on the back of the remote

and remove the cover.

Insert new batteries into the

battery compartment, being sure

to note the proper polarity.

Reattach the battery cover,

making sure the locking tab

clicks into place.

Press only one button on the

remote at one time.

Press only one button on the remote at one time.

Pressing two or more buttons simultaneously will

prevent the remote from working properly.

Do not drop or otherwise damage

the remote.

Keep remote away from water.

Keep remote away from heat

sources or open flames.

Table des matières

Autres manuels LG Purificateur d'air

LG AS10GDPB0 Manuel utilisateur

LG PWKAUW01 Manuel utilisateur

LG AS401VSA0 Manuel utilisateur

LG AS560DWR0 Manuel utilisateur

LG PS-V219 Series Manuel utilisateur

LG PuriCare 360 Clean Booster Pet Manuel utilisateur

LG AP551A Series Manuel utilisateur

LG PS-V329CG Manuel utilisateur

LG AP300AWFA Manuel utilisateur

LG FS15GP F Series Manuel utilisateur

LG PH-U459WN Manuel utilisateur

LG FH15GP Series Manuel utilisateur

LG PS-Q450WC Manuel utilisateur

LG PWKSUW01 Manuel utilisateur

LG PS-Q450 Series Manuel utilisateur

LG AS40GV Series Manuel utilisateur

LG AeroFurniture Manuel utilisateur

LG AF20ROSE Manuel utilisateur

LG PuriCare AS330DWR0 Manuel utilisateur

LG PS-S209 Series Manuel utilisateur

LG AG161B Series Manuel utilisateur

LG AS60GDPV0 Manuel utilisateur

LG PS-M550 Series Manuel utilisateur

LG PH-U450 Series Manuel utilisateur

Manuels Purificateur d'air populaires d'autres marques

IKEA

IKEA UPPÅTVIND Manuel utilisateur

Nash

Nash AP-1 PureSmart Manuel utilisateur

DeLonghi

DeLonghi DDSX 220WFA Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric MA-E85R-E Manuel utilisateur

Sharp

Sharp FU-40SE Manuel utilisateur

Philips

Philips AC2721 Manuel utilisateur

Hitachi

Hitachi EP-A3000 Manuel utilisateur

TruSens

TruSens Z-2000 Manuel utilisateur

Motorola

Motorola MBP87SN Manuel utilisateur

Beko

Beko ATP 7100I Manuel utilisateur

Carrier

Carrier INFINITY 1620 Manuel utilisateur

AtmosAir

AtmosAir P2002 Manuel utilisateur

Winix

Winix NK300 Manuel utilisateur

Friedrich

Friedrich C-90A Instructions d'utilisation et d'installation

Surgically Clean Air

Surgically Clean Air JADE2.0 Manuel utilisateur

Base aire

Base aire 555 Pro Manuel utilisateur

Champion

Champion CP25 Manuel utilisateur

vollara

vollara Air & Surface Pro+ Manuel utilisateur
