Lexmark W820 Manuel utilisateur

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

To remove an optional mailbox and its stand, complete the following sections.

Preparing for disassembly

1Turn the printer off.

2Remove all print media from all the bins.

Disconnecting the power cords

1Unplug the printer power cord from the electrical outlet.

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

2Unplug the other end of the cord from the printer. Set the cord aside.

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

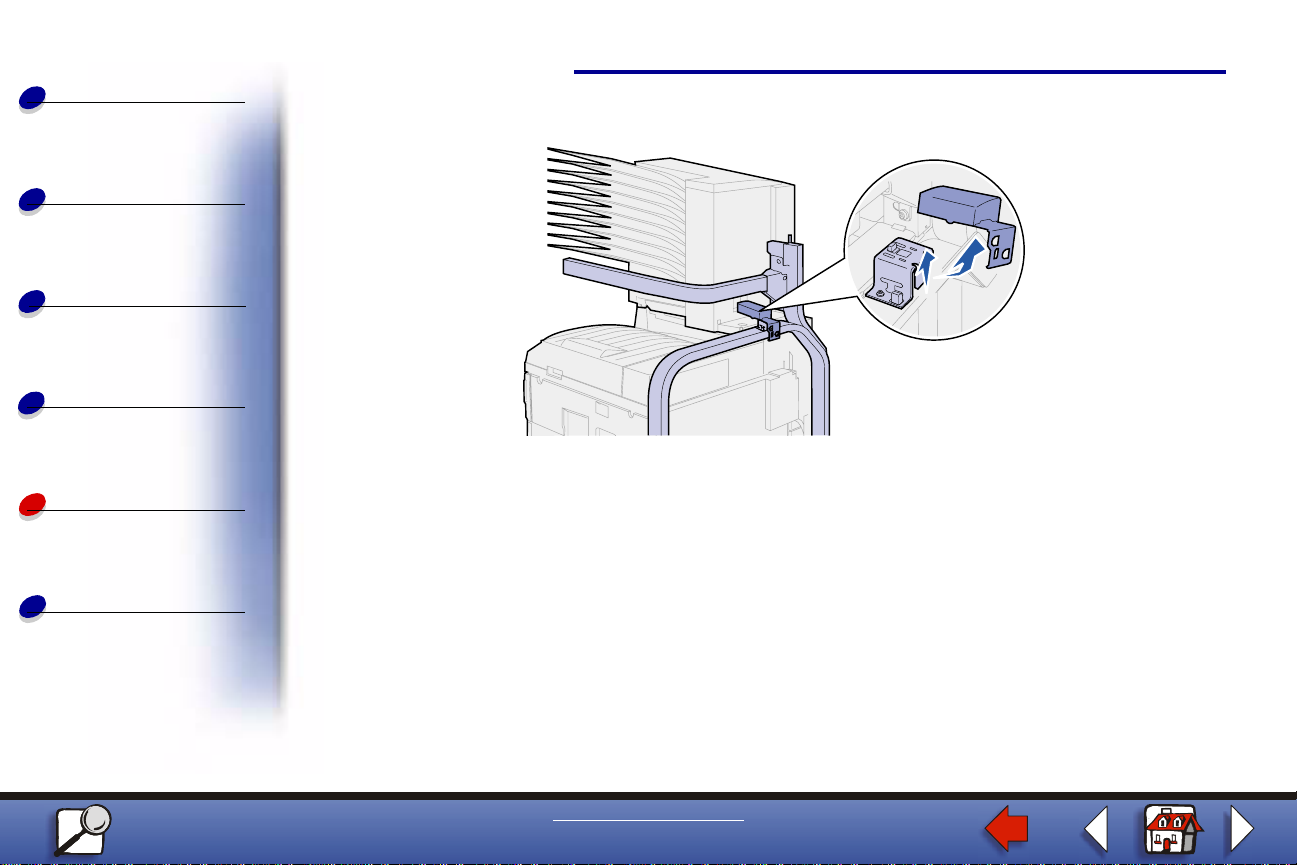

3Disconnect the mailbox cable from the back of the printer.

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

Using the handling tool

The handling tool is located at the back of the printer and mailbox. It rests in a cutout area

tooled into the mailbox cover and attaches to the stand for the mailbox for safekeeping while

not in use. The tool is used for lifting the mailbox off the printer.

1Locate the handling tool at the back of the mailbox. Press the button to the left of the

tool to release it from the stand.

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

2Lift the handling tool up and pull it toward you.

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

3Open the mailbox door (Door D).

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

4Locate the area in the mailbox with two round metal tabs.

5Hold the handle of the tool as shown and align the two larger openings on the tool

with the two round metal tabs.

6Slide the tool onto the tabs.

Large openings

Metal tabs

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

7Lift up slightly on the handle. The plastic tab near the metal tabs

snaps

into place in

the small opening on the tool.

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

Removing the mailbox from the printer and stand

1Locate the latch on the horizontal bar.

2Pull forward on the tab until it

clicks

into place.

Latch

Tab

Horizontal bar

Removing the optional mailbox

Paper handling

Maintenance

Troubleshooting

Administration

Index

Printing

www.lexmark.com

Lexmark W820

CAUTION! The mailbox is heavy, and requires two people to lift it.

3Have someone help you lift the mailbox straight up off of the printer.

Use the handling tool and the horizontal bar to grasp the mailbox.

Horizontal bar

Handling tool
