4048–00x
U.S.A. P/N 12G9119
Parts Catalog 7-1
4048–00x
7. Parts Catalog
How to Use This Parts Catalog
•SIMILAR ASSEMBLIES: If two assemblies contain a majority of
identical parts, they are shown on the same list. Common parts
are shown by one index number. Parts peculiar to one or the
other of the assemblies are listed separately and identified by
description.
•AR: (As Required) in the Units column indicates that the
quantity is not the same for all machines.
•NS: (Not Shown) in the Asm-Index column indicates that the
part is procurable but is not pictured in the illustration.
•PP: (Parts Packet) in the parts description column indicates the
part is contained in a parts packet.
7-2 Service Manual
4048–00x
Assembly 1: Covers
2
9
1
3
4
5
10
8
6
7
Parts Catalog 7-3
4048–00x
Assembly 1: Covers
Asm-
Index Part
Numbers Units Description
1–1 56P0608 1 Cover Assembly, Rear
2 56P0607 1 Door Assembly, Rear Exit
3 56P0680 1 Flap, Paper Holder
4 56P0603 1 Cover Assembly, Duct
5 56P0604 1 Cover Assembly, Top
6 56P0605 1 Cover Assembly, Right
7 56P0601 1 Cover Assembly, Front, with Display
(without logo)
7 56P0602 1 Cover Assembly, Front with Display
(with logo)
8 56P0610 1 Cover Assembly, MPF Door
9 56P0679 1 Overlays, Language
10 56P0600 1 Cover Assembly, Left
7-4 Service Manual
4048–00x

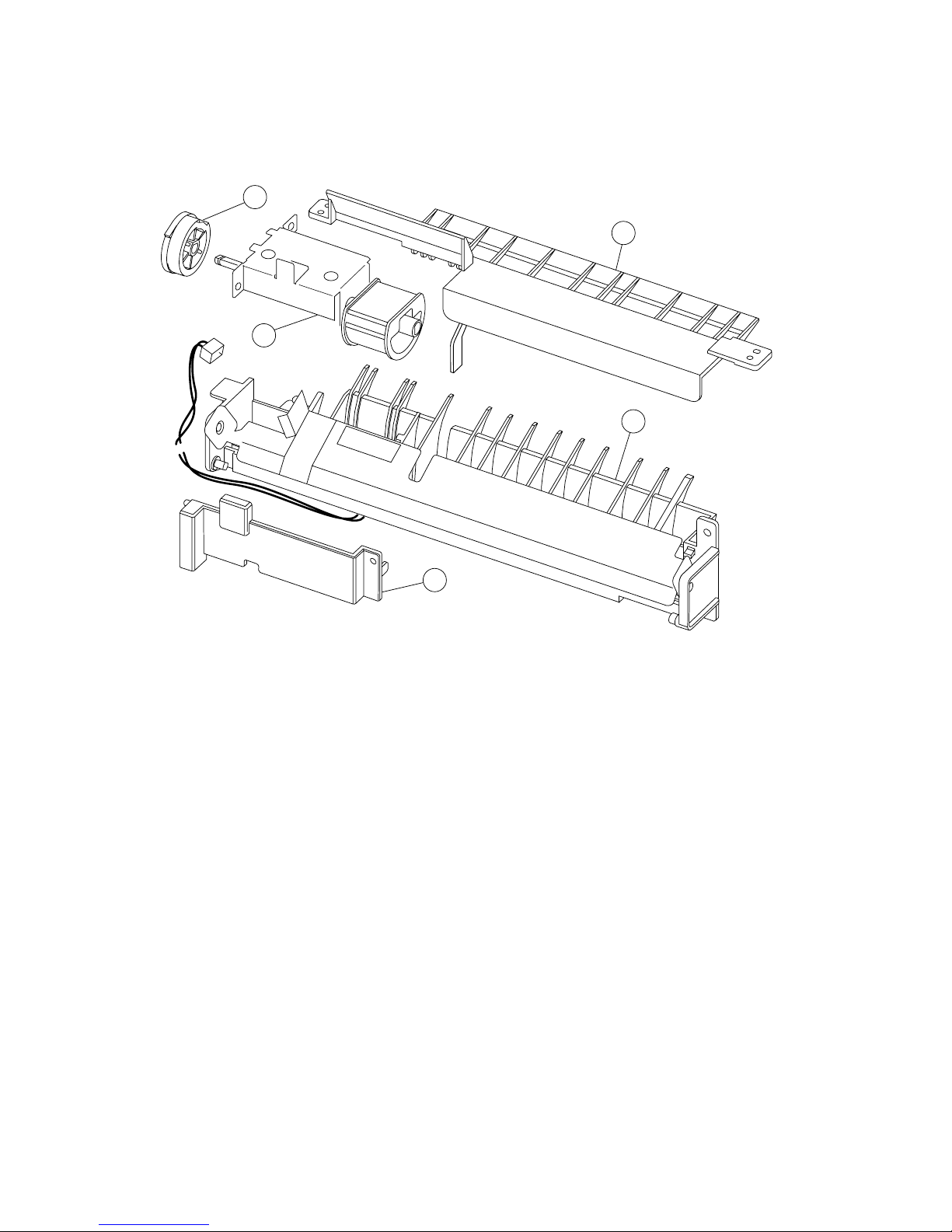

Assembly 2: Multipurpose Feeder (MPF)
1
3
4
5
2
Parts Catalog 7-5
4048–00x
Assembly 2: Multipurpose Feeder (MPF)
Asm-
Index Part
Numbers Units Description
2–1 56P0612 1 Housing Assembly, Upper (MPF)
2 56P0611 1 Housing Assembly, Lower (MPF)
3 56P0615 1 Cap, MPF Paper Feed Cover
4 56P0613 1 Assembly, Roller (MPF)
5 56P0614 1 Gear, MPF Paper Pick
7-6 Service Manual
4048–00x
Assembly 3: Charging
4
5
3
2
1
6
2
3
7
Parts Catalog 7-7
4048–00x
Assembly 3: Charging
Asm-
Index Part
Numbers Units Description
3–1 56P0640 1 Roll, Charge
2 56P0668 1 Parts Pack, (Screws and E–Rings)
3 56P0669 1 Hinge, Pivot (quantity 2)
4 56P0642 1 Guide Assembly, Right
5 56P0643 1 Assembly, Transfer Roll
6 56P0644 1 Bearings, Transfer Roll
7 56P0641 1 Guide Assembly, Left
7-8 Service Manual
4048–00x
Assembly 4: Electronics and Cables
12
3
4
5
67
89
10
11
