Lexmark C734dn Manuel utilisateur

Wireless Setup Guide

Edition notice

January 2008

The following paragraph does not apply to any country where such provisions are inconsistent with local law: LEXMARK INTERNATIONAL,

INC., PROVIDES THIS PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO,

THE IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer of express or

implied warranties in certain transactions; therefore, this statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these

changes will be incorporated in later editions. Improvements or changes in the products or the programs described may be made at any time.

UNITED STATES GOVERNMENT RIGHTS

This software and any accompanying documentation provided under this agreement are commercial computer software and documentation

developed exclusively at private expense.

Contents

Edition notice......................................................................................2

Setting up the printer........................................................................5

Follow these steps to set up your printer......................................................................................................................5

Setting up the printer hardware.......................................................................................................................................5

Choosing a connection method....................................................11

Preparing to connect wirelessly...................................................12

Information you will need to set up the printer on a wireless network..........................................................12

Adding the printer to a network using MAC address filtering............................................................................12

Connecting to a wireless network using Windows...................14

Installing the printer on a wireless network (Windows)........................................................................................14

Connecting to a wireless network using Macintosh.................16

Installing the printer on a wireless network (Macintosh)......................................................................................16

Setting up serial printing..................................................................................................................................................19

Troubleshooting wireless setup....................................................21

Connecting using a USB cable........................................................32

USB setup and connection...............................................................................................................................................32

Connecting using an Ethernet network......................................33

Wired setup and connection...........................................................................................................................................33

Networking glossary.......................................................................34

Contents

Setting up the printer

Follow these steps to set up your printer

Note: Do not connect cables until instructed.

CAUTION—POTENTIAL INJURY: Refer to the enclosed Safety Sheet before making any cable or electrical

connection.

1Set up the printer hardware.

2Decide how you want to connect the printer.

This guide includes three methods:

•Wireless

•Wired (Ethernet)

•Local (USB)

Setting up the printer hardware

CAUTION—POTENTIAL INJURY: The printer weight is greater than 18 kg (40 lb) and requires two or more

trained personnel to lift it safely.

Setting up the printer

Unpack the printer, cables, and CD.

Grasp the paper tray handle, and then pull the tray

completely out.

Raise the support bin.

Note: Use the size indicators on the bottom of the tray

to help position the width and length guides.

Squeeze the width guide tabs together, and then slide

the guide to the correct position for the size of paper

being loaded.

Setting up the printer

Squeeze the length guide tabs together, and then slide

the guide to the correct position for the size of paper

being loaded.

Note: The length guide has a locking device. To unlock

the tray, slide the button on top of the length guide to

the left, as illustrated. To lock the tray once the desired

length has been selected, slide the button to the right.

Flex a stack of paper back and forth to loosen the sheets,

and then fan them. Do not fold or crease the paper.

Straighten the edges on a level surface.

Load the paper stack with the recommended print side

faceup. Load the stack toward the back of the tray as

shown.

Align the tray, and then reinsert it.

Setting up the printer

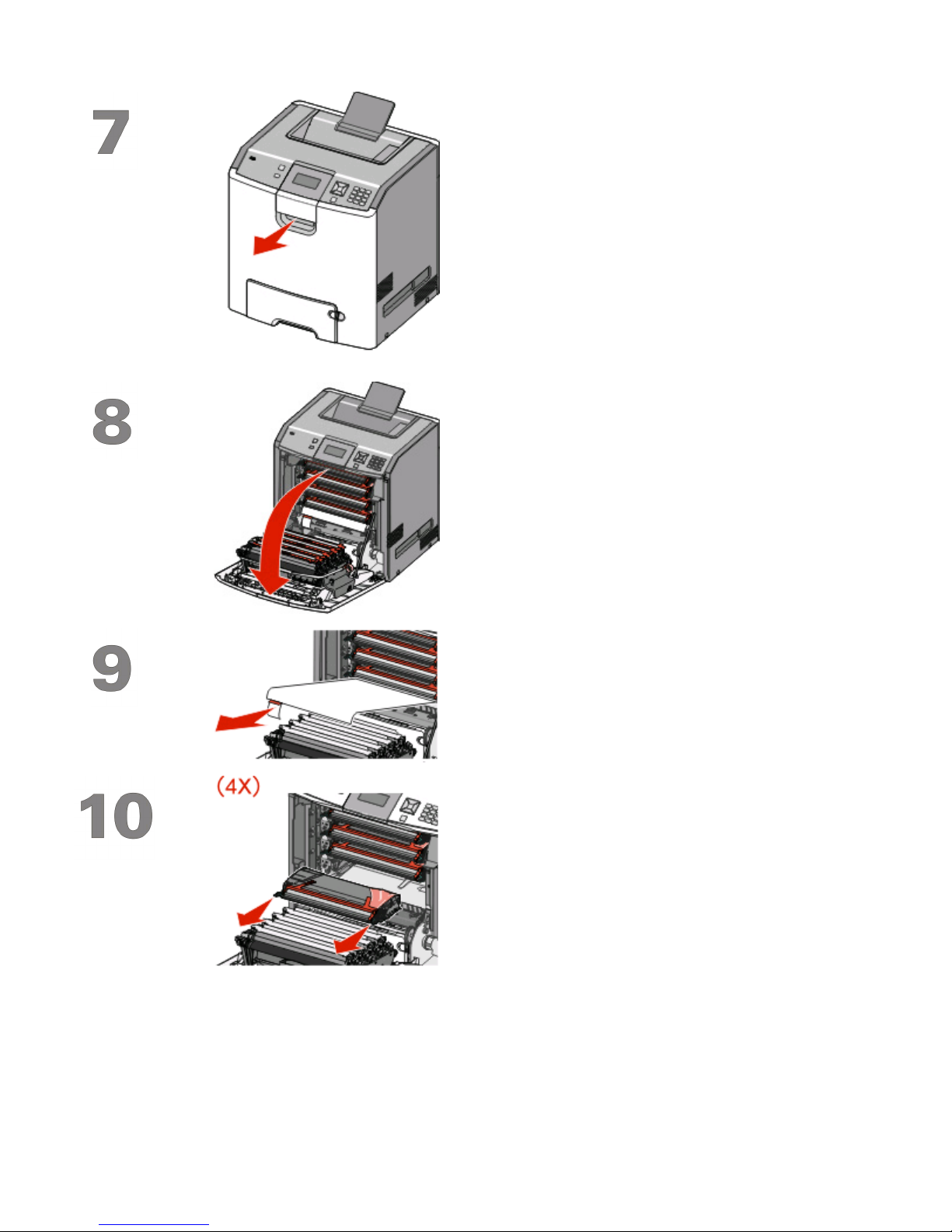

Grasp the handle, and pull forward to open the front

door.

Allow the front door to open completely.

Pull the protective sheet straight out of the toner

cartridge area to remove it.

Pull each toner cartridge straight out of the printer, one

at a time.

Setting up the printer

Firmly shake the toner cartridge side-to-side and front-

to-back several times to distribute the toner.

Remove the red packing material from each toner

cartridge.

Place each toner cartridge back into the printer.

Pull out on each side of the packing strip, and then pull

it forward to remove it from the transfer module.

Remove the red packing strip from the top of each

photoconductor.

Setting up the printer

Close the front door.

Setting up the printer
