Lexmark 522n - C Color Laser Printer Manuel utilisateur

Extracted From Service Manual

Edition: July 2002

The following paragraph does not apply to any country where such provisions are

inconsistent with local law: LEXMARK INTERNATIONAL, INC. PROVIDES THIS

PUBLICATION “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER EXPRESS OR

IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF

MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. Some states do

not allow disclaimer of express or implied warranties in certain transactions; therefore, this

statement may not apply to you.

This publication could include technical inaccuracies or typographical errors. Changes are

periodically made to the information herein; these changes will be incorporated in later

editions. Improvements or changes in the products or the programs described may be

made at any time.

Comments may be addressed to Lexmark International, Inc., Department D22A/032-2,

740 West New Circle Road, Lexington, Kentucky 40550, U.S.A or e-mail at

ServiceInfoAndTraining@Lexmark.com. Lexmark may use or distribute any of the

information you supply in any way it believes appropriate without incurring any obligation

to you. You can purchase additional copies of publications related to this product by

calling 1-800-553-9727. In other countries, contact your point of purchase.

Lexmark and Lexmark with diamond design and MarkNet are trademarks of Lexmark

International, Inc., registered in the United States and/or other countries.

ImageQuick and Optra Forms are trademarks of Lexmark International, Inc.

Other trademarks are the property of their respective owners.

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software clause at

DFARS 252.227-7013 and in applicable FAR provisions: Lexmark International, Inc.,

Lexington, KY 40550.

P/N: 12G3967

4520-xxx

Parts Catalog 7-1

4520-xxx

7. Parts Catalog

How to Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are shown on the same list. Common parts

are shown by one index number. Parts peculiar to one or the

other of the assemblies are listed separately and identified by

description.

•NS: (Not Shown) in the Asm-Index column indicates that the

part is procurable but is not pictured in the illustration.

7-2 Service Manual

4520-xxx

Assembly 1: Covers

Parts Catalog 7-3

4520-xxx

Asm-

Index Part

Number Units Description

1 - 1 99A2074 1 Cover Assembly, Redrive Cap

2 99A1508 1 Cover, Fuser Wick Assembly

3 99A1506 1 Cover Asm, Laser Assembly

4 99A1587 1 Support, Paper

5 99A1524 1 Cartridge Load Spring

6 99A2435 1 Cartridge Load Spring

7 99A2087 1 Smart Contact Assembly

8 99A2075 1 Cover, Right Side

9 99A2011 1 Hinge, Upper Front Cover

10 99A2010 1 Kit, Upper Front Cover with Labels 210/220

10 99A2150 1 Kit, Upper Front Cover with Labels 001/002

11 99A0007 1 Label, TLI/ID/Serial No. - Blank

12 99A1502 1 Latch, Upper Cover

13 99A1511 1 Cover Assembly, Lower Front

14 99A0004 1 Spring, Latch

15 99A2014 1 Operator Panel Assembly 110V

15 99A2015 1 Operator Panel Assembly 220V

16 99A2060 1 Switch, Cover Open w/Operator Panel

Cable Assembly

17 99A1594 1 Retainer, Cable

18 99A1509 1 Cover, Left Door 001/002 1-slot

18 99A1510 1 Cover, Left Door 210/220 2-slot

NS 99A0577 1 Cable Tie

NS 99A0263 5 Parts Packet, Screw

(Left Side Cover Mounting)

NS 99A0263 3 Parts Packet, Screw

(Right Side Cover Mounting)

NS 99A0263 6 Parts Packet, Screw (Laser Cover)

NS 99A0263 5 Parts Packet, Screw

(Upper Front Cover Mounting)

7-4 Service Manual

4520-xxx

Assembly 2: Frame

Parts Catalog 7-5

4520-xxx

Asm-

Index Part

Number Units Description

2 - 1 99A1643 1 Shroud, Fan

2 99A2063 1 Fan, Main

3 56P1049 1 Sensor, Standard Bin Level with Cable

4 99A1613 1 Flag, Output Paper Level

5 99A0062 1 Bracket, Level Sensor

6 99A2016 1 Duct, Left Stacker

7 99A0867 1 Duct, Main Body

8 99A2017 1 Guide, Redrive Exit

9 99A2018 1 Support, Left Lower Stacker

10 99A2076 1 Pan, Drip ITC

11 99A2077 4 Pad, Machine Mounting

12 99A2021 1 Support, Right Stacker Plate

13 99A2020 1 Transfer Plate Assembly

14 99A2022 1 Right Sideframe

15 99A1518 1 Frame Extension, Right 210/220

16 99A0028 1 Spring, Tray Bias

17 99A0585 1 Parts Packet, Contact Kit

•Contact, Dr Blade/TAR/Developer Roll (3)

•Contact, PC Drum (1)

•Contact, Charge Roll (1)

•Block, Contact Mounting (4)

•Screw, Contact Mounting (5)

18 99A0466 1 Sensor, Toner Cartridge Level

19 99A0039 2 Roller, Developer Support

20 99A0026 1 Tray Bias Arm Assembly

21 99A2024 1 Pan, Center Assembly

22 99A2019 2 Spring, Cartridge Hold Down

23 99A1525 1 Deflector, Upper PF

24 99A1850 1 Deflector, Inner

25 99A2065 1 Frame, EP Module

26 99A0053 1 Sensor, Input

27 99A1517 1 Frame Extension, Left 210/220

28 99A0549 1 Shield, ESD Assembly with label

29 99A0063 1 Spring, PA Out Activate

7-6 Service Manual

4520-xxx

Assembly 2: Frame (continued)

Parts Catalog 7-7

4520-xxx

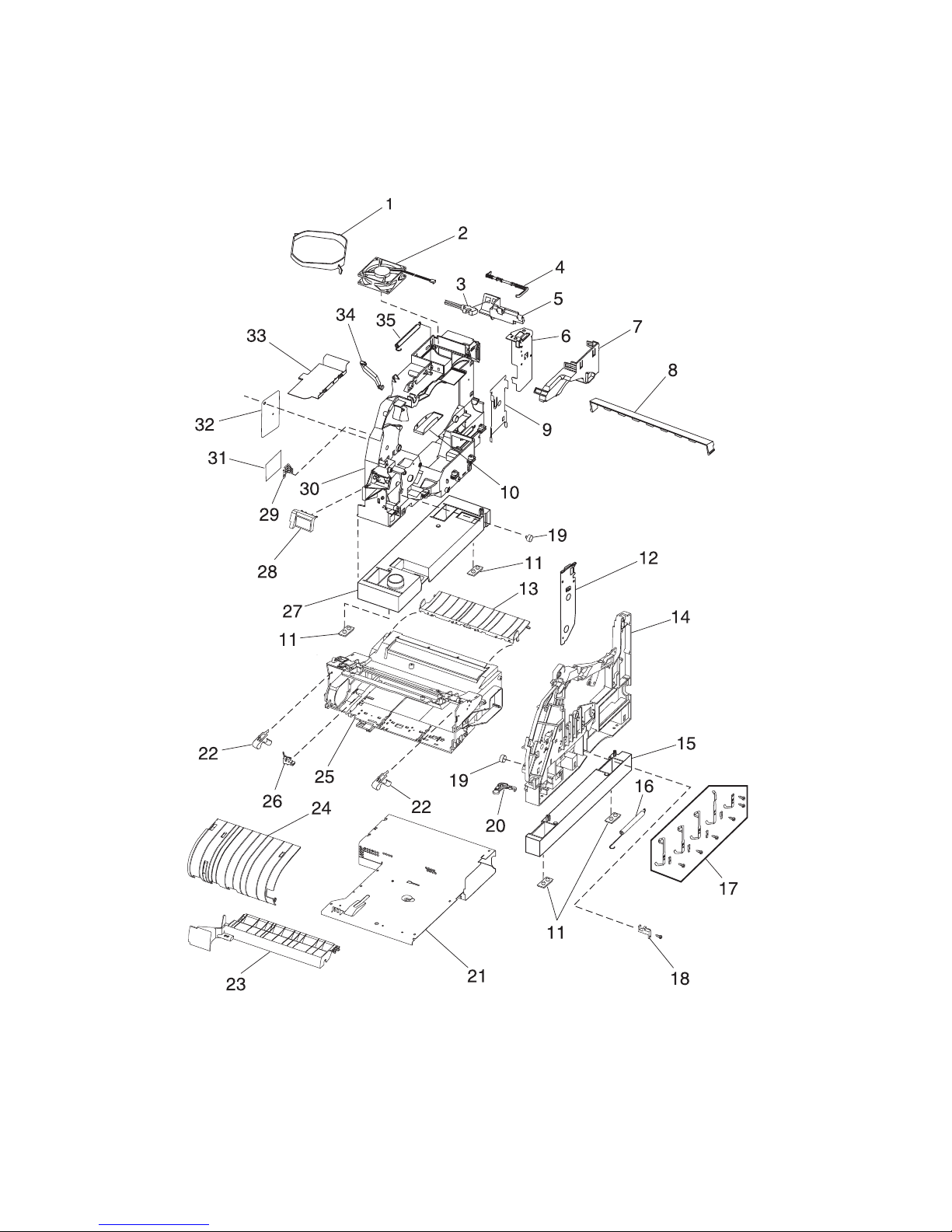

Asm-

Index Part

Number Units Description

2 - 30 99A2025 1 Left Side Frame

31 56P1139 1 Board, Input Tray (ITC)

32 99A1896 1 Guard, Gear

33 99A2078 1 Pan, Motor Drip

34 99A0567 1 Link, Gear Release

35 99A0556 1 Spring, Counterbalance

NS 99A0263 17 Parts Packet, Screw

NS 99A1546 1 Shield, Gear

NS 99A1596 1 Contact, LSF Ground

NS 99A1538 1 Contact, RSF Ground

NS 99A1540 4 Nut Plate, Frame 210/220

NS 99A1541 1 Spring, Duplex Ground

7-8 Service Manual

4520-xxx

Assembly 3: Printhead
