Lexmark 4039 - B/W Laser Printer Manuel utilisateur

LaserPrinter 4039 10P

4039

Extracted From Service Manual

Second Edition (June 1996)

The following paragraph does not apply to the United Kingdom or any country

where such provisions are inconsistent with local law: LEXMARK

INTERNATIONAL, INC. PROVIDES THIS PUBLICATION “AS IS” WITHOUT

WARRANTY OF ANY KIND, EITHER EXPRESS OR IMPLIED, INCLUDING, BUT

NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY OR

FITNESS FOR A PARTICULAR PURPOSE. Some states do not allow disclaimer

of express or implied warranties in certain transactions, therefore, this statement

may not apply to you.

This publication could include technical inaccuracies or typographical errors.

Changes are periodically made to the information herein; these changes will be

incorporated in later editions of the publication. Improvements or changes in the

products or the programs described in this publication may be made at any time.

Publications are not stocked at the address given below; requests for publications

should be made to your point of purchase.

A form for reader’s comments is provided at the back of this publication. If the form

has been removed, comments may be addressed to Lexmark International, Inc.,

Department D22A/035-3, 740 New Circle Road NW, Lexington, Kentucky 40550,

U.S.A. In the United Kingdom and Eire, send to Lexmark International Ltd.,

Marketing and Services Department, Westthorpe, Marlow Bucks SL7 3RQ.

Lexmark may use or distribute any of the information you supply in any way it

believes appropriate without incurring any obligation to you.

 Copyright Lexmark International, Inc. 1996

UNITED STATES GOVERNMENT RESTRICTED RIGHTS

This software and documentation are provided with RESTRICTED RIGHTS. Use,

duplication or disclosure by the Government is subject to restrictions as set forth in

subparagraph (c)(1)(ii) of the Rights in Technical Data and Computer Software

clause at DFARS 252.227-7013 and in applicable FAR provisions: Lexmark

International, Inc., Lexington, Ky 40550.

Parts Catalog 127

Parts Catalog

How To Use This Parts Catalog

•SIMILAR ASSEMBLIES: If two assemblies contain a majority of

identical parts, they are broken down on the same list. Common

parts are shown by one index number. Parts peculiar to one or

the other of the assemblies are listed separately and identified

by description.

•AR: (As Required) in the Units column indicates that the quantity

is not the same for all machines.

•NP: (Non-Procurable) in the Units column indicates that the part

is non-procurable and that the individual parts or the next higher

assembly should be ordered.

•NR: (Not Recommended) in the Units column indicates that the

part is procurable but not recommended for field replacement,

and that the next higher assembly should be ordered.

•R: (Restricted) in the Units column indicates that the part has a

restricted availability.

•NS: (Not Shown) in the Asm-Index column indicates that the part

is procurable but is not pictured in the illustration.

•INDENTURE: The indenture is marked by a series of dots

located before the parts description. The indenture indicates the

relationship of a part to the next higher assembly. For example:

INDENTURE RELATIONSHIP OF PARTS

(No dot) MAIN ASSEMBLY

(One dot) o Detail parts of a main assembly

(One dot) o Subassembly of the main assembly

(Two dot) o o Detail part of a one-dot subassembly

(Two dot) o o Subassembly of a one-dot subassembly

128 Service Manual

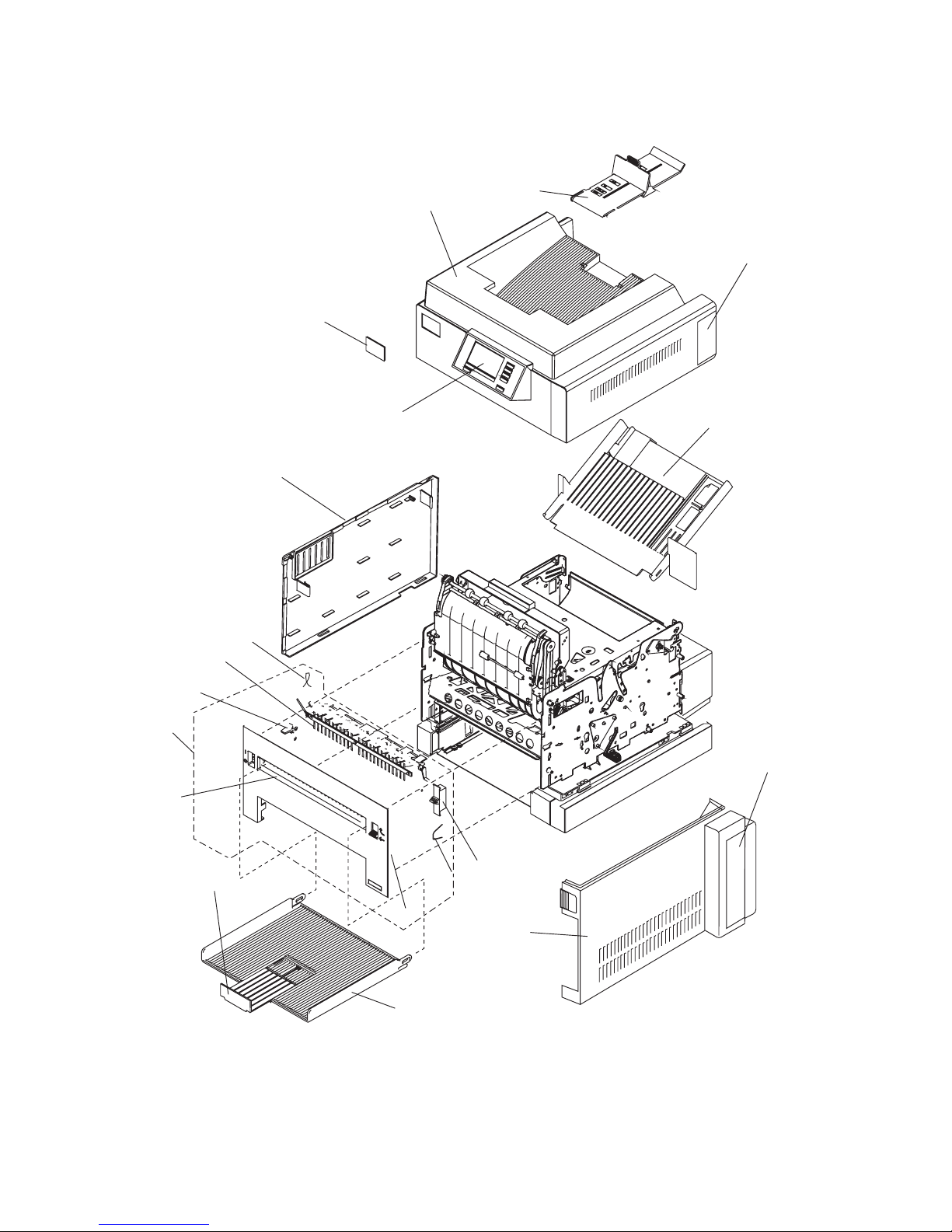

Assembly 1: Covers

114

Parts Catalog 129

Asm-

Index

Part

Number Units Description

1-1 1325311 1 Top Cover 10R/12R/12C/10P

-1 1328204 1 Top Cover 12L/16L

NS 1329607 1 Kit, Stacker Spring 16L

-1A 1381017 1 Operator Panel Asm

-1B 1328207 1 Door, Top Cover 12L/16L

NS 1328453 1 Screw, Operator Panel

-2 1325135 1 Front Logo, 10R

-2 1325136 1 Front Logo, 12R

-2 1325137 1 Front Logo, 12L

-2 1325952 1 Front Logo, 12C

-2 1328511 1 Front Logo, 16L

-2 1419451 1 Front Logo, 10P

-2 1375923 1 Front Logo, 10R plus

-2 1375925 1 Front Logo, 12R plus

-2 1375992 1 Front Logo 12C plus

-2 1375927 1 Front Logo 12L plus

-2 1377417 1 Front Logo 16L plus

-3 1325115 1 Right Cover Asm 10R/12R/12L/12C

-3 1328208 1 Right Cover Asm 10P/16L

-4 1328210 1 Door, Right Cover

NS 1328329 1 Label, Door, Right Cover 10R/12R/12L/12C/

16L

-5 1328186 1 Front Cover Asm

-6 1195318 1 On/Off Switch Lever

-7 1329070 1 Output Deflector

-8 1328473 1 Output Deflector Lever

-9 1 Spring, Deflector Lever, Parts Packet 1383316

-10 1058249 1 Spring, On-Off Actuator

-11 1183599 1 Spring, Front Cover Deflector

-12 1328185 1 Left Cover

-14 1325026 1 Paper Stop Asm,10R/12R/12C/10P

-14 1328509 1 Paper Stop Asm, 12L/16L

-15 1183536 1 Front Exit Slide

-16 1183538 1 Tray, Front Exit with slide

130 Service Manual

Assembly 1: Covers (Continued)

114

Parts Catalog 131

Asm-

Index

Part

Number Units Description

1-17 1328508 1 Manual Feed Tray with guide

NS 1 Screw (Deflector Spring Mtg.) Parts Packet

1383314

NS 1328482 1 Cover, Duplex mtg. slot

NS 1 Screw (Deflector Switch Mtg. plate) Parts

Packet 1383314

-27 1328189 1 Front Exit Door

132 Service Manual

Assembly 2: Lower Frame

120

611

13 12

Parts Catalog 133

Asm-

Index

Part

Number Units Description

2-1 1381120 1 Lower Frame Assembly 10R/12R/12L/12C/16L/

10P

-1 1381001 1 Lower Frame Assembly (16L below serial

number 11-09885 U.S. & 11-10915 W.T.)

-2 1381046 1 Motor, Brkt. and Gear Asm. 10R

-2 1381047 1 Motor, Brkt. and Gear Asm. 12R/12L/12C

-2 1381121 1 Motor, Brkt. and Gear Asm. 16L

-2 1381002 1 Motor, Brkt. and Gear Asm. (16L below serial

number 11-09885 U.S. & 11-10915 W.T.)

-2 1381049 1 Bracket and Gear Asm. 10R (W/O motor)

-2 1381122 1 Bracket and Gear Asm. 12R/12L/12C/16L

(W/O motor)

-2 1381003 1 Bracket and Gear Asm. (W/O motor) (16L

below serial number 11-09885 U.S. & 11-10915

W.T.)

-2 1381623 1 Motor, Brkt. and Gear Asm., 10P - includes

Gear 6

-3 1325614 1 Plate Asm. Gear Box Mtg. 10R

-3 1329515 1 Plate Asm. Gear Box Mtg. 12R/12L/12C/16L

-3 1408672 1 Plate, Gear Box Mtg. 10P

-4 1328503 1 Screw, Motor Brkt. Mtg. (All except 10P)

-4A 1328441 1 Clip, Ground, Motor Mtg. (All except 10P)

NS 1623642 1 Mtg. Screw, motor (All except 10P)

NS 1623642 1 Mtg. Screw, Gear Asm. (All except 10P)

-5 1328244 1 Gear No. 6 (All except 10P)

-5A 1624875 1 Mtg. Screw, Gear # 6 (All except 10P)

-6 1328243 1 Gear No. 2

-7 1039391 2 Detent, Box

-8 1329013 1 Right Cartridge Latch

-9 1383316 1 Spring, Parts Packet

-10 1383314 1 Washer, Parts Packet

-11 1039271 1 Shaft, Gear 2

-12 1383314 1 Nut, Gear 2, PP

-13 1622347 1 Lockwasher, Gear 2

-14 1329144 1 Left Cartridge Latch

-15 1328245 1 Gear Train Cover (All except 10P)

-15 1408645 1 Gear Train Cover, 10P

134 Service Manual

Assembly 2: Lower Frame (Continued)

120

611

13 12
