Lexmark 3200 - MFP - Option Manuel utilisateur

Getting Started

Unpack your printer

Remove all of the packing material from the printer.

User’s guide

Power

supply

cartridges

Setup

software

Getting started

2Connect the parallel cable

2a... to the printer

1Use a parallel cable that supports bidirectional

communication (IEEE 1284-compatible), such as

Lexmark P/N 1329605.

2Fasten the metal clips on the

printer to the parallel cable.

2b... to the computer

Connect the parallel cable to the computer. Make

sure you tighten the screws.

3Plug in your printer

3a. Connect both ends of the

power supply

1Connect the power supply to the printer.

2Plug the power supply into an electrical outlet.

3b. Is the power light on?

If the power light is on, continue with step 4.

If not, check your connections.

Power light

4Install the print cartridges

4a. Raise the front cover

When you raise the front cover, the cartridge carrier

moves to the loading position.

Cartridge

carrier

4b. Unpack the cartridges

1Remove each new print cartridge from its

packaging.

2Remove the sticker and the transparent tape

covering the copper area on the cartridges.

Tape

Sticker

DO NOT touch

the copper

contact area!

4c. Insert the cartridges

Black

Color

4d. Snap the cartridges into

place

Push back on the cartridges until they snap securely

into place.

If the print cartridges move loosely in the carrier,

they are not locked into place. Repeat this step.

SNAP

4e. Close the front cover

5Load paper

5a. Prepare for loading

Paper support

Media guide

Exit tray

5b. Place up to 100 sheets of

plain paper in the sheet

feeder

1Insert the paper against the right side of the sheet

feeder.

2Slide the media guide to the edge of the paper.

6Install the printer

software

The Lexmark 3200 compact disc includes printer

drivers for Windows 95, 98, 3.1, 3.11, and NT 4.0.

If your computer does not have a CD-ROM drive:

•Visit our website at http://www.lexmark.com

to download a printer driver to your computer.

•You can create driver diskettes using another

computer with a CD-ROM drive.

•Ask our Technical Support Center to mail you

diskettes. Refer to the printer registration card

for the number in your country.

Refer to the Lexmark 3200 User’s Guide for

information on how to install the printer software

from diskettes.

1Start Windows.

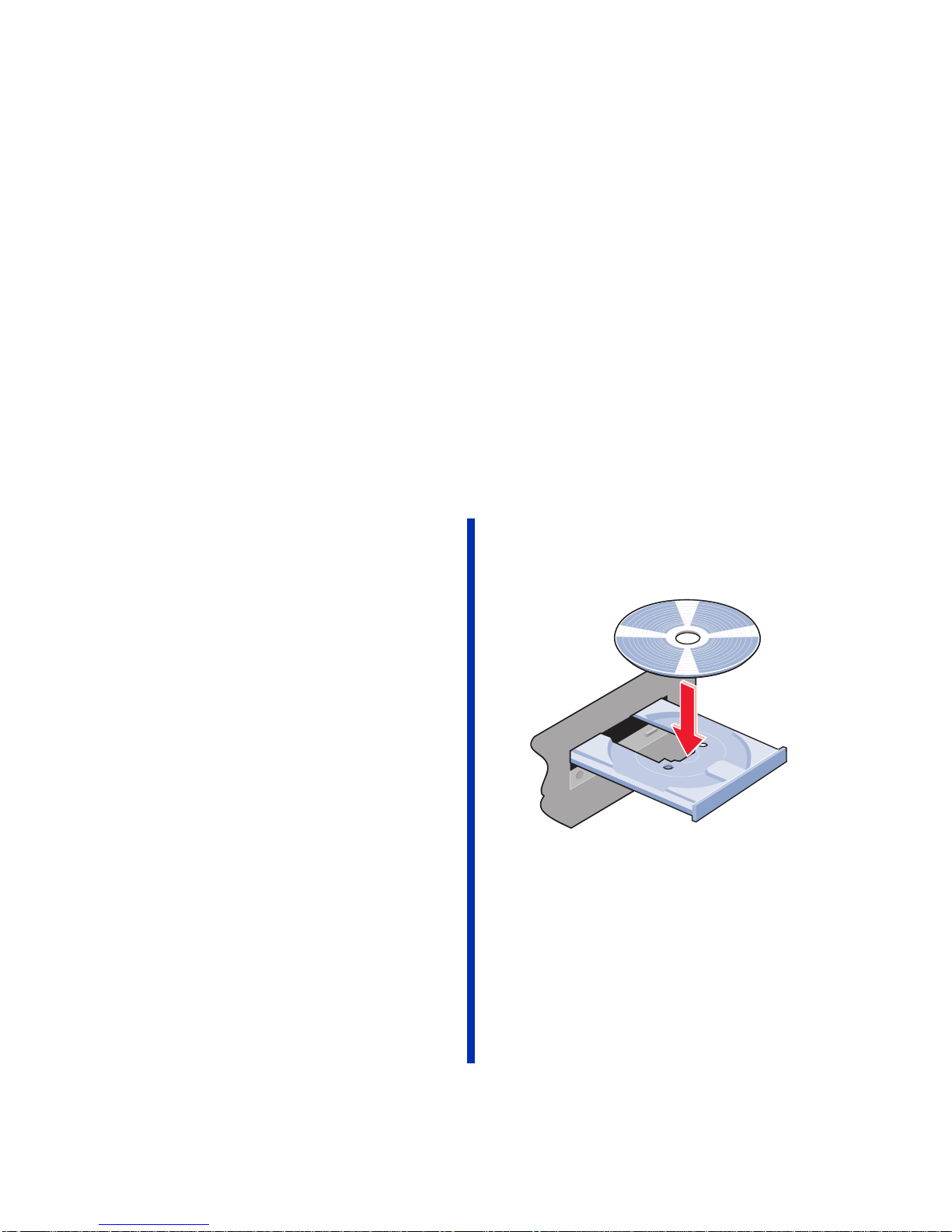

2Insert the Lexmark 3200 Color Jetprinter™ CD

into your CD-ROM drive.

•If the menu screen appears after a few

moments, continue with step 3.

•If nothing appears on the screen after a few

moments, follow these steps:

aWindows 95, 98, and NT 4.0

From the Start menu, choose Run.

Windows 3.1, 3.11

From the Program Manager menu bar,

choose File, then choose Run.

bIn the command-line text box, type the

letter of your CD-ROM drive, followed by

setup (for example, d:\setup), then click

OK.

3When the menu screen appears, click the Install

Printer software button.

4Follow the instructions on your screen.

Congratulations!

You have successfully set up your printer. Refer to

the Lexmark 3200 User’s Guide for information

about how to:

•Use the buttons and lights

•Print on plain paper

•Print on everything else

•Solve printer problems

Lexmark Technical Support Center

1-800-Lexmark

Outside the USA, see the printer registration card for the

number appropriate for your country.

Hours of Operation:

9 AM-9 PM Monday through Friday and

12 PM-6PM Saturday and Sunday (Eastern Time).

Or you may contact Lexmark at:

http://www.lexmark.com

Please have the following information available so we may

serve you faster. (Located on the back of the printer)

Machine Type number ____________________________

Serial number ___________________________________

Date purchased __________________________________

Store where purchased____________________________

(USA and Canada)

1-(800) 539-6275

Autres manuels pour 3200 - MFP - Option

Table des matières

Autres manuels Lexmark Imprimante

Lexmark

Lexmark C720 SERIES Manuel utilisateur

Lexmark

Lexmark C720 SERIES Manuel

Lexmark

Lexmark 11A4006 - Optra K 1220 B/W Laser Printer Manuel utilisateur

Lexmark

Lexmark Color Jetprinter 1020 Manuel utilisateur

Lexmark

Lexmark E 330 Manuel utilisateur

Lexmark

Lexmark C9235 Manuel utilisateur

Lexmark

Lexmark Multifunction Laser Instructions d'installation et d'entretien

Lexmark

Lexmark CX825 Manuel utilisateur

Lexmark

Lexmark 21Z0300 - Laser Printer Government Compliant Manuel d'utilisation

Lexmark

Lexmark MX810 Series Manuel utilisateur

Lexmark

Lexmark WinWriter 100 Manuel utilisateur

Lexmark

Lexmark E 330 Manuel utilisateur

Lexmark

Lexmark 3200 - MFP - Option Manuel utilisateur

Lexmark

Lexmark E340 Manuel

Lexmark

Lexmark XM1140 Manuel utilisateur

Lexmark

Lexmark MX6500e 6500e Manuel de service

Lexmark

Lexmark Z1420 - Single Function Wireless Inkjet Prin Manuel utilisateur

Lexmark

Lexmark E320 Manuel utilisateur

Lexmark

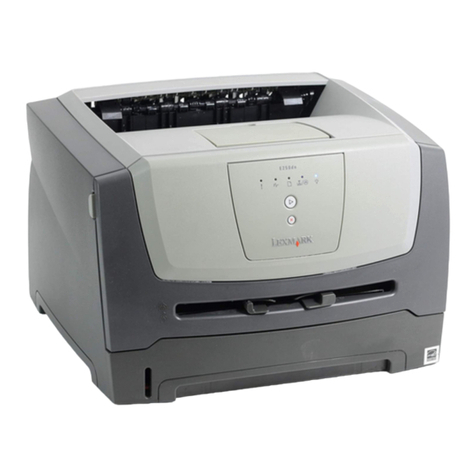

Lexmark 250d - E B/W Laser Printer Manuel utilisateur
