Lexmark 20D0000 - X 340 MFP B/W Laser Manuel utilisateur

Lexmark™ X342

Clearing Jams

Guide

Avoiding jams

The following hints can help you avoid jams:

•Use only recommended print media.

•Do not overload the print media sources. Make

sure the stack height does not exceed the

maximum height indicated by the stack line on

the labels in the sources.

•Do not load wrinkled, creased, damp, or curled

print media.

•Flex, fan, and straighten print media before you

load it. If jams do occur with print media, try

feeding one sheet at a time through the

multipurpose feeder.

•Do not use print media that you have cut or

trimmed yourself.

•Do not mix print media sizes, weights, or types

in the same print media source.

•Make sure the recommended print side is

loaded in the source according to your simplex

or duplex needs.

•Keep print media stored in an acceptable

environment.

•Do not remove trays during a print job.

•Push all trays in firmly after loading them.

•Make sure the guides in the trays are properly

positioned for the size of print media you have

loaded. Make sure the guides are not placed

too tightly against the stack of print media.

Clearing Jams

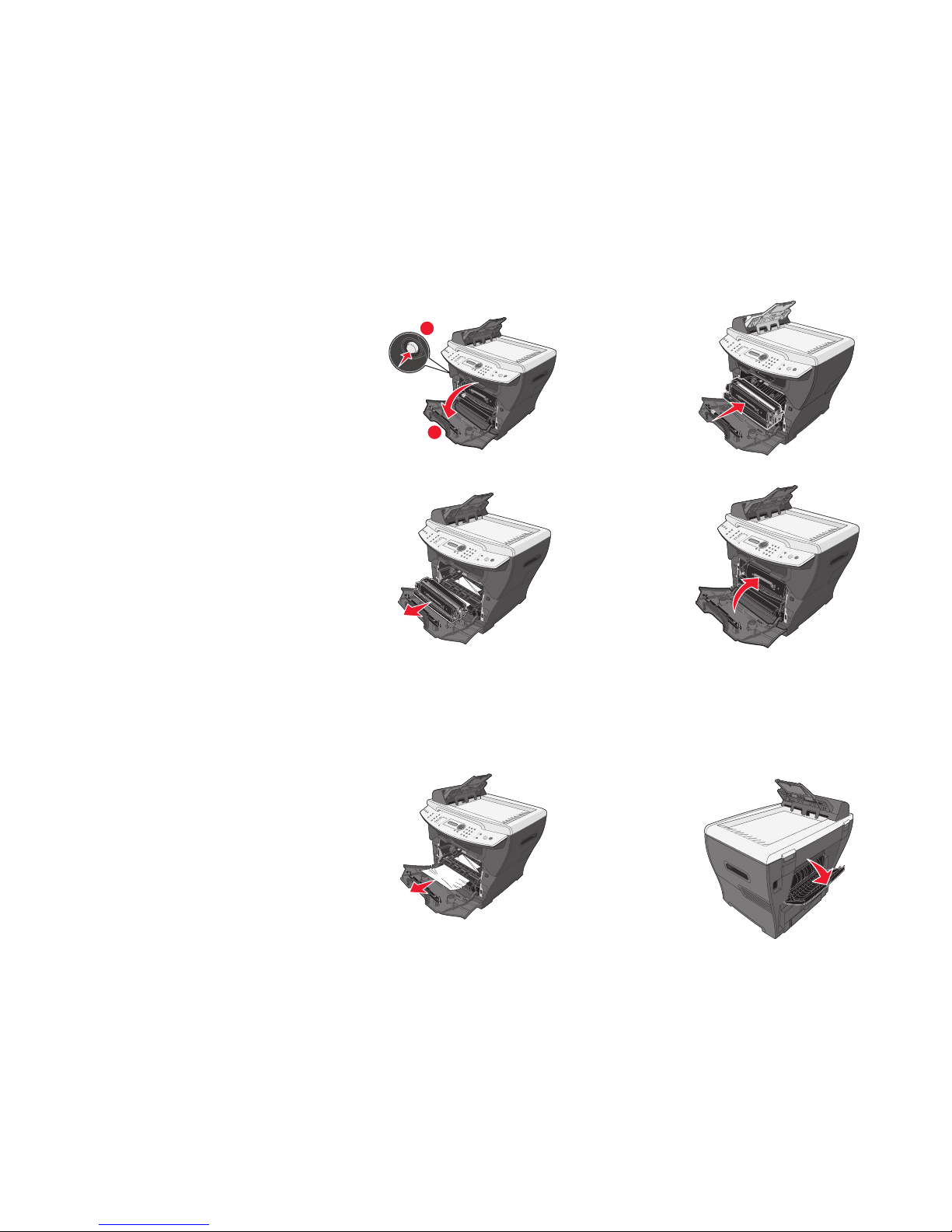

200/201 Paper Jam

CAUTION: The fuser area is hot. Avoid contact

with the fuser area to prevent burns.

1Press the access button on the left side of the

MFP, and open the front cover.

2Pull on the handle to remove the print cartridge

assembly.

Warning: Do not leave the print cartridge

assembly exposed to direct light for

an extended period of time.

Extended light exposure can cause

print quality problems.

3Remove the jammed paper by gently pulling it

straight out.

4Reinsert the print cartridge assembly.

5Close the front cover.

6Press Start to resume printing.

202 Paper Jam

CAUTION: The fuser area is hot. Avoid contact

with the fuser area to prevent burns.

1Open the rear cover.

2Remove the jammed paper by gently pulling it

straight out.

3Close the rear cover.

4Press Start to resume printing.

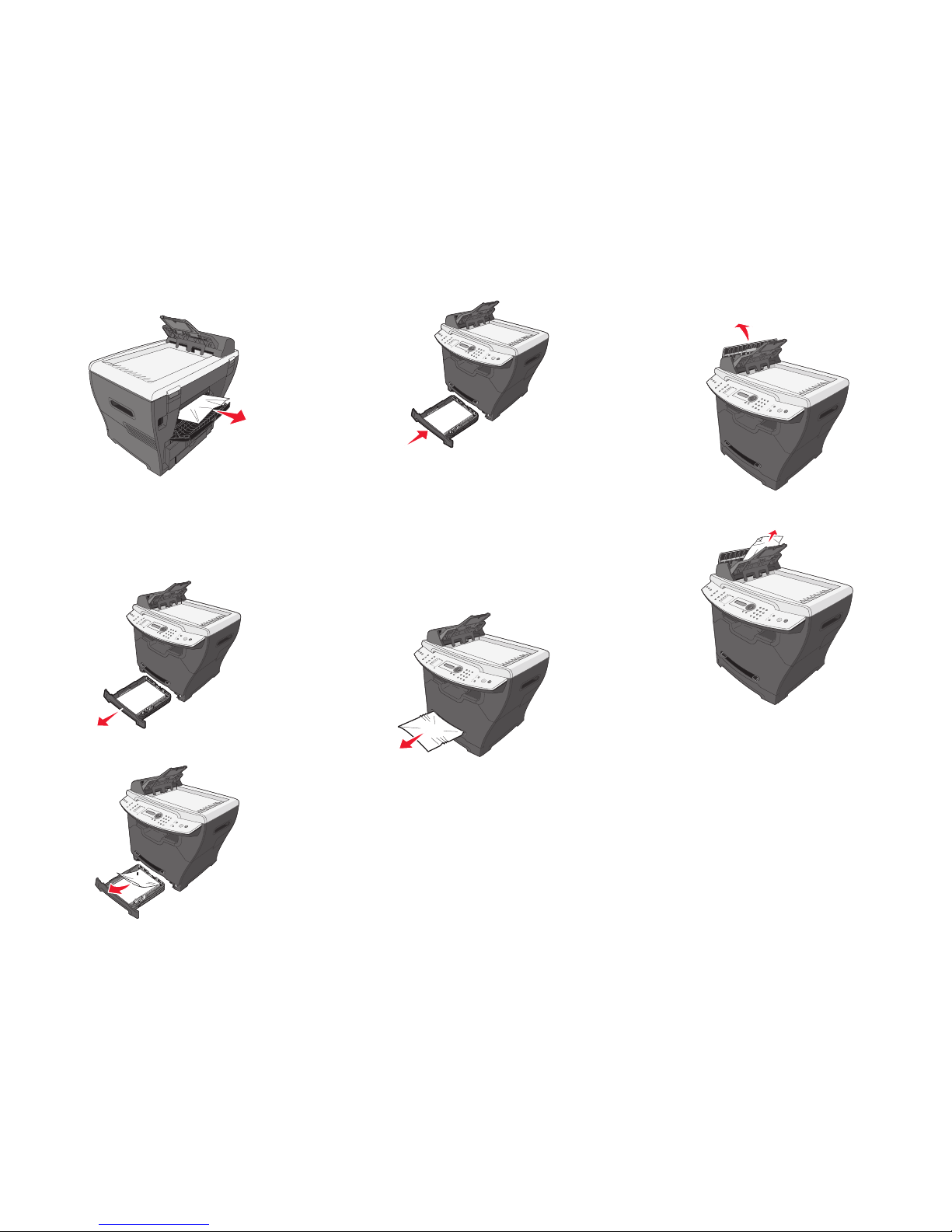

241/242 Paper Jam

1Open the appropriate paper tray.

2Remove the jammed paper by gently pulling it

straight out.

3Insert the paper tray.

4Press Start to resume printing.

Note: If you receive a 241.18 paper jam at

the start of a print job, verify that the

media settings match the acutal

media size.

251 Paper Jam

1Remove the jammed paper by gently pulling it

straight out of the MFP.

2Press Start to resume printing.

290/291/292 Scanner Jam

1Open the ADF top cover.

2Remove the jammed paper by gently pulling it

straight out.

3Close the ADF top cover, and then load the

documents back into the ADF.

Note: To prevent document jams, use the

scanner glass rather than the ADF

for thick, thin, or a mixed set of

documents.

4Press Start to resume.
