Leviton 80301 Manuel utilisateur

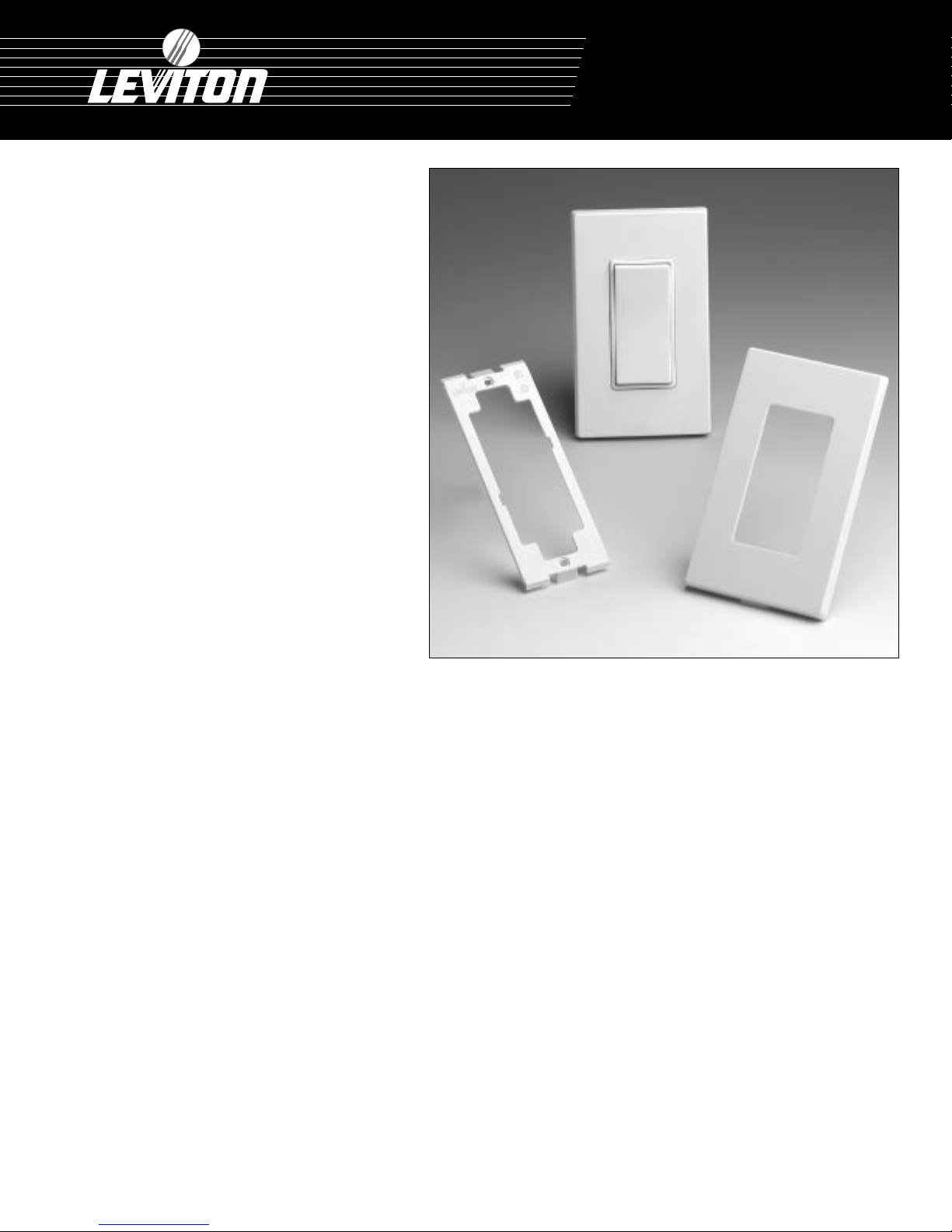

Decora Plus®

Snap-On

Wallplates

For Decora Plus®

and Decora®

Designer Wiring

Devices

APPLICATION:

For use in all branch circuits in commercial,

industrial and institutional installations, to

cover Decora Plus and Decora wiring

devices in outlet and/or switch boxes in

compliance with the NEC and other

regulatory codes.

FEATURES AND BENEFITS:

•Screwless, snap-on design for contemporary architectural styling. Complements style of Decora

plus devices.

•Complete kit includes snap-on wallplate, mounting bracket and required assembly screws.

•Impact-resistant thermoplastic construction stands up to abuse; resists fading and discoloration,

grease, oils, organic solvents and moisture.

•High dielectric strength and arc resistance, meeting or exceeding UL Standard 514.

•Meets material test standards of NEMA WD-1, ANSI and Federal Specifications W-P-544.

(Designer-configuration wallplates are not called for on Federal Specifications.)

• UL Listed, CSA Certified

• Backed by Leviton’s Limited Ten-Year Warranty

TYPICAL SPECIFICATION:

Leviton Decora Plus Snap-On Wallplates shall be designed to cover Decora Plus and Decora wiring

devices in applications where a screwless, architectural appearance is desired. Commercial Specification

Grade Decora plus wallplates shall be UL Listed, CSA Certified and meet NEMA standards WD-1. Two

piece Decora plus wallplate and mounting assembly shall feature impact-resistant thermoplastic

construction and be backed by Leviton’s Limited Ten-Year Warranty.

SPECIFICATION SHEET

FOR CAT. NOS.

80301, 80309,

80311, 80312, 80321, 80326

Testing and Code Compliance:

All wallplates are Listed by Underwriters’ Laboratories, Inc., CSA, Certified, and meet test requirements

of Federal Specification W-P-455a, with the exception of cutout configurations, since the latest Federal

Specifications do not yet call for designer styling of wallplates.

Typical tests include (in part) selection of materials used (thermoplastic), mechanical strength and fire

resistance (five 15 second applications of a gas flame to plastic materials.)

These wall plates are suitable for use in accordance with state, country, municipal and local codes,

including ANSI/NFPA No. 70-1993 National Electrical Code and the OSHA Code.

Description Brown Ivory White Almond Gray Ebony

1-gang 80301 80301-I 80301-W 80301-A 80301-GY 80301-E

2 gang 80309 80309-I 80309-W 80309-A 80309-GY 80309-E

3-gang 80311 80311-I 80311-W 80311-A 80311-GY 80311-E

4-gang 80312 80312-I 80312-W 80312-A 80312-GY 80312-E

5-gang ______ 80321-I 80321-W 80321-A ______ ______

6-gang ______ 80326-I 80326-W 80326-A ______ ______

For more information, contact your Leviton representative or:

Leviton Manufacturing Company, Inc.

59-25 Little Neck Parkway, Little Neck, NY 11362-2591

TEL: 1-800-323-8920 FAX: 1-800-832-9538

In Canada contact:

Leviton Manufacturing of Canada, Ltd.

165 Hymus Boulevard, Pointe Claire, Quebec H9R IG2

TEL: 1-514-954-1840 FAX: 1-514-954-1853

http:/www.leviton.com

Decora Plus Wallplates:

PLATE

1.760 (44.70 mm)

4.125 (104.77 mm)

4.409 (111.98 mm)

WALL

SIDE

WALL

SIDE

0.095 (2.36 mm)

PLATE

1.310 (33.27 mm)

4.609 (117.07 mm)

2.630 (66.80 mm)

4.379/4.359 (111.23/110.72 mm)

3.812 (96.82 mm)

2.75 (69.85 mm)

R O.O93

TYP

R O.O76

TYP

0.255 (6.48 mm)

0.080 (2.03 mm)

Dimensional Drawing:
