1. Introduction

Power-over-Ethernet (PoE) eliminates the need to run 110/220 VAC power to other

devices on a wired LAN. Using Power-over-Ethernet system installers need to run only

a single CAT5 Ethernet cable that carries both power and data to each device. This

allows greater flexibility in the locating of network devices and significantly decreasing

installation costs in many cases.

There are two system components in PoE -- the Power Sourcing Equipment (PSE)

initiates the connection to the second component, the Powered Device (PD). The

current is transmitted over two of the four twisted pairs of wires in a Category-5 cable.

Power over Ethernet follows the IEEE 802.3af and is completely compatible with

existing Ethernet switches and networked devices. Because the Power Sourcing

Equipment (PSE) tests whether a networked device is PoE-capable, power is never

transmitted unless a Powered Device is at other end of the cable. It also continues to

monitor the channel. If the Powered Device does not draw a minimum current,

because it has been unplugged or physically turned off, the PSE shuts down the power

to that port. Optionally, the standard permits Powered Devices to signal to the PSEs

exactly how much power they need.

Features

 POH-0850TX, 8-port power over Ethernet Hub

 IEEE802.3af compliance, Power over Ethernet Mid-Spain mode

 Remote power feeding up to 100 meters and for IEEE802.3 10Base-T, IEEE

802.3u 100Base-TX standard

 Auto detect PD and classification power consumption level

 Support manual control port detect and classification

 Support system calibrate

 Support Auto MDI/MDI-X depends on the uplink switch port.

 Remote power feeding up to 100 meters and for IEEE802.3 10Base-T, IEEE

802.3u 100Base-TX standard

 Centralized power distribution for PoE powered Device (PD)

 High safety short circuit protection to prevent cable short

 Supports IEEE 802.3af non-standard device, and support manual detect PD

 Auto refresh port status and support Plug and Play feature for PD

Package Contents

Unpack the contents of the 8 port Power over Ethernet Hub and verify them

against the checklist below.

 POS-0850TX, 8-port Power over Ethernet MidSpan Hub

 Power Cord

 RS-232 cable

 User Guide

 Software Utility CD-ROM

POH-0850TX RS-232 Cable Power Cord

User Guide Software Utility CD-ROM

Figure 1-2. Package Contents

Compare the contents of your POH-0850TX package with the standard checklist

above. IF any item is missing or damaged, please contact your local dealer for service.

2. Hardware Description

This Section mainly describes the hardware of the POH-0850TX, and gives a physical

and functional overview.

PhysicalDimension

The 8-port Power over Ethernet Hub physical dimension is: 440mm x 224mm x 44mm

(Lx W x H)

FrontPanel

The Front Panel of the POH-0850TX consists of 8x RJ-45 Ethernet ports, LED

indicators, and one console port.

Figure 2-1. The appearance of POH-0850TX, 8 port Power over Ethernet Hub

LEDIndicators

The LED Indicators gives real-time information of systematic operation status. The

following table provides descriptions of LED status and their meaning.

Figure 2-2. LED indicators

LED Status Color Description

On Green Power is transmitting to the device

Power

Forwarding Off --

Power is not transmitting to the

device

On Orange Device is overload or short.

Off -- Device attached.

Power Off

Blinking Orange Detecting the device

Table 2-1. The Description of LED Indicators

Notice

The “Power Off” LED is flashing when No PD attached.

And the LED goes off when PD attached. The corresponding “power forwarding” LED will then

go ON or OFF depending on switch action.

RearPanel

The 3-pronged power plug, 2 Ventilation fan and on/off switching are located at the

rear panel of the 8 port Power over Ethernet Hub. The device will work with AC in the

range 100-240V AC, 50-60Hz.

Figure 2-3 Rear panel of the POH-0850TX

PowerOn

Connect the power cord to the power socket on the rear panel of the Switch. The other

side of power cord connects to the power outlet. The internal power supply of the

Switch works with voltage range of AC in the 100-240VAC, frequency 50~60Hz. Check

the power indicator on the front panel to see if power is properly supplied.

NetworkApplication

The Power over Ethernet Hub can provides power to the PD that follow the IEEE

802.3af standard in the network. It can solve the problem of position limitation. The

network device can be installed in more appropriate position for better performance.

The following figure is an example of network application for Power over Ethernet Hub.

Powered Device, ex: SOHO

switch or Wireless AP

123456

789101112

12x

10x

11x

Ethernet

12x

10x

11x

123456

789101112

12x

10x

11x

Ethernet

12x

10x

11x

POWERFAULT DAT A ALARM

Core Switch

Switch

Power over Ethernet Hub

PC or

Notebook

100M

Power over Ethernet Hub provide

power to Powered device

AC power

Figure 2-3 Power over Ethernet Hub network application

3. Software Utility Installation

Berfore you star to remote configuring PD, please intsall the software utility. Through

the software utility, you can easily to controll the PD that connect with PoE and view

the PD parameter informations. The software utility provides GUI interface and user

can easily to start with it. The software utility supports Windows environment -- Window

98, 2000, and XP. Please follow the below steps to install the software utility.

1. Insert the software utility CD-ROM into your CD-ROM drive.

2. Run the “setup.exe”.

3. You will see the installation screen display.

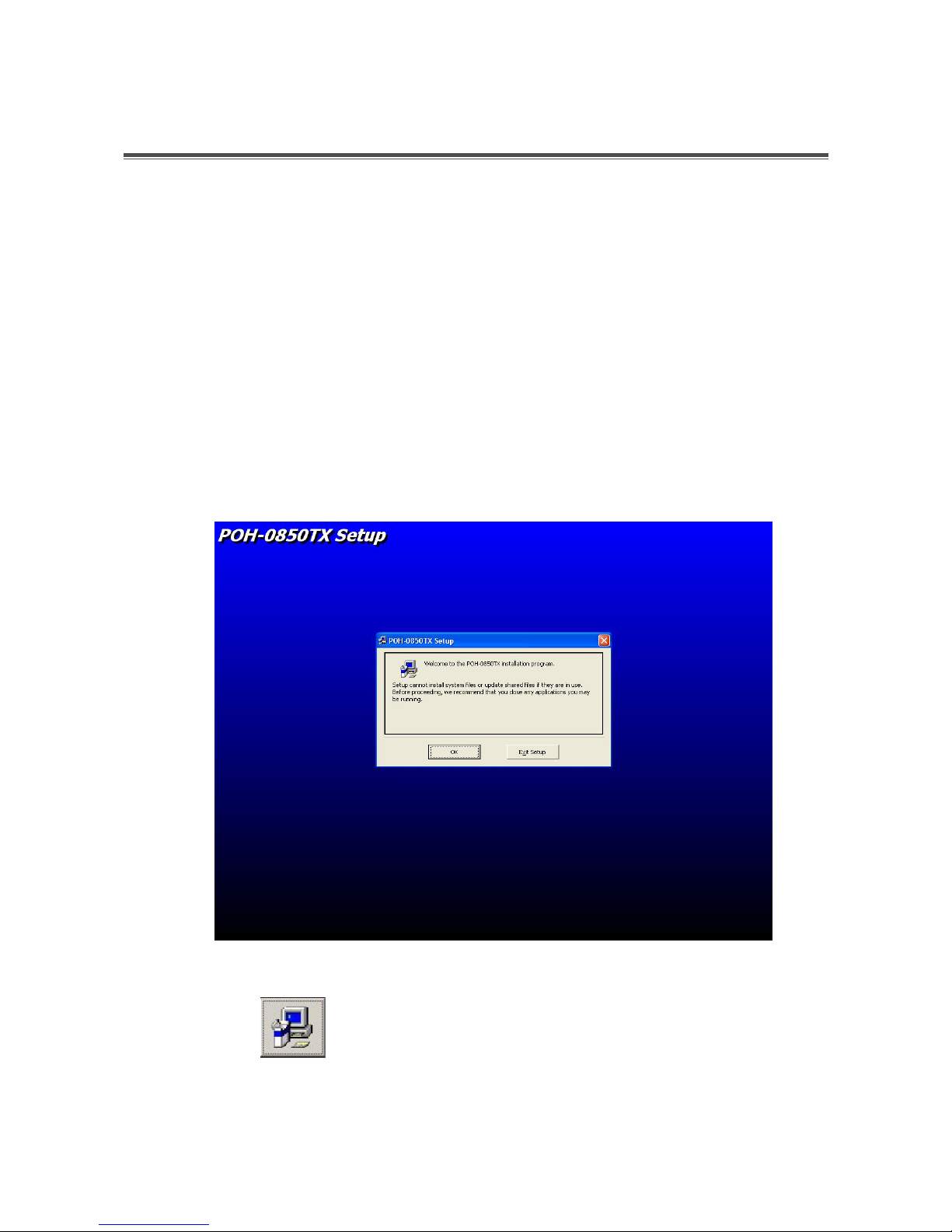

4. Then, click the “OK” button to go next step. See Figure 3-1.

Figure 3-1

5. Click the button to start installation. See Figure 3-2.

Figure 3-2

6. When installation finishes, click “OK” button to finish. See Figure 3-3.

Figure 3-3

7. To run the software utility, go to “Star” “Program” “Power Over Ethernet”.

8. If you want to remove the software utility, go to “Star” “Control Panel” 

“Remove/ Add application” “Power Over Ethernet”.
