LevelOne Infinity IEC-1400 Manuel utilisateur

IEC-1400

10/100 Industrial Media Converter w/ PoE PD

SC MM 2KM -10 to 60C

Quick Installation Guide

v1.00‐1209

IEC-1400 Page 1

Overview

LevelOne IEC-1400 is an industrial Fast Ethernet media converter

with IP30 ingress protection case. This converter is designed to be

mounted on an industrial standard DIN-rail, plus the clearly visible

status LEDs provide simple monitoring of port link activity.

Power over Ethernet

This converter is PoE Powered Device (PD), which is supplied with

current by PoE PSE, and it is fully complied with IEEE 802.3af PoE

standard. It helps to save infrastructure wiring costs dramatically by

eliminating electric wiring and no power adapter needed.

Cost Effective

This device operates under -10 to 60 Celsius (-14 to 140 Fahrenheit)

temperature that offers optimal suitability for industrial

applications at low cost while maintaining all components built to

withstand harsh environment applications without compromise

reliability and stability.

Plug & Play

This Industrial Media Converter is designed for the demanding

industrial environments at businesses in need of instant

connectivity with no setup or configure required, truly plug and

play.

IEC-1400 Page 2

Features

Provides 1-port 10/100Base-TX plus 1-port 100Base-FX

100Base-FX Multimode fibre for the link up to 2 kilometres

IEEE802.3af PoE PD that can be powered PoE PSE or external

power supply

10/100Mbps Full/Half duplex, Auto-negotiation, Auto-MDI/MDIX

Complies with IEC61000-6-2 EMC Generic standard immunity for

industrial environment

228K bits buffer memory

-10C to 60C (-14F to 140F) operating temperature

Supports DIN-rail mounting installation

Package Contents

IEC-1400

Quick Installation Guide

IEC-1400 Page 3

LED Status

LED Status Description

Power 1, 2

Steady Power On

Off Power Off

PD Power

Steady Powered Source Equipment (PSE) is connected

Off Powered Source Equipment (PSE) is disconnected

Link/ACT

Steady Network connection is established

Flashing Transmitting or Receiving data

Off No connection occurred

IEC-1400 Page 4

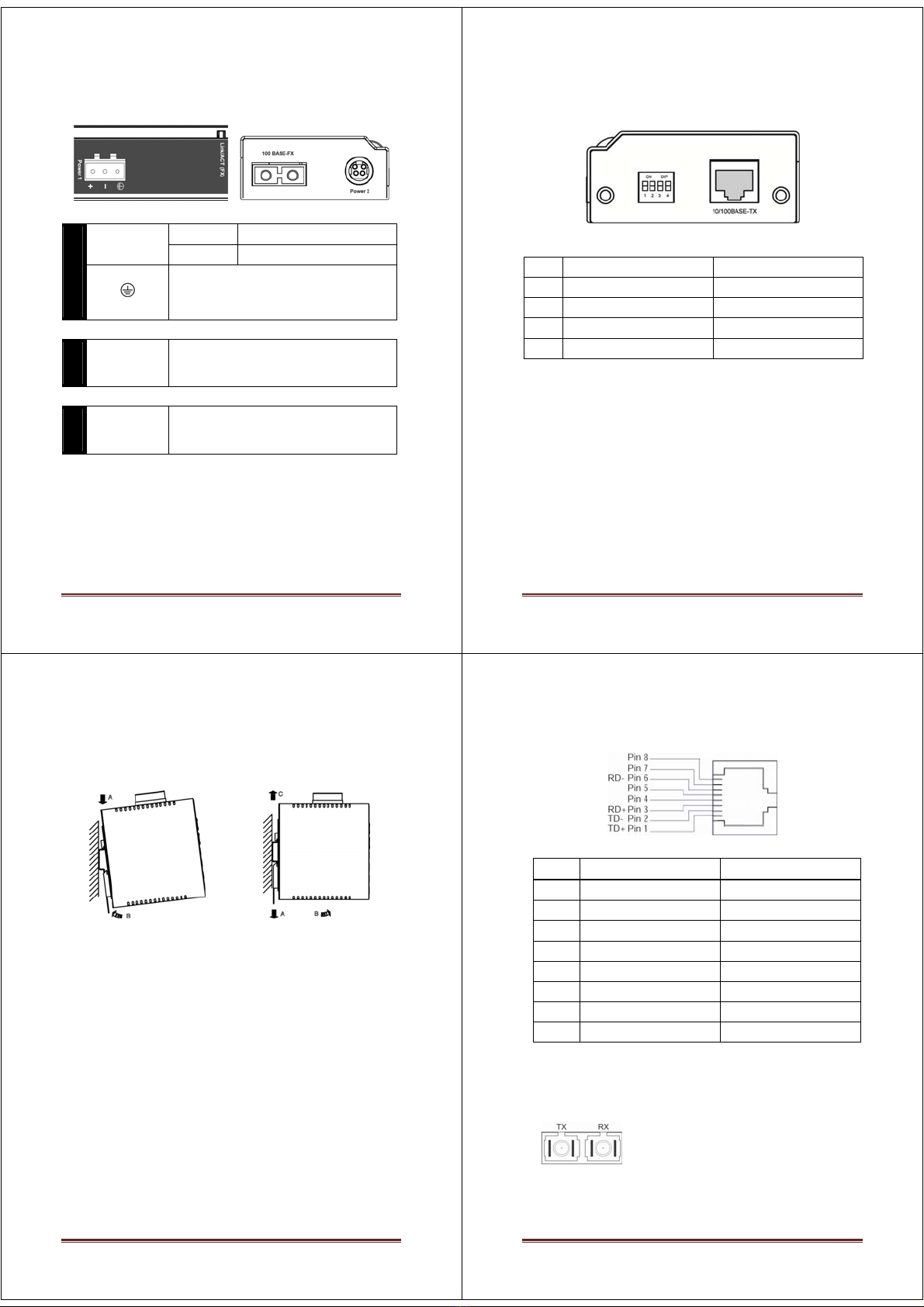

Power Input

Terminal Block

Power 1

+ 48VDC

– Power Ground

Earth Ground

DC Jack

Power 2 48VDC

PoE

PD Power Power Source Equipment (PSE) over Ethernet port

Note

This converter can be powered by PoE via Ethernet connection. No

Terminal Block or DC Jack power is needed when PSE is connected

IEC-1400 Page 5

DIP Switch

DIP On Off

1 Enable Force mode for TX port Enable Auto mode for TX port

2 Force to 10Mbps on TX port Auto 10/100Mbps on TX port

3 Half Duplex on TX port Full Duplex on TX port

4 LFPT is enabled LFPT is disabled

Note:

LFPT: Link Forward Pass Through

Disconnect the power before change the DIP switch settings

IEC-1400 Page 6

DIN Rail Mount

Assembly: Place the switch on the DIN rail from above using the

slot. Push the front of the switch toward the mounting surface

until it audibly snaps into place

Start-up: Connect the supply voltage to start up the switch via

the terminal block (or DC JACK)

Dismantling: Pull out the lower edge and then remove the switch

from the DIN rail.

IEC-1400 Page 7

10/100Base-TX Connector

Pin Standard Port Uplink Port

1 Output Transmit Data + Input Receive Data +

2 Output Transmit Data - Input Receive Data -

3 Input Receive Data + Output Transmit Data +

4 NC NC

5 NC NC

6 Input Receive Data - Output Transmit Data -

7 NC NC

8 NC NC

100Base-FX Connection

he Tx (transmit) port of device I is

connected to the Rx (receive) port

of device II, and the Rx (receive)

port of device I to the Tx (transmit)

port of device II.
