RX Series Rangefinder

Artwork Part No. 61309

Part No. 61374

PMS Black 7

PMS 873C

OPERATING INSTRUCTIONS



™





Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 1

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 4

Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 5

Cleaning/Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 32

Helpful Hints for Using the Leupold

RX Digital Laser Rangefinders . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 33

Warranty/Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Page 36

Table of Contents

Congratulations! You have purchased a Leupold RX™ Series digital laser

rangefinder that has been designed by Leupold’s engineers and designers

to be the best rangefinder on the market and to provide you with years of

solid performance in the field. Following are detailed instructions regarding

the proper use and employment of your RX Series rangefinder. To ensure top

performance for the life of the product, please read these instructions before

operating your RX-I, RX-II, RX-III, or RX-IV.

Your new Leupold RX Series digital laser rangefinder is a revolutionary, range-

finding device that incorporates advanced digital electronics with state-of-

the-art ballistic algorithms. True Ballistic Range

™

algorithms were developed

by the same engineers who developed Sierra Infinity

Exterior Ballistics

Software and who helped develop navigation and guidance systems for ICBMs

and other missiles with far more demanding trajectory requirements than a

hunting bullet. Other useful features that are included are an inclinometer,

thermometer, compass, and the Match 13™ Reticle System™, but the truly

Introduction

innovative and unique feature is True Ballistic Range (TBR™), which is available

on RX-II, RX-III, and RX-IV models.

True Ballistic Range (TBR) is a marriage of laser ranging, inclinometer, and an

advanced computerized ballistics program. The result is distance measuring

precise within a yard, no matter the angle at which the laser is fired.

Bullets

and arrows travel in a ballistic arc, yet conventional rangefinders only provide

a linear distance to your target. True Ballistic Range delivers the ballistically

equivalent range to the target, accounting for the effects of inclines (either up

or down) on the path of your bullet or arrow. Other features that are provided

for firearms are outputs that display either MOA adjustments, or inches/

centimeters of holdover at that specific distance. True Ballistic Range eliminates

any potentially significant error, and provides a precise range for your aiming

calculations.

TBR is matched to each of seven firearm ballistic groups and three

archery ballistic groups, allowing use with most popular firearms and bows.

The ranging accuracy of all Leupold RX Series rangefinders is +/- one yard/meter.

The maximum range of the unit depends on the reflectivity of the target (as

do all rangefinders). Below is a reference table listing the ranges of the various

models under different conditions: (see page below)

Surface texture, color, size and shape of the target all affect the reflectivity,

which in turn affects the maximum range of the instrument, to some degree.

As a rule of thumb, brightly colored targets are much more reflective than

darker targets. Tan game coats are more reflective (and thus provide a more

solid reading) than a black roof. A shiny surface is more reflective than a dull

surface. Smaller targets are more difficult to range than larger targets. Light

conditions, haze, fog, rain, and other environmental conditions can all affect

ranging performance. Any factor which degrades air clarity is a negative to

making the rangefinder work to the longest practical distances.

MAXIMUM RANGE

CONDITION RX-I RX-II RX-III RX-IV

Reﬂective Target (yd) 750 750 1200 1500

Trees (yd) 600 600 800 900

Deer (yd) 500 500 700 800

Specifications

RX-I RX-II RX-III RX-IV

Magniﬁcation 6× 6× 8× 8×

Inclinometer No Yes Yes Yes

TBR (True Ballistic Range) No Yes Yes Yes

Match 13™ Reticle System™Yes Yes Yes Yes

Quick Set Rotary Menu™Yes Yes Yes Yes

Long Range Mode Yes Yes Yes Yes

Rain Mode No Yes Yes Yes

1st Target Mode No Yes Yes Yes

Last Target Mode No Yes Yes Yes

Line of Sight Distance (LOS) Yes Yes Yes Yes

Compass With Declination Setting No No No Yes

Compass With Tilt Compensation No No No Yes

Thermometer ºC to ºF Yes Yes Yes Yes

Yards/Feet/Meters Mode Yes Yes Yes Yes

Scan Mode Yes Yes Yes Yes

Illuminated Display No No Yes Yes

Clear Field™ Display Cleanup Mode Yes Yes Yes Yes

Battery Life 2000 Actuations 2000 Actuations 2000 Actuations 2000 Actuations

Weight 6.8 oz 6.8 oz 12 oz 12 oz

Dimension (Inches) 4.2" × 3" × 1.75" 4.2" × 3" × 1.75" 4.8" × 3.5" × 2" 4.8" × 3.5" × 2"

Low Battery Indicator Yes Yes Yes Yes

Warranty 1 Year 1 Year 2 Years 2 Years

Weatherproof/Waterproof Weatherproof Weatherproof Waterproof Waterproof

The RX Series of digital laser rangefinders provides a variety of useful modes to

tailor performance to the conditions you experience in the field. The particular

models that feature each mode are identified on the following page.

QUICK SET ROTARY MENU™

*Display shown with all possible modes visible

Operation

-/+

RX-I

-/+

RX-I

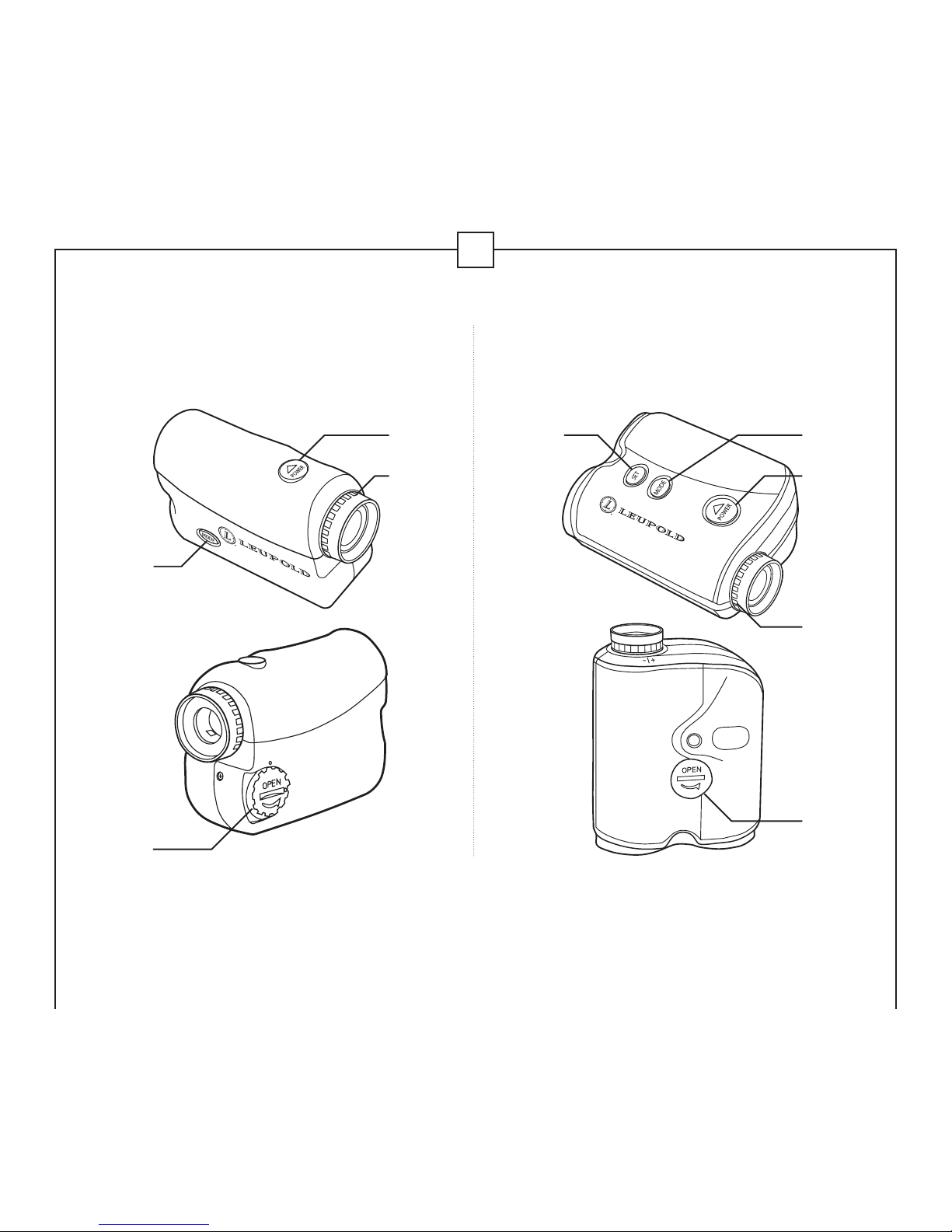

RX™-I & RX™-II RX™-III & RX™-IV

Power

Mode

Focus

Set Mode

Power

Focus

The RX-I and RX-II have two buttons: Power and Mode. The RX-III and RX-IV

have three buttons: Power, Mode, and Set.

Battery

When you initially push the Power button, the unit is ready for scanning. When

you first press the Mode button, the Quick Set Rotary Menu™ is prepared for

navigation. To set or activate a function, you must advance the mode selector

to that function by pressing the Mode button until that function is flashing by

itself. To lock in that function, press the Set button if using a RX-III or RX-IV;

press the Power button if using a RX-I or RX-II.

NOTE:

Activating certain modes automatically disables other modes. For

example, 1st Target and Last Target Mode work in an opposite way, so when

one is activated the other is automatically turned off to ensure proper ranging

function. Long Range and Rain Mode can be on at the same time.

FUNCTION 1: LONG RANGE MODE

This mode is used when you want the rangefinder

to range only those items beyond 150 yards. If you

are ranging targets closer than 150 yards, turn the

Long Range Mode off.

FUNCTION 2: RAIN MODE

The Rain Mode is used in rainy conditions and screens

out false returns from raindrops or other atmospheric

interference to provide an accurate range.

FUNCTION 3: 1ST TARGET MODE

1st Target Mode is used to display the range to the

closest object when more than one object may be

hit by the beam. Multiple objects will often return

an average distance. 1st Target Mode ensures an

accurate reading on the closest object.

Last Target Mode is automatically disabled while 1st Target

Mode is activated.
