LESITE LST600A Manuel utilisateur

Plastic Extrusion Welder













LESITE

Dual Heating/Single Heating/Granules EN

Please read this manual carefully before using this machine,

and keep it for future reference

Each plastic extrusion welder must undergo a double test of 100% performance

and safety before leaving the factory.

Application

Precautions

Used for welding thermoplastic materials PE and PP (sheet + film material) in the

following fields：

Container Fabrication Piping Fabrication

Electroplating Anti-corrosion Equipment Landfill

Repair of Geomembrane Environmental Protection Equipment

Please confirm that the machine is turned off and unplugged

before disassembling the welding machine so as not to be

injured by live wires or components inside the machine.

The welding machine generates high temperature and high

heat, which may cause fire or explosion when used incorrectly,

especially when it is close to combustible materials or explosive gas.

Please do not touch the air duct and nozzle(during welding work or

when the welding machine has not completely cooled down),

and do not face the nozzle to avoid burns.

The power supply voltage must match the rated voltage

marked on the welding machine and be reliably grounded. Connect

the welding machine to a socket with a protective ground conductor.

In order to ensure the safety of the operators and the reliable

operation of the equipment, the power supply at the construction site

must be equipped with a regulated power supply and a leakage protector.

The welding machine must be operated under the correct control of the

operator, otherwise it may cause combustion or explosion due to

high temperature.

It is strictly forbidden to use the welding machine in water or muddy

ground, avoid soaking, rain or damp.

LESITE

Dual Heating/Single Heating/Granules EN

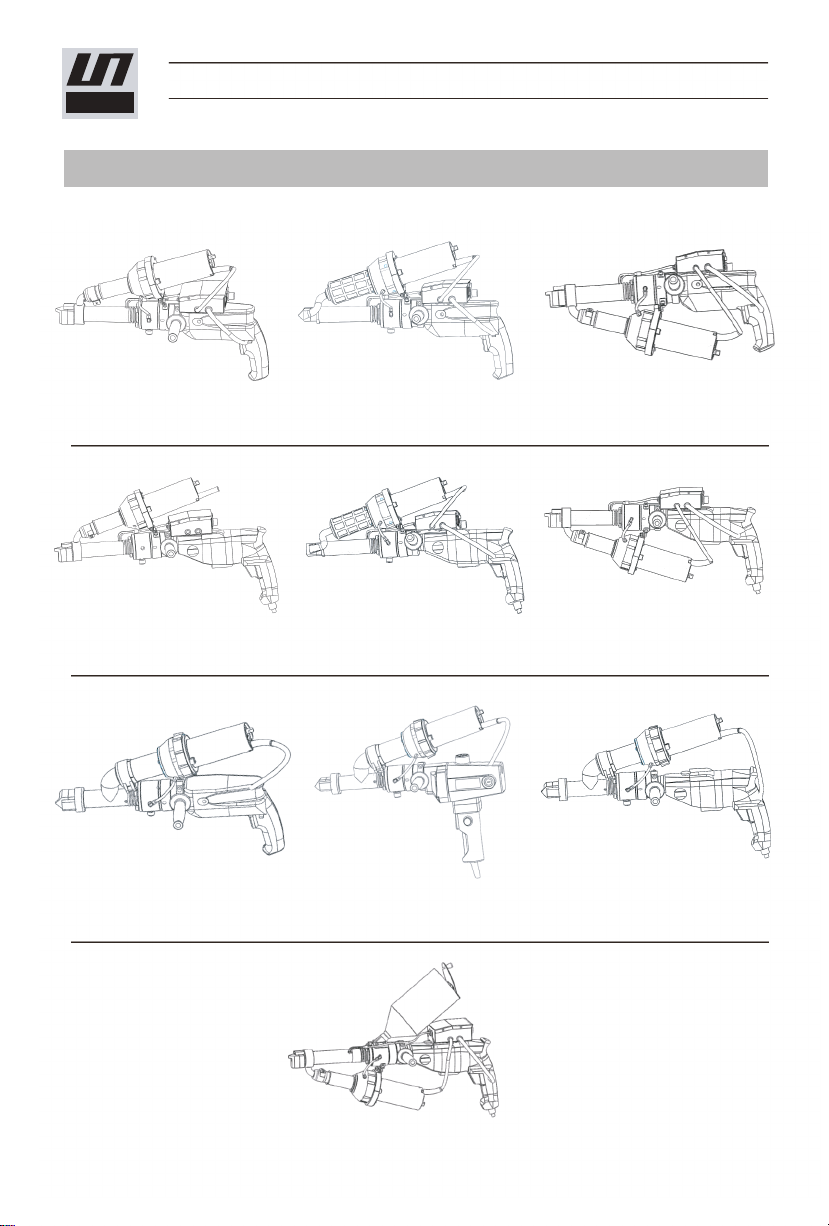

Product Series

LST600A LST600B LST600C

LST610A LST610B LST610C

LST600E LST600F LST610E

LST620

LESITE

Dual Heating/Single Heating/Granules EN

Dual Heating Extrusion Welder Parameter

Model LST600A LST600B

Rated Voltage

Frequency

Extruding Motor Power

Hot Air Power

Welding Rod Heating Power

Hot Air Temperature

Plastic Extruding Temperature

Extruding Volume

Welding Rod Diameter

Net Weight

Driving Motor

Digital Display

Trouble Display

Certificate

Warranty



























































Model LST600C

Rated Voltage

Frequency

Extruding Motor Power

Hot Air Power

Welding Rod Heating Power

Hot Air Temperature

Plastic Extruding Temperature

Extruding Volume

Welding Rod Diameter

Net Weight

Driving Motor

Digital Display

Trouble Display

Certificate

Warranty





























LESITE

Dual Heating Extrusion Welder Parameter

Dual Heating/Single Heating/Granules EN





























Model LST610A LST610B

Rated Voltage

Frequency

Extruding Motor Power

Hot Air Power

Welding Rod Heating Power

Hot Air Temperature

Plastic Extruding Temperature

Extruding Volume

Welding Rod Diameter

Net Weight

Driving Motor

Digital Display

Trouble Display

Certificate

Warranty



























































Model LST610C

Rated Voltage

Frequency

Extruding Motor Power

Hot Air Power

Welding Rod Heating Power

Hot Air Temperature

Plastic Extruding Temperature

Extruding Volume

Welding Rod Diameter

Net Weight

Driving Motor

Digital Display

Trouble Display

Certificate

Warranty

LESITE

























































Dual Heating/Single Heating/Granules EN

Main Parts

1、Control Box Temperature Adjust Knob 2、Control Box Power Switch

3、Hot Air Blower Power Switch 4、Hot Air Blower Potentiometer

5、Hot Air Scooper 6、Welding Shoe

7、Welding Shoe Aluminum Base 8、Temperature Storage Tube

9、Flange 1 0 、H a n d l e

11、Drive Motor Switch 12、Welding Rod Feeding Inlet

LESITE

Dual Heating/Single Heating/Granules EN

Dual Heating Extrusion Welder Operating steps

LESITE



1、Plug in

2、Press the control box power switch and rotate the control box temperature adjust knob

to 320-350℃ （Digital Display）

3、When the digital display temperature reaches setting temperature, delay 180

seconds before starting the drive motor (cold start protection)



1、Turn on the hot air blower power switch, rotate the hot air blower potentiometer to

position 6-7

2、Clean the welding rod surface and insert it into the feeding inlet

3、Press the drive motor switch ( short contact 2-3 seconds). After repeating 2-3 times,

confirm the sound of the drive motor is normal and the speed of welding

rod extrusion is smooth（Extend the heating time if the sound is abnormal or welding rod

is not extruded）

4、The extruded welding rod is not soft or hard, and the smooth surface luster is the

best extruding effect

6、Start Welding



1、If the sound of the drive motor suddenly changes or the welding rod is stuck without

feeding, it is necessary to immediately loosen the drive motor switch and check whether

the heating temperature is normal

2、In the case of no welding rod feeding in, immediately release the drive motor switch.

Do not start the drive motor without welding rod

󴛴

1、The plastic in the extruder must be cleaned before the machine is turned off so as not to

cause blockage and damage the extruder next time

2、After cleaning plastic, set the hot air blower potentiometer to 0 and cool it down

3、Turn off the hot air blower power switch

4、Turn off the control box power switch

5、Cut off the power

 



Dual Heating/Single Heating/Granules EN

Single Heating Extrusion Welder Parameter

Model LST600E LST600F

Rated Voltage

Frequency

Extruding Motor Power

Hot Air Power

Welding Rod Heating Power

Hot Air Temperature

Plastic Extruding Temperature

Extruding Volume

Welding Rod Diameter

Net Weight

Driving Motor

Certificate

Warranty





















































Model LST610E

LESITE

Rated Voltage

Frequency

Extruding Motor Power

Hot Air Power

Welding Rod Heating Power

Hot Air Temperature

Plastic Extruding Temperature

Extruding Volume

Welding Rod Diameter

Net Weight

Driving Motor

Motor Overload Protection

Certificate

Warranty





























Dual Heating/Single Heating/Granules EN

Main Parts

1、Hot Air Blower Power Switch 2、Hot Air Blower Potentiometer

3、Welding Shoe Aluminum Base 4、Welding Shoe

5、Hot Air Scooper 6、Temperature Storage Tube

7、Flange 8 、H a n d l e

9、Drive Motor Switch 10、Welding Rod Feeding Inlet

LESITE

Dual Heating/Single Heating/Granules EN

Single Heating Extrusion Welder Operating Steps

LESITE



1、Plug in

2、Turn on the hot air blower power switch

3、Rotate the hot air blower potentiometer to position 6-7

4、After waiting for 9 minutes to complete the preheating, prepare to insert the welding rod



1、Clean the welding rod surface and insert it into the feeding inlet

2、Press the drive motor switch ( short contact 2-3 seconds). After repeating 2-3 times,

confirm the sound of the drive motor is normal and the speed of welding rod extrusion is

smooth（Extend the heating time if the sound is abnormal or welding rod is not extruded）

3、The extruded welding rod is not soft or hard, and the smooth surface luster is the

best extruding effect

4、Start Welding



1、If the sound of the drive motor suddenly changes or the welding rod is stuck without

feeding, it is necessary to immediately loosen the drive motor switch and check whether

the heating temperature is normal

2、In the case of no welding rod feeding in, immediately release the drive motor switch.

Do not start the drive motor without welding rod



1、The plastic in the extruder must be cleaned before the machine is turned off so as not to

cause blockage and damage the extruder next time

2、After cleaning plastic, set the hot air blower potentiometer to 0 and cool it down

3、Turn off the hot air blower power switch

4、Cut off the power

 


