Lenze ERBD R Series Manuel utilisateur

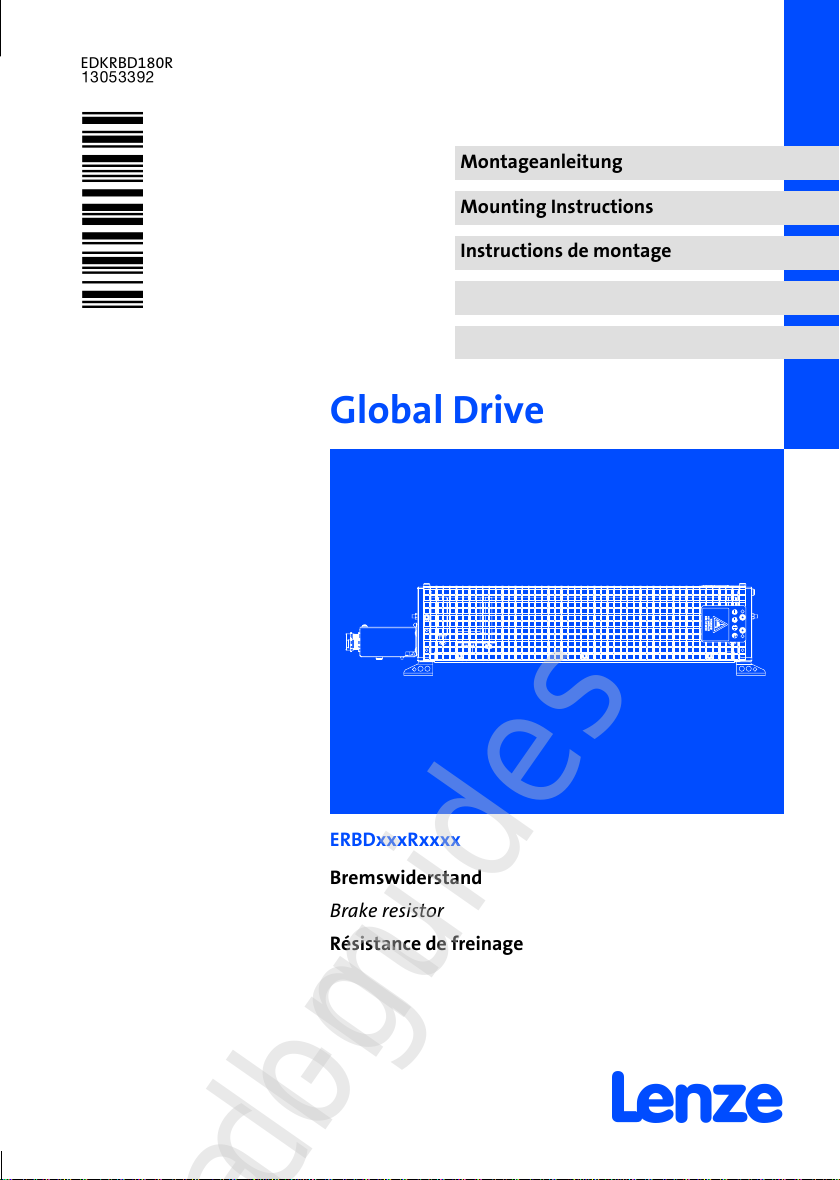

Montageanleitung

EDKRBD180R

.&B}

Ä.&B}ä

Global Drive



ERBDxxxRxxxx

Bremswiderstand

Brake resistor

Résistance de freinage

Mounting Instructions

Instructions de montage

All manuals and user guides at all-guides.com

all-guides.com

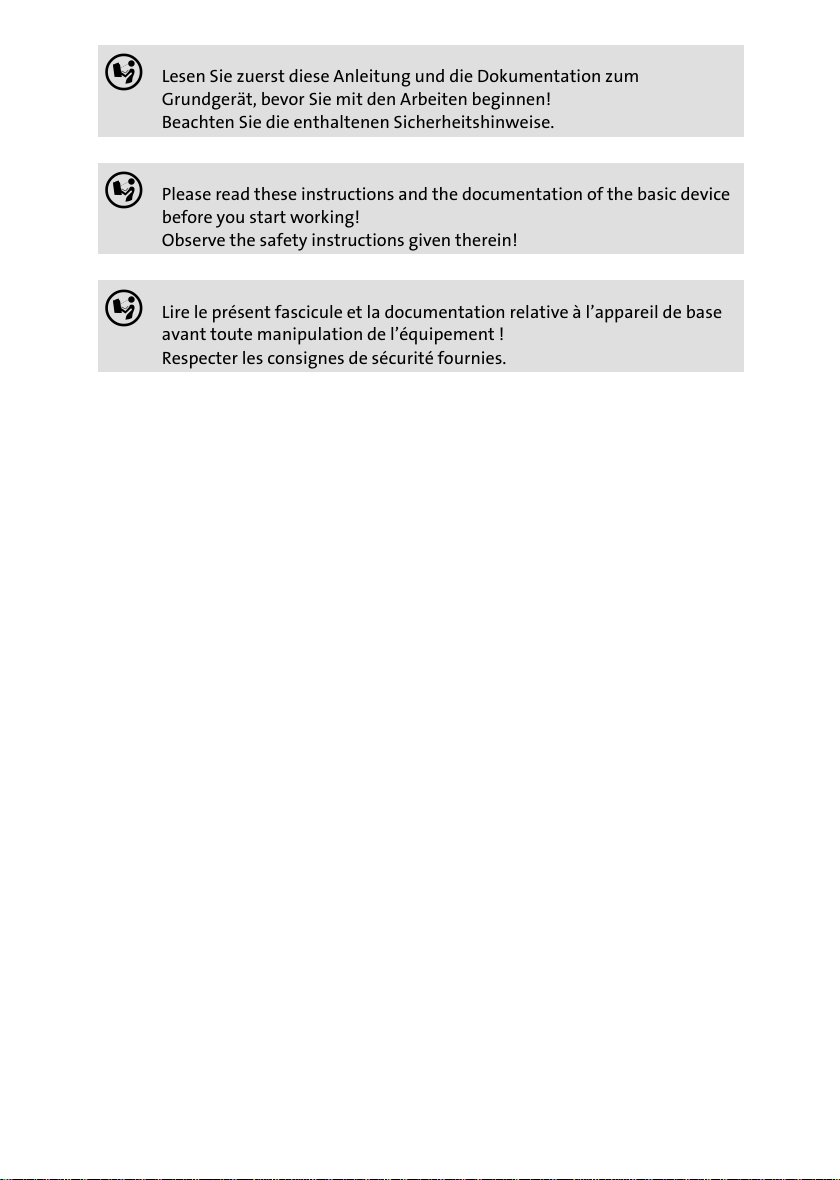

Lesen Sie zuerst diese Anleitung und die Dokumentation zum

Grundgerät, bevor Sie mit den Arbeiten beginnen!

Beachten Sie die enthaltenen Sicherheitshinweise.

Please read these instructions and the documentation of the basic device

before you start working!

Observe the safety instructions given therein!

Lire le présent fascicule et la documentation relative à l’appareil de base

avant toute manipulation de l’équipement !

Respecter les consignes de sécurité fournies.

All manuals and user guides at all-guides.com

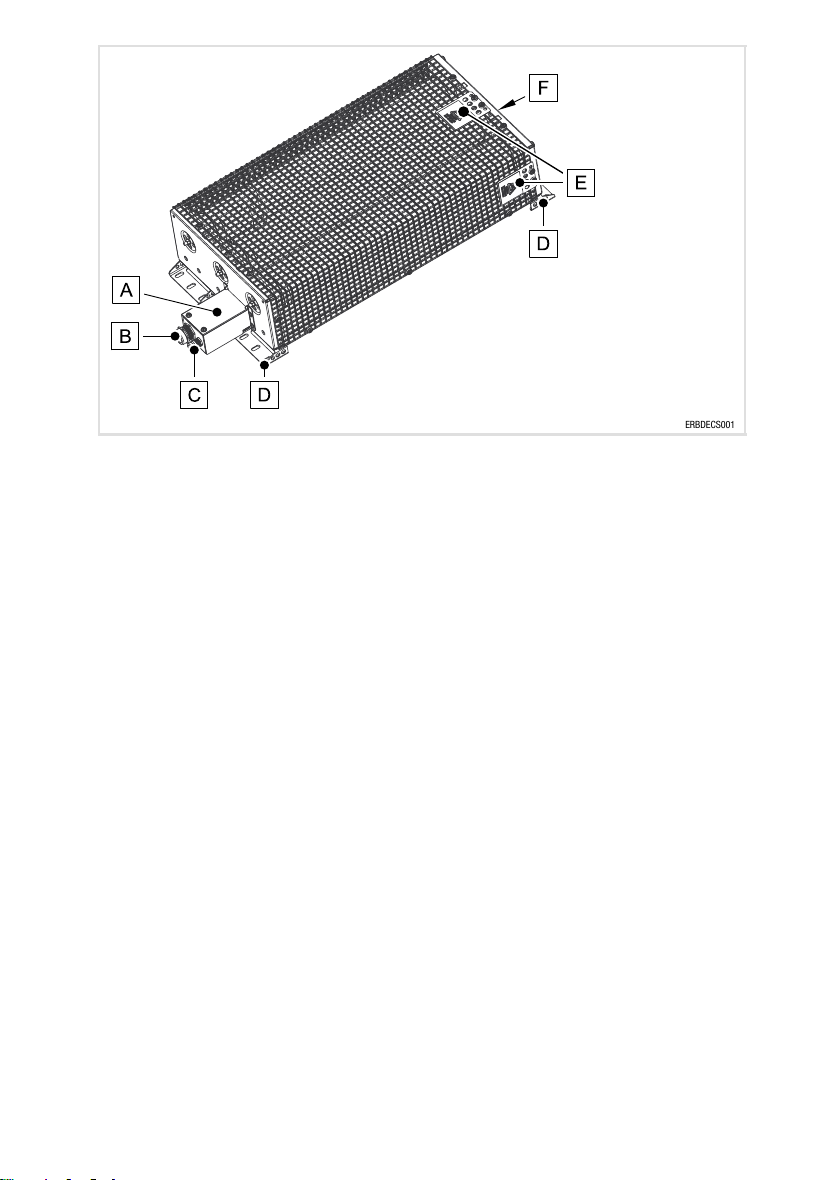

ERBDECS001

All manuals and user guides at all-guides.com



EDKRBD180R DE/EN/FR 2.0

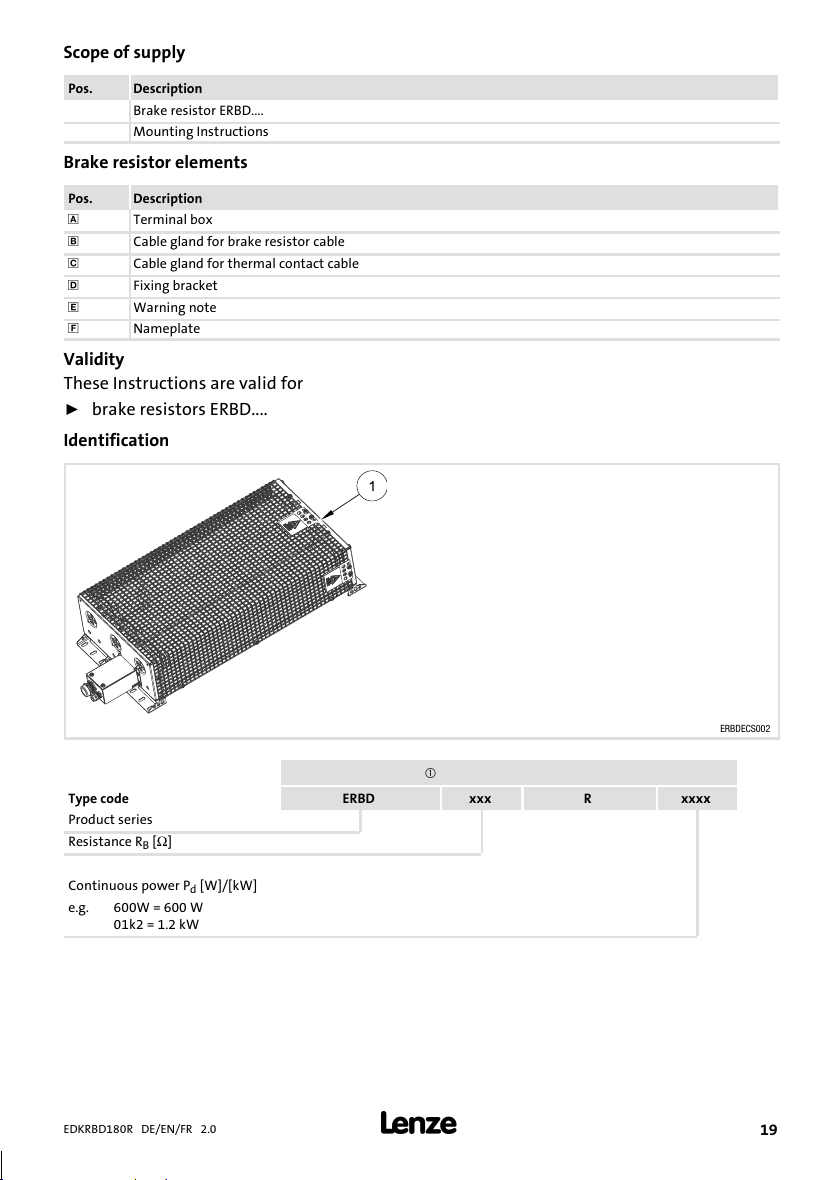

Scope of supply

Pos. Description

Brake resistor ERBD....

Mounting Instructions

Brake resistor elements

Pos. Description

Terminal box

Cable gland for brake resistor cable

Cable gland for thermal contact cable

Fixing bracket

Warning note

Nameplate

Validity

These Instructions are valid for

brake resistors ERBD....

Identification

ERBDECS002

Type code ERBD xxx Rxxxx

Product series

Resistance R

[Ω]

Continuous power P

[W]/[kW]

e.g. 600W = 600 W

01k2 = 1.2 kW

All manuals and user guides at all-guides.com

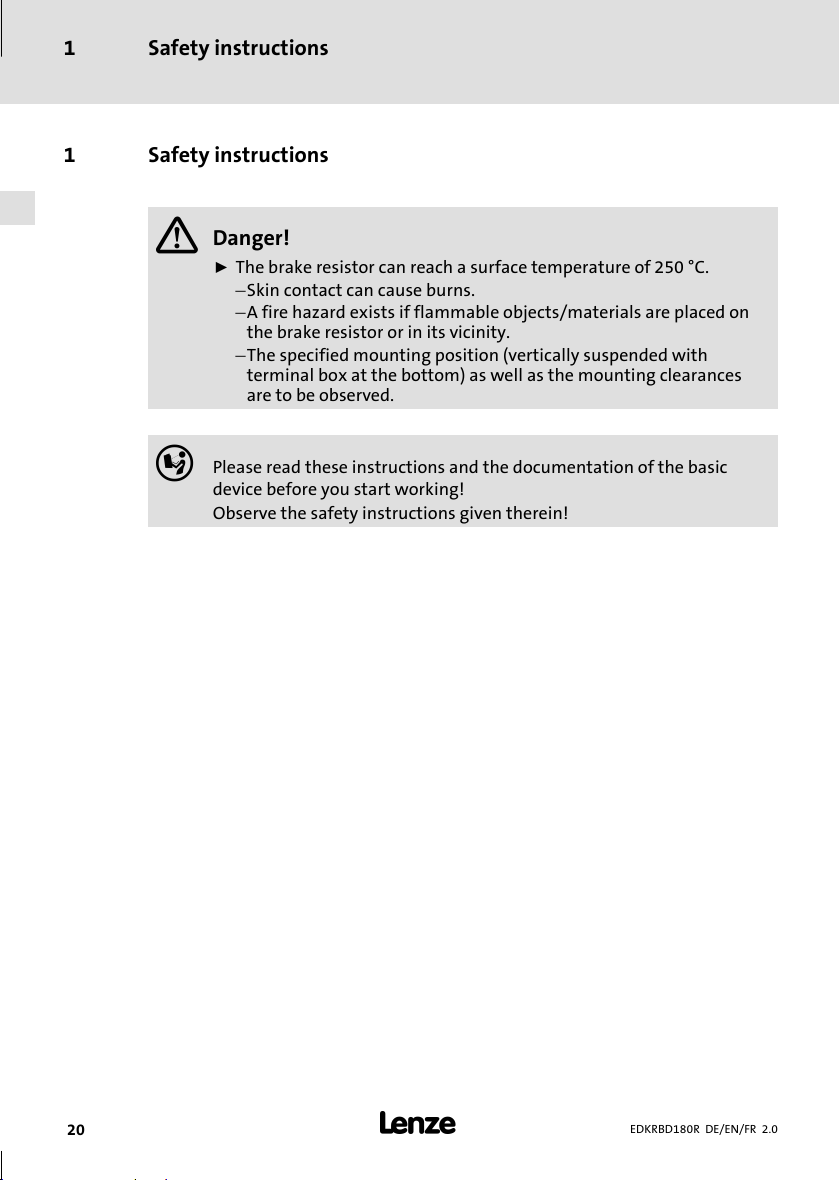

Safety instructions1



EDKRBD180R DE/EN/FR 2.0

1 Safety instructions



Danger!

The brake resistor can reach a surface temperature of 250 °C.

–Skin contact can cause burns.

–A fire hazard exists if flammable objects/materials are placed on

the brake resistor or in its vicinity.

–The specified mounting position (vertically suspended with

terminal box at the bottom) as well as the mounting clearances

aretobeobserved.

Please read these instructions and the documentation of the basic

device before you start working!

Observe the safety instructions given therein!

All manuals and user guides at all-guides.com

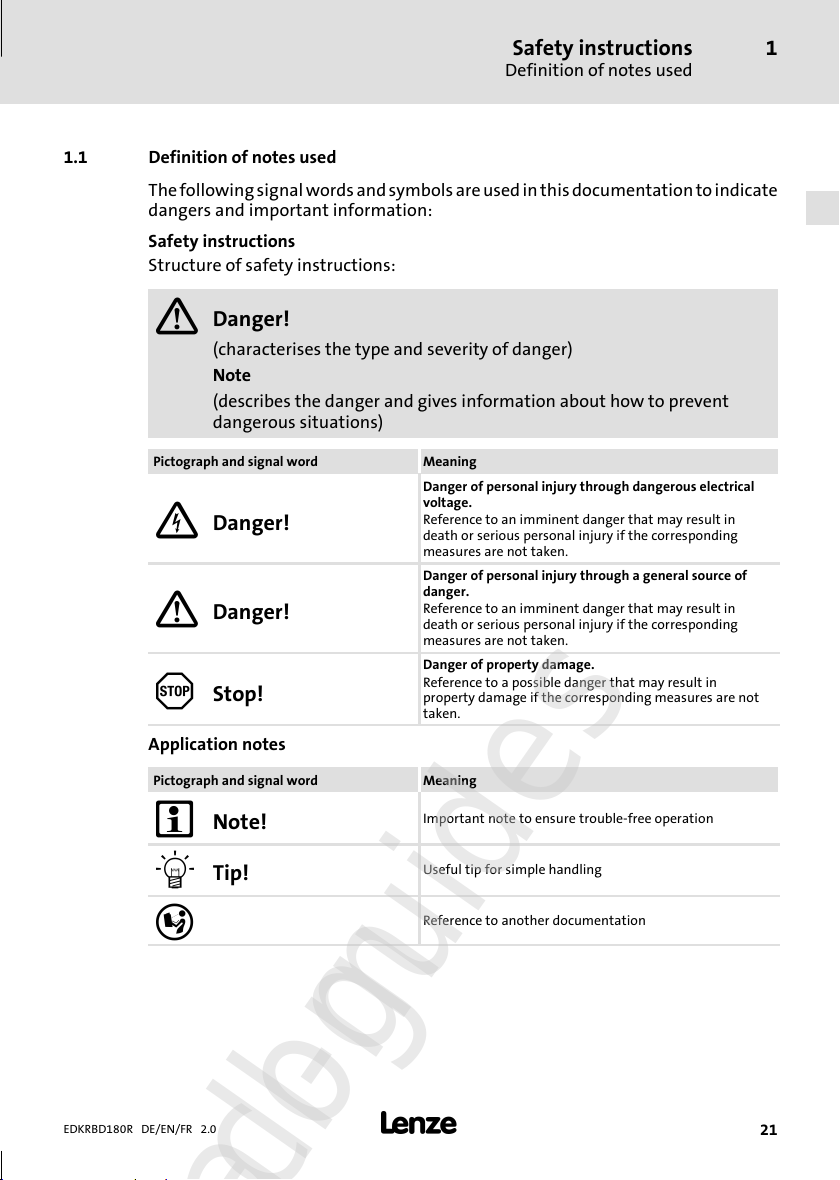

Safety instructions

Definition of notes used



EDKRBD180R DE/EN/FR 2.0

1.1 Definition of notes used

The following signal words and symbols are used in this documentation to indicate

dangers and important information:

Safety instructions

Structure of safety instructions:



Danger!

(characterises the type and severity of danger)

Note

(describes the danger and gives information about how to prevent

dangerous situations)

Pictograph and signal word Meaning



Danger!

Danger of personal injury through dangerous electrical

voltage.

Reference to an imminent danger that may result in

death or serious personal injury if the corresponding

measures are not taken.



Danger!

Danger of personal injury through a general source of

danger.

Reference to an imminent danger that may result in

death or serious personal injury if the corresponding

measures are not taken.



Stop!

Danger of property damage.

Reference to a possible danger that may result in

property damage if the corresponding measures are not

taken.

Application notes

Pictograph and signal word Meaning



Note!

Important note to ensure trouble-free operation

Tip!

Useful tip for simple handling

Reference to another documentation

All manuals and user guides at all-guides.com

all-guides.com

Safety instructions

Definition of notes used



EDKRBD180R DE/EN/FR 2.0

Special safety instructions and application notes for UL and UR

Pictograph and signal word Meaning

Warnings!

Safety or application note for the operation of a

UL-approved device in UL-approved systems.

Possibly the drive system is not operated in compliance

with UL if the corresponding measures are not taken.

Warnings!

Safety or application note for the operation of a

UR-approved device in UL-approved systems.

Possibly the drive system is not operated in compliance

with UL if the corresponding measures are not taken.

All manuals and user guides at all-guides.com

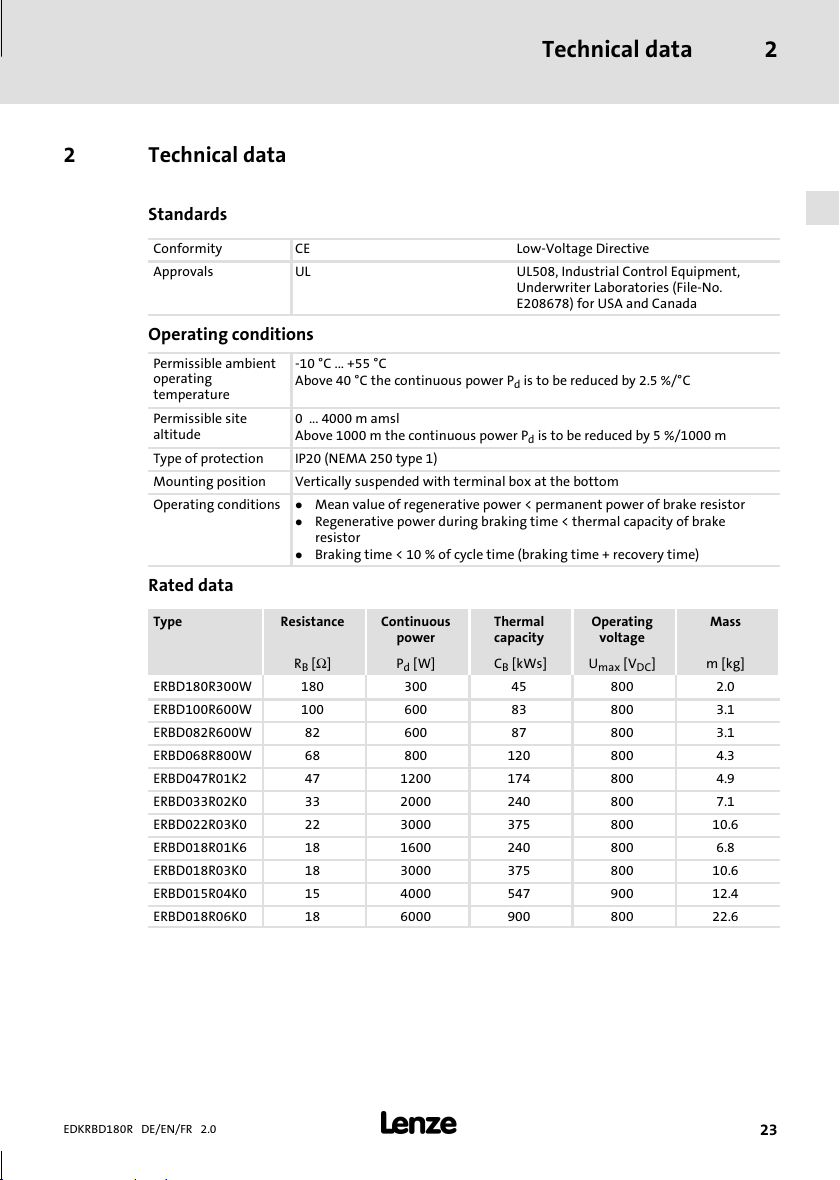

Technical data 2



EDKRBD180R DE/EN/FR 2.0

2 Technical data

Standards

Conformity CE Low-Voltage Directive

Approvals UL UL508, Industrial Control Equipment,

Underwriter Laboratories (File-No.

E208678) for USA and Canada

Operating conditions

Permissible ambient

operating

temperature

-10 °C ... +55 °C

Above 40 °C the continuous power P

is to be reduced by 2.5 %/°C

Permissible site

altitude

0 ... 4000 m amsl

Above 1000 m the continuous power P

is to be reduced by 5 %/1000 m

Type of protection IP20 (NEMA 250 type 1)

Mounting position Vertically suspended with terminal box at the bottom

Operating conditions

Mean value of regenerative power < permanent power of brake resistor

Regenerative power during braking time < thermal capacity of brake

resistor

Braking time < 10 % of cycle time (braking time + recovery time)

Rated data

Type Resistance Continuous

power

Thermal

capacity

Operating

voltage

Mass

[Ω] P

[W] C

[kWs] U

max

]m[kg]

ERBD180R300W 180 300 45 800 2.0

ERBD100R600W 100 600 83 800 3.1

ERBD082R600W 82 600 87 800 3.1

ERBD068R800W 68 800 120 800 4.3

ERBD047R01K2 47 1200 174 800 4.9

ERBD033R02K0 33 2000 240 800 7.1

ERBD022R03K0 22 3000 375 800 10.6

ERBD018R01K6 18 1600 240 800 6.8

ERBD018R03K0 18 3000 375 800 10.6

ERBD015R04K0 15 4000 547 900 12.4

ERBD018R06K0 18 6000 900 800 22.6

All manuals and user guides at all-guides.com

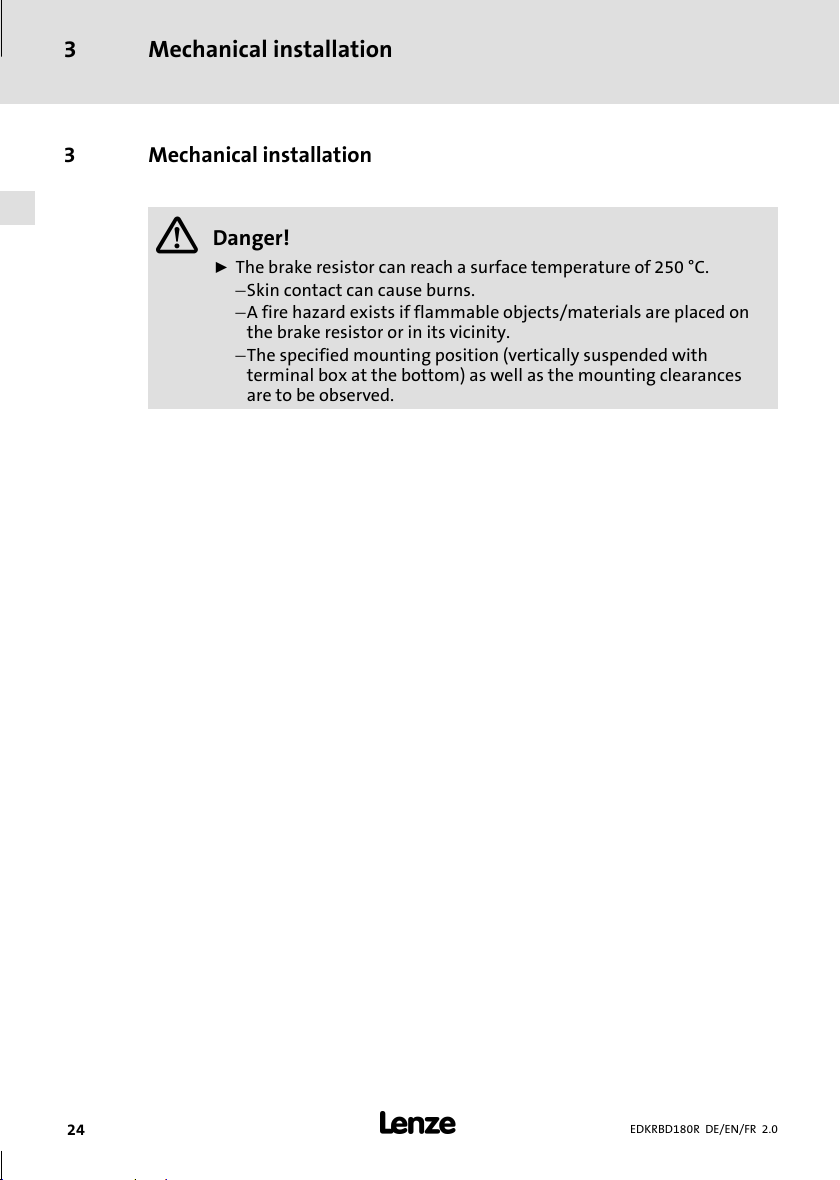

Mechanical installation3



EDKRBD180R DE/EN/FR 2.0

3 Mechanical installation



Danger!

The brake resistor can reach a surface temperature of 250 °C.

–Skin contact can cause burns.

–A fire hazard exists if flammable objects/materials are placed on

the brake resistor or in its vicinity.

–The specified mounting position (vertically suspended with

terminal box at the bottom) as well as the mounting clearances

aretobeobserved.

All manuals and user guides at all-guides.com

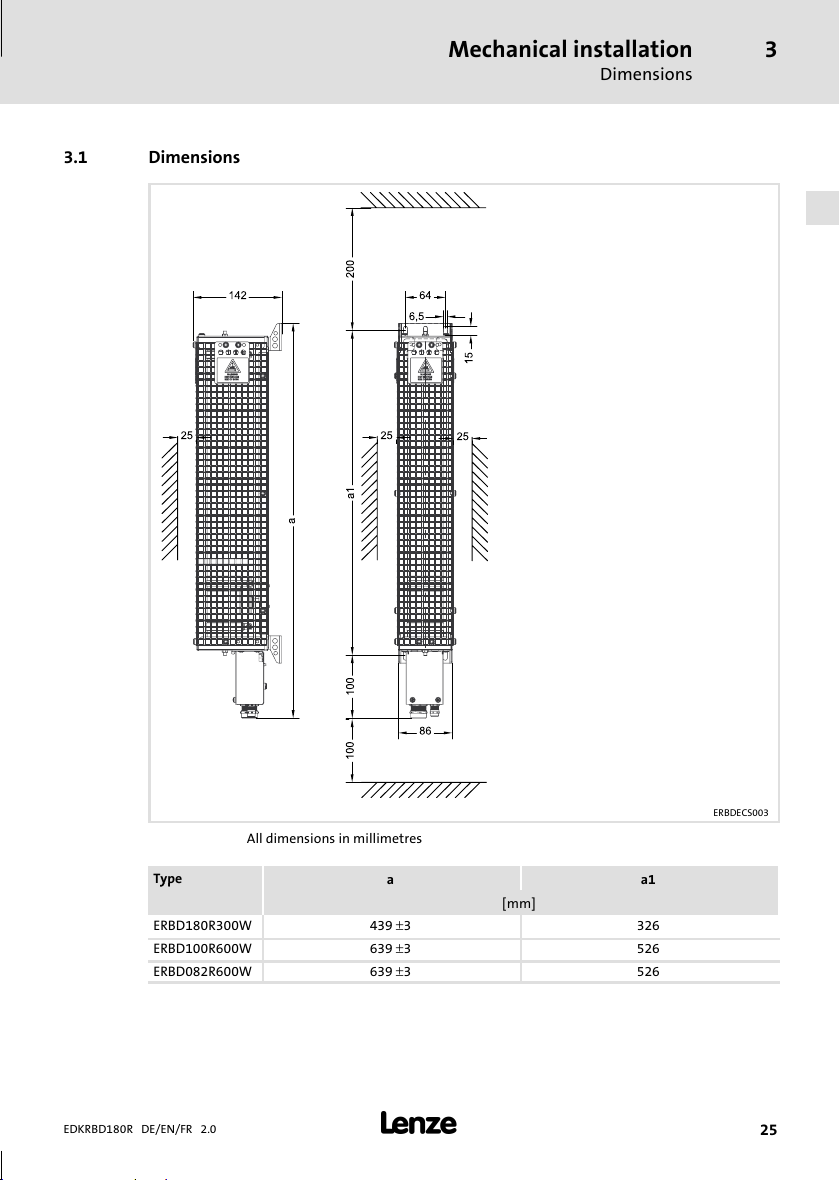

Mechanical installation

Dimensions



EDKRBD180R DE/EN/FR 2.0

3.1 Dimensions

ERBDECS003

All dimensions in millimetres

Type aa1

[mm]

ERBD180R300W 439 ±3326

ERBD100R600W 639 ±3526

ERBD082R600W 639 ±3526
