Lenoxx Street Beat KC-720 Manuel utilisateur

IB-KC720-WM-E-050705

MODELKC-720

OPERATINGINSTRUCTIONS

PLEASE READCAREFULLYBEFOREUSE

PLAYS ALLMUSICCOMPACTDISCS,CD-R&CD-RW

ELECTRONICVOLUME CONTROL

BASS BOOSTSYSTEM

60 SECOND ELECTRONICSKIPPROTECTION SYSTEM

FULLYPROGRAMMABLEPLAYBACK

REPEAT1&REPEATALLPLAY

DELUXE STEREO HEADPHONES INCLUDED

INTRO &RANDOM PLAY

USES 2SIZE “AA”BATTERIES (NOTINCLUDED)

LINE OUTJACK- CONNECTSTOYOUR STEREO SYSTEM

60 SECONDELECTRONICSKIPPROTECTION

PROGRAMMABLECOMPACTDISCPLAYER

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM1

IB-KC720-WM-E-050705

LOCATIONOFCONTROLS

1.LCDDISPLAY

2.REPEATBUTTON

3.BASS BUTTON

4.SKIP/SEARCH BACKWARD BUTTON

5.SKIP/SEARCH FORWARD BUTTON

6.PLAY/PAUSE AND POWERONBUTTON

7.CD DOOROPENBUTTON(slide toopen)

8.VOLUME BUTTON

9.VOLUME BUTTON

10.PROGRAMBUTTON

11.STOPAND POWEROFF BUTTON

12.BATTERYDOOR

13.VOLUMELIMITSWITCH

14.ACADAPTORJACK(DC 4.5V)

15.LINEOUTJACK(forhome stereoconnection)

16.PHONES JACK(headphonesjack)

TRAFFICSAFETY

Donotusewhileoperatingamotorizedvehicle. Itmaycreateatraffichazard andisillegal

inmanyareas.

Youshoulduseextremecaution ortemporarilydiscontinue useinpotentiallyhazardous

situations.

Even ifyour headphonesare anopen-airtype designed toletyou hear outside

sounds,do notadjustthevolumetoo highsothatyoucan nothearwhatisaroundyou.

HEARING COMFORT&WELL-BEING

The portableCD player isone ofthe mostexciting and innovative

consumerelectronicsproductsever developed.Withityoucan

nowenjoylistening toyour favoritemusicwherever yougo,through

thesupplied headphones.

Donotplayyour headphonesatahigh volume.Hearingexpertsadviseagainst

continuousextendedplay.

If you experiencearinging inyour ears,reducevolumeor discontinue use.

But,for YOUR comfort, healthandsafetybesuretoobservethe

following guidelines.

READ THISIMPORTANTINFORMATIONBEFOREUSINGYOURHEADPHONES

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM2

IB-KC720-WM-E-050705

TIPS ONBATTERYUSE

Reversing polaritieswill damage the batteriesand possiblyyourset. Besureto

followpolarity(+and -)asindicated.

Donotmixdifferenttypestogether(Alkaline,Carbon-Zinc,Nickel-Cadmium etc.),

orold batterieswithnewones.

When notin useforan extended period oftime,orwhile internal batterieswill not

be used,removethem topreventpossibleacid leakage orcorrosion resulting in

damage toyourplayer.

When the batterieshavebecome discharged,theymustbe disposed ofin asafe

mannerthatcomplieswithall applicable laws.

Installation ofbatteriesshould onlybe done byan adult(forsafety).

WHEN SHOWSINTHEDISPLAYY

If the alkaline batteriesareweakand discharged,thissymbol “ ” showsor

flashesin the display,then the powerautomaticallyturnsoff. If thisoccurs,replace

the alkaline batteries(alsoifthe displaydoesnotshowanything,the batteriesare

dead).

ALKALINEBATTERYLIFE

Bearin mind thatbatterylifeexpectancyisbased upon volume and bass listening

levels.

Maximumbatterypowerconsumptionhappensatmaximumsettings.Typicallife

for2size “AA”alkaline batteriesisabout8hoursofcontinuoususeforCD play.

NOTE: You mayuserechargeablebatterieson thisset. However,because

rechargeable batteriesgenerallyhavelowervoltage (1.2voltsinstead of1.5

volts).Yourplaying time will be muchless than normalfreshalkaline batteries.

POWERSOURCES

1.Usingwith Batteries

PoweryourCDplayerbyconnectinganoptionalACADAPTORorbyinserting2

size “AA”freshalkaline batteries.

2.ACAdaptor (optional)

Beforeyou buyan optional ACAdaptor,pleasenote,the onlyACADAPTORsuitable

forthisplayerisDC 4.5V600mA(orgreater),withpluscenterpolarity .

Othersmaydamage the player.Pleasecheck voltage &current(mA)beforebuying

an ACADAPTOR.If you can notfind the suitable ACAdaptorin the market, please

send a$8.00 moneyorder(included shipping and handling)toourcustomerservice

centertoordertheadaptor(pleasealsomarkthemodelnumberofyourplayer):

LENOXX ELECTRONICSCORP., 2GERMAKDRIVE,CARTERETN.J.07008

BATTERYOPERATION

1.Slidethe OPENbuttontoopentheCDDOOR,

thenopenthe BATTERYDOOR.

2.Insert2size “AA”freshalkalinebatteriesasshown.

NOTE:Playerwill notwork,and batterieswill be

drained,ifnotinsertedasshowninside

theBatteryCompartment.

3.ClosetheBATTERYDOOR.

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM3

IB-KC720-WM-E-050705

CONNECTINGTOHOMESTEREOSYSTEMS

The LINEOUTjack ismade toacceptastereo mini plug (3.5mm).Simplyconnect

the cable’smini plug tothe LINEOUTjackon yourplayer,and the otherappropriate

end usuallyRCAJACKS tothe CD/AUX INPUTS ofyourhome stereo.

NOTE1:

Usethe volume control ofthissetandyourhome stereo system toadjustthe

volume.Togetmaximum volume from yourhome stereo,pushthe volume +button

till maximum (#32),then adjustyourhomestereo’svolumecontrol.

NOTE2:

If you plug the headphonesintothe LINEOUTjack,the musicmaybe low.

Makesureyou plug theheadphonesintothegreenPHONESjackonly.

Green Black

PHONES

DC4.5V

LINEOUT

OPTIONAL

AC ADAPTOR

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM4

IB-KC720-WM-E-050705

CDPLAYING

4 AdjusttheVolume.

1 LoadtheDisc.

2 ConnecttheHeadphones.

LABELSIDEUP SLIDERIGHT TOOPEN

TOPHONES

STEREO

HEADPHONES

PLAY/PAUSE

BUTTON

VOLUME

BUTTONS

TRACK NUMBER

CURRENTLY

PLAYING

ELAPSEDPLAYING

TIMEOFTHE

CURRENTTRACK

NOTE:The ANTI-SKIP function will turnon automatically

when the PLAY/PAUSE button ispressed.

TOTALTRACKS

ONTHEDISC

TOTAL

PLAYING TIME

3 Press thePLAY/PAUSE Button to turnon theset.

NOTE1: Thedefaultvolume level is20,everytime

you turnoff the CD playerand playitagain, the volume

level will go back to20,you can press thevolume

controlbuttons( or ) toadjustthevolumeupor

down.

NOTE2: Inordertoavoid the musictoo loudly,

wesuggestyou switchthe volume limiterswitch

toONposition beforeplaying the set.

Push

here

Disc

INCREASE

DECREASE

volumelimiter

switch

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM5

IB-KC720-WM-E-050705

OTHERCDOPERATIONS

Operation Press Displaywindowshows

Topauseplay

Toreleasepause

andresumeplay

Tostop

Toskip tothe previous

track(s)

SKIP/SEARCH BACKWARD button once(or

repeatedly).

Togo ahead athigh speed

(search)

Keep SKIP/SEARCH FORWARD button depressed

andreleasewhenthedesiredmusicsectionofthe

disc isfound.

Togo back athigh speed

(search)

Keep SKIP/SEARCH BACKWARD button depressed

andreleasewhenthedesiredmusicsectionofthe

disc isfound.

BASS BUTTON

Thisbutton enhancesthelowfrequency (bass)

soundsatlowlistening levels.Press the BASS

button ONorOFF tosuityourtaste.

PLAY/PAUSE

button

PLAY/PAUSE

button

STOP/OFF

button

Toturnoffthe power STOP/OFF button onceand wait30 seconds, orpress

STOP/OFFbuttontwice.

TRACKNUMBER

CURRENTLYPLAYING

PLAYING TIME

FLASHES

PLAYING TIME

ADVANCES

TOTAL

TRACKS

TOTALPLAYING

TIME

Toskip tothenexttrack(s) SKIP/SEARCHFORWARD button once(or

repeatedly).

BASS button

TRACKNUMBER

CURRENTLYPLAYING

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM6

IB-KC720-WM-E-050705

SingleTrack Repeat

(

REPEAT1

)

Playsonesongoverand overtillyoupressSTOP/OFF button.

During play,selectthe song you wanttorepeatwitheither

of the SKIP/SEARCH buttons( or ), then press the

REPEATbutton once,the symbol REPEAT1 appearsin the

display.

Thesongcurrentlyplaying will repeatoverandover,until

youpressSTOP/OFFbutton.

AllTracksRepeat(

REPEATALL

)

Playsallsongsinorder,thenrepeat, tillyou press STOP/OFF

button.

Duringplay,press theREPEATbuttontwice,the symbol

REPEATALL will showin the display.

Allsongswillkeepplayinginsequence1,2,3,etc.and

when finished,willstartalloveragain untilyou pressthe

STOP/OFFbutton.

CD REPEAT,INTROAND RANDOMPLAY

You mayenjoyrepeat, introorrandom playusing the REPEATbutton.

During playorin stop mode,press the REPEATbutton several times,and the display

will showthe following in turn:

IntroPlay (INTRO)

Thisplays thefirst 10secondsofall songsin sequentialorder.

1.Duringplayorinstop mode,press theREPEATbutton

3times,the symbol INTRO will flashin the display.

2.Press thePLAY/PAUSEbutton.Thefirst10 secondsof

each song on the CD will playin sequential order.

3.When youfind asongyou like,press the PLAY/PAUSE

button again,the symbol INTRO will disappearfrom the

display,normalplaywill beresumed,thatsong (and the

following songs)will playNORMALLY.

RandomPlay( RANDOM )

Thisshufflesthe songson the disc in arandom order.

1.During playorin stopmode,press the REPEAT button

4times,the symbol RANDOM

will flashin the display.

2.PressthePLAY/PAUSEbutton,thiswillplayallofthe

songsinrandom orderselected bythe CDplayer.

3.Press the SKIP/SEARCH button toskip tothe next

randomsong.

REPEAT1-->REPEATALL-->INTRO-->RANDOM-->NORMALPLAY

REPEAT1

REPEATALL

INTRO

RANDOM

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM7

IB-KC720-WM-E-050705

etc.

CDPROGRAMPLAY

During programming,the symbol

PROG showsin the display.Toprogram songsto

playin yourpreferredorder,followstepsbelow:

1.Press thePROGRAMbutton.

Thesymbol PROG and “”will

flashin the display.

2.Press theSKIP/SEARCH buttons( or

)toselecttracknumber2(example).

The symbol PROG and tracknumber

“02”will flashin the display.

Track number

3.Press thePROGRAMbutton.Track 2is

nowprogrammed.

Program number2willnowshowinthe

display,readyforyournextselectionof

track.

4.Repeatsteps2and 3toprogram other

trackstillyoufinish(upto20selections).

5.Afterprogramming isfinished,press

thePLAY/PAUSE button tobegin

programmed play.Musicbeginswith

PROG

shownin the display.

NOTE:

-The playerwill stopautomaticallyafter

allprogrammedtrackshavebeen

played.

-Toquitprogrammed play,press STOP/

OFF button twice.Then you maypress

PLAY/PAUSE buttontorestartnormalplay.

Yourprogrammedmemorywillbe

lost:

When thedoorisopened.

Whenthebatteriesareexhaustedor

removed, ortheoptionalACADAPTOR

isdisconnected.

When thepowerisoff.

Programnumber

The tracks (songs)on the disc can be programmed (arranged in advance)toplayin

anyorderyou prefer(upto20 tracks can beprogrammed).

ProgrammingExample:

TrackNumber(songnumber)

ProgramNumber 3 5 6 7 8

25812411

PROG.

PROG

PLAY/PAUSE

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM8

IB-KC720-WM-E-050705

Thissetisdesignedwiththelatest60second ElectronicSkipProtection-which

allowsvirtuallyunlimitedgentle skipprotection abovethenormalshock protection.

The 60 second ElectronicSkip Protection function preventsthe sound from skipping

TheElectronicSkip Protection function will turnon

automaticallywhen the PLAY/PAUSE buttonispressed.

Whenthe PLAY/PAUSEbuttonispressed,the “”

(memorybasket)indicatorwillappearinthe display,the

digital data(music)isstoredinthe “read-ahead”memory

bufferbeforeitisdecoded and played.It maytakeawhile

forthe baskettofill.

byusingabuffermemorythatstoresmusicdata.Thisnew60second Electronic

Skip Protection system can storemoremusicthan normal60 second anti-skip

systems.

60SECONDSKIPPROTECTIONSYSTEM

Thisnewdesignallowsgentle swaying oftheset(asinwalking)withoutmusic

skipping.Thisfunction maynotworkduringheavy jogging.

EMPTY

MEMORY

SOMEMEMORY

USED

FULL

MEMORY

The “”markchangestothe “”mark, indicating that the

memorybuffer(basket)isfull.

If the setissubjecttoashock orabump during play,the

datastored inmemorycontinuestobedecoded and

played.Thisgivesthe pickup time tostabilizeand continue

reading newmusic.Asthe dataisused from memory,the

indicatorchangesfrom “”to “”.Oncethe pickup

returnstoitsoriginal position,newdataisstored in memory

and the displaychangesback tothe “”mark.

NOTE:

-Themusicmaystop ifthe playerreceivescontinuous

shocking orshaking.

-Youmay hearnoiseorskipping iftheDISCisdirtyor

scratched.

-If you press SKIP/SEARCH buttons,the memorybasket

will emptyitselftemporarily.

If the setissubjecttorepeated shocks and all the data

stored in memoryisused up,the “”markisdisplayed

and the sound will skip orstopforabriefperiod until the

memorybaskethastime tofill up again.

ALLMEMORY

USEDUP

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM9

IB-KC720-WM-E-050705

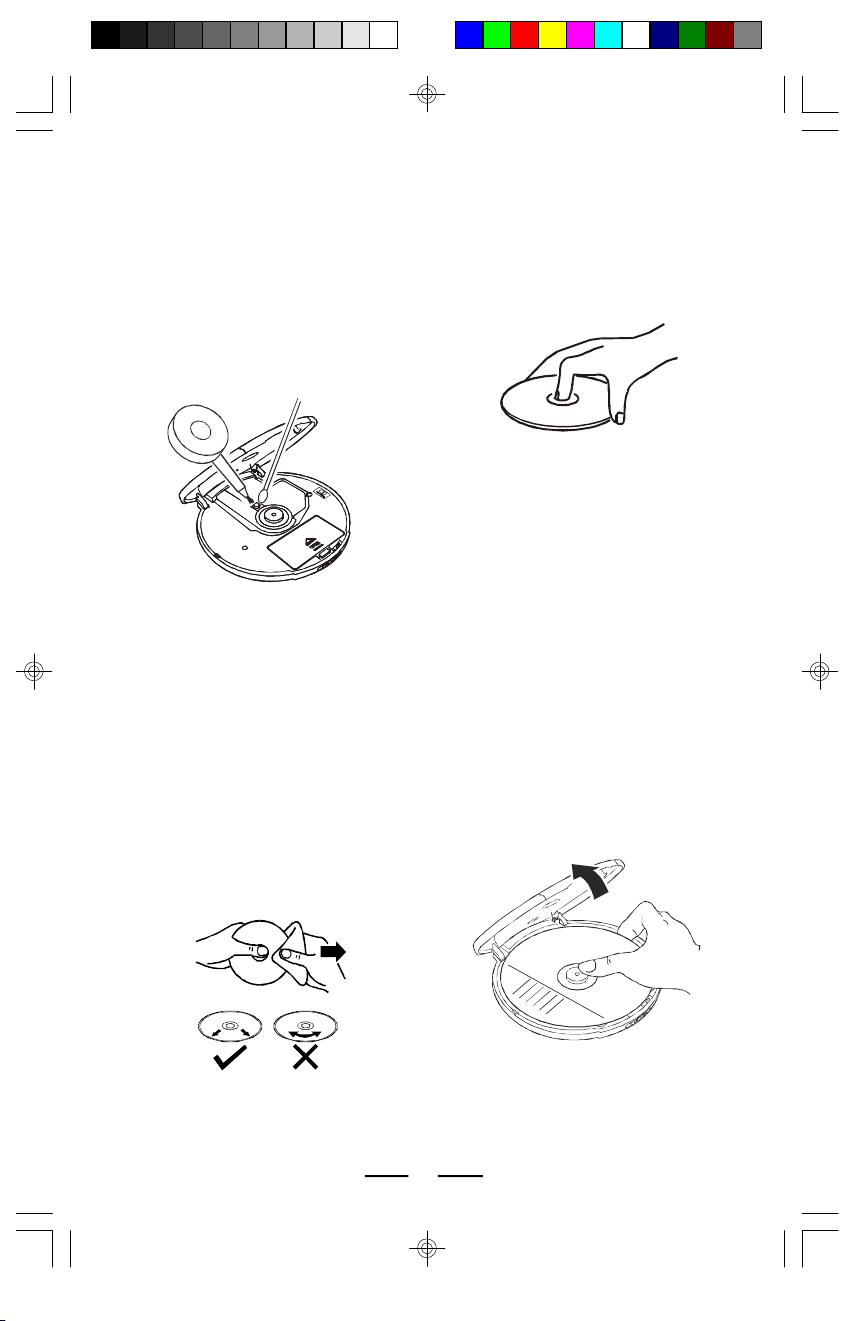

Cleaning thecabinet

Wipewithasoftcloth.Ifthecabinetis

verydirty,dampen (notdripping wet)the

clothwithaweaksolution ofsoapywater,

and then wipe clean.

Cleaning thelens

Adirtylenswill causesound skipping.If

the lensisverydirty,the playermaynot

work.Wesuggestusingaspecial

cleaningdisk(notincluded)availablein

mostmusicand Hi-Fistores.However,if

youdonothaveone,you mayusea

cotton swab veryslightlydampened with

alcohol toclean the lens.

MAINTENANCE

Toremove theDisc

OpentheCDDOORbyslidingthe CD

DOOROPEN button,hold the disc by

theedgewhileslightlypressingonthe

centerspindleasillustrated,thenlift it

from the edge toreleaseandremove.

Cleaning theDiscs

Fingerprintsshould be carefullywiped

fromthesurfaceofdisc withasoft

cloth.Unlikeconventional records,

compactdiscshaveno groovesto

collectdustandmicroscopicdirt,so

gentlywiping them withasoft cloth

should removemostparticles.Wipe

in astraightmotion from the centerto

theedge.

Neverusethinner,benzine,record

cleanerorantistaticsprayonacompact

disc.Suchchemicalscan damage its

plasticsurface.

Handling CompactDiscs

Dirty,scratchedorwarped discsmay

causeskippingornoise.

Handlethe disconlybythe edges.To

keep clean,donottouchitssurface.

Discs shouldbestored in theircases

afterusetoavoid scratches.

Donotexposediscs todirectsunlight,

high humidity,high temperatures,or

dust, etc.Prolonged exposureto

extremetemperaturescanwarpthe

disc (suchasleaving the discs in your

carduringsummertime).

Donotstickorwriteanythingoneither

sideofdisc.Sharpwriting instruments,

ortheinks usedin somefelt-tip pens,

maydamageitssurface.

NOTE

Always press STOP/OFF button and wait

forthe disc tostop rotating beforesliding

theCDDOOROPENbuttontoremove

thedisc.

IB-KC720-WM-E-050705.pmd 5/25/2005, 4:16 PM10

Table des matières

Autres manuels Lenoxx Lecteur CD

Lenoxx

Lenoxx CD-625 Manuel de l'opérateur

Lenoxx

Lenoxx CD-155 Manuel utilisateur

Lenoxx

Lenoxx CD-857 Manuel utilisateur

Lenoxx

Lenoxx CD-61 Manuel utilisateur

Lenoxx

Lenoxx CD-91 Manuel utilisateur

Lenoxx

Lenoxx Durabrand CD-565 Manuel utilisateur

Lenoxx

Lenoxx CD-52 Manuel utilisateur

Lenoxx

Lenoxx CD-89 Manuel de l'opérateur

Lenoxx

Lenoxx CD-78 Manuel utilisateur

Lenoxx

Lenoxx CD815 Manuel utilisateur

Lenoxx

Lenoxx PR4057 Manuel utilisateur

Lenoxx

Lenoxx Durabrand CD-62 Manuel de l'opérateur

Lenoxx

Lenoxx CD-50 Manuel utilisateur

Lenoxx

Lenoxx CD-88 Guide d'installation

Lenoxx

Lenoxx Durabrand CD-62 Manuel utilisateur

Lenoxx

Lenoxx CD-85 Manuel de l'opérateur

Lenoxx

Lenoxx CD-87 Manuel de l'opérateur

Lenoxx

Lenoxx CD-155 Manuel utilisateur

Lenoxx

Lenoxx Durabrand CD-62 Manuel de l'opérateur

Lenoxx

Lenoxx CDR-1906 Manuel utilisateur

Lenoxx

Lenoxx CDR-190 Manuel utilisateur

Lenoxx

Lenoxx CD-210 Manuel utilisateur

Lenoxx

Lenoxx CD-52 Manuel de l'opérateur

Lenoxx

Lenoxx SL-328 Manuel utilisateur

Manuels Lecteur CD populaires d'autres marques

RCA

RCA RP-7923 Manuel utilisateur

Pioneer

Pioneer DEH-P3550MP XM Manuel utilisateur

Philips

Philips AZ1207 Manuel utilisateur

Philips

Philips CD582 Manuel utilisateur

Philips

Philips AZ 6821 Manuel utilisateur

Lasonic

Lasonic MSU-2020 Manuel utilisateur

THOMSON

THOMSON RCD150 Manuel utilisateur

Denon

Denon DCD-1420 Manuel utilisateur

Panasonic

Panasonic SJ-MR100 Manuel utilisateur

Onkyo

Onkyo DX-7210 Manuel utilisateur

Sony

Sony MZ-R3 Manuel utilisateur

Denon

Denon DVM-4800 Manuel utilisateur

JBL

JBL MR-32 Manuel utilisateur

RCA

RCA RCD152 Manuel utilisateur

Technics

Technics SL-PS770A Manuel utilisateur

Clarion

Clarion compact disc Manuel utilisateur

Sony

Sony MZ-M10 Manuel utilisateur

Philips

Philips Expanium AZ 1538 Manuel utilisateur
