Lenovo ThinkServer TS200v Manuel utilisateur

ThinkServer TS200v: Systems Management Setup and Use V3.0

TS200v

Systems

Management:

Setup and Use on Your ThinkServer TS200v

V3.0

27rd April 2010

ThinkServer TS200v: Systems Management Setup and Use V3.0

TS200v

For the first time, full “always-on”

systems management as standard in

an entry level server:

Intel AMT Technology

- a unique differentiator for the ThinkServer TS200v

ThinkServer TS200v: Systems Management Setup and Use V3.0

Contents

•Managing your Thinkserver TS200v –Choices

–Using EasyManage

–Using Intel Active Management Technology (AMT)

–AMT functionality by TS200v model

–How to access AMT on your TS200v

•Managing your ThinkServer TS200v server with Intel AMT

–Configuring your ThinkServer TS200v server to enable/provision AMT

–Configuring a client device to be a management console for your ThinkServer

TS200v

•Step by step configuration

•VNC KVM access

•Web Access

•Intel Commander Tool access

ThinkServer TS200v: Systems Management Setup and Use V3.0

Managing your Thinkserver TS200v –Choices

You have a choice when it comes to managing your ThinkServer TS200v server:

•If you already use Lenovo’s EasyManage tool to manage other ThinkServers in your organisation, then

by loading an EasyManage Agent onto your TS200v, you can manage your new server in the same way:

–The ThinkServer EasyManage Agent enables other systems on the network (including the ThinkServer TS200v) to

be managed by the centralised EasyManage console. The ThinkServer EasyManage Agent is supported on 32-bit

and 64-bit Windows, RedHat and SuSE Linux operating systems

–To install the ThinkServer EasyManage Agent, you must already have a core server running the ThinkServer

EasyManage Core Server program. The ThinkServer EasyManage Agent must be installed from that core server.

Refer to the ThinkServer EasyManage Core Server documentation about Agent deployment for instructions on

the various ways to deploy the ThinkServer EasyManage Agent to your new server. Further information is also

provided in the TS200v Installation and User Guide included with your system.

–Also, the ThinkServer EasyStartup program provides an option to install the ThinkServer EasyManage Agent as

part of the operating system installation process.

•Use the in-built Intel AMT system management functionality in the TS200v:

–The ThinkServer TS200v is the world’s first server to incorporate Intel’s Active Management Technology (AMT)

to provide a flexible and comprehensive server management environment with both local and remote access. It

can also integrate fully with Intel vPro-compliant client devices on the network, allowing you to manage them

using exactly the same interface.

–The exact functionality delivered by AMT depends on the particular model of ThinkServer TS200v that you have,

and in particular, the Intel processor it contains (see functionality table on a subsequent page).

The rest of this document concentrates on how to set up and use the Intel AMT technology

on your ThinkServer TS200v server to manage your new system

ThinkServer TS200v: Systems Management Setup and Use V3.0

AMT functionality by TS200v model

Exact management functionality delivered by either Standard Manageability or AMT 6.0 + Standard Manageability depends

to some extent on the management tool used to access it (eg. raw web access, VNC KVM, Intel Commander, or dedicated

management packages such as EasyManage, Kaseya, etc).

G1101/G6950/Core i3-BASED SYSTEMS

(eg. TopSeller SPO11UK)

Core i5-BASED SYSTEMS

(eg. SPO18UK, SPP17UK)

Standard Manageability AMT 6.0 (in addition to Standard Manageability)

Full Asset Management Capability (HW & SW inventory) Fast Access (inside or outside firewall)

Remote Control Functionality

Remote Scheduled Maintenance (pre-schedule auto

connection to console for maintenance)

Event Management Automatic Remote Alerts

Firmware Update (Local and Remote)

Secure Networks (adds support for Microsoft NAP enabled

802.1x networks)

Support over TCP/IP, SOAP, TLS Infrastructure

Access Monitor (provides oversight of access attempts to

support enhanced security)

Agent Presence Monitoring

Full Secure Remote Control of Keyboard/Video/Mouse (inc.

startup/shutdown, "BlueScreen"/OS freeze, disk failure, network

issues)

WakeUp-On-Lan Alarm Clock (local timers to execute management tasks

Operation Over Secure Networks (802.1x and Cisco SDN)

Intel Remote PC Assist Technology (secure service provider

connection when required)

Encrypted/Remote Power-On/Off (irrespective of state of

server)

IPv6 support

Remote Diagnosis & Repair (SOL/IDE-R - irrespective of state

of server)

System Defence (network filtering, HW-based isolation and

recovery)

ThinkServer TS200v: Systems Management Setup and Use V3.0

How to access AMT on your TS200v

Several choices, depending on your server

•If you already have an existing management framework to manage the Intel vPro-compliant PC and

Notebook estate in your organisation, then it is likely you will be able to use the same infrastructure to

manage your ThinkServer TS200v server as they are based on compatible underlying management

technology. Consult the documentation for your existing management tools or your reseller to determine

what is possible

•Typical remote infrastructure management tools used by Managed Service Providers (MSPs) natively

support Intel AMT systems management technology (eg. EasyManage, Kaseya, Level Platforms, etc) –if

these are used in or by your organisation, then they can also be used to manage the ThinkServer

TS200v. Ask your MSP.

Out of the box choices:

Other options:

AMT Version

TopSeller

Model

Local Console

(eg. KVM connected directly

to server, Intel Commander

Tool running locally)

Web Access

(eg. web browser with IP

address to access dedicated

web server directly)

AMT Protocol

(eg. dedicated app such as

Intel Commander Tool to

access AMT functionality over

the Internet)

VNC KVM Tool

(eg. full remote KVM access

over the internet)

Standard

Manageability

(AMT 3.0)

SPO11UK YES YES YES NO

SPO18UK YES YES YES YES

SPP17UK YES YES YES YES

AMT 6.0

(inc. Standard

Manageability)

ThinkServer TS200v: Systems Management Setup and Use V3.0

Managing your ThinkServer TS200v server with Intel AMT

Configuring your ThinkServer TS200v server to enable/provision AMT (1)

APPLIES TO ALL TS200v MODELS

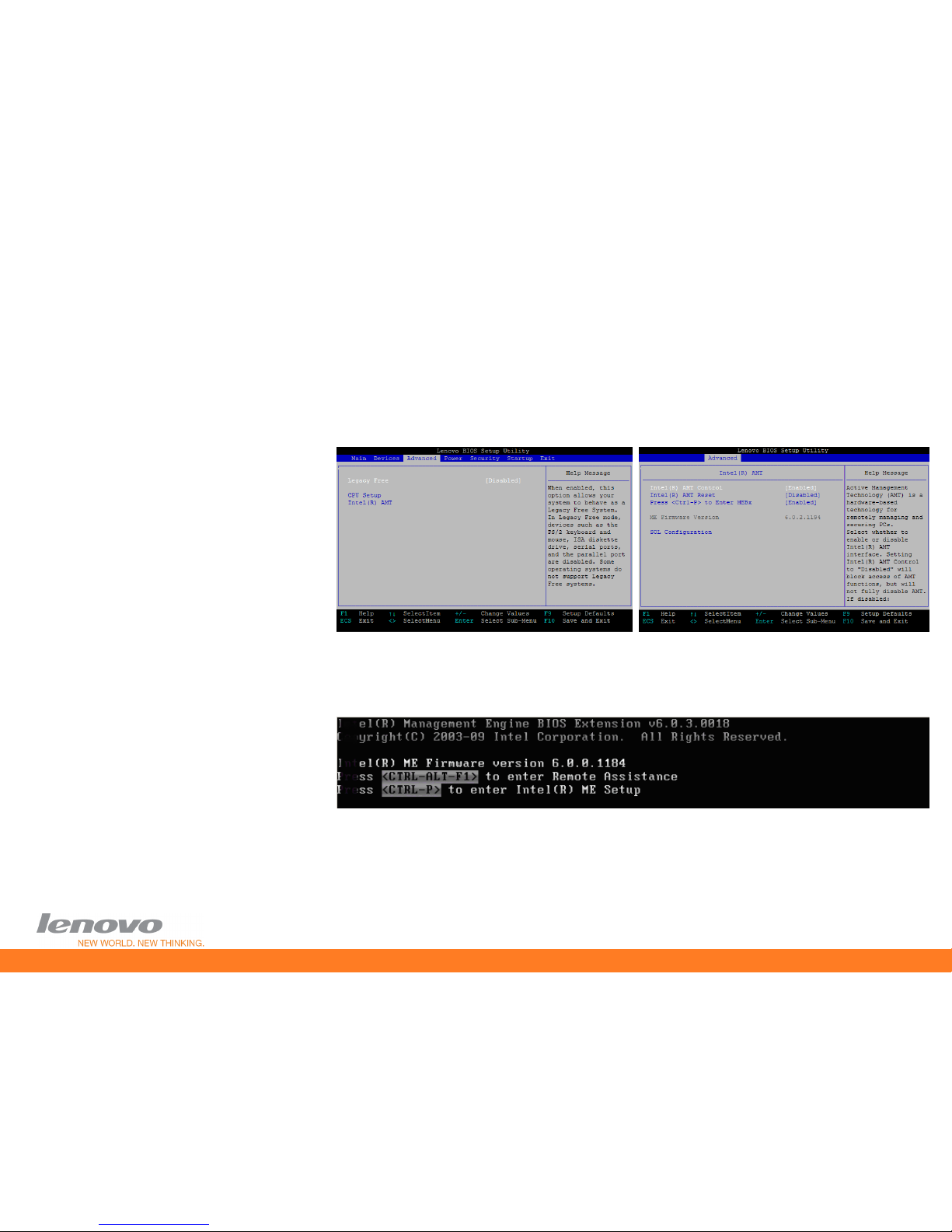

1. Boot your TS200v

2. OPTIONAL (NOT required if server

being configured for 1st time): Go

into BIOS and switch Intel AMT

Reset to “Enabled”. This will clear

any existing AMT provisioning

information stored.

3. When prompted, enter the Intel®

Management Engine BIOS

Extension (Intel®MEBX). This is

be done by pressing Ctrl-P when

prompted.

ThinkServer TS200v: Systems Management Setup and Use V3.0

Managing your ThinkServer TS200v server with Intel AMT

Configuring your ThinkServer TS200v server to enable/provision AMT (2)

APPLIES TO ALL TS200v MODELS

4. You will be prompted for the

Intel MEBX password. The

default password is “admin”.

Enter the password as shown

right.

5. Next you are prompted to enter

a new password. It must be at

least 8 characters, and contain

at least one upper and one

lower case letter, one number,

and one symbol such as @ or $.

Choose a new password and

enter it twice, as shown right.

6. Now set up the Intel®

Management Engine. Enter the

Intel® ME General Settings

menu and select Network Setup.

If you want to configure your

own hostname or IP address,

this is the place to set it up.

ThinkServer TS200v: Systems Management Setup and Use V3.0

Managing your ThinkServer TS200v server with Intel AMT

Configuring your ThinkServer TS200v server to enable/provision AMT (3)

APPLIES TO ALL TS200v MODELS

9. Press Esc key three times to

return back to the main menu

and select Intel (R) AMT

Configuration.

Press the Enter key to bypass

the prompt shown right.

10. Go into each submenu and

change all options to Enable.

(SOL, IDER, Legacy redirection

mode, KVM Configuration)

Ignore Opt-in section.

7. Enter the Intel® ME General

Settings menu and select

Activate Network Access

8. Type Y to answer yes when

prompted.

ThinkServer TS200v: Systems Management Setup and Use V3.0

Configuring a client device to be a management console for

your ThinkServer TS200v

Step-by-step configuration (1)

APPLIES TO AMT 6.0 COMPLIANT TS200v MODELS ONLY

1. Download the latest version (4.1 as of this writing) of RealVNC’s VNC

Free Edition viewer from the following URL:

http://www.realvnc.com/vnc/features.html

2. During the installation, select VNC Viewer only and finalize

the installation process

3. Configure WinRM, which is needed to send WS-Man commands to Intel AMT.

These commands allow the remote configuration of KVM Remote Control.

WinRM is included with Windows Vista, Windows 7, and Windows 2008.

If you have Windows XP or Windows 2003 Server, you must download and

install WinRM.

http://www.microsoft.com/Downloads/details.aspx?FamilyID=845289ca-

16cc-4c73-8934-dd46b5ed1d33&displaylang=en

4. Attached kvm.zip file with includes from Intel to automatically configure

WinRM for you. Extract the content and run KVM.hta file. If you have User

Account Control enabled, rightclick KVM.hta and select Run as Administrator.

5. Click on Configure WinRM
