iComfort®M30 Smart Thermostat
User Guide
2
Table of Contents
Thermostat...................................................... 3
Home Automation...................................................... 4
Energy Efcient Settings ........................................... 4
Applications............................................................... 4
Home Screen................................................... 4
Temperature Settings ................................................ 4
Time and Date Display.............................................. 6
Humidity Display ....................................................... 6
Modes / Schedules.................................................... 6
Away.......................................................................... 7
Menu .............................................................. 13
Menu ....................................................................... 13
Notications............................................................. 13
Performance Report................................................ 14
Edit Schedules ........................................................ 14
Settings ................................................................... 16
Wi-Fi Connection and Troubleshooting ..... 24
Visible Home Wi-Fi Access Point ............................ 25
Hidden Home Wi-Fi Access Point ........................... 25
Wireless Terminology .............................................. 26
Troubleshooting Tips............................................ 26
Determining Wireless Connection Signal
Strength................................................................... 26
Connecting to Lennox Server using Alternate
Method .................................................................... 27
Mobile Apps (Applications) ......................... 27
Amazon Alexa Enabled Devices ................. 27
Setup....................................................................... 28
Alexa Voice Commands for Lennox Skill ................ 28
Changing to Celsius ................................................ 29
Heat and Cool Mode ............................................... 29
FCC Statements............................................ 30
FCC Compliance Statement — PART 15.19........... 30
FCC Interference Statement — PART 15.105 (B)... 30
RF Exposure Information ........................................ 30
Index .............................................................. 31
3
Thermostat
The iComfort® M30 is a Wi-Fi enabled, electronic
7-day, universal, multi-stage, programmable,
touchscreen thermostat. It also offers enhanced
capabilities including control for humidication /
dehumidication / dew point measurement and
control, Humiditrol® Enhanced Dehumidication
Accessory (EDA), and equipment maintenance
reminders.
• Easy to read 4.3 inch color screen (measured
diagonally).
• LCD display with back light shows the current
and set temperature, time, inside relative
humidity, system status (operating mode and
schedules) and outside temperature (optional
outdoor sensor required).
• Touchscreen interaction.
• Ergonomic design.
• Smooth Setback Recovery starts system early to
achieve set point at start of program period.
• Compressor short-cycle protection (5 minutes).
• Real-time clock keeps time during power failures
and automatically updates to daylight savings.
• Maintenance reminders let user know when to
service or replace lters, PureAir® metal insert,
humidier pads, ultraviolet lamps, plus one user
or installer dened custom reminder.
• Up to four separate schedules are available
plus Schedule IQ™. Schedule IQ™schedule
determines when to operate the system based on
individual “home day”, “home night” and “away”
time and temperature settings. Schedule is
controlled by the Smart-Away™ proximity sensor
(geo-fencing) in the thermostat and the iComfort®
S30 mobile App. Multiple Apps on multiple
devices can control one system.
• One-Touch Away Mode - A quick and easy way to
set the cooling and heating set points while away.
• Smart Away™ - uses geo-fencing technology
to determine when the homeowner is within a
predetermined distance from the home to operate
the system when leaving, away and arriving.
• Permanent memory storage of programs.
• Wall plate furnished.
4
Home AutomAtion
The iComfort® M30 smart thermostat is an Amazon®
Alexa-enabled, smart-home-compatible thermostat.
It works with Amazon Echo, Echo Dot and Tap
devices allowing the homeowner to ask Alexa to
adjust the temperature.
energy efficient SettingS
Factory preset program settings conform to EPA
Energy Star® recommended set points.
ApplicAtionS
Fully programmable thermostat provides universal
system compatibility, precise comfort control and
easy programmability.
Provides temperature control for gas, oil, electric
and heat pumps for up to 4 heat / 2 cool multi-stage
systems (includes dual-fuel operation).
Home Screen
If screen is dark (screen saver on), touch
screen to turn on the back light.
temperAture SettingS
• Large display of current inside temperature (°F
or °C)
• Heating and Cooling set point indicators on the
round animated temperature band
• Current cooling set point temperature (cool-to)
• Current heating set point temperature (heat-to)
Touching the heat or cool set point
indicators on the round temperature band,
or touching the heat-to or cool-to option
displays the heat or cool menu screens.
5
Both heating and cooling set point
indicators on the round temperature band
and the heat-to and cool-to options are
displayed if System is set to Heat/Cool
mode.

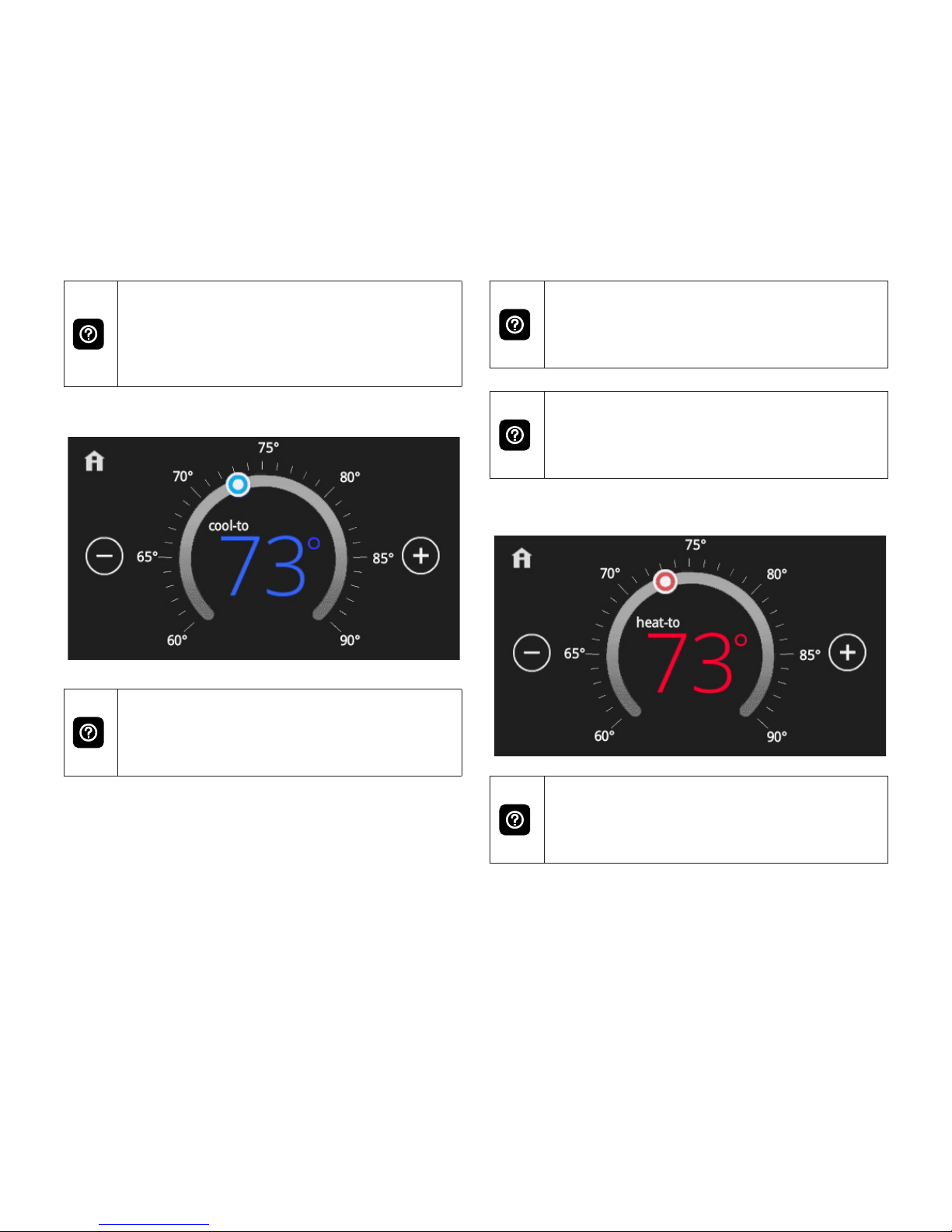

Cool Only Temperature Adjustment Screen
On the Home Screen, touching the
cool set point indicators on the round
temperature band, or touching the cool-to
option displays the cool menu screen.
• Cooling set point display
• Cooling set point indicator on the round
temperature band
• Plus (+) and Minus (–) option
• Home (return to Home Screen)
Touch the blue cool set point indicator on
the round temperature band, or touch the
plus or minus to change the cooling set
point in one degree increments.
During a scheduled time period, touching
either the set point indicator on the
temperature band or the cool-to will initiate
a schedule hold (see .
Heat Only Temperature Adjustment Screen
On the Home Screen, touching the
heat set point indicators on the round
temperature band, or touching the heat-to
displays the heat menu screen.
6
• Heating set point display
• Heating set point indicator on the round
temperature band
• Plus (+) and Minus (–) options
• Home (return to Home Screen)
Touch the red heat set point indicator on
the round temperature band, or touch the
plus or minus to change the heating set
point in one degree increments.
During a scheduled time period, touching
either the set point indicator on the
temperature band or the heat-to will
initiate a schedule hold.
Current Outside Temperature
Displays current outside temperature in °F or °C
(optional Remote Outdoor Temperature Sensor
required). If no sensor is used, then once connected
to the Internet and login to your account through
the thermostat, the option to get your outside
temperature can obtained using the Internet option
. Go to menu > settings > display and set outdoor
temperature display to Internet.
time And dAte diSplAy
Displays current time and date (supports daylight
savings time changes). When connected to the
Internet, time and date are automatically set.
Humidity diSplAy
Displays current inside relative humidity above
current indoor temperature.
The icon next to the indoor humidity percentage
also represents the humidity level in the home.
modeS / ScHeduleS
Displays current system operating mode below
current indoor temperature (heat/cool, heat only,
cool only, active schedule or off)
Touch to access Modes/Schedules screen.
Touch modes/schedules on home
screen under current operating mode to
access screen.

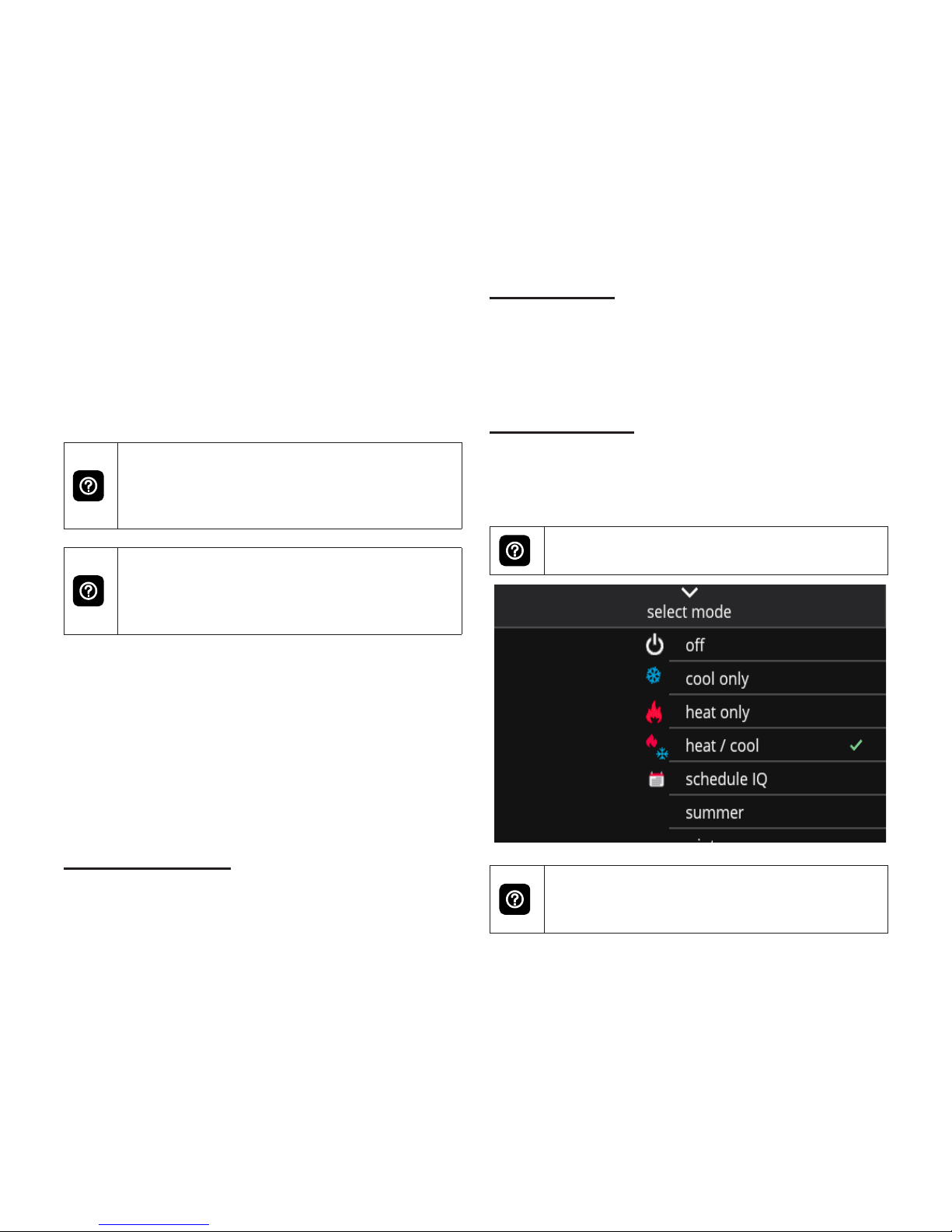

7
Select to operate a specic mode or schedule.
• Off
• Cool Only
• Heat Only
• Heat/Cool
• Emergency Heat (heat pump systems only)
• Schedule IQ, summer, winter, spring/fall and
save energy
• On
• Auto
• Circulate
A check mark indicates which mode is
active.
Scroll down to see all modes available on
the screen.

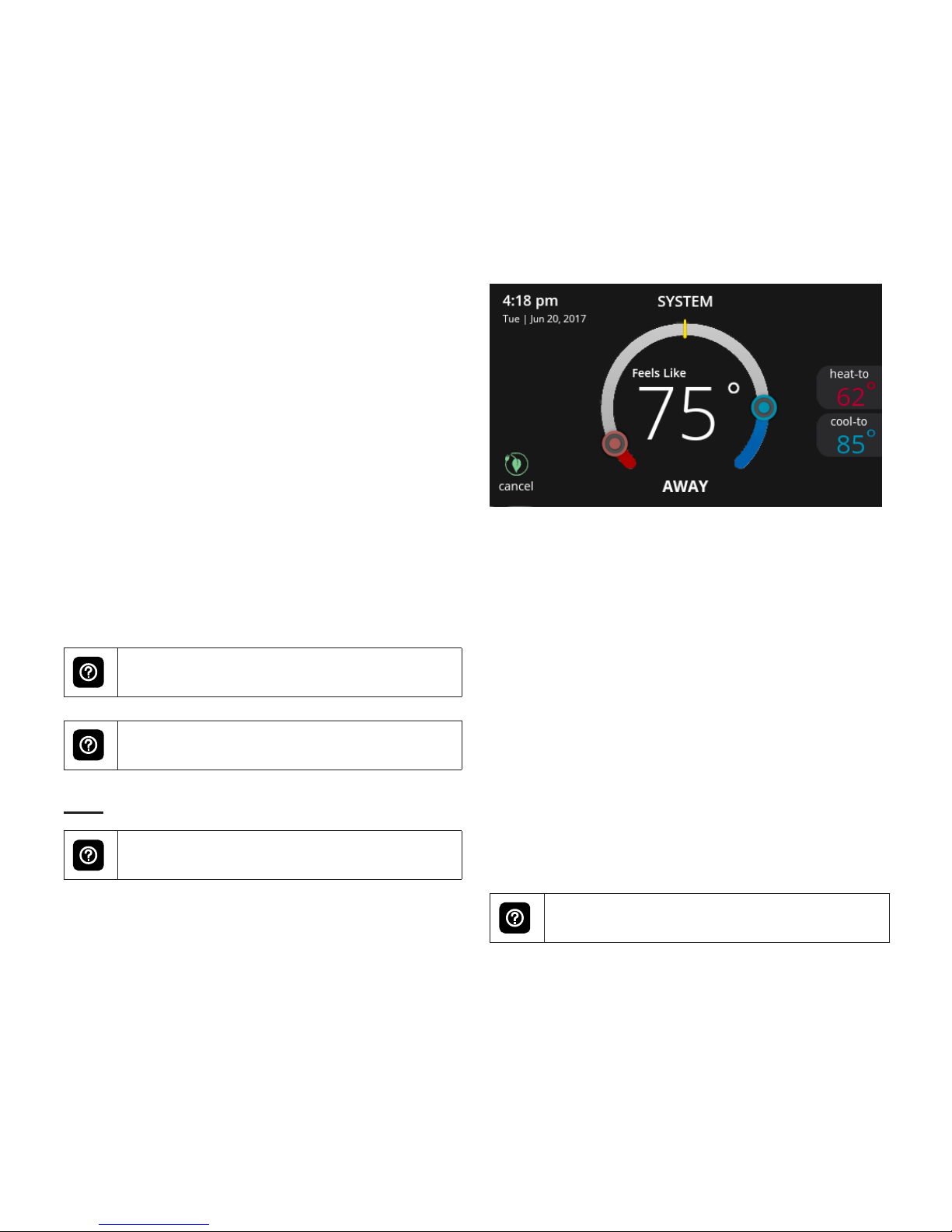

AwAy
Touch to display away screen.
Set heating or cooling set points during unoccupied
periods.
• System status indicators which are located along
the left side of the home screen. See “Table 1.
System Icons” on page 8 for details for each
icon.
• Heating and Cooling set point indicators on the
round temperature band. Yellow line indicates
current room temperature.
• Current cooling set point temperature (cool-to).
Cooling is always represented by the color blue.
• Current heating set point temperature (heat-to).
Heating is always represented by the color red.
• Cancel Away Mode
Touch cancel away to end away mode
and return to current system operation.
8
Home And SyStem StAtuS iconS
The following icons are located on home screen and will appear during applicable operations or tasks.

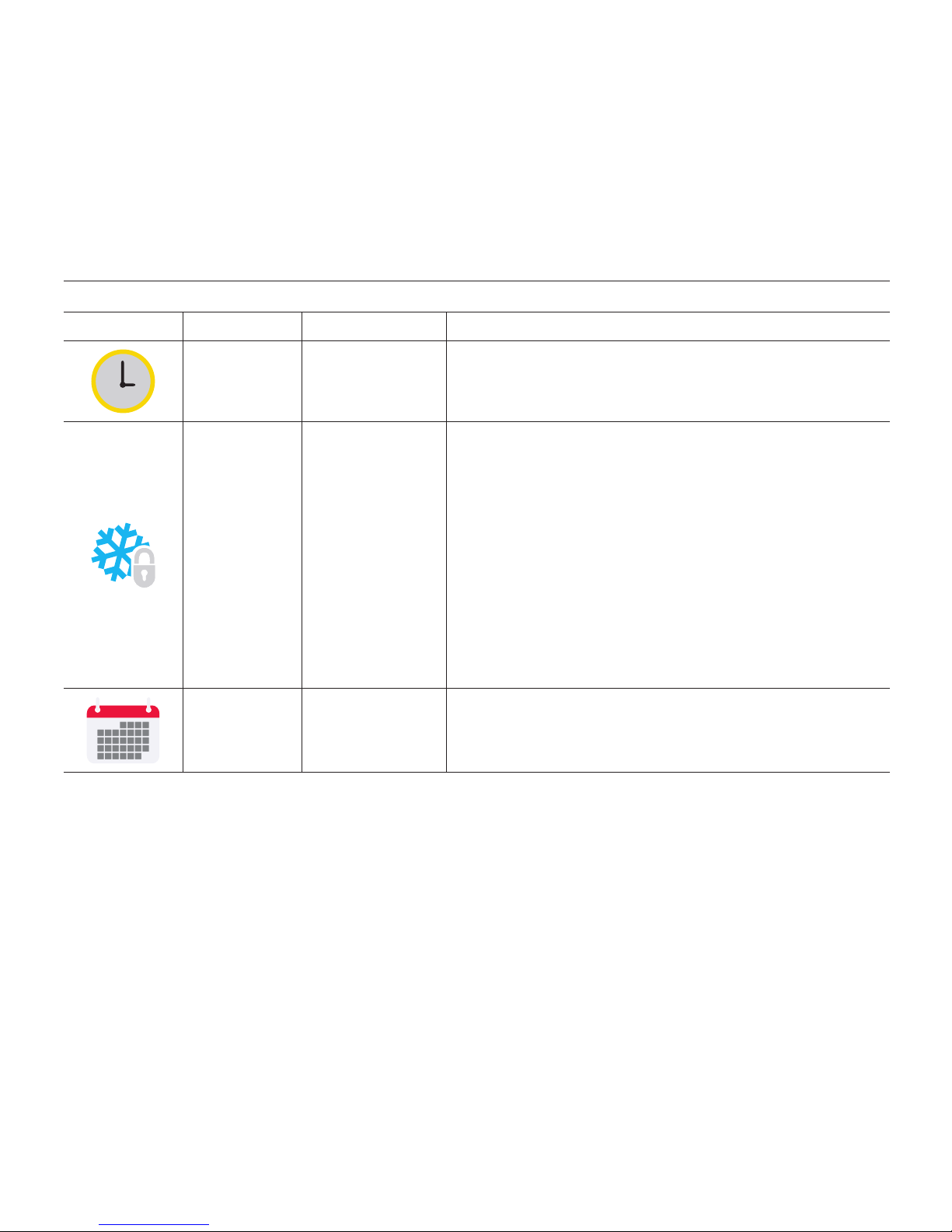

Table 1. System Icons
Icon Function Screen Text Purpose
Navigation Menu Selecting this icon will bring up user and installer
menus.
Function Away
When the away icon is touched, the system will auto-
matically use energy saving settings - heat-to 62 (16.5)
and cool-to 85 (29.5). Temperatures can be adjusted
by pressing on the available temperature setting (i.e.,
heat-to or cool-to). To exit away, press the cancel icon.
In a zoning system, all zones are set to a single heat-to
and cool-too setting. Note that when manually selecting
Away from the home screen, the Smart Away feature (if
enabled under settings) will be temporally disabled until
Away is canceled.
System
Status Heating System is heating the home.
System
Status Cooling System is cooling the home.
System
Status Humidifying
If humidication equipment is installed and congured,
the system will display this message when adding hu-
midity to the air in the home.
9
Table 1. System Icons
Icon Function Screen Text Purpose
System
Status Dehumidifying
The system can be used in cooling mode to help re-
move excessive humidity as determined by the user
setting. Go to menu > settings > humidity > and turn on
dehumidify. Then adjust the acceptable low and high
humidity levels in the home with the dehumidication
set-point slider.
System
Status Defrosting The system is defrosting the outdoor unit coil (only
when required). Heat pump only.
System
Status Emerg. Heat
All heat pumps operating in northern climates below
35°F (1.6°C) normally need a supplemental heating
source. Usually it is in the form of electric heating pro-
vided by the indoor unit. Other sources could be gas,
oil, or hot-water back-up systems as well. The sup-
plemental heat is also referred to as “second-stage”
or “back-up” heating, with “rst-stage” being the heat
pump only. Emergency heat is when you use your sup-
plemental heat (2nd stage) by itself, without the use of
your heat pump (1st stage heat). Not available for non-
heat pump systems.
System
Status Aux. Heat
Is only available with heat pump system. If outdoor tem-
perature is above the high balance point, only the heat
pump will operate - default 50°F (10°C) high. If outdoor
temperature is below the low balance point, only aux-
iliary heating will operate - default 25°F (-4.0°C) low.
If outdoor temperature is in-between the high and low
balance point, both the heat pump and auxiliary heat
sources can operate.
10
Table 1. System Icons
Icon Function Screen Text Purpose
System
Status Will start soon
A ve minute safety delay prevents the compressor
from operating too soon after shut-down to allow inter-
nal pressures to equalize.
System
Status Ambient lockout
This indicates that either the outdoor temperature is
above or below the balance point temperature settings.
The low balance point setting prevents heat pump heat-
ing below the set point and back up heat will be used.
Typically the default is 25°F (-4.0°C), but that setting
can be adjusted by your dealer. At 25°F (-4.0°C) or be-
low for example, only auxiliary heating (electric or gas)
is used.
If the high balance point is set to 50°F (10°C ) for exam-
ple, which is also adjustable by your dealer, then aux-
iliary heat will not be allowed. Only heat pump heating
will be used. Anytime the outdoor temperature is below
or above the balance point temperature settings, the
ambient lockout notice will appear on the home screen.
Function Transitioning to
next schedule
The system is following an active schedule and is tran-
sitioning to the next temperature setting based on a
time indicator.
Autres manuels pour iComfort M30
3
Table des matières
Autres manuels Lennox Thermostat
Lennox
Lennox ComfortSense 7000 series Guide de l'utilisateur
Lennox
Lennox ComfortSense 7500 Series Manuel utilisateur
Lennox
Lennox ComfortSense 3000 Series Manuel utilisateur
Lennox
Lennox iComfort M30 Manuel utilisateur
Lennox
Lennox ComfortSense 7500 Manuel utilisateur
Lennox
Lennox ComfortSense 8500 Series Instructions de montage
Lennox
Lennox icomfort Manuel utilisateur
Lennox
Lennox ComfortSense 3000 Series Manuel utilisateur
Lennox
Lennox icomfort Manuel utilisateur
Lennox
Lennox ComfortSense L5732U Manuel utilisateur
Lennox
Lennox ComfortSense 5500 Manuel utilisateur
Lennox
Lennox Ellite Series Manuel utilisateur
Lennox
Lennox X4146 Guide des dimensions
Lennox
Lennox CLIMATIC 10 A122C-A123H Manuel utilisateur
Lennox
Lennox icomfort Touch Thermostat Guide de planification
Lennox
Lennox ComfortSense 3000 Series Manuel utilisateur
Lennox
Lennox 11U61 Instructions d'utilisation et de sécurité
Lennox
Lennox ComfortSense L3532H Manuel utilisateur
Lennox
Lennox icomfort Wi?Fi Thermostat Manuel utilisateur
Lennox
Lennox icomfort Wi?Fi Thermostat Manuel utilisateur
Manuels Thermostat populaires d'autres marques
EWELLY
EWELLY EW-181 Manuel utilisateur
Prolon
Prolon T1100 Instructions d'installation
Computherm
Computherm Q20 Manuel utilisateur
Heatmiser
Heatmiser neoStat Manuel utilisateur
Aube Technologies
Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur
Mars
Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur
