Climatic 40 control, is an electronic device that controls Ecolean units EAC/EAR (chiller units), Aircoolair units ANCM/ANHM (air-air

units) and Aircube units KSCM/KSHM (condensing units).

The thermostat allows the following operations:

• Unit ON/OFF.

• Select system operating mode.

• Set point adjustment.

• Alarm signal relay.

• Display temperature, units status and pending alarms.

• Time bands programming.

• BMS comunications.

• Possibility of remote ON/OFF.

Inlet and outlet water, temperature/pres-

sure condenser and outdoor (optional)

temperature probes.

Proportional regulation based on inlet

water temperature (cooling and heating

mode).

Defrost cycle (heat pump units), with pres-

sure tranducer.

Condensing pressure control with tempe-

rature probe or pressure transducer.

Flow switch, antifreeze, high and low pres-

sure protections.

Compressors, water pump, fans and elec-

trical heater management.

Return / remote ambient, evaporator, tem-

perature/pressure condenser and outdoor

(optional) temperature probes.

Proportional regulation based on remote

ambient /return temperature (cooling,

heating and automatic mode).

Defrost cycle (heat pump units), with pres-

sure tranducer.

Condensing pressure control with tempe-

rature probe or pressure transducer.

Antifreeze, high and low pressure protections.

Compressors, indoor and outdoor fans,

electrical heater and freecooling (optional)

management.

Condenser temperature/pressure probes.

Regulation based on remote free voltage

contacts.

Defrost cycle (heat pump units), with pres-

sure tranducer.

Condensing pressure control with tempe-

rature probe or pressure transducer.

High and low pressure protections.

Compressors, indoor (optional) and outdo-

or fans.

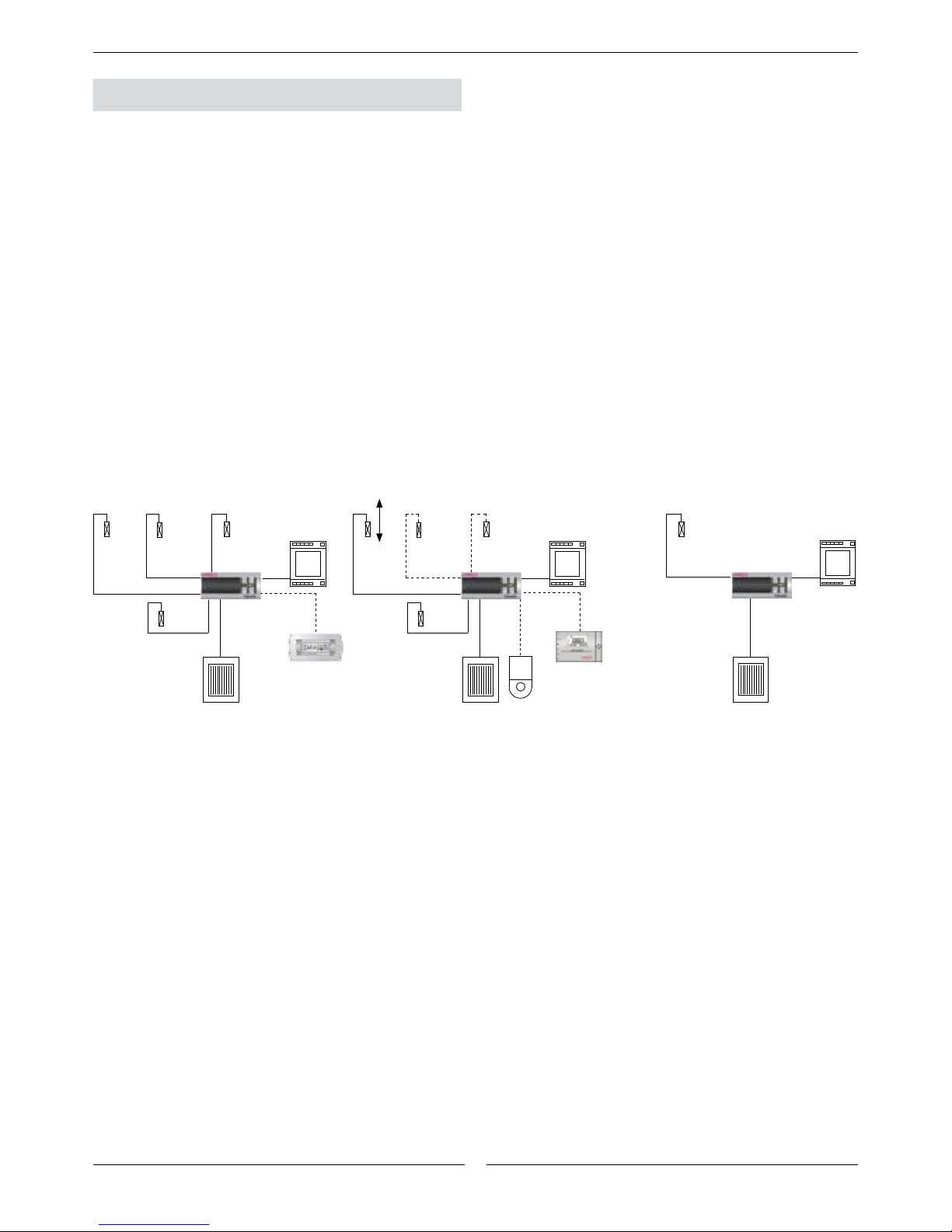

CONTROL DESCRIPTION

Condenser

temperature

/pressure

Inlet water

temperature

Outlet water

temperature

Outside

temperature

(optional)

Fan speed

control

Expansión

board

Condenser

temperature

/pressure

Fan speed

control

Expansión

board

Retur air

duct

temperature

Evaporator

temperature

Outside

temperature

(optional)

Fan speed

control

Expansión

board

Free cooling

motor damper

1.- CLIMATIC 40 CONTROL

Return or

remote

ambient

temperature

EDCBA L K

1:02

3:04

I+L

J+K

L+J

CONTROL DESCRIPTION

CLIMATIC 40 CONTROL

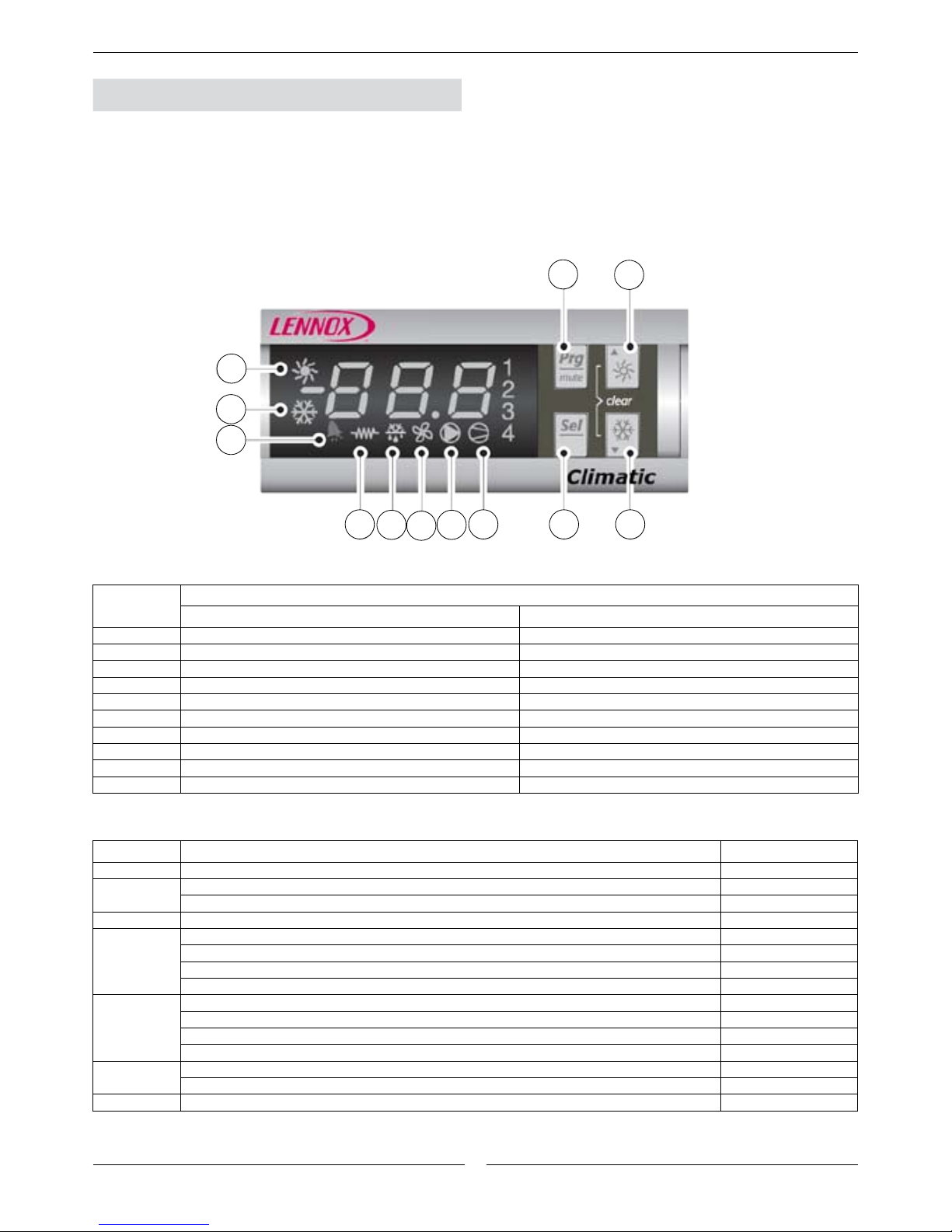

The gure and the table below, show the symbols present on the display and on the keypad and their meanings:

Main screeen shows: inlet water temperature for ECOLEAN, ambient temperature for AIRCOOLAIR and unit status (On/Off) for

AIRCUBE.

SYMBOL DESCRIPTION

LED ON LED FLASHING

Compressor 1 and /or 2 (circuit 1) ON. Start up request.

Compressor 3 and /or 4 (circuit 2) ON. Start up request.

At least 1 compressor ON.

Water pump/Indoor fan ON. Start up request.

Condenser fan ON.

Defrost active. Start up request.

Electrical heater ON.

Alarm active.

Cooling mode. Cooling mode request.

Heat pump mode. Heat pump mode. Request.

BUTTON DESCRIPTION TIME

Go up a sub-group inside the programming area, until exiting (saving changes to EEPROM). Press once

Access the direct parameters. Press for 5 s

Select item inside the programming area and display value of direct parameters/conrm the changes to the parameters. Press once

Program parameters afters entering password. Press for 5 s

Select top item inside the programming area. Press once

Increase value. Press once

Switch from standby to heat pump mode and vice versa. Press for 5 s

Provides immediate access to the condenser and evaporator pressure and temperature probes. Press once

Select bottom item inside the programming area. Press once

Decrease value. Press once

Switch from stand-by to chiller mode and vice versa. Press for 5 s

Provides immediate access to the condenser and evaporator pressure and temperature probes. Press once

Manual alarm reset. Press for 5 s

Immediately reset the hour counter (inside the programming area). Press for 5 s

Force manual defrost on both circuits. Press for 5 s

I+L

J+K

CONTROL DESCRIPTION

DC41 terminal is an optional keypad that allows to manage Climatic 40 controller from a remote position. The buttons and

indications on the display faithfully reproduce the Climatic 40 user interface.

1.1.1.- TURN ON/OFF THE UNIT

In order to turn on the unit, press for 2 seconds the “ ” button, for the heat pump mode, or the “ ” button, for the cooling

mode.

The display shows unit’s operating mode together with the symbols of the working elements (compressors, water pump etc.).

In order to turn off the unit, press for 2 seconds the “ ” button (if the unit is working in heat pump mode) or the “ ” button (if the

unit is working in the cooling mode).

1.1.2.- SELECTING THE UNIT´S OPERATING MODE

If the unit is in stand-by, the operating mode is selected in the start-up (as explained above).

In the case the unit is working in cooling or heating mode, in order to change the operating mode, you have to turn off the unit

before, and only then you can turn it on in the operating mode you want.

1.1.3.- SELECTING THE WATER TEMPERATURE OF THE SYSTEM

To modify unit working set point you have to change r1 parameter (cooling set point) or r3 parameter (heating set point).

To see how to change a parameter see chapter 3 MENU (SETPOINT SETTINGS AND OPERATING HOURS DISPLAY MENU

paragraph).

1.2.1.- TURN ON/OFF THE UNIT

The unit turns on closing On/Off contact and turns off opening it (see section 1, advanced functions, for more details).

1.2.2.- SELECTING THE UNIT´S OPERATING MODE

Heating mode is selected opening remote changeover contact while cooling mode is selected closing it (see section 2, advanced

functions, for more details).

NOTE

Set point has no meaning in Aircube units because the compressors are directly controlled by remote contacts.

1.2.- AIRCUBE

1.1.- ECOLEAN

1.- CLIMATIC 40 CONTROL

2.- DC41 REMOTE CONTROL (ECOLEAN)

OPTION

241 3 11

POWER

Mode MODE

FAN

SLEEP

CLOCK

TEMP.

UP/DOWN

1 7

2 8

3 9

4 10

5 11

CONTROL DESCRIPTION

3.- DC40 REMOTE TERMINAL (AIRCOOLAIR)

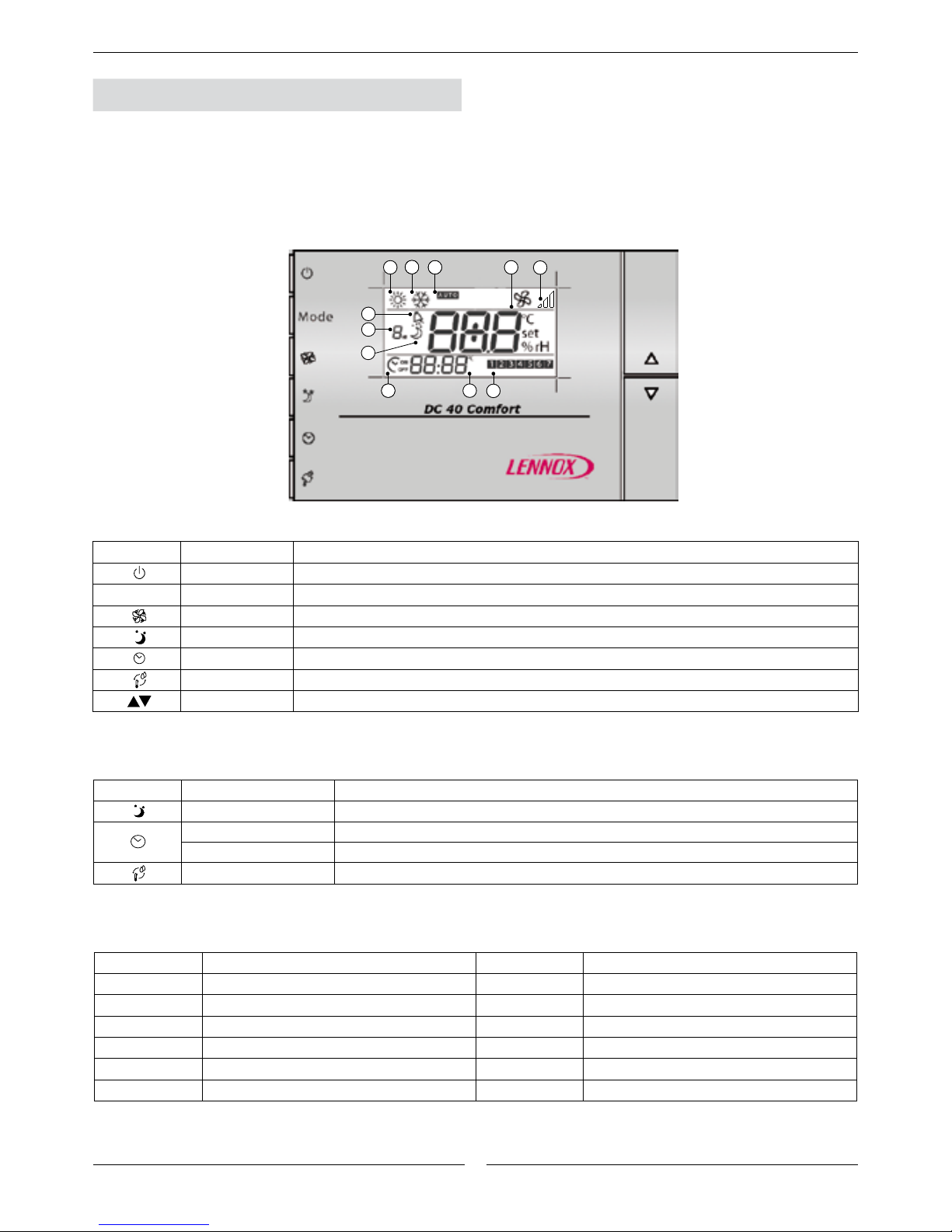

The gure and the table below, show the symbols present on the display and on the keypad and their meanings. In the main eld of

display, it appears OFF, if the machine is stopped or the set point, if the machine is working.

Secundary functions:

Display symbols:

BUTTON NAME DESCRIPTION

Switch from stand-by to ON and vice versa.

Change operating mode (cooling, heating, automatic).

Switch the indoor fan from automatic mode to always ON and vice versa.

Activate/deactivate the sleep mode.

Activate/deactivate the time bands.

Show the setpoint when the unit is OFF.

Set the temperature set point.

BUTTON BUTTON PRESS FUNCTION

3 seconds Set sleep differential value of the current operating mode.

3 seconds Set the time bands (hour, day, set point).

5 seconds Clock setting.

3 seconds Reset alarms.

SYMBOL MEANING SYMBOL MEANING

Heating mode. On/Off time bands.

Cooling mode. Sleep mode.

Automatic mode. Sleep mode duration.

Set point. Alarm.

Day of the week (weekday, weekend). Indoor fan mode.

Hour/Temperature.

This function increases (in cooling mode) or decreases (in heating mode) the operating set point according to the lower level of

comfort required during the night.

Not possible with time bands program.

ACTIVATION

Press once “ ” button. The display shows “ ” symbol with “1HR” ashing.

In this way, sleep function will be working for 1 hour.

If you want it works for more hours, press “ ” button more times while “1HR” is still ashing (each button pression increases by 1

hour, till max 9 hours).

At the end the display shows “ ” symbol with the number of hours you choose.

DEACTIVATION

Press once “ ” button and sleep function will be deactivate (if it was activated before). Symbol “ ” disappears from the display.

DIFFERENTIAL SETTINGS

Press “ ” button for 3 seconds. Sleep differential (the value you increase or decrease to comfort set-point) appears on the dis-

play.

Use “ ” buttons to set the value, then press “ ” button to accept.

Note that cooling and heating mode have different sleep differential values, so you can modify only current operating mode’s one.

To set actual time:

1. Press “ ” button for 6 seconds. “rtc” and actual time appears on the display (hours are ashing).

2. Set the hour by “ ” buttons.

3. Press “ ” button to accept. Minutes start ashing on the display.

4. Set the minutes by “ ” buttons.

5. Press “ ” button to accept. “day” and the number of the day of the week appear on the display (Monday=1, Tuesday=2 etc.)

6. Set the day by “ ” buttons.

7. Press “ ” button to accept.

3.1.- TURN ON/OFF THE UNIT WITH REMOTE CONTROL DC40 (AIRCOOLAIR)

3.2.- SELECTING THE UNIT´S OPERATING MODE

Once the unit is turned on, you can select Cooling, Heating or Automatic mode just pressing “Mode” button. In the automatic mode

you just choose the set point and the system automatically switches from cooling to heating mode, depending on the position of the

ambient temperature in respect to the set-point.

3.3.- SELECTING DESIRED ROOM TEMPERATURE

If unit is working, the “ ” buttons allow to select the desired room temperature (set-point).

The button “↑” allows the increase of the current set-point by 0.5ºC.

The button “↓” allows the decrease of the current set-point by 0.5ºC.

3.4.- SELECTING THE FAN OPERATING MODE (Aircoolair)

To be able to select a fan operating mode, cool, heat or auto unit’s operating mode must be selected.

Pressing “ ” side button scrolls through the following modes: FAN CONSTANTLY ON, or AUTO

FAN CONSTANTLY ON: Fan is continuous ON, the symbol “ ” will appear.

AUTO: Fan on and off together with the compressor, the symbol “ ” will appear.

3.5.- SLEEP FUNCTION

3.6.- CLOCK SETTINGS

To turn on the unit press the “ ” button.

The display shows current operating mode.

CONTROL DESCRIPTION

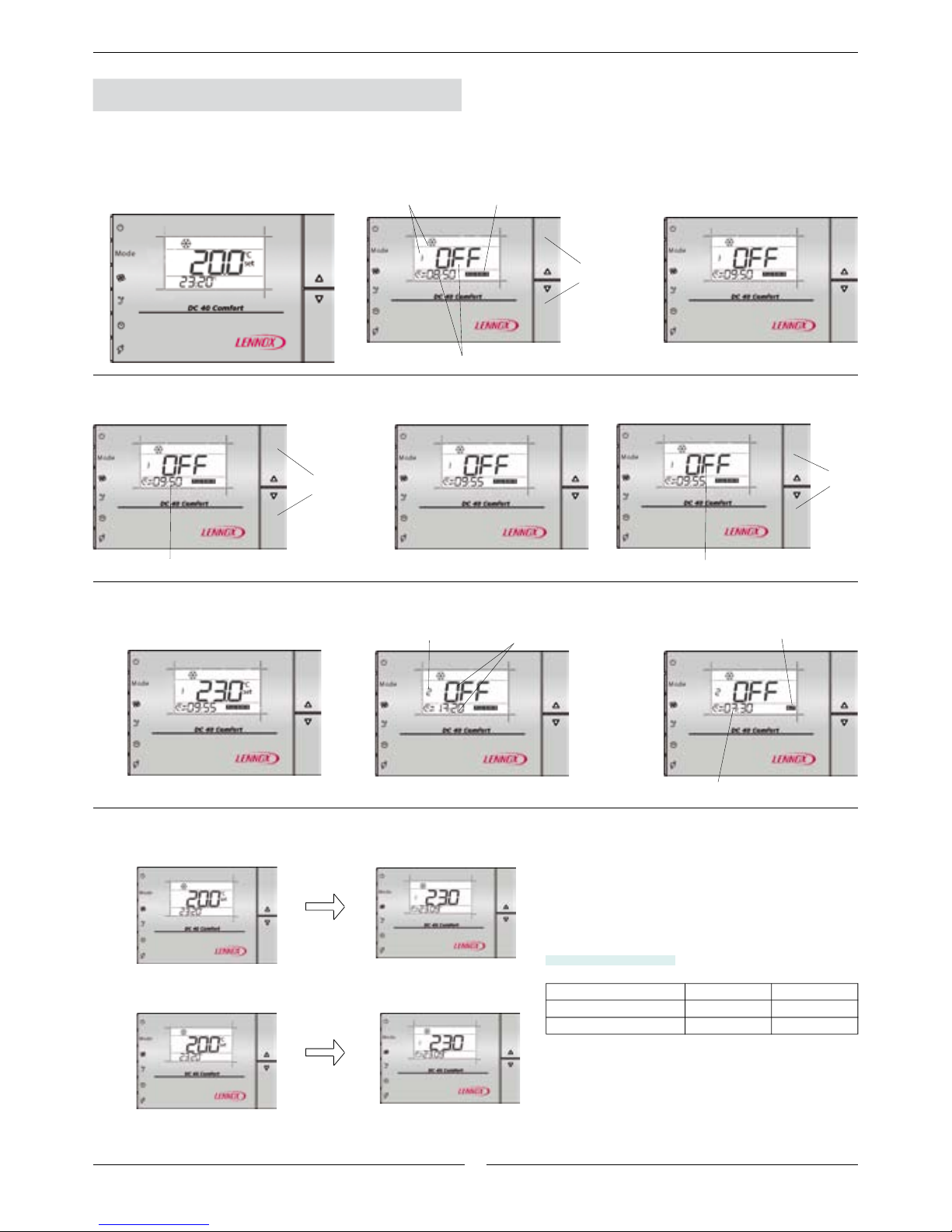

3.7.- TIME BANDS PROGRAM

This function allows you to program time bands during the week, each one with a different set-point. In this way you can suit the

cool/heat provided by the unit to each moment of the day.

You can set two time bands for the weekdays and other two for the weekend.















22ºC

23ºC

OFF

CONTROL DESCRIPTION

CONFIGURATION

NOTA: You must set the DC40 clock before programming time bands.

EXAMPLE IN SUMMER

a) Enter time bands menu. b) Set 1ST time band of weekdays starting hour. c) Accept.

d) Set 1ST time band of weekdays starting minutes. e) Accept. f) Set 1ST time band of weekdays set-point (on/off/tem-

perature).

g) Accept. h) Repeat b-c-d-e-f-g steps to program 2sd time band

of weekdays.

i) Repeat b-c-d-e-f-g-h steps to program the two time

bands of weekend.

Weekdays

Time band 1

ashing

Flashing Flashing

Flashing

Time band 2 Weekend

Hashing

ACTIVATION

DEACTIVATION

3 sec.

WeekdaysHour

8:00 (Time band 1)

18:00 (Time band 2)

Weekend





b) Set password “ 22 ” by

“ ” and “ ” buttons.

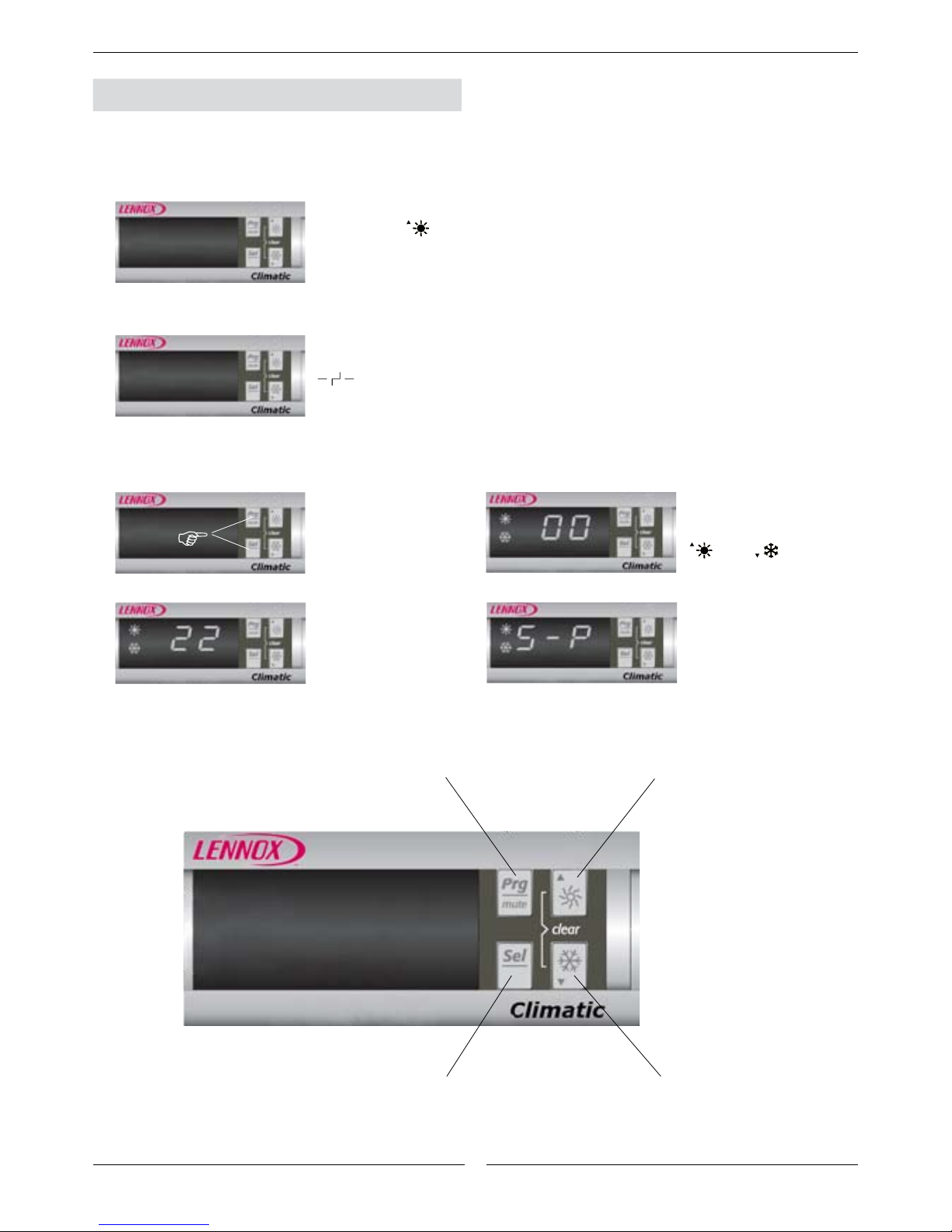

A) PROBES DISPLAY MENU

Press “ ” button, to enter probes display menu.

“ b01” or “b02”, appears on the display (it depends on the unit conguration).

Press “ Sel ” button, for 5 seconds.

“ ”, appears on the display.

1 sec.

5 sec.

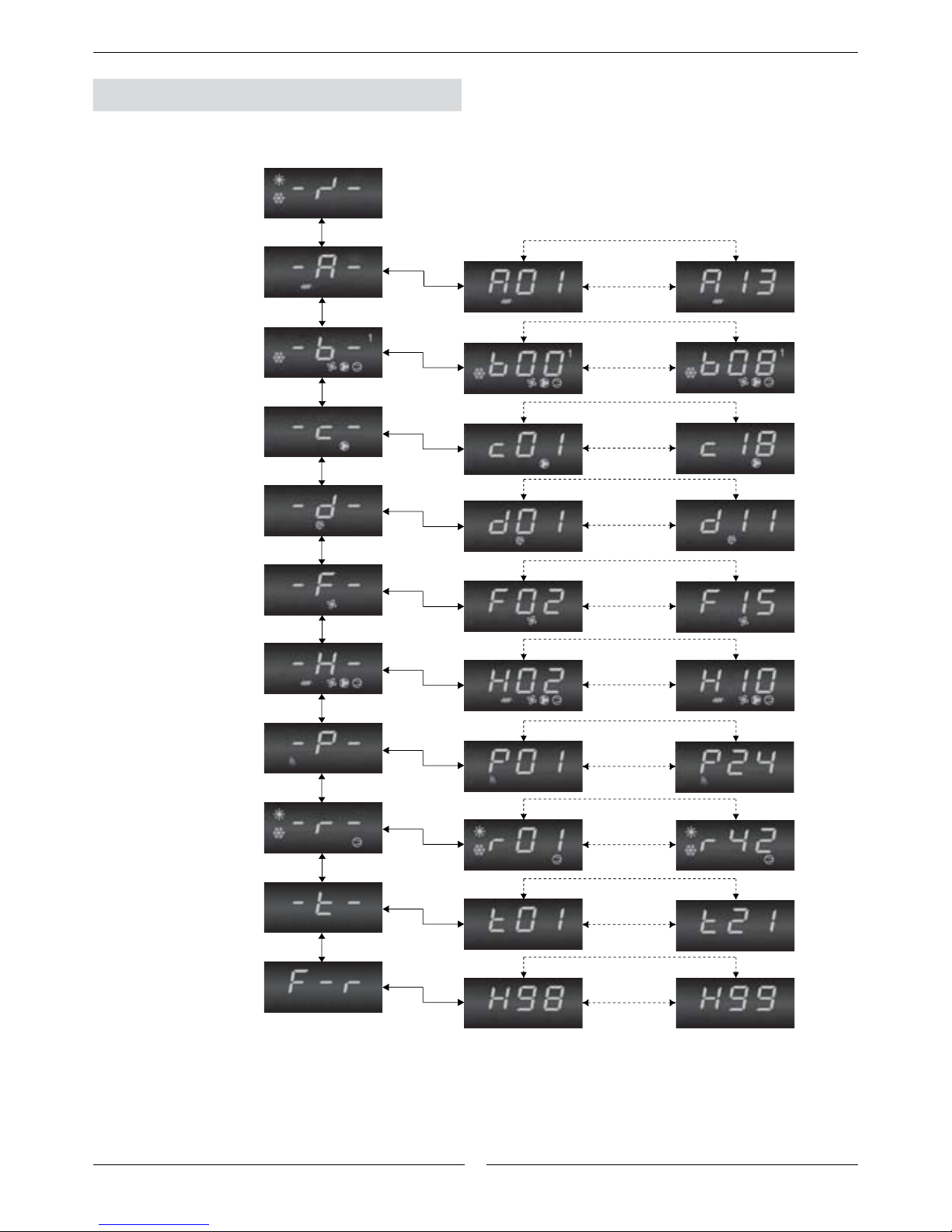

B) SETPOINT SETTINGS AND OPERATING HOURS DISPLAY MENU

C) PARAMETERS EDITING MENU

a) Press “ Pgr ” and “ Sel”,

at the same time, for 5

seconds.

c) Press “ Sel ”, to accept. d) Press “ Sel ”, to enter

parameters Editing menu.

Go up a sub-group inside

the programming area. UP or increase valve.

Down or decrease valve.

Go down a sub-group or accept

parameter modications inside

the programming area.

5 sec.

Access to the menu:

To go to different values in the menu, follow the previous information.

NOTES:

a) The parameters that have been modied without being conrmed using the “ Sel ” button, return to the previous value.

b) If no operations are performed on the keypad for 60 seconds, the controller exits the parameter editing menu by timeout and the

changes are cancelled.

MENU TREE

PROBES SETTINGS

ATIFREEZE AND

ELECTRICAL HEATER

PROBES

COMPRESSORS

DEFROST

FANS

UNIT SETTING

ALARMS

REGULATION

TIMER SETTING

SOFTWARE

Autres manuels pour CLIMATIC 40

Table des matières

Autres manuels Lennox Thermostat

Lennox

Lennox PCUS Manuel utilisateur

Lennox

Lennox ComfortSense 3000 Series Manuel utilisateur

Lennox

Lennox ComfortSense Touchscreen Thermostat Manuel utilisateur

Lennox

Lennox ComfortSense 7500 Series Manuel utilisateur

Lennox

Lennox icomfort Touch Thermostat Guide de planification

Lennox

Lennox ComfortSense L3021H Manuel utilisateur

Lennox

Lennox iComfort E30 Instructions de montage

Lennox

Lennox ComfortSense L3011C Manuel utilisateur

Lennox

Lennox iComfort M30 Manuel utilisateur

Lennox

Lennox ComfortSense L3722C Manuel utilisateur

Lennox

Lennox 11U61 Instructions d'utilisation et de sécurité

Lennox

Lennox ComfortSense 3000 Series Manuel utilisateur

Lennox

Lennox ComfortSense 7000 series Mode d’emploi

Lennox

Lennox S40 Instructions de montage

Lennox

Lennox iHarmony 17A30 Instructions de montage

Lennox

Lennox ComfortSense 8500 Series Instructions de montage

Lennox

Lennox 19V30 Instructions de montage

Lennox

Lennox LB57113BM Guide de démarrage rapide

Lennox

Lennox iComfort S30 Manuel utilisateur

Lennox

Lennox ComfortSense 5500 Manuel utilisateur

Lennox

Lennox ComfortSense 7000 series Guide de planification

Lennox

Lennox ComfortSense L7742U Guide de l'utilisateur

Lennox

Lennox ComfortSense 8500 Series Instructions de montage

Lennox

Lennox LXTFZ01M Manuel utilisateur

Manuels Thermostat populaires d'autres marques

EWELLY

EWELLY EW-181 Manuel utilisateur

Prolon

Prolon T1100 Instructions d'installation

Computherm

Computherm Q20 Manuel utilisateur

Heatmiser

Heatmiser neoStat Manuel utilisateur

Aube Technologies

Aube Technologies TH111GFCI-NP 240 VCA Manuel utilisateur

Mars

Mars HEAT CONTROLLER IR Wireless Thermostat Manuel utilisateur

Saswell

Saswell SAS920XWHB-7-S-RF Mode d’emploi

Aircalo

Aircalo TFP1-ET85P2 Manuel utilisateur

Honeywell

Honeywell CM721 Manuel utilisateur

Carrier

Carrier DEBONAIR 33CS Manuel utilisateur

Gemtech

Gemtech GT7000 Mode d’emploi

Rollei

Rollei Smartes 45000 Manuel utilisateur

Sinope

Sinope TH1300RF Manuel utilisateur

Honeywell

Honeywell RLV4305 Manuel utilisateur

Honeywell

Honeywell Prestige 2.0 THX9421 Manuel utilisateur

NuTone

NuTone NTBZ48 Instructions d'utilisation d'origine

Stelpro

Stelpro MAESTRO ASMT402AD Manuel utilisateur

Honeywell

Honeywell T6811 Manuel utilisateur
