Lennox 4.5HTSK Manuel utilisateur

GENERAL INFORMATION

HORIZONTAL TERMINATION

SHROUD KIT

The horizontal Termination Shroud Kit may be used as a decorative cover

for the square termination and to minimize exposure to the hot surface

of the termination.

This kit contains one termination shroud kit and these instructions.

HEARTH PRODUCTS

KITS AND ACCESSORIES

INSTALLATION INSTRUCTIONS FOR THE HORIZONTAL TERMINATION SHROUD KIT

(MODEL NUMBER 4.5HTSK) (CATALOG NUMBER H5820) FOR USE WITH SQUARE TERMINATIONS

WHICH MAY BE USED WITH DIRECT VENT GAS FIREPLACES

INSTALLATION INSTRUCTIONS

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

Note - Shroud kit installation does not require the removal of the

square termination.

Step 1. Turn off the ﬁreplace and allow the termination to cool before

proceeding.

Step 2. Loosen the four (4) screws on the existing square termination

(refer to Figure 1 ).

Step 3. Slide the body of the shroud over the termination screws that

have been loosened, setting it in place (refer to Figure 1 ).

P/N 750,246M

REV. B 04/2008

WARNING: THIS KIT MUST BE INSTALLED BY A QUALI-

FIED SERVICE TECHNICIAN OR OTHER QUALIFIED

AGENCY ACCORDING TO THE MANUFACTURER’S

INSTRUCTIONS, ALL CODES AND REQUIREMENTS OF

THE AUTHORITY HAVING jURISDICTION IN THE USA OR

CANADA. THE QUALIFIED AGENCY PERFORMING THIS

WORK ASSUMES RESPONSIBILITY FOR THIS INSTAL-

LATION.

WARNING: THE SHROUD KIT PROVIDES PROTECTION

FROM THE HIGH TEMPERATURES OF THE TERMINATION

ExCEPT AT THE TOP PORTION OF THE SHROUD KIT. THIS

AREA IS ExTREMELY HOT DUE TO THE DISCHARGING

FLUE GASES.

NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.

P/N 750,246M REV. B 04/2008

The manufacturer reserves the right to make changes at any time, without notice, in design, materials, speciﬁcations, prices and also to discontinue colors, styles and products.

Consult your local distributor for ﬁreplace code information.

1110 West Taft Avenue

Orange, CA 92865

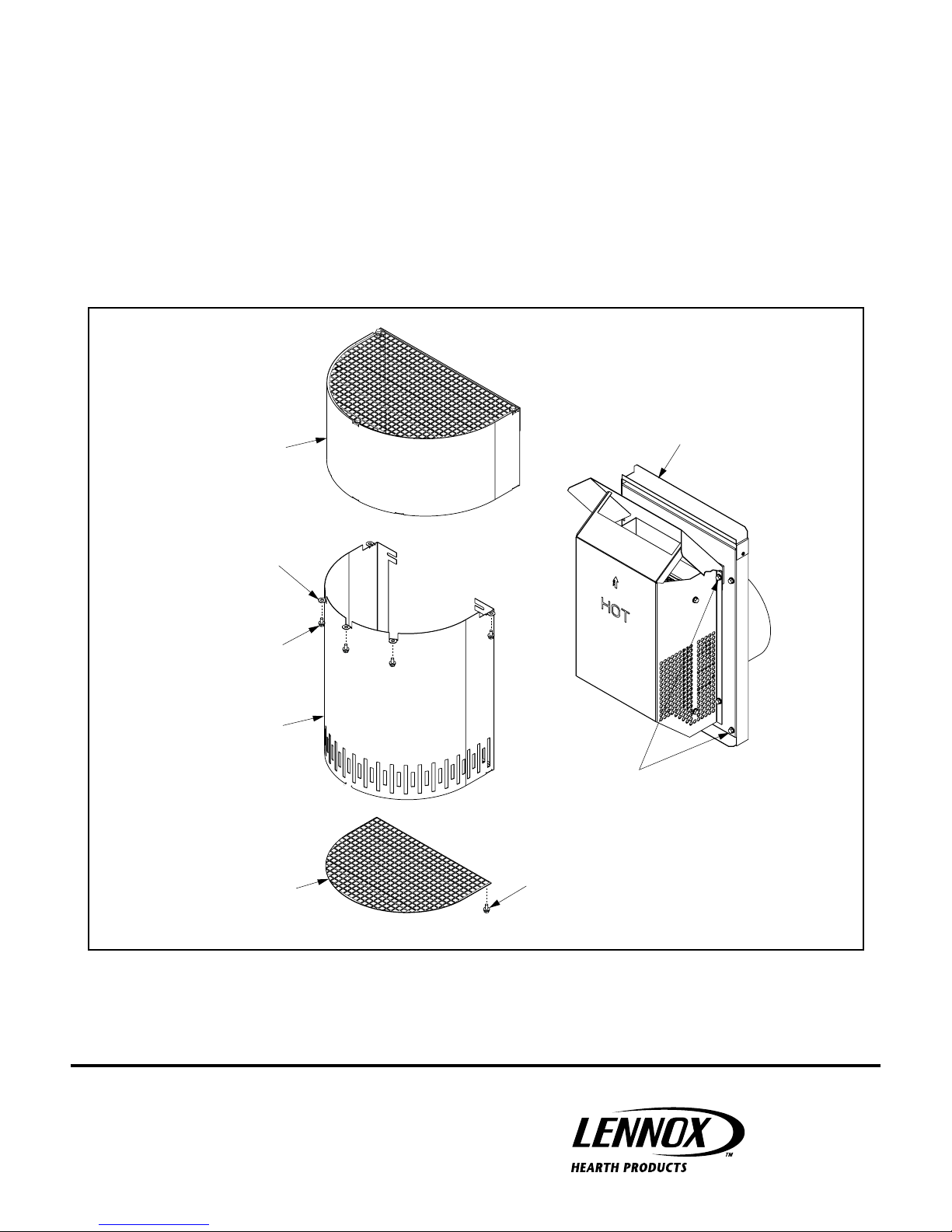

Figure 1

Step 4. Re-tighten the four (4) screws into place, securing the shroud body over the termination.

Step 5. Position the shroud top over the shroud body and screw it into the ﬂanges located on both the shroud top and shroud body, using ﬁve (5)

screws (as shown Figure 1 ).

Note: The ﬁve (5) screws are to be attached from the bottom.

Step 6. Attach the bottom screen onto the body of the shroud, using the three (3) screws into each of the three ﬂanges on the shroud body (see

Figure 1 ).

Step 7. If desired, paint shroud to any color.

Termination

Securing Screws

(Five) For Shroud

Body To Shroud Top.

Install From The

Bottom Up.

Screw Flanges

(Five Places)

Bottom Screen

Termination

Shroud - Top

Termination

Shroud - Body

Back Off These Two Screws

(Both Sides) And Slide

Shroud Body Into Place.

Securing Screws

(Three) For Bottom

Screen To Shroud Body.

Install From The Bottom Up.
