LEGRAND Daker DK 1 kVA Manuel utilisateur

Part. LE05334AC-07/13-01 GF

Daker DK 1, 2, 3 kVA

Manuel d’installation • Installation manual

Daker DK 1, 2, 3 kVA

Index

1 Introduction 24

2 Conditions of use 24

3 LCD Panel 25

4 Installation 28

5 UPS communicator self-diagnostic software 37

6 Battery replacement 38

7 Possible malfunctioning 40

8 Technical features 41

This manual contains information for users of the Daker DK 1, 2, 3 kVA models.

You are advised to read this handbook carefully before installing your uninterruptible power sup-

ply, meticulously following the instructions given herein.

The UPS Daker DK is only been made for civil or industrial use; it is not in conformity with the stan-

dards for electro-medical equipment.

In case of problems with the UPS, please read this manual before contacting technical support;

The“Troubleshooting”section can in fact help resolving most of the problems encountered while

using the uninterruptible power supply.

1 Introduction

• The UPS has been designed for the power supply of the data processing equipment; The load

applied must not exceed the one indicated on the rear label of your UPS.

• The ON/OFF button of your UPS does not electrically isolate the internal parts. To isolate your

UPS unplug it from the mains power socket.

• Do not open the UPS container since there may be parts inside with dangerously high voltage

even when the mains plug is disconnected; there are no parts inside that the user can repair.

• The front control panel is provided for manual operations; Do not press on the panel with sharp

or pointed objects.

• The UPS Daker DK has been designed to work in closed, clean rooms where there are no inflam-

mable liquids or corrosive substances and where it is not too damp.

• Do not place near equipments that generate strong electro-magnetic fields and/or near equi-

pments that are sensible to electro-magnetic fields. (engines, floppy disks, speakers, adapters,

monitors, video, etc...)

• Do not pour any liquid on the UPS or inside the UPS.

• Do not place the UPS in humid environment or near liquid, such as water, chemical solution…

• Do not expose the UPS to the direct sunlight or any heat sorces.

• Keep the ventilation slits clean to dissipate the heat of the UPS.

• Use grounded power cable to connect the UPS to the mains supply.

• Do not plug laser printers into the UPS because of their high start-up current.

• Do not plug house electric equipments, such as hair dryer,air conditioner, and refrigerator into

the UPS outlets.

2 Conditions of use

Daker DK 1, 2, 3 kVA

3 LCD Panel

1. LCD Panel

2. The green LED on steady indicates that the power supply network is within the 160-288 Vac

range.

3-4. The green LEDs indicate that the programmable Outlets 1 and 2 are present.

5. The orange LED indicates that the Bypass is active.

6. UPS alarm LED

7. UPS power on/buzzer silencing pushbutton

8. UPS power opushbutton

9. Special functions access menu pushbutton, log in/out

10. Following screen selection pushbutton

11. Previous screen selection, or settings change pushbutton

12. Selection conrmation pushbutton

2 3 4 5 6

7 8 9 10 11 12

Display LCD symbols

3 LCD Panel

Item Symbol Description

1Line source

2Low battery level

3Battery damaged

4Overload

5Earth connection error

6Service Mode operation

7UPS o

8UPS alarm

9UPS operation diagram

10 Measurements display

11 It indicates which parameter is being measured

22 Battery insucient or needing replacing

23 Short circuit on the output

24 Excessive inverter current

25 Overtemperature

26 Overload on the output

27 Other Alarms

LINE

OFF

FAIL

Er05

Er06

Er10

Er11

Er12

Er**

Daker DK 1, 2, 3 kVA

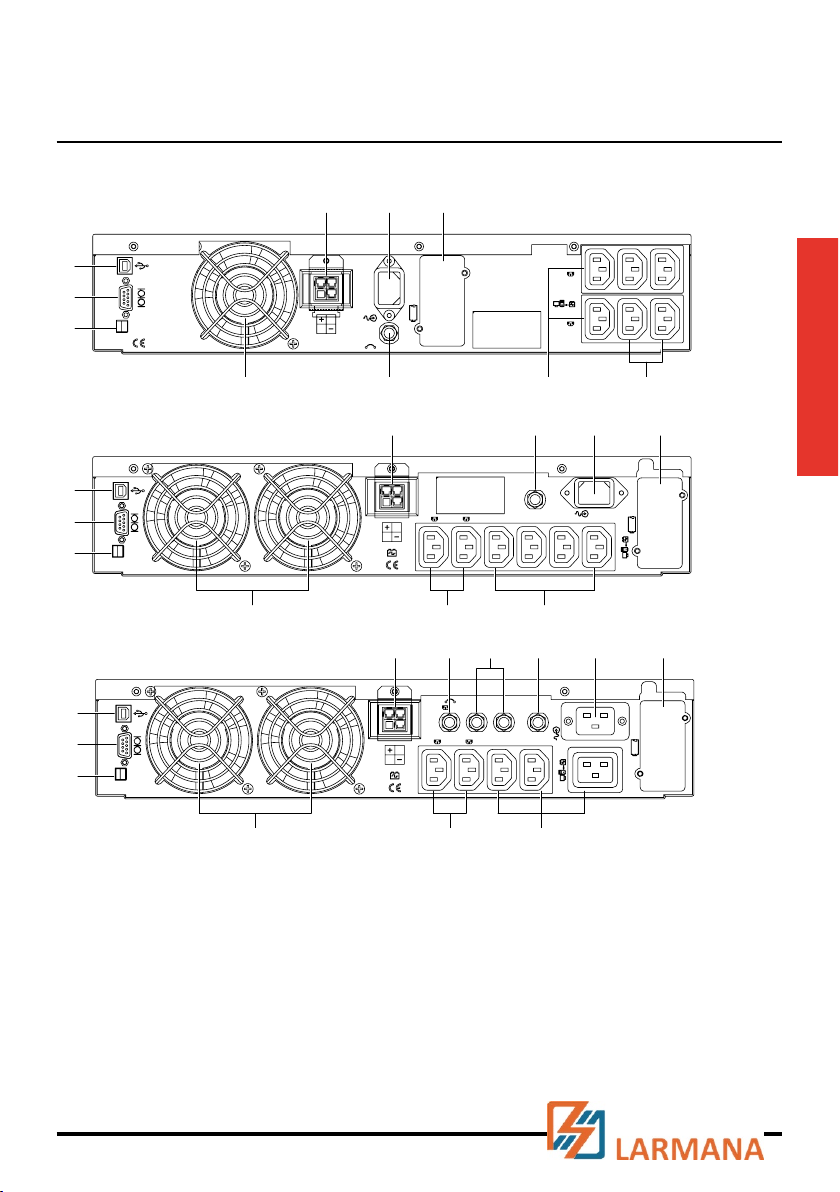

Rear panel 230V

13. USB Port

14. RS-232 Port

15. Emergency Power O(EPO) Dry Contact

Signal inputs

16. Communication Card Options Slot

17. External Battery Connector

18. AC power connection socket

19. AC Outlets

20. Two programmable outlets

21. Utility Input circuit breaker

22. Cooling Fans

23. Output circuit breaker for two outlets

24. Output circuit breaker for two

programmable outlets

INTERFACE

INPUT

BREAKER

AC INPUT

AC OUTPUT

1 2

DC 72V

EPO

A B

1/2

OUTPUT BREAKER

AC OUTPUT

EPO

DC 36V

AC INPUT

INPUT

BREAKER

INTERFACE

1617 18

19202122

INTERFACE

INPUT

BREAKER

AC INPUT

AC OUTPUT

1 2

DC 72V

EPO

3 100 50

1617 1821

1920

3 100 51

1617 1821

1920

3 100 52

24 23

4 Installation

Check for the following standard package contents:

• User Manual

• 2 IEC output cables (for UPS with IEC sockets only)

• detached AC Input Power cable (for UPS with IEC sockets only)

• RS-232 communication cable

• USB communication cable

• Tower/Rack Accessories Kit as below:

A1 A2 - Optional

A3 - Optional

B2B1

4 pcs 1 pcs 1 pcs

1 pcs

2 pcs 2 pcs

2 pcs

6.0

±1.0mm

8 pcs

6.0

±1.0mm

6 pcs

8.0

±1.0mm

Daker DK 1, 2, 3 kVA

Tower configuration setup

Step 1

Step 2

4 Installation

UPS + battery cabinet (optional)

Step 1

Step 2

Daker DK 1, 2, 3 kVA

90°

Step 1

Step 2

Step 3

Step 4
