LEGRAND radiant WWRL10WHCCV2 Manuel utilisateur
Smart Switch, Wi-Fi
before you start
Review this guide in its entirety. Consult an electrician with any questions or if
you are unsure of your abilities.
Warning: Incorrect installation could result in death, serious injury, and/or
damage to your home or devices.
Caution: To reduce the risk of injury and/or overheating and damage to
other equipment:
• For dry, indoor use only.
• Do not use to power medical
equipment.
• Not suitable as a disconnecting
means.
• Do not use with loads exceeding the
device load rating.
what you need
REQUIRED:
Phillips-head screwdriver
Flat blade screwdriver
• Connect the smart switch to a 120
VAC, 60 Hz power source ONLY.
• Always use copper wire to install
the smart switch and follow all
applicable local and national
electrical codes.
Visit www.legrand.us/radiant/smart-lighting/support for support.
YOU MAY ALSO NEED:
Voltage tester, pliers, wire cutter, wire
stripper, electrical tape, flashlight, wiring
leads (included), and wire nuts (included)
SCAN TO WATCH THE
INSTALLATION VIDEO
installation & setup

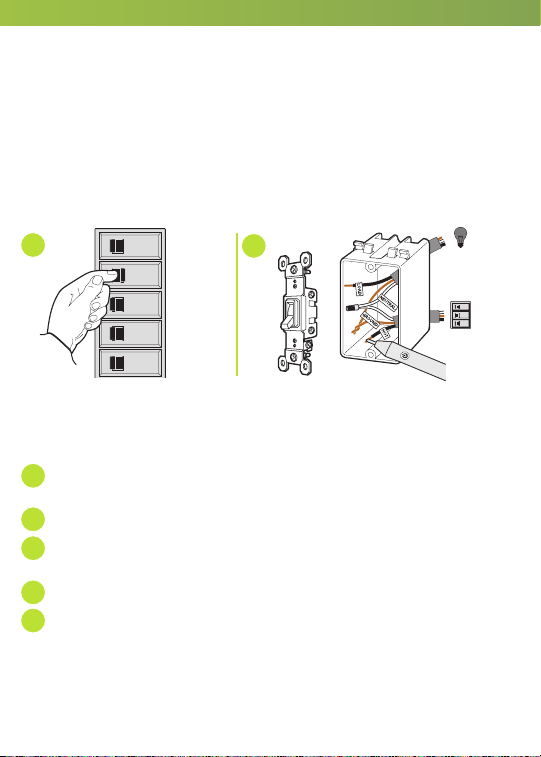

1|turn off power to device at circuit breaker
Flip existing light switch multiple times to confirm power is off.
NOTE: Ensure power is off to all devices in electrical box.
OFF
ON
OFF
ON
OFF
ON
OFF
ON
OFF
ON
2|remove existing device
Check for the following wires:
aHOT or LINE: Receives power from the circuit box. Referred to as “hot” for
the purposes of this guide. Do not touch or let “hot” wires contact other wires.
bLOAD: Directs power to your light(s).
cNEUTRAL: Creates a path to return current to the power source when the
device is off. Required for your switch installation.
dGROUND: Provides a safe path for electricity in the event of a short circuit.
eTRAVELER: If more than one switch controls the light, an additional wire
will be in the box that “travels” to the other switch.
OFF
ON
OFF
ON
OFF
ON
VOLTAGE
TESTER
Load
Supply
“Hot”
12
3a |wire smart switch
Use the wire nuts provided to secure the wires together.
aConnect the WHITE neutral wire on the switch to the neutral wires in the
box, using the red wire nut.
bConnect the LOAD wire on the switch to the load wire in the box.
cConnect the HOT wire on the switch to the hot wire(s) in the box.
dConnect the GREEN ground wire on the switch to the ground wire(s) in the box.
eIf the light is controlled with only one switch, use a wire nut to cap the
YELLOW traveler wire on the device and proceed to step 4.
If the light is controlled by two or more switches (3-way), see 3b
for instructions.
1-POLE
Ground
WHITE
3-WAY
HOT
OFF
ON
OFF
ON
OFF
ON
Load
Supply
“Hot”
3b (optional) |wire 3-way smart switch
This product will work with existing three-way switches. To wire Smart Switch to
the electrical panel side of the circuit.
aConnect the WHITE neutral wire on the switch to the neutral wires in the
box, using the red wire nut.
bConnect the LOAD wire on the switch to one of the two traveler wires (the
wires connected to the gold screws) in the box.
cConnect the HOT wire on the switch to the hot wire(s) in the box.
dConnect the GREEN ground wire on the switch to the ground wire(s) in the box.
eConnect the YELLOW wire to the remaining traveler wire in the box.
SCAN TO SEE HOW TO
WIRE 3-WAY SWITCH
HOT
3-WAY
WHITE
1-POLE
Ground
Gold
Screw
Black
Screw
Gold
Screw
OFF
ON
OFF
ON
OFF
ON
Supply
“Hot”
Load
WWRL10
1-POLE
Ground
WHITE
3-WAY
HOT
Black
Screw
Gold
Screw
Gold
Screw
OFF
ON
OFF
ON
OFF
ON
Supply
“Hot”
Load
WWRL10
NOTE: To wire Smart Switch to the load side of the
circuit. Connect the HOT wire on the switch to load
that is being controlled.
4|secure smart switch
aFold wires into electrical box, taking care not to pinch a wire.
bUse included screws to secure smart switch to electrical box. Do not fully
tighten the screws.
5| test the smart switch
NOTE: See getting to know your switch section for feature details.
Turn the power back on at the circuit breaker and press switch to turn light on/off.
TROUBLESHOOTING TIP:
If the device is not powering check wiring to determine if you have reversed the
“HOT” and “LOAD” wiring.
45

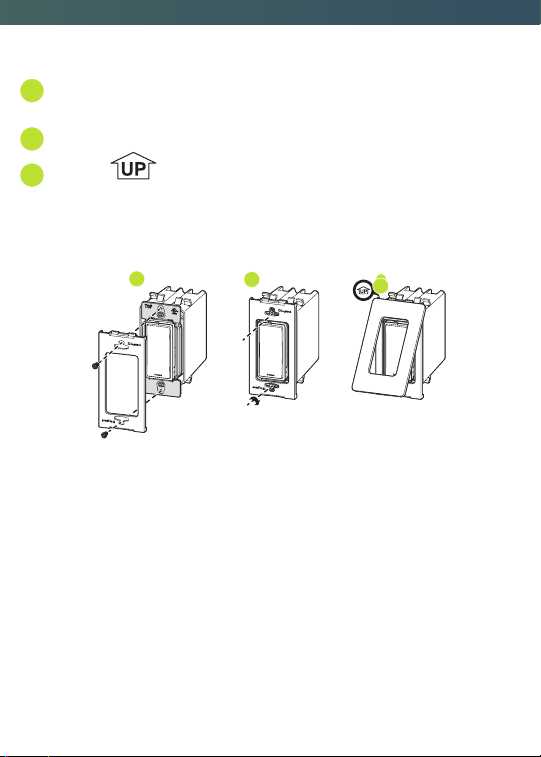

6|attach wall plate
aUse the sub-plate screws (provided) to secure the sub-plate to the
smart switch.
bTighten device screws to secure to the electrical box.
cAngle the end of the wall plate over the top edge of the sub-plate.
Push the screwless wall plate down and in until it “snaps” into place over
the sub-plate.
NOTE: To remove the wall plate, place the tip of a flat blade screwdriver into the slot
under the wall plate and twist gently.
THIS SIDE OUT
MOUNT OVER DEVICE
THIS SIDE OUT
MOUNT OVER DEVICE
THIS SIDE OUT
MOUNT OVER DEVICE
1 32
abc
7|set up your system
aDownload and launch the Smart Lights, Wi-Fi app by Legrand. The app is
available on the App Store or on Google Play.
bConnect your smart switch to your home network by following the step by
step instructions in the app.
cUse the app to control your smart switch.
Google Play and the Google Play logo are trademarks of Google LLC.
App Store is a service mark of Apple Inc., registered in the U.S. and other countries.
SCAN TO WATCH HOW
TO SET UP THE APP
SCAN TO DOWNLOAD
getting to know your switch
Item Name Description
1 Paddle Switch • Press the top of the paddle to turn the light
on and the bottom to turn the light off.
2 LED Locator Light
• Indicates the current state of the device.
Refer to “LED Locator Light Explanations”
for detail.
LED LOCATOR LIGHT EXPLANATIONS
LED
Color
State of
Light Explanation
Blinking White Device is updating.
Blinking Amber Device is ready for
setup on your network.
Solid White
Device is connected to
your network and is
switched off.
2
RESET TO FACTORY DEFAULT
Deleting a device from the app will reset it to factory defaults. To manually
reset the switch to factory defaults press and hold the off button for 10
seconds until you see the LED blink then release. The device will reset in
about 20 seconds after release.
1
regulatory information
FCC NOTICE
This device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesirable operation.
This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and receiver
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected
• Consult the dealer or an experienced radio/TV technician for help
