LEGRAND In One Plexo 695 10 Manuel utilisateur

  

Plexo

2500 W switch

695 10

Characteristics

N0064JP6/02

Installation and utilisation instructions

must be strictly respected.

110 V

230 V 2500 W

1250 W

2500 W

1250 W

2500 VA

1250 VA 8 x 36 W

8 x 36 W

250 W

500 W

Ø 26 Ø 38

Incandescent lamp

Halogen lamp

ELV halogen lamp with ferromagnetic or

electronic transformer

Fluorescent tube

Fluocompact lamp with separate transformer

Note: possible to relay

using a switch for higher

power levels.

Characteristics (cont.)

L  50 mm

L =40 mm

L <40 mm

Frequency 50 - 60 Hz

RF frequency 868.3 MHz

Range approx. 200 m with

unobstructed

transmission

- 15°C to + 45°C

2 x 1.5 mm2

1 x 2.5 mm2

Voltage 100 - 240 V±

Protection by electronic device:

In the case of an overload and with tem-

peratures higher than the max operational

temp, the product automatically regulates

the power by reducing the lighting level.

NL1

16 A

Cabling

Safety instructions

This product should be installed in

line with installation rules, preferably

by a qualiﬁed electrician. Incorrect

installation and use can lead to risk of

electric shock or ﬁre.

Before carrying out the installation, read

the instructions and take account of the

product’s speciﬁc mounting location.

Do not open up, dismantle, alter or mo-

dify the device except where speciﬁcally

required to do so by the instructions. All

Legrand products must be opened and

repaired exclusively by personnel trained

and approved by Legrand. Any unautho-

rised opening or repair completely can-

cels all liabilities and the rights to repla-

cement and guarantees.

Use only Legrand brand accessories.

ONOFF

LEARN

ON/OFF control

buttons

LEARN button (1)

LEARN indicator light

Description Factory settings

When ﬁrst switched on, pressing the

control buttons will have no effect on

the other products in the «In One by

Legrand» installation.

(1) Programming or learning button

Operation

NL1

LEARN

Example of scenario creation.

Transmitter

Weatherproof RF scenario

switch

E.g.: 695 06

Receiver

Switch 2500 W

E.g.: 695 10

Turn switch (L1) on or off using button 1 of the weatherproof scenario switch.

Operation (cont.)







ONOFF

LEARN

Transmitter

Open

scenario

Receiver(s)

LEARN

indicator

light

LEARN

indicator

light

Legend

The indicator light

goes out

The indicator light blinks

slowly

The indicator light blinks

quickly

The indicator light

ﬂashes

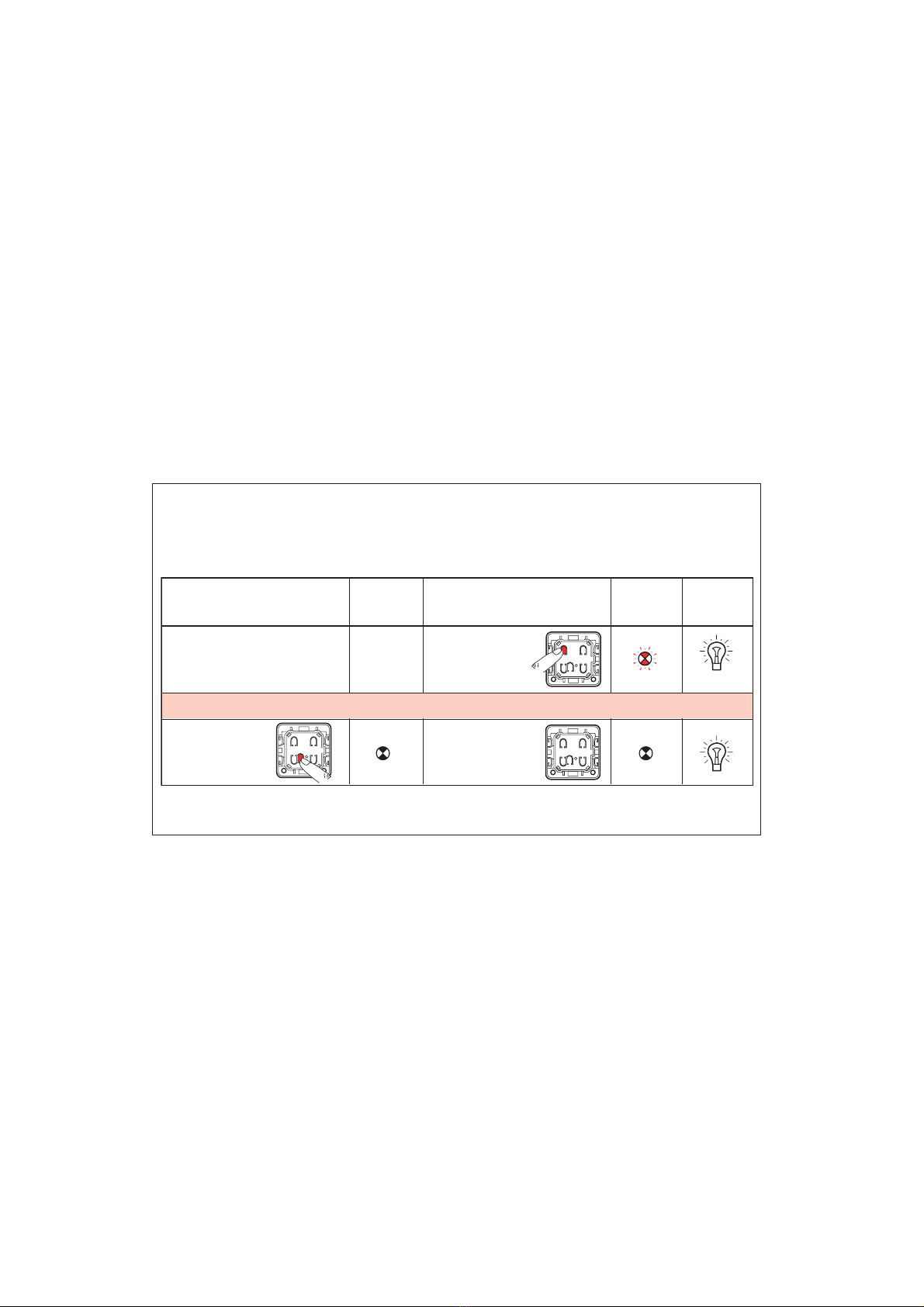

Operation (cont.)





LEARN

ONOFF

LEARN

ONOFF

LEARN

Save scenario

To add more than one product to the scenario, repeat steps and for each receiver.

The learning procedure is complete: L1 can now be switched on equally by the RF lighting scenario switch or the 2500 W

switch.

LEARN

indicator

light

Transmitter Receiver(s)

LEARN

indicator

light

NL1

LEARN

NL1 L1 L2

Operation (cont.)

Scenario modiﬁcation example:

Modiﬁcation of the lighting scenario for L1 in order to simultaneously light up L2.

Operation (cont.)







LEARN

ONOFF

LEARN

Transmitter

Open

scenario

Receiver(s) L1 L2

Receiver 2

LEARN

indicator

light

LEARN

indicator

light

LEARN

indicator

light

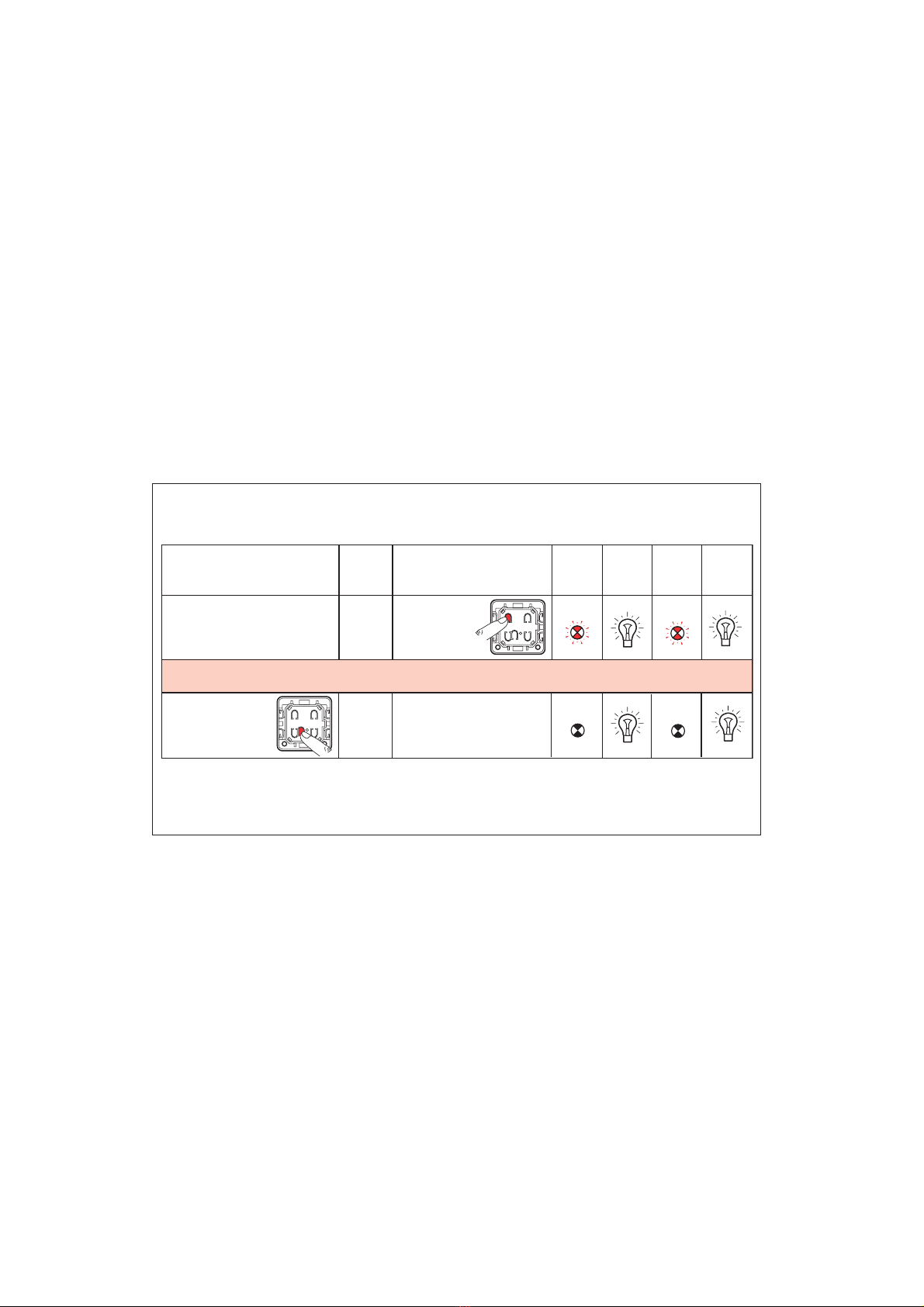

Operation (cont.)



12

LEARN

ONOFF

LEARN

Transmitter Receiver(s) L1

Save

scenario

To add more than one product to the scenario, repeat steps and for each receiver.

Scenario modiﬁed: Lighting up and switching off L1 and L2 can now be done using either the lighting scenario switch or

individually using the RF mobile switched sockets.

LEARN

indicator

light

LEARN

indicator

light

LEARN

indicator

light
