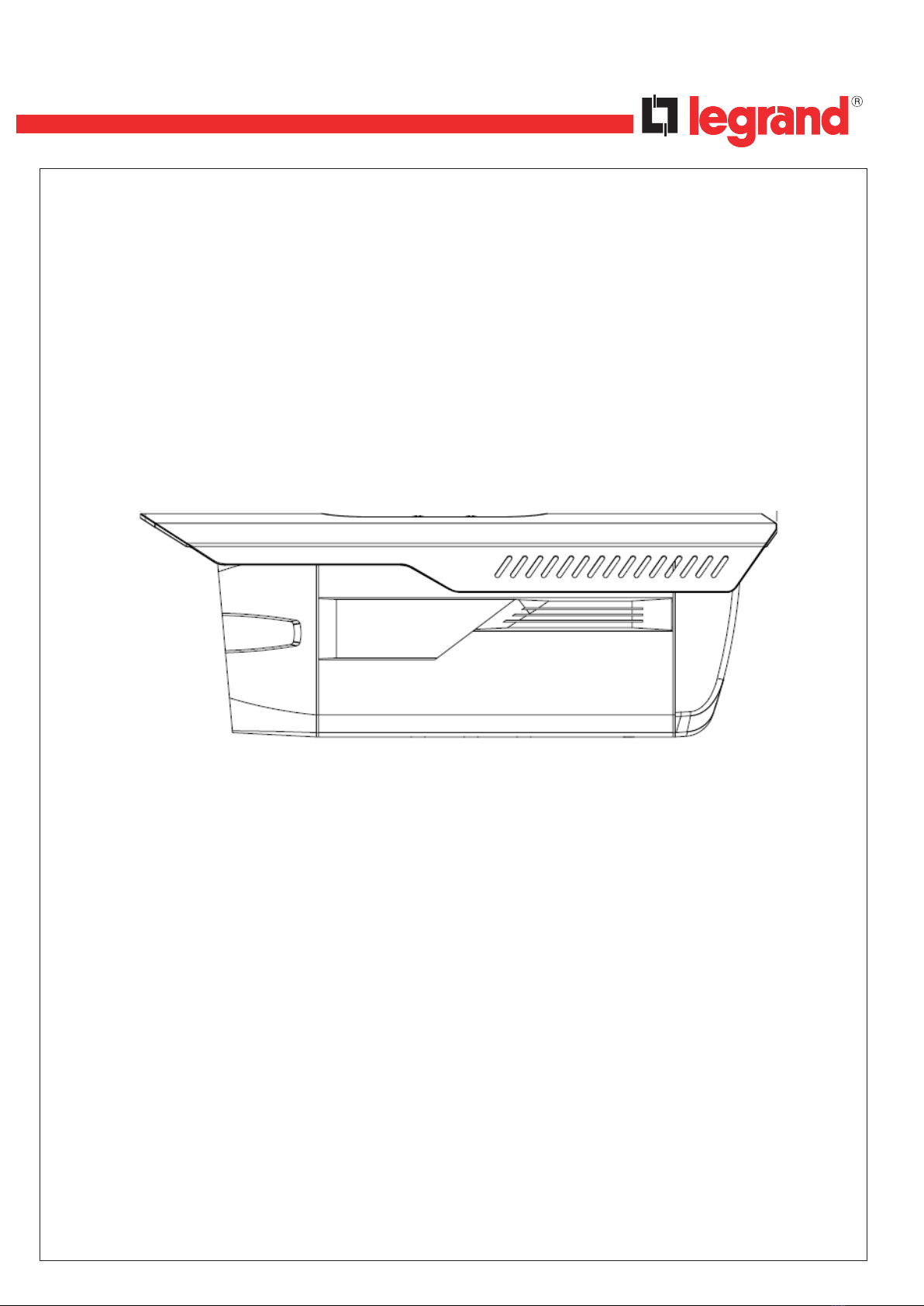

LEGRAND 4 306 41 Manuel utilisateur
LE04764AA
• Outdoor IP Compact camera 3MP
4 306 41
2
Indice
1Accessories ........................................................................................................................................ 4
2 General Introduction................................................................................................................................ 5
2.1 Overview ........................................................................................................................................ 5
2.2 Features ........................................................................................................................................ 5
2.3 Specications ...................................................................................................................................... 6
3 Framework ........................................................................................................................................ 12
3.1 Multiple functions .............................................................................................................................. 12
3.2 Dimensions ........................................................................................................................................ 13
4 Quick Conguration Tool ........................................................................................................................ 14
4.1First Connection .................................................................................................................................. 14
5 Connecting to a Device and Opening the Web Application ............................................................. 22
5.1PC Conguration ................................................................................................................................. 22
5.2Connection with the Search Tool ..................................................................................................... 23
5.3Connection with Internet Explorer .................................................................................................. 24
5.4Login ........................................................................................................................................ 24
6 Main Interface Introduction ................................................................................................................... 26
6.1 Log in ........................................................................................................................................ 26
6.2 Monitor Channel Menu Tree ........................................................................................................... 27
6.3 System Menu ....................................................................................................................................... 28
6.4 Monitor Window Switch .................................................................................................................... 29
6.5 Preview Window Switch .................................................................................................................... 29
6.6 PTZ Control ........................................................................................................................................ 29
6.7 Color and More Setup........................................................................................................................ 29
7 Congure ........................................................................................................................................ 31
7.1 System Information............................................................................................................................ 31
7.2 System Conguration ....................................................................................................................... 33
7.3 Advanced ........................................................................................................................................ 49
7.4 Additional Function ........................................................................................................................... 55
3
8 Search ........................................................................................................................................ 58
9 Alarm ........................................................................................................................................ 60
10 About ........................................................................................................................................ 61
11 Log out ........................................................................................................................... 62
Annex 1: No-IP DDNS .................................................................................................................................... 63
Annex 2: Using Google Chrome .................................................................................................................. 69
Annex 3: Using Firefox .................................................................................................................................. 71
Annex 4: Using IE8 ........................................................................................................................................ 73
Annex 5: Email Function ............................................................................................................................... 76
Annex 6: Routers conguration .................................................................................................................. 79
4
1 Accessories
Name Qty
IP Camera 1
Multifunction composite cable 1
Quick Start Guide 1
CD 1
5
2 General Introduction
2.1 Overview
This device integrates traditional camera and network video technology. It adopts audio video data collection, transmission
and storage. It can connect to the network directly without any auxiliary device.
This device uses standard H.264 video compression technology which maximally guarantees the video quality.
It can be used alone or used in a network area. When it is used lonely, it can be connected to the network and used from
a network client-end.
2.2 Features
User Management Dierent user rights for each group, one user belongs to one group.
The user right can not exceed the group right.
Data Transmission Support cable network data transmission via Ethernet.
Storage Function
Support central server backup function in accordance with conguration and setup
in alarm or schedule setting.
Support record via Web and the recorded le are stored in the client-end PC.
Support local SD card hot swap.
Alarm Function
Real-time respond to local alarm input and video detection as user pre-dened
activation setup and exert audio prompt(allow user to pre-record audio le).
Realize real-time video detect such as motion detect, camera masking and video
loss.
Network Monitor
Supports one-channel audio/video data transmit to network terminal
Max supports 10 connections.
Adopt the following audio and video transmission protocol: HTTP, TCP, UDP,
MULTICAST, RTP/RTCP and etc.
Support web access.
Network Management
Conguration and management via Ethernet.
Support device management via web.
Support various network protocols.
Peripheral Equipment Support peripheral equipment connection via the RS232 port.
Support serial port (RS232/RS485) transparent data transmission.
Power External power adapter. Support DC 12V/AC 24V power supply.
PoE
Support Power over Ethernet (PoE). Conform to the IEEE802.3af standard.
Connect the device to the switch or the router that supports PoE function to realize
the network power supply.
To guarantee proper performance, make sure the power source can supply at least
10W power.
Assistant Function
Day/Night mode auto switch (ICR switch.)
Support system resource information and running status real-time display.
Support log function.
Support video watermark function.
6
2.3 Specications
2.3.1 Performance
Please refer to the following sheet for IPC performance specication.
Model
Parameter
4 306 41
System
Main Processor TI Da vinci high performance DSP
OS Embedded LINUX
System resources Support real-time network, local record, and remote operation at the same
time.
User Interface Remote operation interface such as WEB or VMS.
System status SD card status, bit stream statistics, log ,software version ,online user
Video parameter
Image Sensor 1/2.8-inch CMOS 3 Mega Pixels SONY Exmor.
Pixel 2048 (H) *1536 (V)
Day/Night Mode Mecanichal IR-CUT lter.
Auto iris DC Drive
Gain Control Fixed/Auto
White Balance Manual/Auto
Electronic Shutter Manual/Auto (It ranges from 1/50 to 1/10000)
Video Compression Standard H.264
Video Frame Rate PAL: Main stream (2048*1536@15fps) extra stream,(D1@12fps)
Main stream (1920*1080@25fps) extra stream (D1@12fps)
Video Bit Rate 160k~8Mbps. Support customized setup.
Video Flip Does not support mirror. Support ip function.
Video Quality 1~6 level (The 6th level has the highest quality)
Snapshot Max 1f/s snapshot. File extension is JPEG
Privacy Mask Each channel supports max 4 privacy zones
Video Setup Support parameter setup such as brightness, contrast, etc.
Video information Channel title, time title, video loss, motion detect, privacy mask.
Lens 8 mm - 16 mm
Audio
Audio Output RCA
Audio Bit Rate 8 kbps.
Audio Compression Standard G711a/G711u/PCM.
Video
Motion Detect
396 (18*22) detection zones: sensitivity level ranges from 1 to 6
(the 6th level has the highest sensitivity).
Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.
Video Loss Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.
Privacy mask
Sensitivity level ranges from 1 to 6. Each sensitivity level is the percentage
of the privacy mask zone.
Activation event, alarm device, audio/video storage, image snapshot, log,
email SMTP function and etc.
7
Model
Parameter
4 306 41
Alarm Input 2-channel input 1-channel output (NO-NC).
Record and
Backup
Record Priority Manual>Alarm >Motion detect>Schedule.
Record Search Mode Support local data search via time/date, event type (alarm, motion detect,
external alarm) and le type (record/image).
Local Storage Support local SD card hot swap.
Storage Management Support display local storage status.
Network
Network Protocol HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, FTP, DHCP, DNS, DDNS,
PPPoE.
Remote Operation Monitor, playback, system setup, le download, log information,
maintenance , upgrade, etc.
AUX
Interface
Video Output Analog video output BNC port.
Reset 9-pin port connection
IR light 42 LED, IR distance 20 to 30 meters
Network Interface 10/100 Base-T Ethernet.
General Parameter
Power Support AC24V/DC12V power. Support PoE.
Power Consumption <10W.
Working Temperature -10~+60°C.
Working Humidify 10% ~ 90%.
Dimensions Ø 160 * 118,5 mm
Weight 1,25 kg
8
2.3.2 Factory Default Setup
Refer to the following sheet for factory default setup information.
Function conguration type Item Name Default setup
General Setup
Date format Y-M-D
DST Disable by default
Date separator ‘ _ ’
Time format 24H
Language English
When HDD is full Overwrite
Record duration 8 min
Device No. 8
Video type PAL
Encode Setup
Main stream
Channel Channel01
Compression H.264
Enable audio and video
General bit stream Main stream
Resolution 1080P
Frame rate 25
Bit stream control CBR
Bit stream value 8192
I frame interval control 50
Extra stream
Extension stream Main stream
Audio/Video enable Disable audio and video
Resolution D1
Frame rate 25
Bit stream control CBR
Bit stream value 2048
I frame interval control 50
Image color
Brightness: 50
Contrast: 50
Saturation: 50
Hue: 50
Watermark
Enable
Stream type: All
Type: Character
Character: Digital CCTV
Privacy Mask Never
Time title Enable. OSD transparent (read-only):0
Channel title Enable. OSD transparent (read-only):0
Schedule setup
Channel Ch01
Pre-record 1 second
Time Setup
Start time 0:00:00
End-time 23:59:59
Record Period 1 : Enable motion detection/
alarm
9
Function conguration type Item Name Default setup
Schedule setup Time Setup Snapshot Period 1 : Enable motion detection/
alarm
Week Sunday
RS232 Setup
Option COM01
Function Console
Data bit 8
Stop bit 1
Baud rate 115200
Parity None
Network setup
Ethernet Port 01
DHCP Disable
IP address 192.168.1.108
Subnet mask 255.255.0.0
Gateway 192.168.0.1
Device name Device factory default name
TCP port 37777
HTTP port 80
UDP port 37778
Max connection 4
Network transmission QoS Disable
Remote host Multiple broadcast group
IP address 239.255.42.42
Port 36666
Email setup Disable
Multiple DDNs Disable
NAS setup Disable
NTP setup Disable
IP Filter Disable
Alarm setup
Event type Local alarm
Alarm input Input 01, disable
Type Normal open
Setup
Period: Start time 0:00:00
End time:23:59:59
Period 1:enable Week: Sunday
Anti-dither 0 second
Alarm output Disable
Alarm latch 10 seconds
Record channel 1, enable
Record latch 10 seconds
Send email Enable
PTZ activation
Disable
Event type: never
Address: 0
Snapshot Disable
10
Function conguration type Item Name Default setup
Video detection
Event type Motion detection
Channel Ch01, Disable
Sensitivity 3
Time period setup
Period:
Start time 0:00:00
End time:23:59:59
Period 1:enable
Week: Sunday
Anti-dither 5 seconds
General output Disable
Alarm latch 10 seconds
Record channel Disable
Record latch 10 seconds
Send email Disable
PTZ activation
Event type: Never
Address: 0
Disable
Snapshot Disable
PTZ Setup
Channel Ch01
Protocol DH-SD1
Address 1
Baud rate 9600
Data bit 8
Stop bit 1
Parity None
Default and Backup
All Disable
General Disable
Encode Disable
Schedule Disable
RS232 Disable
Network Disable
Alarm Disable
Video detection Disable
Maintain Disable
Camera Disable
Channel No. Disable
Advanced
Abnormity
Even Type No disk, Disable
General Output Disable
Alarm Latch 10 seconds
Send email Disable
User account
admin/admin (reusable)
888888/888888(reusable)
666666/666666(reusable)
default
Snapshot Channel Ch01
Table des matières
Autres manuels LEGRAND Caméra de sécurité
LEGRAND
LEGRAND 3 694 00 Manuel utilisateur
LEGRAND
LEGRAND vaddio RoboSHOT 12E NDI Manuel utilisateur
LEGRAND
LEGRAND vaddio RoboFLIP 30 HDBT Manuel utilisateur
LEGRAND
LEGRAND CM7100 Manuel utilisateur
LEGRAND
LEGRAND 430 521 Manuel utilisateur
LEGRAND
LEGRAND CM7000 Manuel utilisateur
LEGRAND
LEGRAND 4 305 21 Manuel utilisateur
LEGRAND
LEGRAND 4 306 32 Manuel utilisateur
LEGRAND
LEGRAND 430 522 Manuel utilisateur
LEGRAND
LEGRAND VADDIO RoboSHOT 30E-M Mode d’emploi
LEGRAND
LEGRAND VADDIO RoboSHOT 30E-M Manuel utilisateur
LEGRAND
LEGRAND Vaddio ConferenceSHOT 999-21050-001 Manuel utilisateur
LEGRAND
LEGRAND Outdoor Color IR Camera Instructions de montage
LEGRAND
LEGRAND VADDIO EasyIP 30 ePTZ Manuel utilisateur
LEGRAND
LEGRAND 430 521 Manuel utilisateur
LEGRAND
LEGRAND 4 306 60 Manuel utilisateur
LEGRAND
LEGRAND 430 521 Manuel utilisateur
LEGRAND
LEGRAND VADDIO EasyIP 30 Manuel utilisateur
LEGRAND
LEGRAND 4 306 52 Manuel utilisateur
LEGRAND
LEGRAND vaddio RoboFLIP 30 HDBT Manuel utilisateur
