Legacy Harmony Center Manuel utilisateur

Owners Manual For The

Harmony Center

Loudspeaker System

Registration

Owners Record 3

The Cabinetry Our Commitment 4

Setup

Unpacking Your Speakers 5

Speaker Installation 6-11

Hooking Up Cables 12-14

Amplification 15-19

Technology

Designer’s Note 18

Specifications 19

Table of Contents

Page

The serial number is located on the rear of the unit. Record this

number in the space provided below. Refer to this when calling your

dealer regarding this product.

Model: Harmony Center HD

Serial No: _________________________

Date of purchase: ___________________

Thank you for selecting a Legacy Loudspeaker System. These hand-

crafted instruments will provide you with many years of listening en-

joyment.

Owners Record

Handcrafted

Beneath the surface of Harmony Center elegant exterior lies rigid MDF

construction. Interlocking joinery maximizes the strength of the cabinet

parts. Polyester fiberfill is selected for internal damping. A sharp rap on

the enclosure will leave you with little more than bruised knuckles.

Each cabinet is impeccably finished on all exposed surfaces with select

veneers. The exquisite finish is hand-rubbed several times to assure a

patina at home with the most elegant decor.

Our Commitment

A great deal of forethought, love and satisfaction is instilled in each piece

of Legacy workmanship. We take pride in getting to know many of our

customers on a first name basis.

Your purchase of this product is backed by the renowned “Legacy

Satisfaction Guarantee”.

The Cabinetry / Our Commitment

Your new speaker system has been very carefully packaged to insure

that it travels to you safely. Each speaker is protected by a double-

wall outer carton with heavy V-board corner protectors. Molded foam

end caps are used to protect the elegant cabinetry, and a plastic liner

is provided as waterproofing. Please save this packing for future

transportation. If cartons become damaged or misplaced, new ones

can be purchased from Legacy Audio.

Unpacking Your Speakers

recautions

If you have any doubts about your ability to properly install in-wall loud-

speakers, you should consider the services of a custom installer. If you

plan to install them yourself, always use high quality tools to save time

and make the installation go more smoothly.

The Harmony In-Wall Loudspeaker mounts into standard 4-inch (or

greater) stud depth walls. Determine the final location of the speaker

before cutting any holes since changes to one speaker may affect the

others either aesthetically or acoustically. Look for pipes, wiring or any

other conflicting material that might be damaged before beginning the

installation.

WARNING: Wear Eye Protection when cutting drywall.

Also be certain there are no electrical, water, heating, or gas lines inside

the wall in the location you plan to mount your Harmony loudspeakers.

Speaker Installation

Installing the Harmony In-Wall Loudspeakers

acking List

Harmony Center Speaker

Installation Manual

(2) Support Blocks

(4) Support Block Screws

(2) Tensioning Screws

Tools Required

Pencil

Drywall Saw

Level

Phillips Screwdriver

Tape Measure

Mallet

Speaker Installation

Due to Harmony’s unique patented design, Installation is identical for new or existing construc-

tion. The Harmony speaker is designed to perform at its best when the bottom of the speaker is

located well off the floor. When wiring, it is useful to leave several extra feet of speaker cable at

the speaker end.

Select the wall locations for the Har-

mony system. Legacy has designed

the Harmony Center to be located

either above or below a thin profile

wall monitor.

Speaker Installation

1. Locate and cut opening through drywall centering it on two

studs with the standard 16” spacing. Refer to drawing for

dimensions. In new construction you want to frame the opening

and place the studs at a more convenient location.

Speaker Installation

2. Securely attach the two rubber lined wooden locks

to the inside face of the studs, using the two 2 ½”

long screws supplied. Use a bubble level to insure

that they are level with each other and square with

the wall. Refer to drawing for location of the blocks

relative to the opening. Use the supplied spacers to

adjust the separation between the blocks

3. Temporarily place cabinet in the wall, so that the

two recesses on its back rest on the rubber covered

hanger blocks protruding from the wall. Make sure

the cabinet hangs plumb and the small rubber

bumpers on the back of its rim are just touching the

face of the wall. Using an awl or other suitable

device mark the locations of the two cabinet

mounting holes on the face of the hanger blocks.

Speaker Installation

Autres manuels pour Harmony Center

Table des matières

Autres manuels Legacy Système de haut-parleurs

Legacy

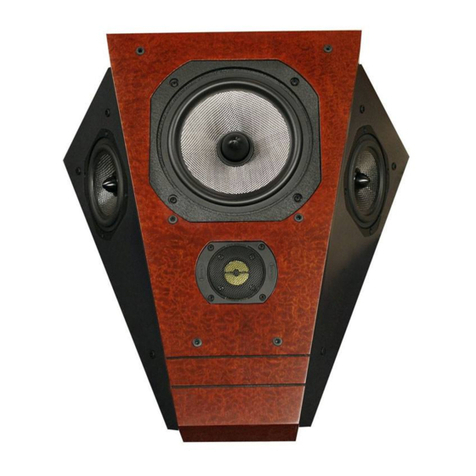

Legacy Phantom Manuel utilisateur
