INSTALLATION INSTRUCTIONS

Y1-1054

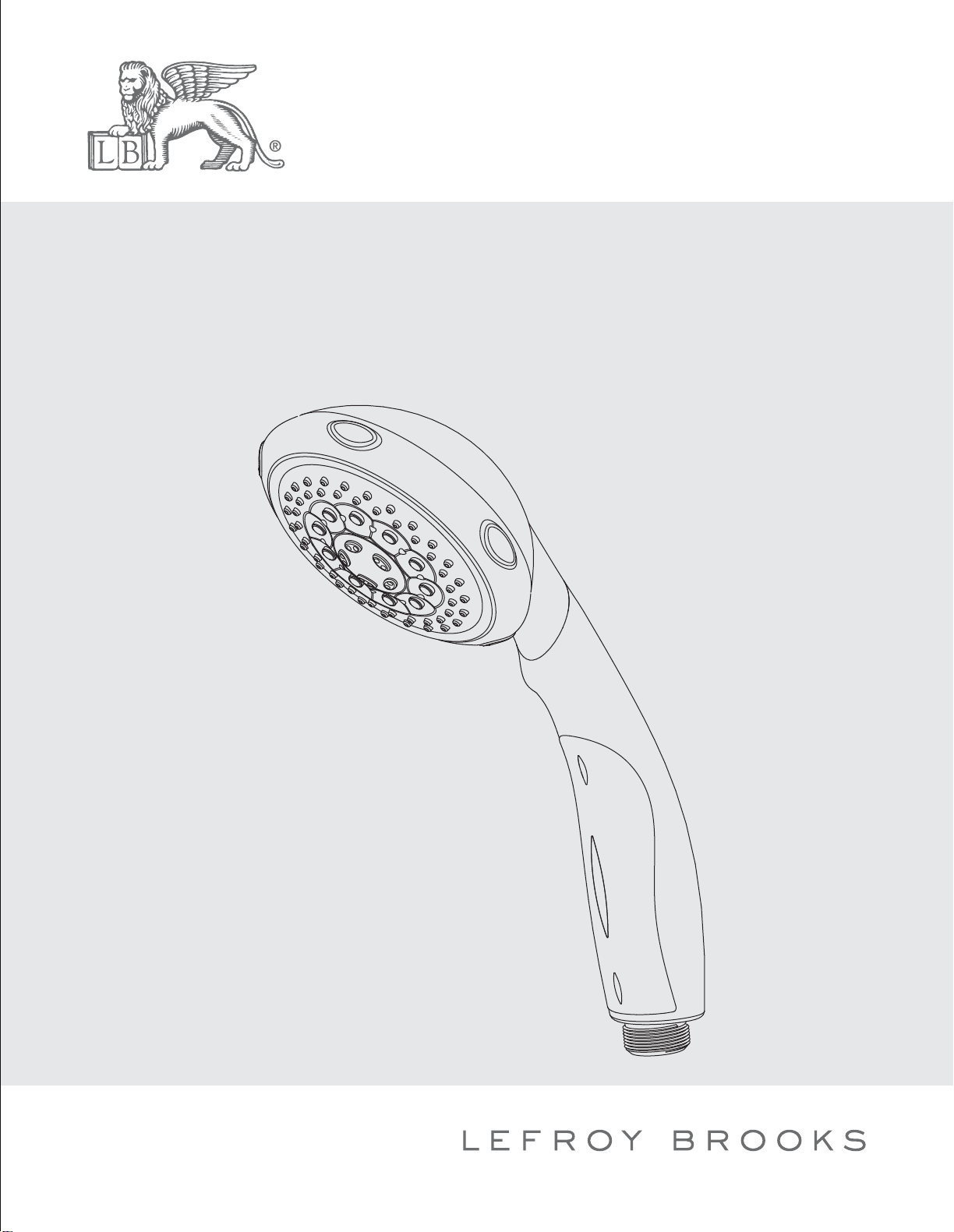

MULTI-FUNCTION HAND SHOWER

What you need to know

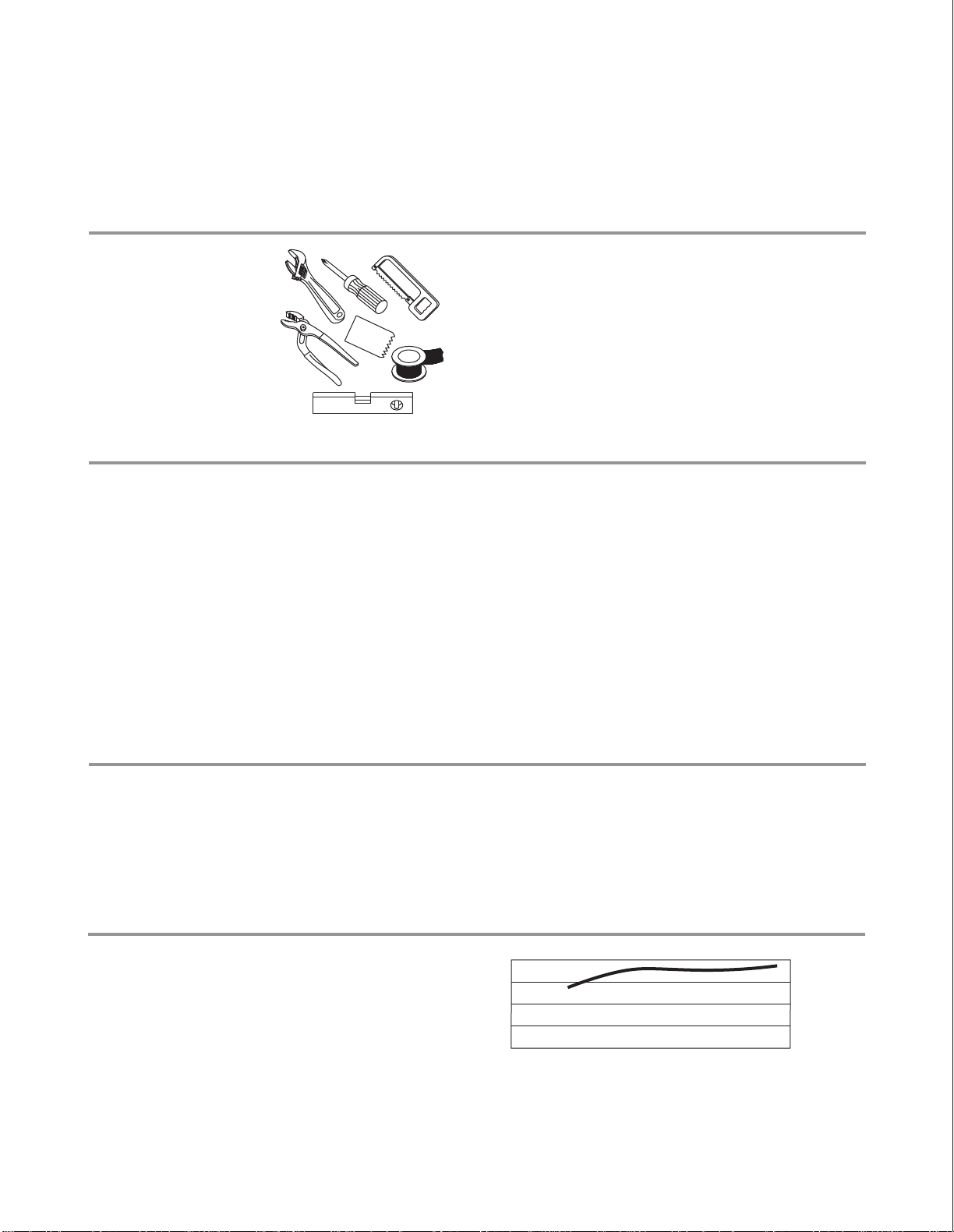

Adjustable Wrench

Groove Joint Pliers

Hacksaw

Phillips Screwdriver

Pipe Tape

Spatula

Spirit Level

Your new bathroom faucet is designed for years

of trouble-free performance.

Keep it looking new by cleaning it periodically with

a soft cloth. Avoid abrasive cleaners, wire wool and

harsh chemicals as these will dull the finish and

void your warranty.

If you are soldering during faucet installation,

remove cartridges, seats, gaskets and washers

prior to applying flame, otherwise you will void

the warranty.

Cover drain openings to avoid losing small parts.

When cutting or soldering pipe, use safety glasses

to protect your eyes.

Correct installation may vary depending on previous faucet installation. All necessary supplies required for

faucet installation are not included, but may be found where plumbing supplies are sold. It is suggested that

IAPMO and/or CSA approved plumbing supplies are used during installation.

Prior to beginning installation. turn off the cold and

hot water lines and open the old faucet to release

built-up pressure.

Overtightening nuts may cause damage.

Wrap all threaded connections with pipe tape

available at your local plumbing supply store.

Always wrap in a clockwise direction. The fittings

should be installed by a state-licenced plumber.

Tools: Maintenance

SafetyTips

ThingsYouMayNeed

ImportantPoints

IAPMO/cUPC Listed

Meets A112.18.1

Standards FlowRate

Please note :

Final achievable flow rate is dependent on the outlets fitted, see relevant outlets (spouts, roses, sprays) for fully

assembled product flow rate.

20 40 60 80PSI

Step 1

InstallationProcedure

Lefroy Brooks always recommends that plumbing products be installed by a licensed professional.

Shut off main water supply before installation.

Tighten the handshower to a shower hose

(not included) by hand only.

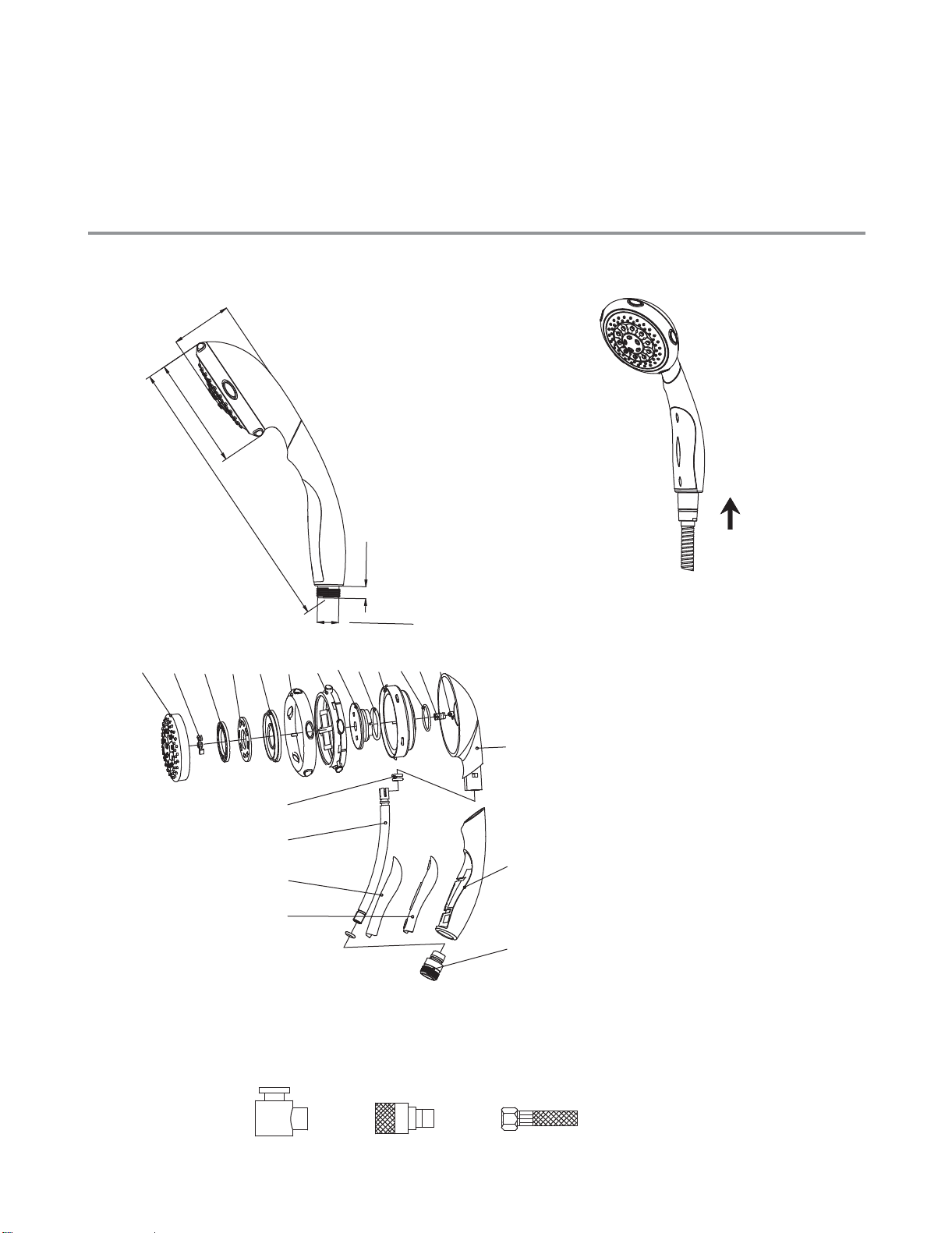

Adaptor (S2254406-R1)

Handle grip (S2254400-R6)

Body (S2254400-R1)

Stopper (S2254400-R10)

Spring (S2254400-R9)

O-ring (S2254406-R4)

Fixing base (S2254400-R4)

O-ring (S2254406-R5)

Diverter base (S2254400-R5)

Fixing ring (S2254400-R3)

Decorative ring (S2254400-R2)

Diverter ring (S2254400-R13)

Plate (S2254400-R14)

Massage plate (S2254400-R15)

Massage impeller (S2254400-R12)

Front cover (S2254400-R11)

O-ring (S2254406-R3)

Inner pipe (S2254406-R2)

Decorative cover (S2254400-R8)

Inner pad (S2254400-R7)

45678910111213141516

This product requires the installation of certified atmospheric vacuum breaker (AVB) installed in-between the

shut off valve and hose inlet. The AVB should be installed so its vent ports are not pointing in an upward

direction. Should you be unfamiliar with an AVB, we recommended consulting a plumbing professional.

valve AVB HOSE

1/2-14NPSM-2A

2 1/8"

Ø3 7/8"

9 15/16"

7/16"

(54mm)

(Ø99mm)

(252mm)

(10.7mm)

The use of trademarks, product design and artwork is subject to licence or agreement with Christo A. Lefroy Brooks. The design

registrations, trademark registrations and copyrights are protected by law and the use or reproduction outside the terms of an agreement is prohibited.

The right to modify designs and dimensions is reserved. Christo Lefroy Brooks is a member of ACID (Anti Copying in Design).

LEFROY BROOKS INC, 1828 TROUTMAN STREET, RIDGEWOOD, NY, 11385

TELEPHONE: 718-302-5292. FAX: 718-302-4177

©CHRISTO A. LEFROY BROOKS 2009

For additional assistance or service call

718-302-5292

9am to 5pm EST Monday to Friday

www.lefroybrooks.com
