Led2 SAFE ON ST Manuel utilisateur
SAFE ON
The installation may only be carried out by a technician
Nur ein Techniker kann die Installation durchführen
Instalaci smí provʛHˏXTSYze technik
Inštaláciu môIZ]OSREMFEXIGLRMO
This product contains a light source of energy efficiency class F
Dieses Produkt enthält ein Leuchtmittel der Energieeffizienzklasse F
8IRXSZʴVSFIOSFWELYNIWZˏXIPRʴ^HVSNXʧH]IRIVKIXMGOʣʱ˃MRRSWti F
8IRXSZʴVSFSOSFWELYNIWZIXIPRʴ^HVSNXVMIH]IRIVKIXMGOINʱ˃MRRSWXM*
(EN) CAUTION!
Turn off the main power before proceeding with the installation in order to prevent possible shock. The installation may only be carried out by a technician or a qualified
person. If the lamp has a lampshade/diffuser, handle it carefully as it is fragile. With an integrated LED light source, only a technician or a qualified person can make the
replacement. The manufacturer is not responsible for the incorrect use and assembly of its products.
(DE) ACHTUNG!
Vor der Installation ist es notwendig, den Hauptstromkreis zu unterbrechen, um ein Stromschlag zu vermeiden. Die Installation darf nur von einem Techniker oder einer
qualifizierten Person durchgeführt werden. Wenn die Lampe einen Lampenschirm/Diffuser hat, gehen Sie vorsichtig damit um, da sie zerbrechlich ist. Mit einer
integrierten LED-Lichtquelle kann nur ein Techniker oder eine qualifizierte Person den Austausch vornehmen. Der Hersteller ist nicht verantwortlich für die fehlerhafte
Verwendung und Montage seiner Produkte.
(SK) UPOZORNENIE!
Pred inštaláciou je neZ]LRYXRʣ SHTSNM hlavný elektrický okruh, aby ste predišli zasiahnutiu elektrickým TVʱHSQ 1SRXʛ môe Z]OSRE iba kvalifikovaná osoba. V prípade,
e má svietidlo XMIRMHPSHMJʱzor, narábajte s ním opatrne, pretoe je krehkʣ Pri integrovanom LED svetelnom zdroji môe výmenu zrelizovE iba technik alebo
kvalifikovaná osoba. Výrobca nenesie zodpovIHRSW^ERIWTrávne zachádzanie s produktom.
(CZ) UPOZ362ˎ2ʌ
Ped instalací je RYXRʣ odpojit hlavní elektrický okruh, abyste pedešli zasaení elektrickým proudem. 1SRXʛ Qe provʛHˏX pouze kvalifikovaná osoba. V TʧTEHˏ e
má svítidlo stínidlo/difuzor, zacházejte s ním STEXVRˏ protoe je kehkʣ 4M integrovERʣQ LED svˏXIPRʣQ zdroji Qe ZʴQˏRY zrelizovE pouze technik nebo kvalifikovaná
osoba. Výrobce nenese odpovˏHRSWX^ERIWTráZRʣ^EGLʛzení s výrobkem.
www.led2.eu
IP
65
1 Security related information
2 Packing list
• Installation should be carried out in accordance with the latest edition
of the I.E.E. Wiring regulations and taking into consideration the latest
building regulations.
• Ensure that all electrical connections are tight with no loose strands,
including factory made connections.
• Ensure there is adequate free air circulation of at least 100mm around
the luminaire. It is the installer’VUHVSRQVLELOLW\WRFRQVLGHU¿UHULVNand
take appropriate precautions.
•A seperate enclosure may be required if this unit is to be used in dusty
and wet environments.
Q.C. date label, installation in an improper working environment or installation not according
to the current edition of the I.E.E. Wiring Regulations . The guarantee is also invalidated if
the luminaire has been I.R. tested. Should this product fail during the guarantee period it will
be replaced free of charge, subject to correct installation and return of the faulty unit. We do
not accept responsibility for any installation costs associated with the replacement of this
SURGXFW<RXUVWDWXWRU\ULJKWVDUHQRWDIIHFWHG:HUHVHUYHWKHULJKWWRDOWHUVSHFL¿FDWLRQV
without prior notice.

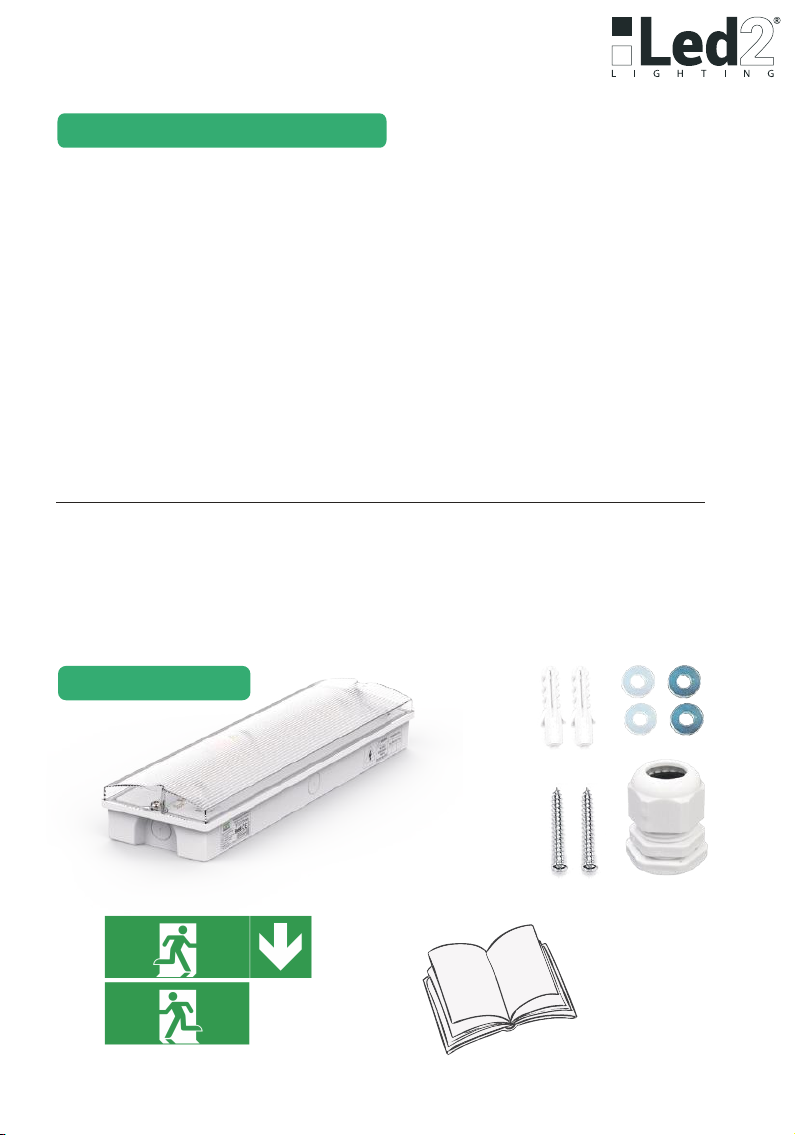

The Lamp *1
User manual *1 Remote cotroller *1
The Legend *1 set
Installation pack *1

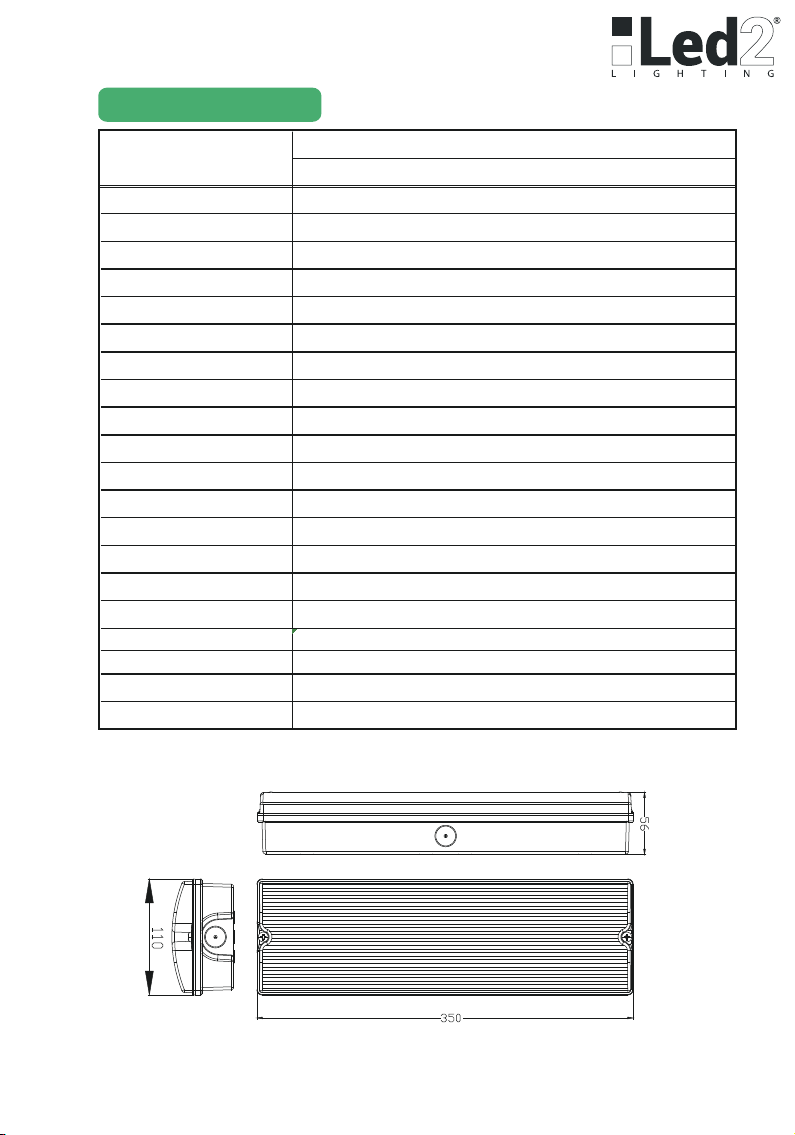

3 Basic Parmeters
Model SAFE ON
ST
Material 100% polycarbonate
LED Chips 18pcs 2835
Input Volt age
Color Rendering Index >80
CCT 6000 K
Bat tery pack 3.6V 1.2Ah Ni- Cd
Degree of prtection IP65
Power factor 0.5
Warm up time <0.1S
LED lif espan 50,000 hrs
Bean angle 120°
Standard 60598- 2- 22:2021 & EN62034
Standard of Legend ISO7010 & ISO3864- 1/ 4
TEST manual test + self- test
Charging indicator Green
Faulty indicat or RED
Guarantee 5 Years
AC200- 240V 50/ 60HZ
Total Input Power 1.5W if non-maintained mode / 3.0W if maintained mode
Luminous Flux In AC mode OFF if non-maintained mode / 100Lm if maintained mode
Luminous Flux In EM mode 100Lm

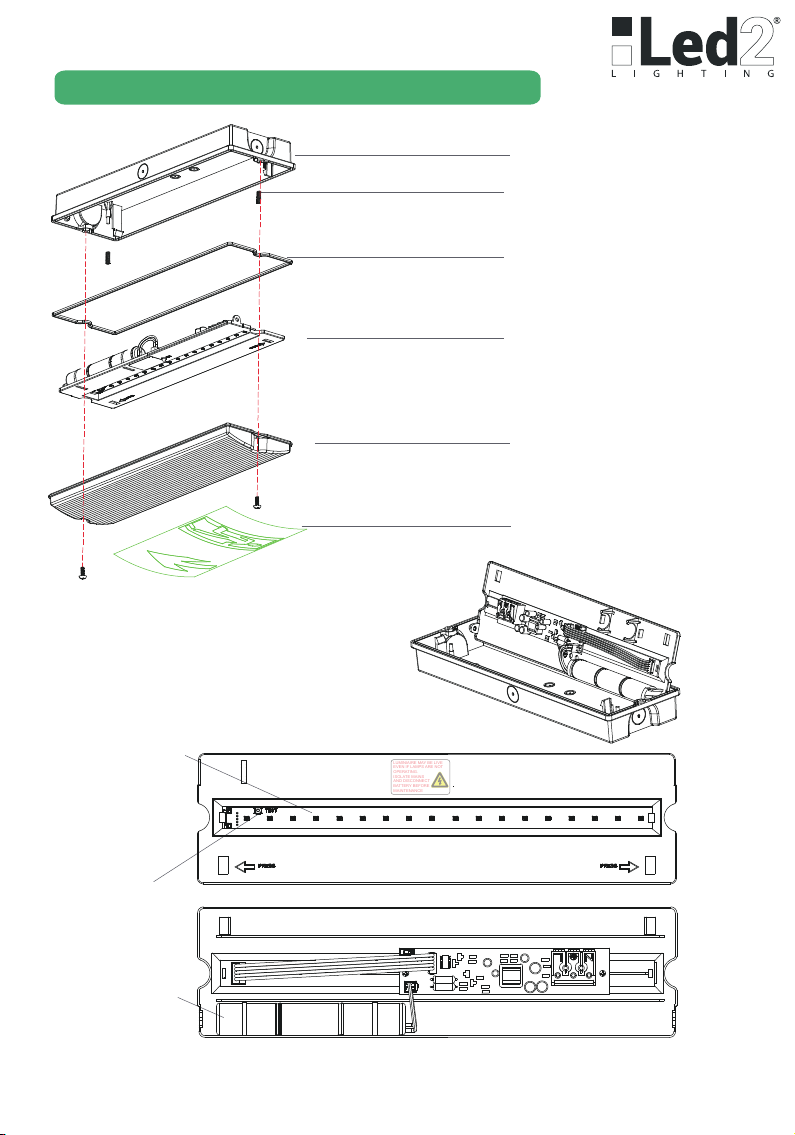

4 General construction
The polycarbonate base
The Spring
Inner Core PCB
The polycarbonate Cover
The direction Legend
The silcon ring
Red faulty indicator
Green charging indicator
LED Chips
TEST button
Battery Pack
LUMINIAIRE MAY BE LIVE
EVEN IF LAMPS ARE NOT
OPERATING.
ISOLATE MAINS
AND DISCONNECT
BATTERY BEFORE
MAINTENANCE

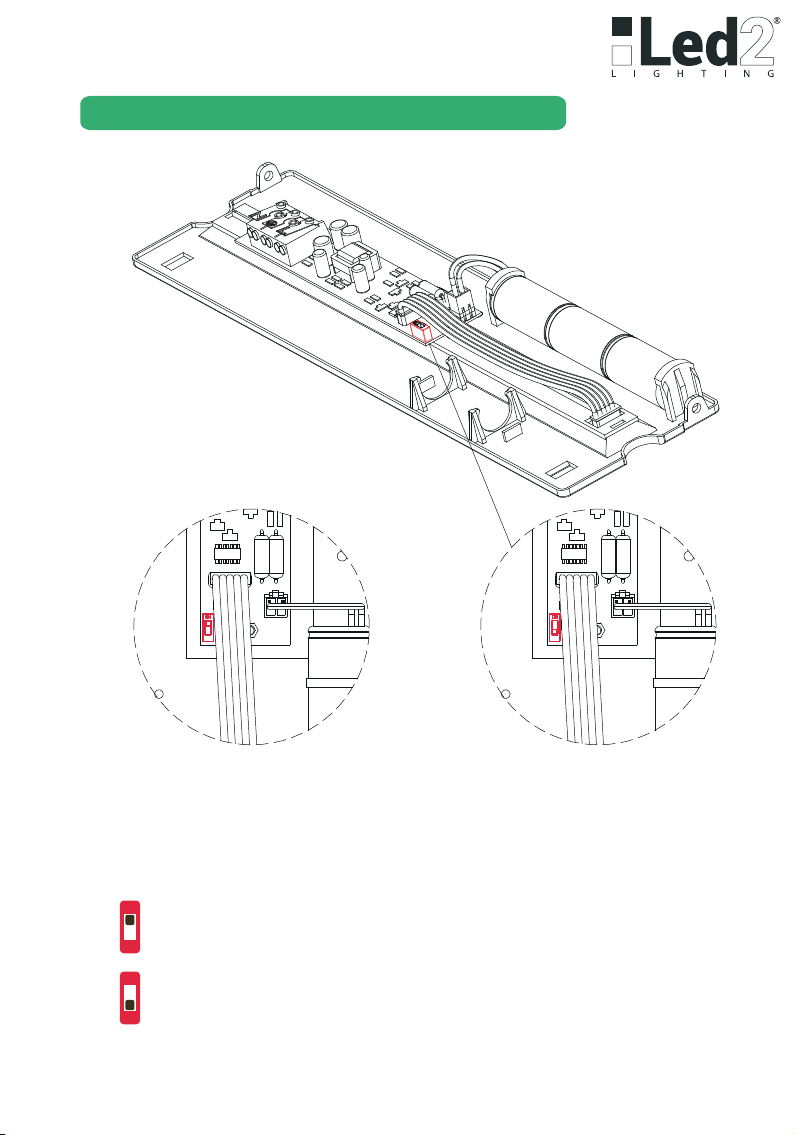

5 Maintained & non-maintained changeover
Maintained & Non-maintained work mode
a) Maintained b) Non-Maintained
The SAFE ON can work both in maintaied and
non-maintained mode.
a) Dip switch ON. It works in maintained mode;
b) Or it works in non-maintained mode.
ON
ON
Emergency Technical Data
Battery Type
Battery Charging
Discharging
Test Button
Self-test
Ni-Cd 3,6V 1.2
60mA, Charging >90% in 24 hours
200mA, >3hours autonomy time
Included
Included
Faulty Indicator
RED LED
Standard
IEC60598-2-22:2021
Remote test
Included
Charging Indicator
Green LED
-
6 Emergency function
ADDITIONAL INFORMATION -
COMPONENT REPLACEMENT
Emergency function test before installation

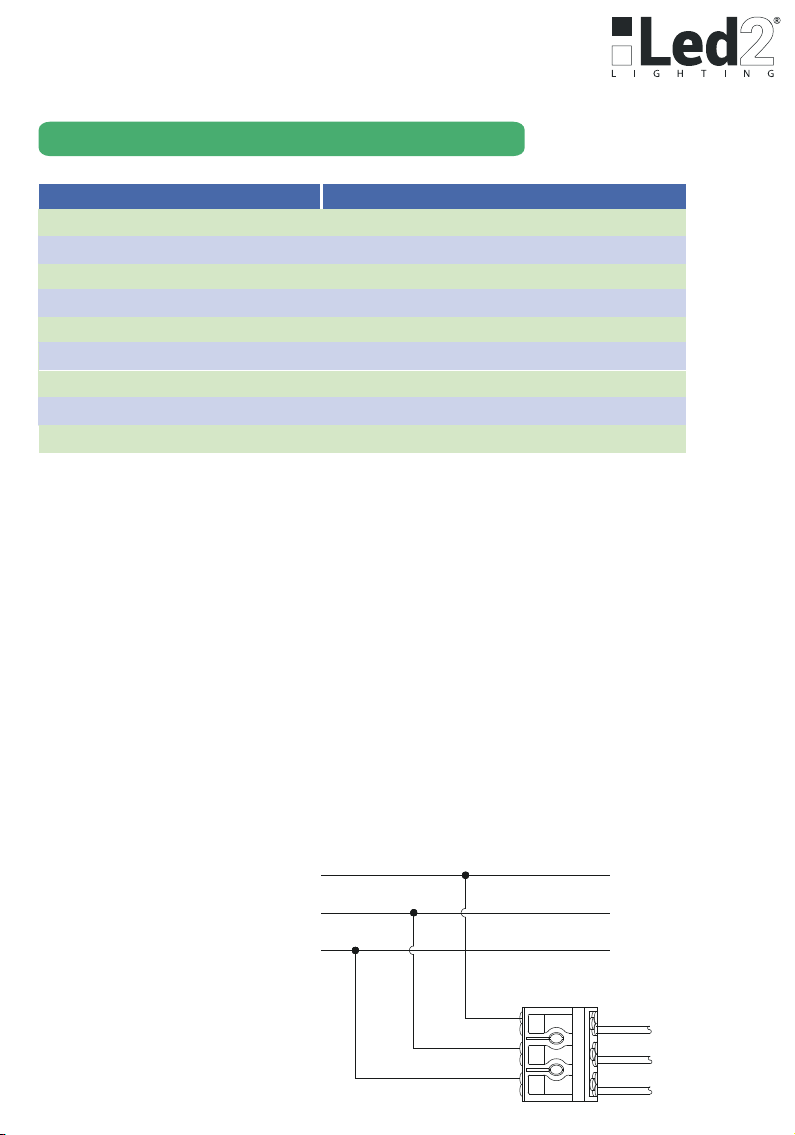

1. Connect the AC cable according to the Dia 1. Keep the Switch
Live off, and battery plugged on.
(The green charging indicator on, Faulty indicator off)
2. Press the test button, The charging indicator off, and emergency
function actived
3. Unplugged the battery, charging indicator OFF, the faulty indicator flash in 1HZ.
N
Emergency Live
NE
Earth
L
Dia.1

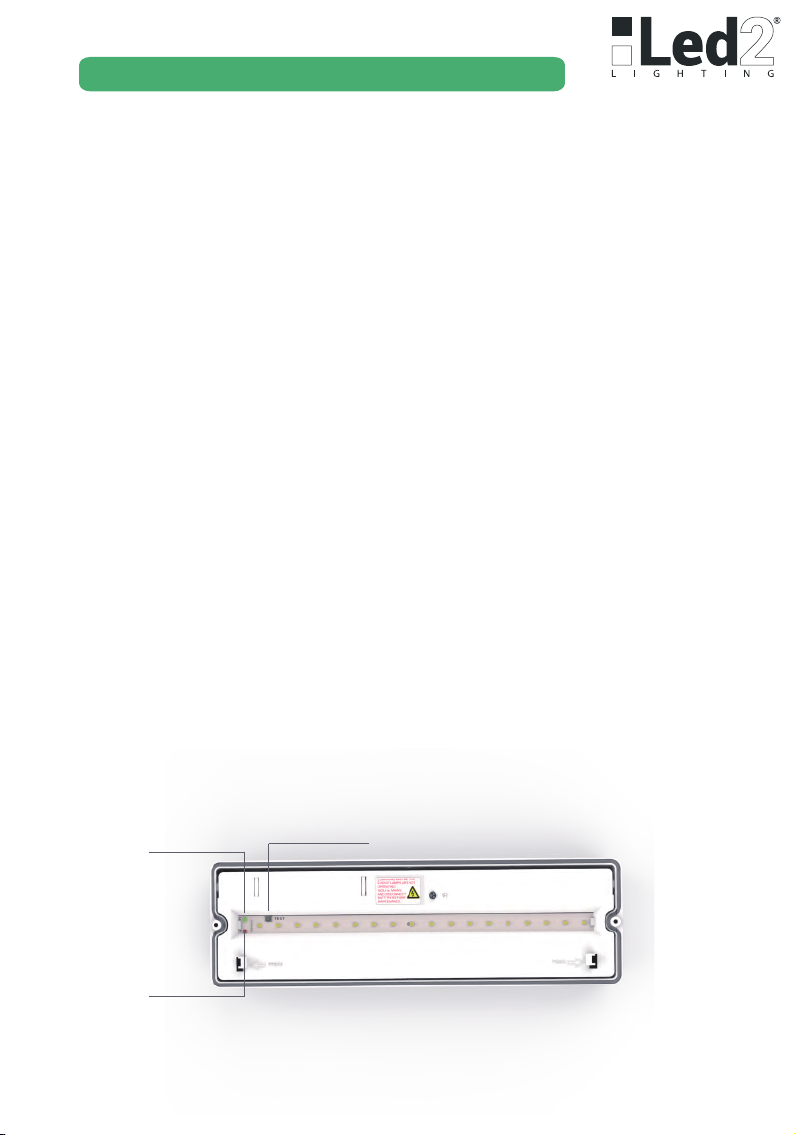

• The luminaire contains no user replaceable components other than
the battery pack contained in emergency versions.
• The battery has a 4 year service life provided it is operatedand &
maintained by regular testing, as detailed in this Usermanual. Failure
to maintain or change the battery may result in reduced duration in
emergency mode.
②Charging Ind.
③ Faulty Ind.
④ Test button
7 Self test system
7.1 Testing (If no failure)
7.1.3 Annual test.
Active the ④test button for 7 second;
Or the lamp installed every 180 days.
a) The ②Charging indicator will flash in 2Hz for 3hours;
c) The lamp back to standby mode after test.
b) The charging will be cut off & emergency function on 3 hours;
7.1.1. Manual function test.
Active the ④test button.
a) The ②Charging indicator OFF.
b) The Emergency function ON.
c) The test will cut off the mains.
c) The test will cut off the mains.
7.1.2 Monthly test.
Active the ④test button for 5 second;
Or the lamp installed every 30 days.
a) The ②Charging indicator will flash in 1Hz for 128s;
b) The Emergency function ON;
7.2 Testing (If any failure)
8 Emergency control logic
7.2.1 Battery failure:
Monitored constantly. The ③faulty indicator will flash in 1 Hz if the
battery failure any time.
7.2.2 LED load failure:
If press test button, or the luminary self-monthly test. The ③faulty indicator
will flash in 2 Hz if LED load failure.
7.2.3 Duration failure:
Only in Annual self-test. The ③faulty indicator will turn on constantly if the
Battery can not last 3 hours

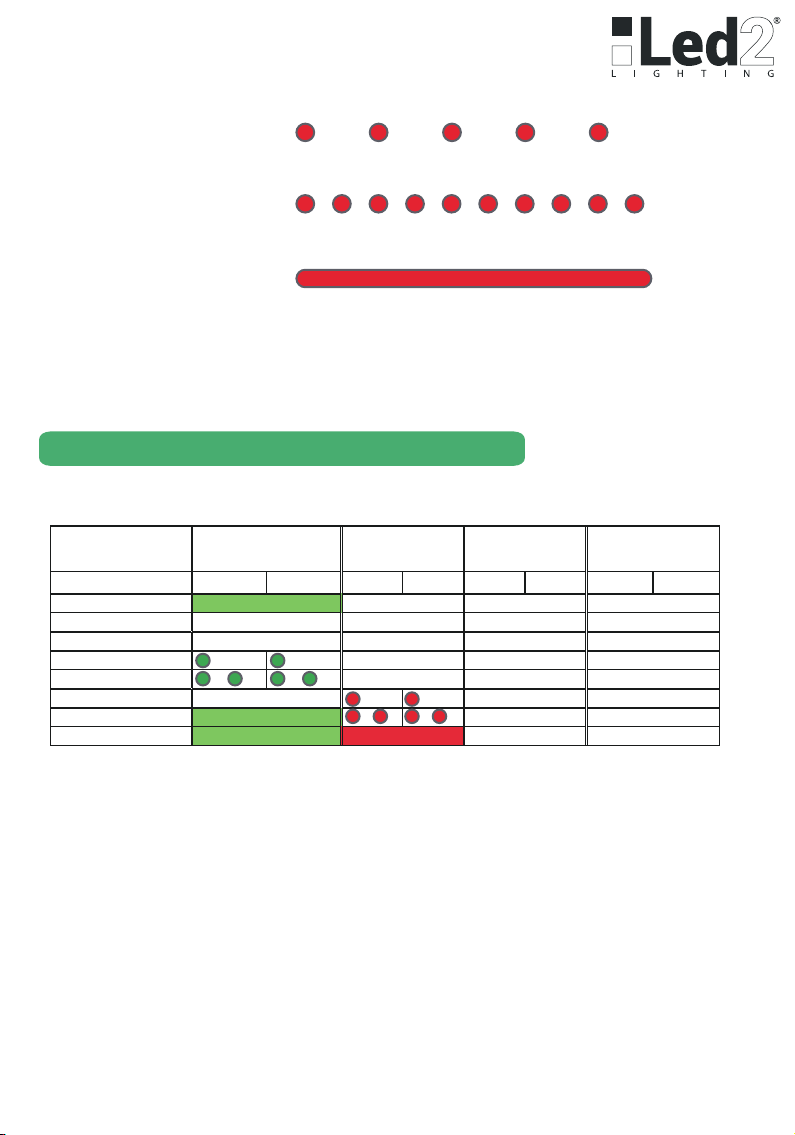

The emergency function control logic
Operation Charging indicator
(Green)
Faulty Indicator
(RED)
Emergency LED
Maintained mode
Emergency LED
Time line
Normal charging Constantly on OFF Constantly on OFF
Normal AC Failure OFF OFF Constantly on Constantly on
Manual test OFF OFF Constantly on Constantly on
Monthly self-test OFF Constantly on Constantly on
Annual self-test OFF Constantly on Constantly on
Battery circuit failure OFF Constantly on OFF
Light source failure Constantly on OFF OFF
Duration test failure Constantly on Constantly on Constantly on OFF
Non-Maintained mode
1 Second 1 Second 1 Second 1 Second 1 Second 1 Second 1 Second 1 Second

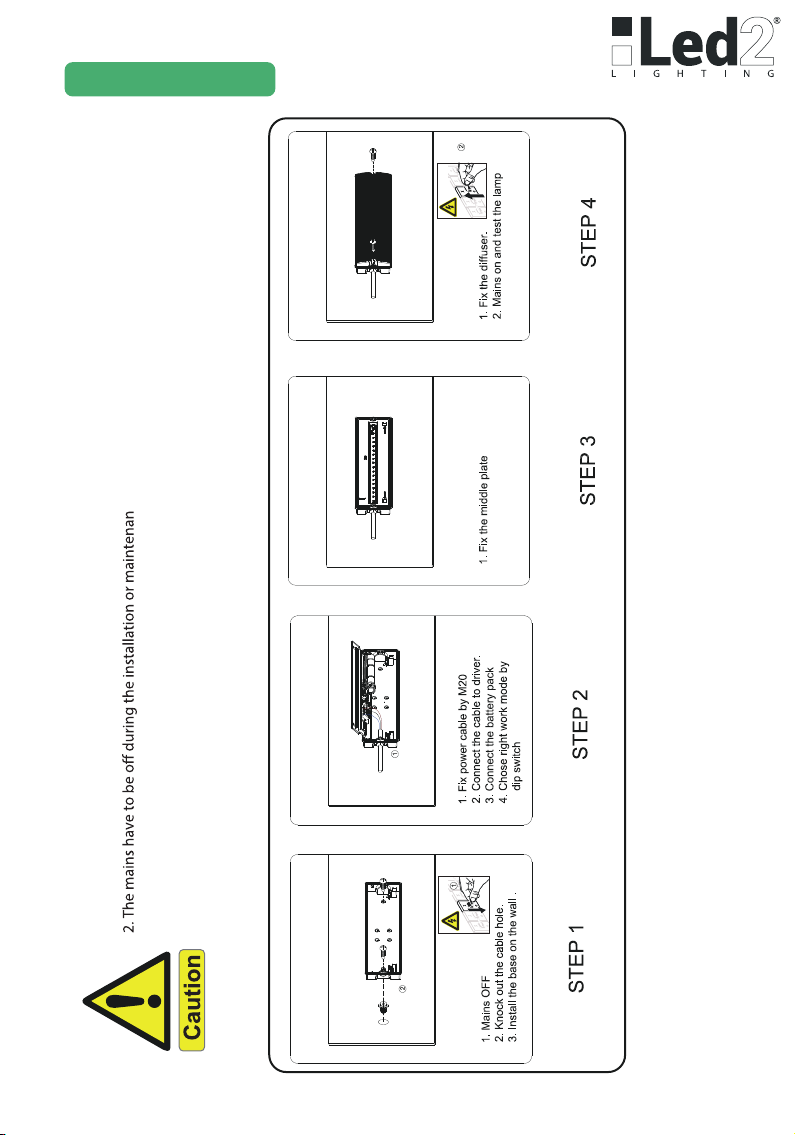

1. All LED2 LED bulkheads are designed for projects. Only qualified electrician can install or maintain it.
ce.
3. Keep the product far from heat sources and in a well ventilated area.
9 Installation guide
10 EM inspection record table
month Test
First Year
Second Year
Third Year
Fourth Year
Fifth Year
Signed
Date
Signed
Date
Signed
Date
Signed
Date
Signed
Date
1
Functional
2
Functional
3
Functional
4
Functional
5
Functional
6
1 hour
7
Functional
8
Functional
9
Functional
10
Functional
11
Functional
12
3 hours
Luminaire emergency inspection record
