Leclerc Looms COMPACT 4 SHAFTS Manuel utilisateur
1
COMPACT 24”
4 SHAFTS
1022-0000
1573 Savoie
C. P. 4
Plessisville, Qc.
G6L 2Y6
TEL: 819-362-7207
FAX: 819-362-2045
www.leclerclooms.com
Loom Prepared by:_____________
Inspected by:_________________
Date:____________________
On receiving the loom, unpack and
lay out the loom components.
Do NOT discard any packing material until
all parts are inventoried.
Check the parts received against the
parts list on pages #2 to #6 of the assembly
instructions. Report any discrepancies to
Leclerc immediately.
To assemble this loom, a minimum of 2
people are needed but it is recommended you
use 3.
* Photos: Compact 8s
.../compact4s.indd (2019)
2

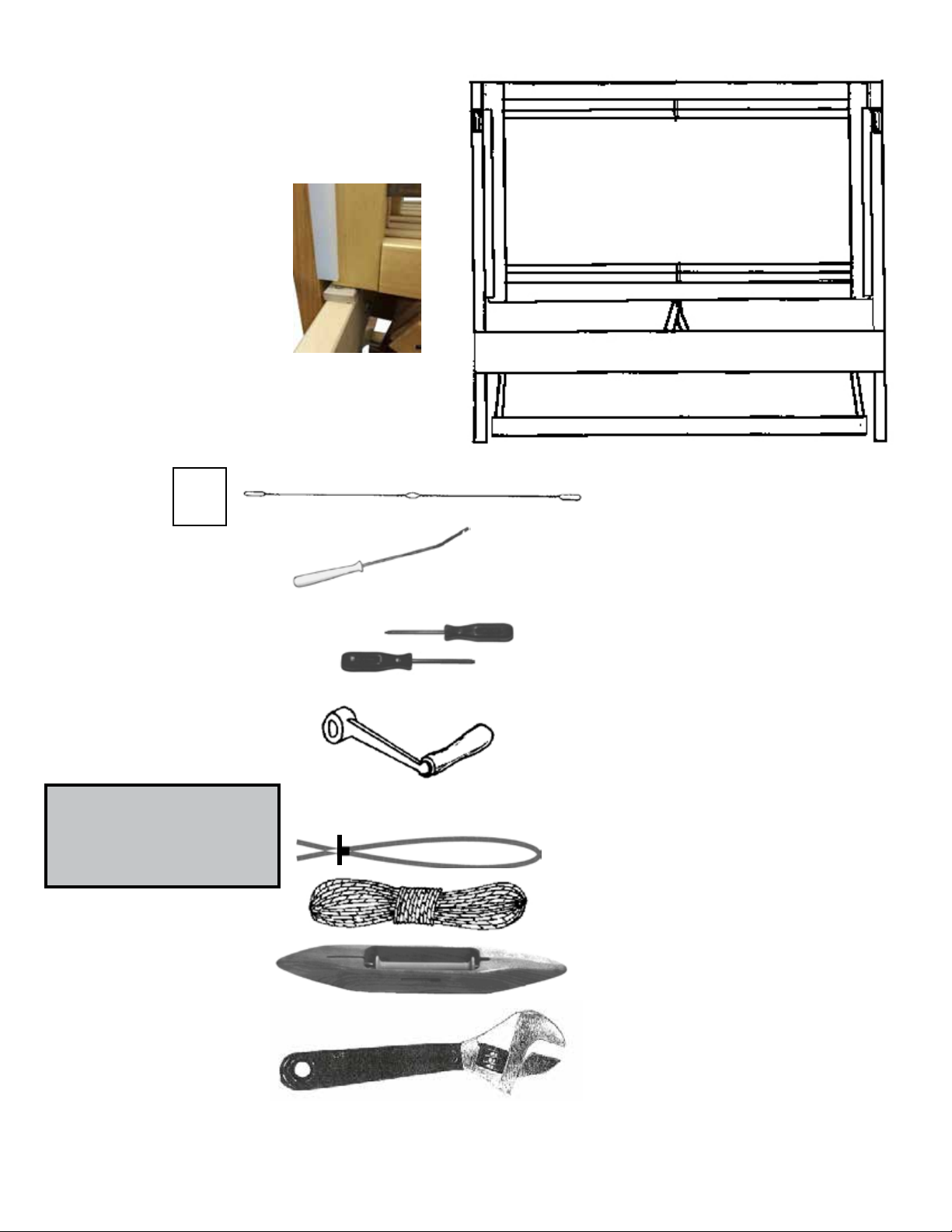

600 heddles 10½”
1 threading hook
1 red screwdriver & 1 Black
1 crank (Octagonal)
12 treadle cords 9” with
washers 1/8” X 3/16”
1 - 5 yard cord
2 - 10 yard cords
1 boat shuttle (6122-1000)
1 adjustable wrench
1 frame with 4 shafts
10½”
Note for Leclerc in French :
Enler les rondelles 3/16”
dans chaque cordes et attacher
par pacquet de 12 cordes.
Pare-chocs sous cadres aminci
3

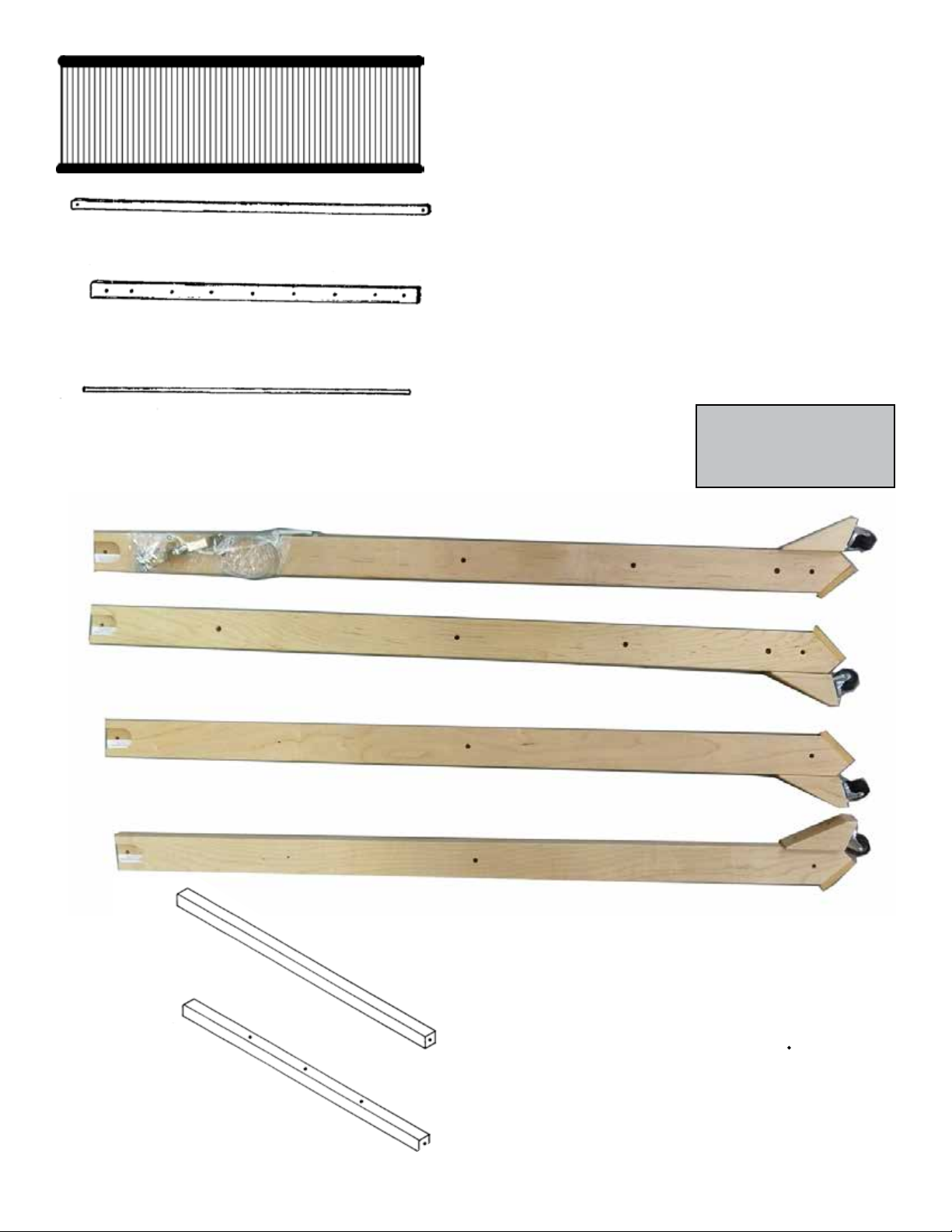

1 reed
2 lease sticks 25” (metal)
2 beam sticks 24½” (metal)
2 warp rods (metal)
Cable de frein 25 1/16”
Installer roulettes
1 right hand side front post (with brake cable) 44”
1 left hand side front post 44”
1 right hand side rear post 44”
1 left hand side rear post 44”
1 lower rear cross-member 30½”
1 treadle cross-member 29”
4

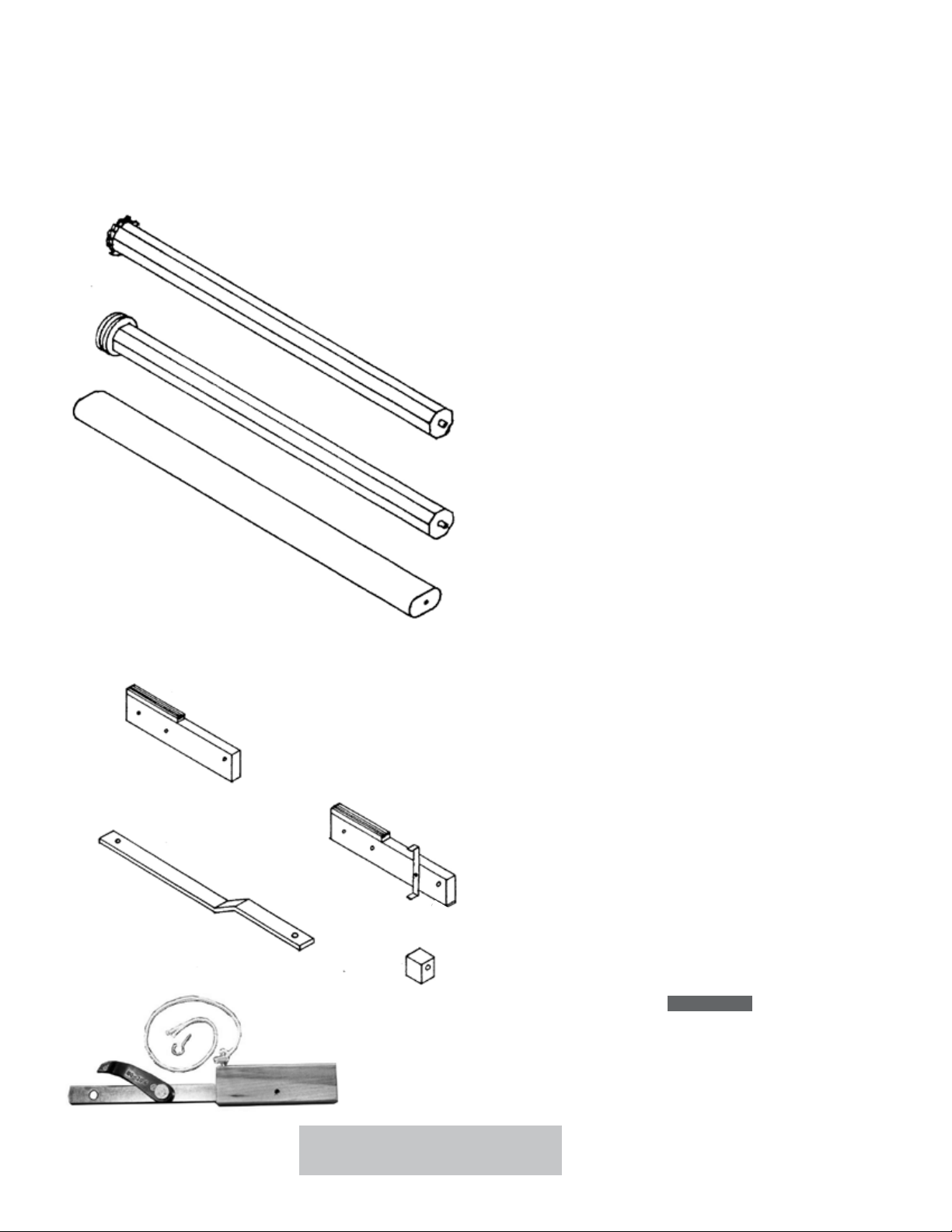

1 cloth beam 25”
1 warp beam 28 9/16”
1 thread beam 29 1/2”
1 take-up motion handle
with 12” loop cord
+ 1 eyescrew
1 left hand side cloth beam support
1 right hand side cloth beam support with ratchet
pawl 10½”
3 treadle blocks
2 Wood pegs ½” x 1¾” Installed
4 side post
iron ttings
LECLERC NOTE:
Oeillet légèrement ouvert
5

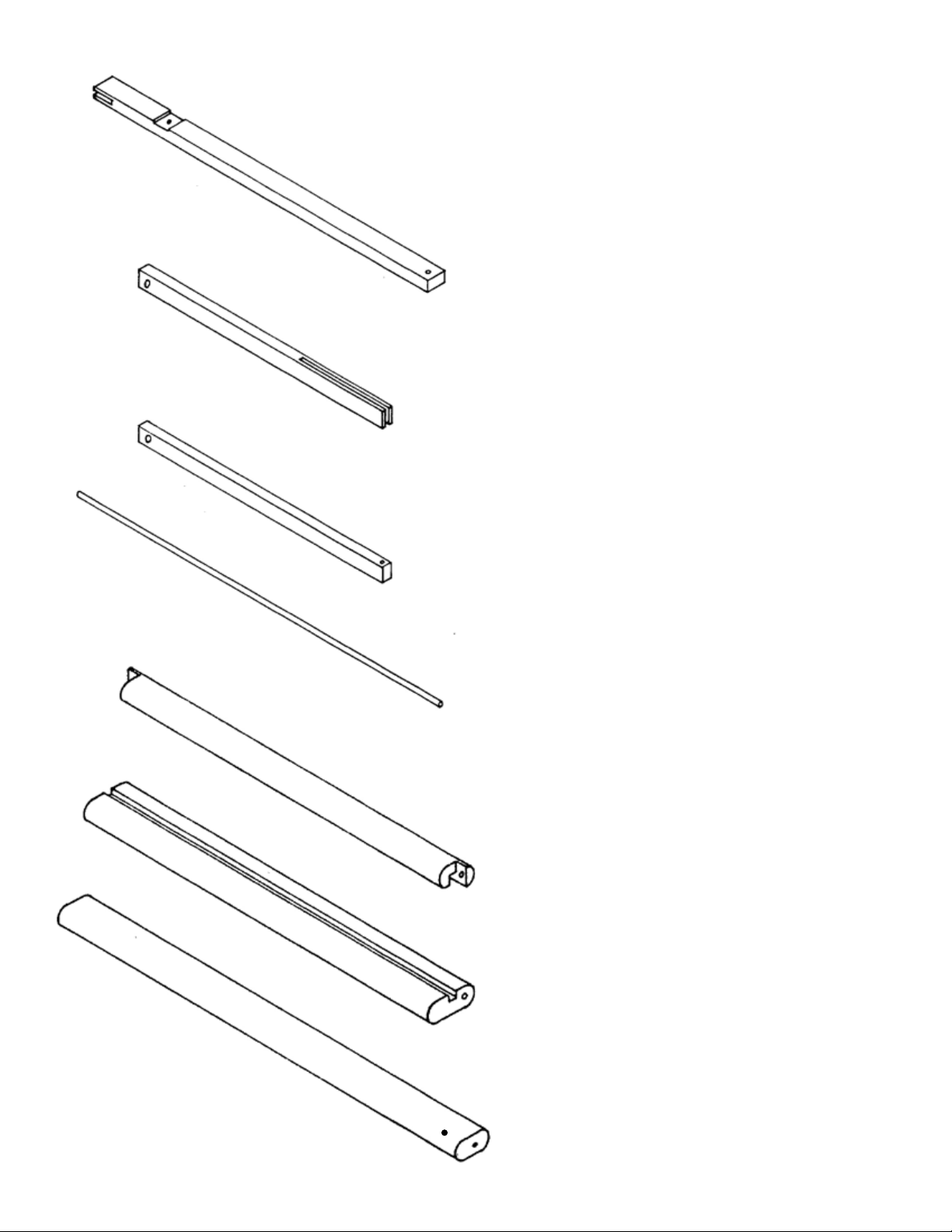

2 batten swords 27¼”
6 treadles 20”
1 brake treadle 20”
1 treadle rod 5/16” x 30”
1 batten handtree 29”
1 batten sley 27¾”
1 breast beam 31”
6
0
1"
2"
3"
4"
Machine bolts
1 X - 5/16” x 3”
Carriage Bolts
2 X - ¼” x 2¾” (6mm x 70mm)
2 X - 5/16 x 2¾” (8mm x 70mm)
2 X - 5/16” x 2” (8mm x 50mm)
Metal Washers
4 X - 3/16”
6 X - 5/16”
2 X - 1/4”
Plastic washers
2x -3/16’’
HEXAGON NUTS
4X- Nylon auto lock 5/16”
(8mm)
1½” 4 X Wooden spacer
Wing nuts
2 X - ¼” (6 mm)
Round head screw
9 X - #14 x 2” (50mm)
8 X - #14 x 1½” (40mm)
4 X - #12 x ¾” (20mm)
1 loop cords 24" for the brake treadle
1 book Warp & Weave
4x push nuts 5/16”
for treadle set rod
Nylon Wing nut for the Warp beam
advance control system
1 DVD Instruction Video showing all
stages of installation.
2 black handles installed on
frame
7

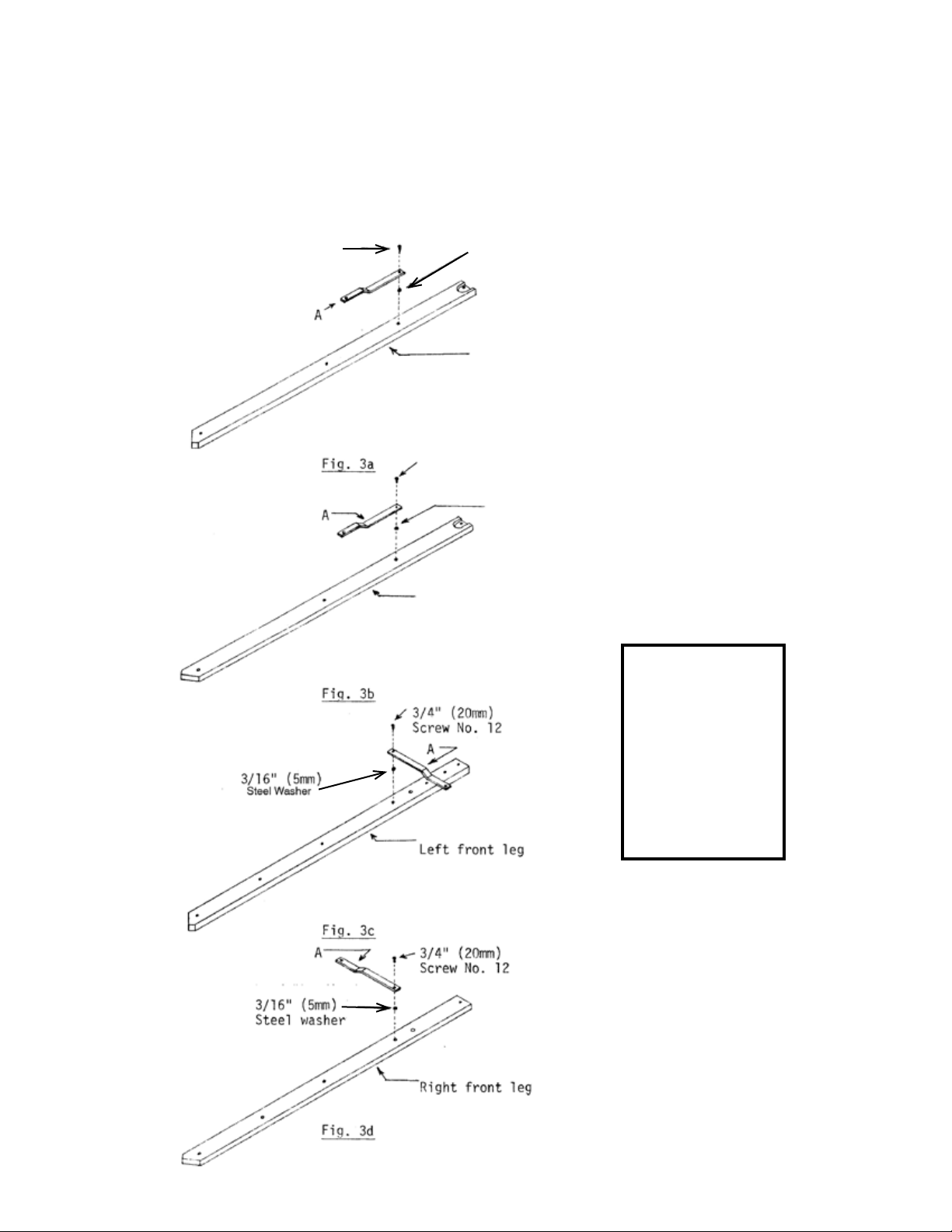

Fix an iron tting A on each of the 4 legs . Make sure they are positioned exactly as shown in the diagram
below.
Put a 3/16” (5mm) steel washer between the iron tting and the leg. Screw them in using the 3/4” (20mm)
round-headed screw No. 12. Do not over tigten so the iron can move freely.
The screw must be inserted into the smallest hole of the iron tting.
Screw No. 12, 3/4” (20mm) Steel Washer 3/16” (5mm)
Left rear leg
Steel Washer 3/16” (5mm)
Screw No. 12, 3/4” (20mm)
Right rear leg
ATTENTION:
Application
of soap to the
screws will
make their
insertion
easier.
8
Place the loom frame on its right side. Fix the left front A and rear B legs to the left side of the frame with a
5/16” x 2¾” (8mm x 70mm) carriage bolt. With a hammer, hit on the head of the bolt until it is even with the
leg B. Cross the legs so that the lower end of the leg B is towards the back and the lower end of the leg A is
towards the front. Add a steel washer and screw a 5/16” (8mm) lock nut in without overtightening it.
You must feel light resistance when you swivel the legs.
Steel washer 5/16” (8mm)
Nylon Lock nut 5/16” (8mm)
Left Rear
Left Front
Carriage bolt
5/16” x 2¾”
(8mm x 70mm)
9
Lay down the frame (the bumpers must be on top) and pull on the lams C until the jacks D are parallel with the
lams.
Insert the left support E into the left end of the cloth beam F, then insert the take-up motion handle G and the
right support H, into the right side of the cloth beam. Push all these parts between the sides of the loom and x
each support with two 1½” (40mm) round-headed screws No. 14.
Bumpers Bumpers
D
C
Fig. 1
Screws no 14
1½” (40 mm)
E F H
G
Heavy part on the back
of the loom
Make sure that the
ratchet pawl is in the
correct position.
Fig. 2
ATTENTION:
Application
of soap to the
screws will
make their
insertion
easier.
10
Place the loom on its right side and remove the handle B. Make sure the plastic spacer A is in place. Install
rst the rear leg iron tting D and then the front leg iron tting (g.5). Screw back the handle into the lower
position. Place the loom on its left side and install the right front and rear legs the same way.
Place the loom on its legs.
Fig. 5A
C
D
B
B
A
Fig.5
