LeapFrog Interactive Learning Easel Manuel utilisateur

Instruction Manual

This manual contains important information. Please save it for future reference.

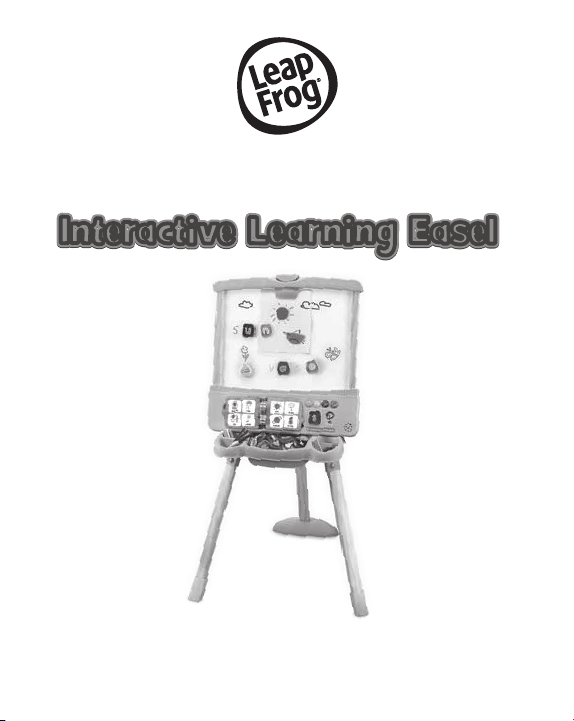

Interactive Learning Easel

Interactive Learning EaselInteractive Learning Easel

Interactive Learning Easel

INTRODUCTION

Thank you for purchasing the Interactive Learning Easel!

This 2-in-1 blackboard/whiteboard easel comes with 26

letter tiles, six shape tiles, chalk and an erasable marker. The

interactive learning panel teaches letters and encourages

creative play through drawing. The touch-sensitive pictures in

the book describe how to use the magnetic shape tiles to draw

pictures. The letter tile reader helps kids explore letter sounds,

letter writing and new words.

Board Clip

Release

Activity

Buttons

Music Button

Letter Tile Reader

Letter Tiles

Shape Tiles

Storage Tray

Off/Low/High

Volume Switch

Board Clip

Artwork Clip

Whiteboard

/Blackboard

Touch Book

Chalk

Erasable Marker

Connector (1)

Learning Panel (3)

A-Frame (1/2)

Connector (2) Upper Rear Leg (4)

Storage Tray (1/2)

Brace (5)

INCLUDED IN THE PACKAGE

Lower Rear Leg

Rear Leg Base (8)

Lower Front Leg (7)

Lower Front Leg (6)

6 Nuts

10 Screws 6 Bolts

• Quick Start Guide

Whiteboard/

Blackboard

26 Magnetic

Letter Tiles

6 Magnetic Shape

Tiles

3 Chalk Pieces 1 Erasable Marker

CAUTION:

Adult assembly required.

Small fasteners included.

CHOKING HAZARD—small parts.

Not for children under 3 yrs.

WARNING:

This product contains small magnets. Swallowed

magnets can stick together across intestines causing

serious infections and death. Seek immediate medical

attention if any magnet is swallowed or inhaled.

WARNING

All packing materials such as tape, plastic sheets, packaging

locks, removable tags, cable ties, cords and packaging screws

are not part of this toy and should be discarded for your child’s

safety.

NOTE

Please save this Instruction Manual as it contains important

information.

NOTE

Please ask us about the availability of FSC Products.

ASSEMBLY

With the Interactive Learning Easel, safety comes first. To

ensure your child’s safety, adult assembly is required.

ADULT ASSEMBLY REQUIRED:

Tool needed: Phillips-head screwdriver (not included).

Note: Numbers referenced below refer to the moulded

plastic numbers on assembly parts. See INCLUDED IN THE

PACKAGE pages for reference.

1. Locate the marking of numbers 1 and

2 on the A-Frame and on the Storage

Tray separately. Align A-Frame 1 with

Storage Tray 1 and A-Frame 2 with

Storage Tray 2. The legs will rest in

the slots until they are secured.

2. Lay the pieces face down on a flat

surface so that the back of the

Storage Tray 1/2 and the back of the

A-Frame 1/2 are facing up.

3. Slide Connector 1 into the slot formed

by the aligned pieces A-Frame 1 and

Storage Tray 1 with the number 1 on

Connector 1 facing up.

4. Use three Screws and your Phillips-

head screwdriver to secure.

5. Slide Connector 2 into the slot

formed by the aligned pieces

A-Frame 2 and Storage Tray 2 with

the number 2 on Connector 2 facing

up.

6. Use three Screws and your Phillips-

head screwdriver to secure.

7. Slide the four studs on the back of the

Learning Panel 3 into the slots on the

A-Frame 1/2. The Learning Panel 3 will

rest in the slots until it is secured.

8. Secure Learning Panel 3 to A-Frame

1/2 with two Screws on each side as

shown.

9. Snap Upper Rear Leg 4 into the top

of A-Frame 1/2 as shown with the

number 4 facing out.

10. Snap Brace 5 into the back of Learning

Panel 3 as shown with the number 5

facing up.

11. Firmly snap the other end of Brace

5into the yellow slot in the back of

Upper Rear Leg 4 as shown. (Note:

Once inserted, this piece cannot be

removed.) You have now assembled

the upper easel.

12. Lay the assembled upper easel face

down on a flat surface.

13. Fit Lower Front Leg 6 into Connector

1 with the curved side of the leg

facing down and the number 6 facing

up. Secure with two Nuts and two

Bolts, inserting the Nuts from the

bottom.

14. Fit Lower Front Leg 7 into Connector

2with the curved side of the leg

facing down and the number 7 facing

up. Secure with two Nuts and two

Bolts, inserting the Nuts from the

bottom.
