Leadshine Technology M542T Manuel utilisateur

User's Manual

For

M542T

High Performance Microstepping

Driver

Version 1.0

Attention: Please read this manual carefully before using the driver!

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

1. Introduction, Features and Applications

Introduction

The M542T is a high performance micro stepping driver based on pure-sinusoidal current control technology. Owing to the above

technology and the self-adjustment technology (self-adjust current control parameters) according to different motors, the driven

motors can run with smaller noise, lower heating, smoother movement and have better performances at higher speed than most of

the drivers in the markets. It is suitable for driving 2-phase and 4-phase hybrid stepping motors.

Features

High performance, cost-effective

Supply voltage up to 50DC

Output current up to 4.5A

Self-adjustment technology

Pure-sinusoidal current control technology

Pulse input frequency up to 300 KHz

TTL compatible and optically isolated input

Automatic idle-current reduction

16 selectable resolutions in decimal and binary, up to 51,200 steps/rev

Suitable for 2-phase and 4-phase motors

Short-voltage, over-voltage, over-current and short-cicuit protection

Applications

Suitable for a wide range of stepping motors, from NEMA size 17 to 34. It can be used in various kinds of machines, such as X-Y

tables, labeling machines, laser cutters, engraving machines, pick-place devices, and so on. Particularly adapt to the applications

desired with low noise, low heating, high speed performance.

2. Specifications

Electrical Specifications (Tj= 25℃/77℉)

Parameters

M542T

Min

Typical

Max

Unit

Output current

1.5

4.5(3 RMS)

Supply voltage

+24

+36

+50

VDC

Logic signal current

Pulse input frequency

300

KHz

Isolation resistance

500

MΩ

Operating Environment and other Specifications

Cooling

Natural Cooling or Forced cooling

Operating Environment

Environment

Avoid dust, oil fog and corrosive gases

Ambient Temperature

0℃－ 50℃(32℉ － 122℉)

Humidity

40%RH －90%RH

Operating Temperature

70℃(158℉) Max

Vibration

5.9m/s2 Max

Storage Temperature

-20 ℃ － 65℃(-4℉ － 149℉)

Weight

Approx. 290g

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

Mechanical Specifications (unit: mm)

Figure 1: Mechanical specifications

Elimination of Heat

*Recommend use side mounting for better heat dissipation

Driver’s reliable working temperature should be <70℃(158℉), and motor working temperature should be <80℃(176℉);

It is recommended to use automatic idle-current mode, namely current automatically reduce to 60% when motor stops, so as to

reduce driver heating and motor heating;

It is recommended to mount the driver vertically to maximize heat sink area. Use forced cooling method to cool the system if

necessary.

3. Pin Assignment and Description

The M542T has two connectors, connector P1 for control signals connections, and connector P2 for power and motor connections.

The following tables are brief descriptions of the two connectors. More detailed descriptions of the pins and related issues are

presented in section 4, 5, 9.

Connector P1 Configurations

Pin Function

Details

PUL+

Pulse signal: In single pulse (pulse/direction) mode, this input represents pulse signal; 4-5V when PUL-HIGH, 0-0.5V when

PUL-LOW. For reliable response, pulse width should be longer than 1.5μs. Series connect resistors for current-limiting

when+12V or +24V used. The same as DIR and ENA signals.

PUL-

DIR+

DIR signal: In single-pulse mode, this signal has low/high voltage levels, representing two directions of motor rotation. For

reliable motion response, DIR signal should be ahead of PUL signal by 5μs at least. 4-5V when DIR-HIGH,0-0.5V when

DIR-LOW. Please note that motion direction is also related to motor-driver wiring match. Exchanging the connection of two

wires for a coil to the driver will reverse motion direction.

DIR-

ENA+

Enable signal: This signal is used for enabling/disabling the driver. High level(NPN control signal, PNP and Differential control

signals are on the contrary, namely Low level for enabling.) for enabling the driver and low level for disabling the driver.

Usually left UNCONNECTED (ENABLED)

ENA-

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

Connector P2 Configurations

Pin Function

Details

DC+

Power supply, 20~50 VDC, Including voltage fluctuation and EMF voltage.

DC-

A+, A-

Motor Phase A

B+, B-

Motor Phase B

4. Control Signal Connector (P1) Interface

The M542T can accept differential and single-ended inputs (including open-collector and PNP output). The M542T has 3 optically

isolated logic inputs which are located on connector P1 to accept line driver control signals. These inputs are isolated to minimize or

eliminate electrical noises coupled onto the drive control signals. Recommend use line driver control signals to increase noise

immunity of the driver in interference environments. In the following figures, connections to open-collector and PNP signals are

illustrated.

Figure 3: Connections to open-collector signal (common-anode)

Figure 4: Connection to PNP signal (common-cathode)

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

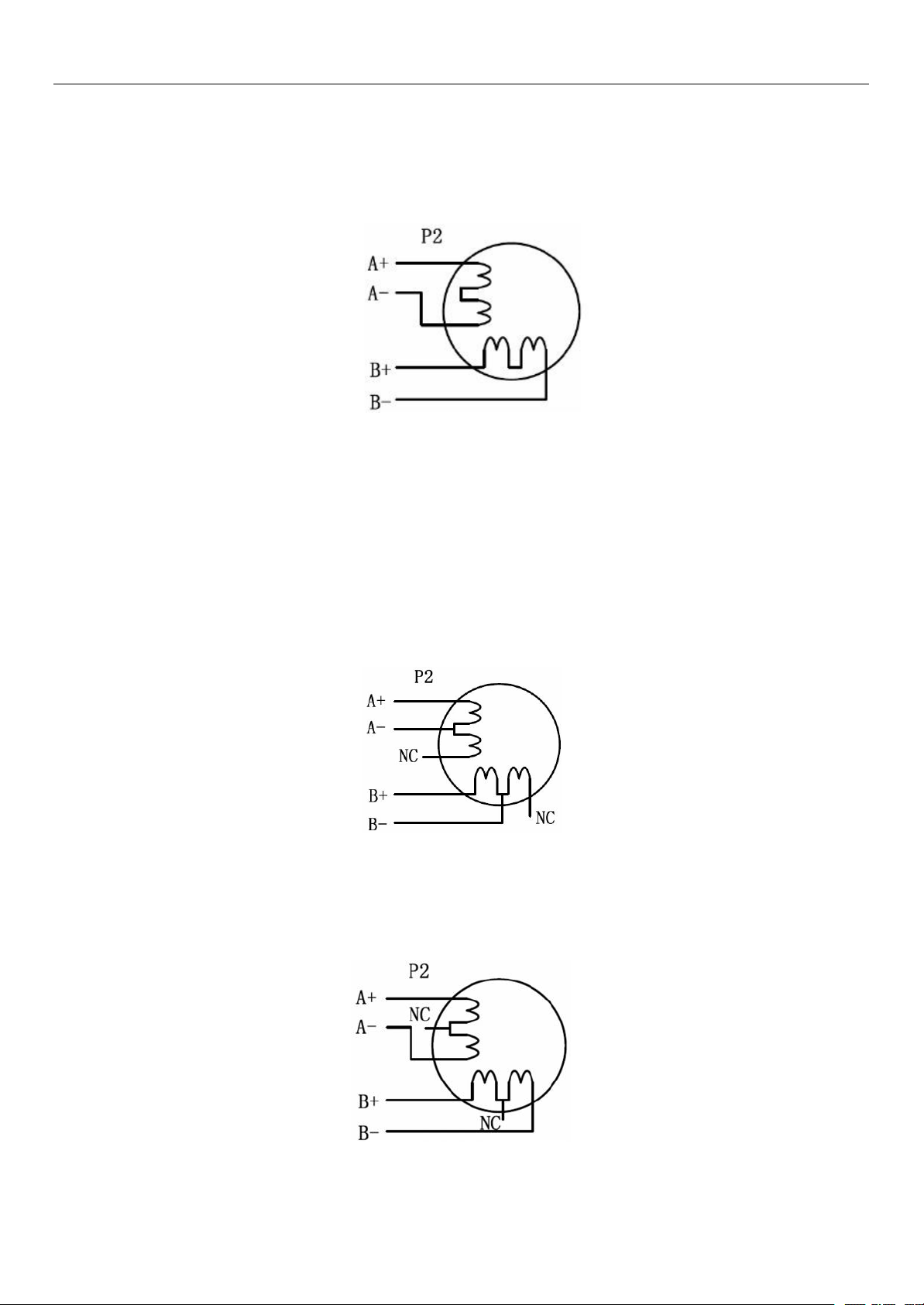

5. Connecting the Motor

The M542T can drive any 2-pahse and 4-pahse hybrid stepping motors.

Connections to 4-lead Motors

4 lead motors are the least flexible but easiest to wire. Speed and torque will depend on winding inductance. In setting the driver

output current, multiply the specified phase current by 1.4 to determine the peak output current.

Connections to 6-lead Motors

Figure 5: 4-lead Motor Connections

Like 8 lead stepping motors, 6 lead motors have two configurations available for high speed or high torque operation. The higher

speed configuration, or half coil, is so described because it uses one half of the motor’s inductor windings. The higher torque

configuration, or full coil, uses the full windings of the phases.

Half Coil Configurations

As previously stated, the half coil configuration uses 50% of the motor phase windings. This gives lower inductance, hence, lower

torque output. Like the parallel connection of 8 lead motor, the torque output will be more stable at higher speeds. This configuration

is also referred to as half chopper. In setting the driver output current multiply the specified per phase (or unipolar) current rating by

1.4 to determine the peak output current.

Full Coil Configurations

Figure 6: 6-lead motor half coil (higher speed) connections

The full coil configuration on a six lead motor should be used in applications where higher torque at lower speeds is desired. This

configuration is also referred to as full copper. In full coil mode, the motors should be run at only 70% of their rated current to prevent

over heating.

Figure 7: 6-lead motor full coil (higher torque) connections

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

Connections to 8-lead Motors

8 lead motors offer a high degree of flexibility to the system designer in that they may be connected in series or parallel, thus

satisfying a wide range of applications.

Series Connections

A series motor configuration would typically be used in applications where a higher torque at lower speeds is required. Because this

configuration has the most inductance, the performance will start to degrade at higher speeds. In series mode, the motors should

also be run at only 70% of their rated current to prevent over heating.

Parallel Connections

Figure 8: 8-lead motor series connections

An 8 lead motor in a parallel configuration offers a more stable, but lower torque at lower speeds. But because of the lower

inductance, there will be higher torque at higher speeds. Multiply the per phase (or unipolar) current rating by 1.96, or the bipolar

current rating by 1.4, to determine the peak output current.

6. Power Supply Selection

Figure 9: 8-lead motor parallel connections

The M542T can match Large and small size stepping motors (from Nema size 17 to 34) made by NC-Tech or other motor

manufactures around the world. To achieve good driving performances, it is important to select supply voltage and output current

properly. Generally speaking, supply voltage determines the high speed performance of the motor, while output current determines

the output torque of the driven motor (particularly at lower speed). Higher supply voltage will allow higher motor speed to be

achieved, at the price of more noise and heating. If the motion speed requirement is low, it’s better to use lower supply voltage to

decrease noise, heating and improve reliability.

Regulated or Unregulated Power Supply

Both regulated and unregulated power supplies can be used to supply the driver. However, unregulated power supplies are

preferred due to their ability to withstand current surge. If regulated power supplies (such as most switching supplies.) are indeed

used, it is important to have large current output rating to avoid problems like current clamp, for example using 4A supply for 3A

motor-driver operation. On the other hand, if unregulated supply is used, one may use a power supply of lower current rating than

that of motor (typically 50%～70% of motor current). The reason is that the driver draws current from the power supply capacitor of

the unregulated supply only during the ON duration of the PWM cycle, but not during the OFF duration. Therefore, the average

current withdrawn from power supply is considerably less than motor current. For example, two 3A motors can be well supplied by

one power supply of 4A rating.

Multiple Drivers

It is recommended to have multiple drivers to share one power supply to reduce cost, if the supply has enough capacity. To avoid

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

cross interference, DO NOT daisy-chain the power supply input pins of the drivers. (Instead, please connect them to power supply

separately.)

Selecting Supply Voltage

The power MOSFETS inside the M542T can actually operate within +24 ~ +100VDC, including power input fluctuation and back

EMF voltage generated by motor coils during motor shaft deceleration. Higher supply voltage can increase motor torque at higher

speeds, thus helpful for avoiding losing steps. However, higher voltage may cause bigger motor vibration at lower speed, and it may

also cause over-voltage protection or even driver damage. Therefore, it is suggested to choose only sufficiently high supply voltage

for intended applications, and it is suggested to use power supplies with theoretical output voltage of +24 ~ +50VDC, leaving room

for power fluctuation and back-EMF.

7. Selecting Microstep Resolution and Driver Output Current

This driver uses an 8-bit DIP switch to set microstep resolution, and motor operating current, as shown below:

Microstep Resolution Selection

Microstep resolution is set by SW5, 6, 7, 8 of the DIP switch as shown in the following table:

Microstep

Steps/rev.(for 1.8°motor)

SW5

SW6

SW7

SW8

400

800

OFF

1600

OFF

3200

OFF

6400

OFF

12800

OFF

128

25600

OFF

256

51200

OFF

1000

OFF

2000

OFF

5000

OFF

10000

OFF

125

25000

OFF

250

50000

OFF

Current Settings

For a given motor, higher driver current will make the motor to output more torque, but at the same time causes more heating in the

motor and driver. Therefore, output current is generally set to be such that the motor will not overheat for long time operation. Since

parallel and serial connections of motor coils will significantly change resulting inductance and resistance, it is therefore important to

set driver output current depending on motor phase current, motor leads and connection methods. Phase current rating supplied by

motor manufacturer is important in selecting driver current, however the selection also depends on leads and connections. The first

three bits (SW1, 2, 3) of the DIP switch are used to set the dynamic current. Select a setting closest to your motor’s required current.

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

Dynamic current setting

Peak Current

Ref Current (Screen printing)

SW1

SW2

SW3

1.5A

1.0A

2.0A

1.4Ａ

OFF

2.4A

1.7A

OFF

2.8A

2.0A

OFF

3.2A

2.3A

OFF

3.7A

2.6A

OFF

4.2A

3.0A

OFF

4.5A

3.2A

OFF

Notes: Ref Current table on the screen printing is used for the users of the M542T to refer. Due to motor inductance, the actual

current in the coil may be smaller than the dynamic current setting, particularly under high speed condition.

Standstill current setting

SW4 is used for this purpose. OFF meaning that the standstill current is set to be half of the selected dynamic current, and ON

meaning that standstill current is set to be the same as the selected dynamic current.

The current automatically reduced to 60% of the selected dynamic current one second after the last pulse. Theoretically, this will

reduce motor heating to 36% (due to P=I2*R) of the original value. If the application needs a different standstill current, please

contact NC-Tech.

8. Wiring Notes

In order to improve anti-interference performance of the driver, it is recommended to use twisted pair shield cable.

To prevent noise incurred in PUL/DIR signal, pulse/direction signal wires and motor wires should not be tied up together. It is

better to separate them by at least 10 cm, otherwise the disturbing signals generated by motor will easily disturb pulse direction

signals, causing motor position error, system instability and other failures.

If a power supply serves several drivers, separately connecting the drivers is recommended instead of daisy-chaining.

It is prohibited to pull and plug connector P2 while the driver is powered ON, because there is high current flowing through motor

coils (even when motor is at standstill). Pulling or plugging connector P2 with power on will cause extremely high back-EMF voltage

surge, which may damage the driver.

9. Sequence Chart of Control Signals

In order to avoid some fault operations and deviations, PUL, DIR and ENA should abide by some

rules, shown as following diagram:

Figure 11: Sequence chart of control signals

M542T Microstepping Driver Manual V1.0

SepperOnline

sales@stepperonline.com

0086-25-87156578

www.omc-stepperonline.com

Remark:

a) t1: ENA must be ahead of DIR by at least 5 s. Usually, ENA+ and ENA- are NC (not connected). See “Connector P1

Configurations” for more information.

b) t2: DIR must be ahead of PUL effective edge by 5 s to ensure correct direction;

c) t3: Pulse width not less than 1.5 s;

d) t4: Low level width not less than 1.5 s.

10. Protection Functions

To improve reliability, the driver incorporates some built-in protections features.

Short-voltage and Over-voltage protection

When power supply voltage exceeds 75VDC, over-voltage protection will be activated and Alarm indicator LED will turn on.

Over-current Protection

Protection will be activated when continuous current exceeds the limit.

Short Circuit Protection

Protection will be activated in case of short circuit between motor coils or between motor coil and ground.

11. Frequently Asked Questions

In the event that your driver doesn’t operate properly, the first step is to identify whether the problem is electrical or mechanical in

nature. The next step is to isolate the system component that is causing the problem. As part of this process you may have to

disconnect the individual components that make up your system and verify that they operate independently. It is important to

document each step in the troubleshooting process. You may need this documentation to refer back to at a later date, and these

details will greatly assist our Technical Support staff in determining the problem should you need assistance.

Many of the problems that affect motion control systems can be traced to electrical noise, controller software errors, or mistake in

wiring.

Problem Symptoms and Possible Causes

Table des matières

Autres manuels Leadshine Technology Entraînement CC

Leadshine Technology

Leadshine Technology EM-CAN Manuel utilisateur

Leadshine Technology

Leadshine Technology DM856 Manuel utilisateur

Leadshine Technology

Leadshine Technology DM432 Manuel utilisateur

Leadshine Technology

Leadshine Technology EM522-CAN Manuel utilisateur

Leadshine Technology

Leadshine Technology 3DM580S Manuel utilisateur

Leadshine Technology

Leadshine Technology DM422 Manuel utilisateur

Leadshine Technology

Leadshine Technology M415B Manuel utilisateur

Leadshine Technology

Leadshine Technology OY STEPPER DM556 Manuel utilisateur

Leadshine Technology

Leadshine Technology DM542E Manuel utilisateur

Leadshine Technology

Leadshine Technology M325 Manuel utilisateur

Leadshine Technology

Leadshine Technology DM503 Instructions d'installation

Leadshine Technology

Leadshine Technology EM556S Manuel utilisateur

Leadshine Technology

Leadshine Technology DM542E Manuel utilisateur

Leadshine Technology

Leadshine Technology DMA860E Manuel utilisateur

Leadshine Technology

Leadshine Technology DM432C Manuel utilisateur

Leadshine Technology

Leadshine Technology DCS810V2 Manuel utilisateur

Leadshine Technology

Leadshine Technology EM556S Manuel utilisateur

Leadshine Technology

Leadshine Technology ME432 Manuel utilisateur

Leadshine Technology

Leadshine Technology 3DM2283 Manuel utilisateur

Leadshine Technology

Leadshine Technology DMA860H Manuel utilisateur

Leadshine Technology

Leadshine Technology EM2RS Series Manuel utilisateur

Manuels Entraînement CC populaires d'autres marques

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manuel utilisateur

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manuel de la liste des pièces

Chamberlain Garog

Chamberlain Garog D Series Manuel utilisateur

Parker

Parker PDS Series Manuel utilisateur

Festo

Festo DGC G Series Guide de configuration

Binks

Binks QS-5012-1-CE Manuel utilisateur

Danfoss

Danfoss VLT 2800 Series Fiche technique

ABB

ABB ACQ580-01 Series Manuel d'installation

YASKAWA

YASKAWA CANopen SI-S3 Manuel utilisateur

GE D20A6 Manuel utilisateur

Unex

Unex MC-D-250-1000-050W-TW Manuel utilisateur

Geckodrive

Geckodrive G213V Manuel utilisateur

ABB

ABB RSYC-01 Manuel utilisateur

Rockwell Automation

Rockwell Automation PowerFlex 700S Manuel du propriétaire

WEG

WEG DeviceNet CFW500 Manuel utilisateur

Siemens

Siemens SINAMICS G Fiche technique

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Mode d'emploi

SOMFY

SOMFY JR RU 30 Manuel utilisateur
