LD MIBS Manuel utilisateur

USER´S MANUAL / BEDIENUNGSANLEITUNG /

MANUEL D´UTILISATION / MANUAL DE USUARIO /

INSTRUKCJA OBSŁUGI / MANUALE D´USO

MIBS

MICROPHONE DESKTOP BASE WITH CONFIGURABLE SWITCH

LDMIBS

CONTENTS / INHALTSVERZEICHNIS / CONTENU / CONTENIDO / TREŚĆ / CONTENUTO

ENGLISH

INTENDED USE 4

SAFETY INFORMATION 4

INTRODUCTION 5

COMPONENTS, CONNECTIONS, DISPLAYS AND CONTROLS 5

WIRING EXAMPLE 6

TECHNICAL DATA 7

DISPOSAL 8

MANUFACTURER´S DECLARATIONS 9

DEUTSCH

VERWENDUNGSZWECK 10

SICHERHEITSHINWEISE 10

EINLEITUNG 11

KOMPONENTEN, ANSCHLÜSSE, ANZEIGEN UND BEDIENELEMENTE 11

VERKABELUNGSBEISPIEL 12

TECHNISCHE DATEN 13

ENTSORGUNG 14

ERKLÄRUNGEN DES HERSTELLERS 15

FRANCAIS

UTILISATION RÉGLEMENTÉE 16

INFORMATIONS RELATIVES À LA SÉCURITÉ 16

INTRODUCTION 17

COMPOSANTS, CONNECTEURS, AFFICHEURS ET COMMANDES 17

EXEMPLE DE CÂBLAGE 18

CARACTÉRISTIQUES TECHNIQUES 19

MISE AU REBUT 20

DÉCLARATIONS DU FABRICANT 21

ESPAÑOL

USO PREVISTO 22

INFORMACIÓN DE SEGURIDAD 22

INTRODUCCIÓN 23

COMPONENTES, CONEXIONES, PANTALLAS Y CONTROLES 23

EJEMPLO DE CABLEADO 24

DATOS TÉCNICOS 25

RECICLAJE 26

DECLARACIÓN DEL FABRICANTE 27

POLSKI

ZAMIERZONE ZASTOSOWANIE 28

WSKAZÓWKI BEZPIECZEŃSTWA 28

WPROWADZENIE 29

ELEMENTY, POŁĄCZENIA, WYŚWIETLACZE I ELEMENTY STERUJĄCE 29

PRZYKŁAD OKABLOWANIA 30

DANE TECHNICZNE 31

DISPOSAL 32

DEKLARACJA PRODUCENTA 33

ITALIANO

USO PREVISTO 34

INFORMAZIONI SULLA SICUREZZA 34

INTRODUZIONE 35

COMPONENTI, COLLEGAMENTI, DISPLAY E CONTROLLI 35

ESEMPIO DI CABLAGGIO 36

DATI TECNICI 37

SMALTIMENTO 38

DICHIARAZIONI DEL PRODUTTORE 39

ENGLISH

YOU‘VE MADE THE RIGHT CHOICE!

We have designed this product to operate reliably over many years. LD Systems

stands for this with its name and many years of experience as a manufacturer of

high-quality audio products. Please read this User’s Manual carefully, so that you

can begin making optimum use of your LD Systems product quickly. You can find

more information about LD SYSTEMS at our Internet site WWW.LD-SYSTEMS.COM

INTENDED USE

The product is a device for professional audio installation!

The product has been developed for professional use in the field of audio

installation and is not suitable for use in households!

Furthermore, this product is only intended for qualified users with specialist

knowledge of dealing with audio installations!

Use of the product outside of the specified technical data and operating

conditions is considered improper use!

Liability for damage and third-party damage to persons and property due to

improper use is excluded!

The product is not suitable for:

• People (including children) with reduced physical, sensory or mental abilities

or lack of experience and knowledge.

• Children (Children must be instructed not to play with the device).

SAFETY INFORMATION

1. Please read these instructions carefully.

2. Keep all information and instructions in a safe place.

3. Follow the instructions.

4. Use the appliance only in the manner intended.

5. Do not open or modify the unit.

CAUTION: Connecting signal cables can lead to considerable

noise interference. Make sure that the input channel of e.g.

an installation mixer is muted when plugging a device in.

Otherwise, these noise levels might cause damage.

DEUTSCH FRANCAIS ESPAÑOLENGLISH ITALIANOPOLSKI

DANGER OF SUFFOCATION! KEEP AWAY FROM CHILDREN! THE PRODUCT CONTAINS

SMALL PARTS THAT CAN BE SWALLOWED AND PACKAGING MATERIAL THAT CAN BE

SWALLOWED! PLASTIC BAGS MUST BE KEPT OUT OF REACH OF CHILDREN!

INTRODUCTION

The LD MIBS solid microphone base features a female XLR connector, a push

button and an illuminated status indicator on the top, a male XLR connector on

the rear and an operating mode selector switch on the bottom. Phantom power

is required for operation. The microphone base is suitable for both dynamic and

condenser microphones.

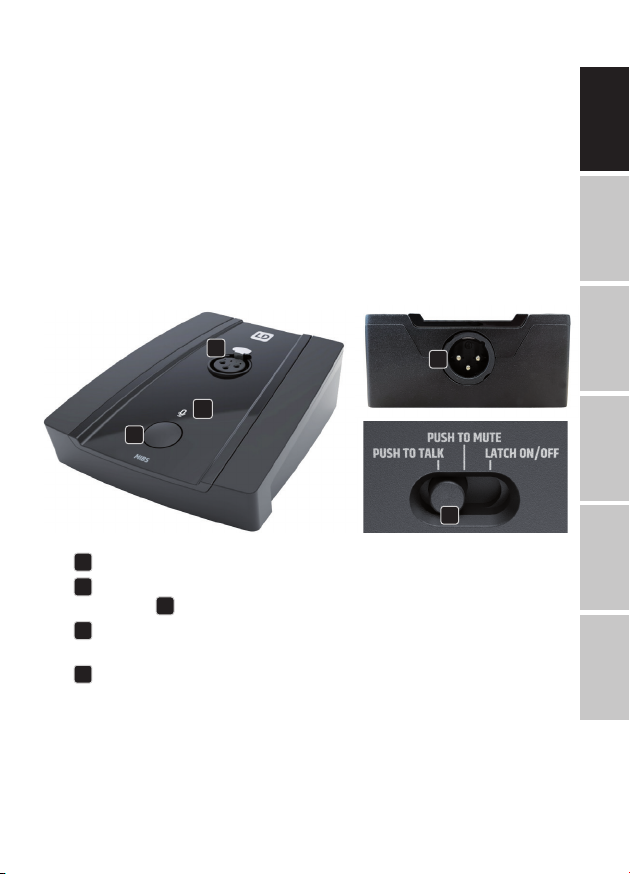

COMPONENTS, CONNECTIONS, DISPLAYS AND CONTROLS

1Female 3-pin XLR connector for connecting a microphone .

2Push-button with multiple functions

(see item 5Operating mode selector switch).

3Microphone symbol with illumination to indicate the operating status.

The microphone symbol lights up white when the microphone is active.

4Male 3-pin XLR socket for connecting the microphone signal to an installation

mixer or similar.

DEUTSCHFRANCAIS

ESPAÑOLITALIANO POLSKI ENGLISH

5The operating mode selector switch is located on the underside of the base.

PUSH TO TALK The microphone is only active as long as you press the

button 2. To mute the microphone, release the button.

PUSH TO MUTE The microphone is permanently active and is only muted

as long as the button 2is pressed.

LATCH ON/OFF

Push-button 2with switch function. Press the button

briefly to activate the microphone and again briefly to

mute it.

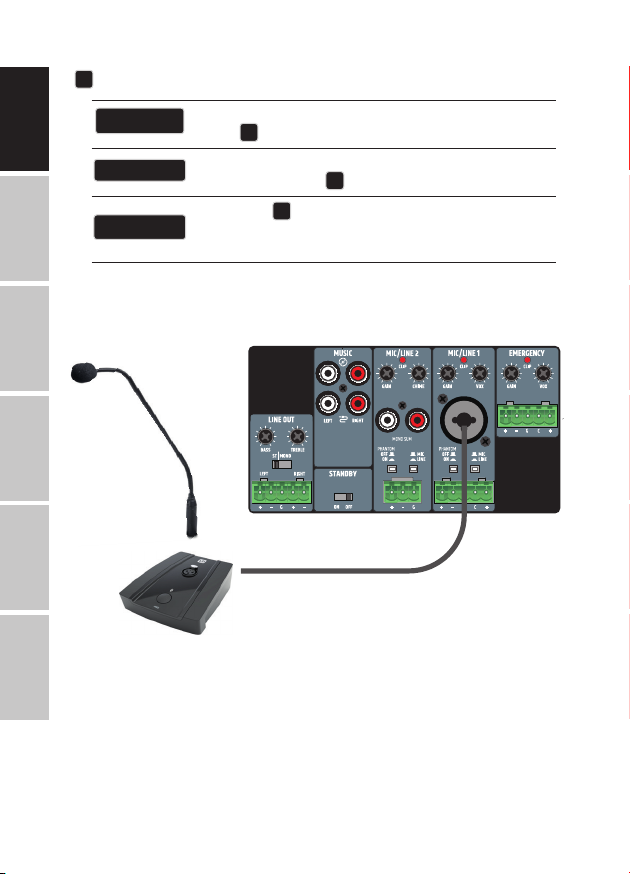

WIRING EXAMPLE

Preampliﬁer / Mixing ampliﬁer (not included)

Microphone (not included)

Microphone cable (not included)

Preamplifier / Mixing amplifier (not Included)

Microphone cable

(not included)

Microphone

(not included)

DEUTSCH FRANCAIS ESPAÑOLENGLISH ITALIANOPOLSKI

TECHNICAL DATA

Article number LDMIBS

Product type Desktop microphone base with push-button

Controls Push-button with 3 selectable modes,

mode selector switch:

PUSH TO TALK / PUSH TO MUTE / LATCH ON/OFF

Display elements Status LED (lights up white when the

microphone is active)

Maximum input voltage 870 mV RMS

Frequency response 90 Hz – 20 kHz (–3 dB)

Input impedance 47 kohms (balanced)

Output impedance 800 ohms (balanced)

Mute damping > 75 dB @ 1 kHz

CMRR > 65 dB (CMRR IEC)

Gain @ 48 V phantom power IN vs. OUT 5.5dB

Inputs 1x 3-pole XLR female

Outputs 1x 3-pole XLR male

Phantom power requirements

15 VDC – 48 VDC (±10%), 6 mA typical

Power consumption (mute) 3 mW (microphone muted)

Power consumption 6 mA

Operating temperature 0°C – 40°C

Relative humidity < 85% , non-condensing

General

Material Zinc housing, plastic front panel

Colour Black

Dimensions (W x H x D)

109.8mm x 38.7mm x 126.2mm (height with rubber feet)

Weight 0,54 kg

DEUTSCHFRANCAIS

ESPAÑOLITALIANO POLSKI ENGLISH

DISPOSAL

PACKAGING:

1. Packaging can be disposed of via the usual waste

disposal channels.

2. Please separate the packaging according to the waste disposal

and materials regulations in your country.

DEVICE:

1. This device is subject to the European Directive on Waste

Electrical and Electronic Equipment in its applicable version.

WEEE Directive- Waste Electrical and Electronical Equipment. Old

devices and batteries do not belong in household waste. The old

device or batteries must be disposed of via an approved waste

disposal service or a municipal waste disposal facility. Follow the

directives in your country!

2. Follow the disposal laws in your country.

3. As a private customer, you can obtain information on

environmentally friendly disposal options from the retailer

from whom you purchased the product or from the relevant

regional authorities.

DEUTSCH FRANCAIS ESPAÑOLENGLISH ITALIANOPOLSKI

MANUFACTURER´S DECLARATIONS

MANUFACTURER’S WARRANTY & LIMITATION OF LIABILITY

Adam Hall GmbH, Adam-Hall-Str. 1, 61267 Neu Anspach, Germany

E-mail [email protected] / +49 (0)6081 / 9419-0.

Our current warranty conditions and limitation of liability can be found at:

https://cdn-shop.adamhall.com/media/pdf/MANUFACTURERS-DECLARATIONS_LD_SYSTEMS.pdf.

Contact your distribution partner for service.

UKCA- CONFORMITY

Hereby, Adam Hall Ltd. declares that this product meets the following guidelines

(where applicable) Electrical Equipment (Safety) Regulations 2016

Electromagnetic Compatibility Regulations 2016 (SI 2016/1091)

The Restriction of the Use of Certain Hazardous Substances in Electrical

and Electronic Equipment

Regulation 2012 (SI 2012/3032)

Radio Equipment Regulations 201 7(SI 2016/2015)

UKCA- DECLARATION OF CONFORMITY

Products that are subject to Electrical Equipment(Safety)Regulation 2016, EMC

Regulation 2016 or

RoHS Regulation can be requested at [email protected]. Products that are

subject to the Radio

Equipments Regulations 2017 (SI2017/1206) can be downloaded from

www.adamhall.com/compliance/

FOR INDOOR USE ONLY

This symbol indicates electrical equipment designed primarily for

indoor use.

Misprints and errors as well as technical or other changes are reserved!

DEUTSCHFRANCAIS

ESPAÑOLITALIANO POLSKI ENGLISH

DEUTSCH

SIE HABEN DIE RICHTIGE WAHL GETROFFEN!

Wir haben dieses Produkt so konzipiert, dass es über viele Jahre hinweg zuver-

lässig funktioniert. Dafür steht LD Systems mit seinem Namen und seiner lang-

jährigen Erfahrung als Hersteller von hochwertigen Audioprodukten. Bitte lesen

Sie dieses Benutzerhandbuch sorgfältig durch, damit Sie Ihr LD Systems Produkt

schnell optimal nutzen können. Weitere Informationen über LD SYSTEMS finden

Sie auf unserer Internetseite WWW.LD-SYSTEMS.COM

BESTIMMUNGSGEMÄSSER GEBRAUCH

Das Produkt ist ein Gerät für die professionelle Audioinstallation!

Das Produkt wurde für den professionellen Einsatz im Bereich der Audioinstallation

entwickelt und ist nicht für den Gebrauch in Haushalten geeignet!

Außerdem ist dieses Produkt nur für qualifizierte Benutzer mit Fachkenntnissen

im Umgang mit Audioinstallationen bestimmt!

Die Verwendung des Produkts außerhalb der angegebenen technischen Daten

und Betriebsbedingungen gilt als unsachgemäße Verwendung!

Die Haftung für Schäden und Drittschäden an Personen und Sachen durch

unsachgemäßen Gebrauch ist ausgeschlossen!

Das Produkt ist nicht geeignet für:

• Menschen (einschließlich Kinder) mit eingeschränkten körperlichen, sensorischen

oder geistigen Fähigkeiten oder einem Mangel an Erfahrung und Wissen.

• Kinder (Kinder müssen angewiesen werden, nicht mit dem Gerät zu spielen).

SICHERHEITSHINWEISE

1. Bitte lesen Sie diese Anweisungen sorgfältig durch.

2. Bewahren Sie alle Informationen und Anweisungen an einem sicheren Ort auf.

3. Folgen Sie den Anweisungen.

4. Verwenden Sie das Gerät nur in der vorgesehenen Weise.

5. Öffnen oder verändern Sie das Gerät nicht.
