LB Altimeters ALFA Manuel utilisateur

ALFA - Rev. 1.15 Page 1 of 18

ALFA MANUAL

LB Altimeters

ALFA is a trademark of LB Altimeters, Denmark

LB Altimeters operates a policy of continuous development

Therefore, we reserve the right to make changes and improvements to any of the

products described in this guide without prior notice

www.LBAltimeters.com

WARNING

The

ALFA

is intended to be a backup device and must not be relied upon as your primary means of maintaining altitude awareness. Use the

ALFA

at your own risk

Altimeters may give erroneous readings if you are tumbling or the altimeter is in a burble (wake). Chest mount altimeters are more vulnerable to this problem

compared to hand/wrist mounted altimeters. If you are in doubt about how this limitation affects your skydiving, consult a licensed instructor

DO NOT use this equipment unless you are currently participating in, or have successfully passed, an approved skydiving course

Please read ALL instructions carefully prior to use

The

ALFA

must be switched

prior to entering the airplane

ALFA - Rev. 1.15 Page 2 of 18

CONTENTS

INTRODUCTION.................................................................................................................................................................................... 3!

Features......................................................................................................................................................................................... 3!

Functions ....................................................................................................................................................................................... 3!

DESCRIPTION ...................................................................................................................................................................................... 3!

DISPLAY ............................................................................................................................................................................................ 3!

Startup .......................................................................................................................................................................................... 3!

Main window................................................................................................................................................................................... 3!

Altitude window............................................................................................................................................................................... 4!

Logbook and Jump Info / Settings....................................................................................................................................................... 4!

Jump Profile ................................................................................................................................................................................... 4!

Battery Indicator ............................................................................................................................................................................. 4!

MENU OVERVIEW.................................................................................................................................................................................. 5!

Quick Buttons.................................................................................................................................................................................. 5!

Logbook and Jump Info..................................................................................................................................................................... 5!

Settings ......................................................................................................................................................................................... 5!

PERFORMING ACCESS............................................................................................................................................................................ 5!

Quick Buttons.................................................................................................................................................................................. 5!

Logbook and Jump Info..................................................................................................................................................................... 5!

Settings ......................................................................................................................................................................................... 5!

QUICK BUTTONS .................................................................................................................................................................................. 6!

Turn ON unit.................................................................................................................................................................................... 6!

Altitude Offset................................................................................................................................................................................. 6!

IR Mode ......................................................................................................................................................................................... 6!

Backlight ....................................................................................................................................................................................... 7!

LOGBOOK AND JUMP INFO ..................................................................................................................................................................... 8!

Daily Jump Counter .......................................................................................................................................................................... 8!

Total Jumps .................................................................................................................................................................................... 8!

Exit Altitude.................................................................................................................................................................................... 8!

Opening Altitude ............................................................................................................................................................................. 8!

Freefall Time ................................................................................................................................................................................... 8!

Average Freefall Speed...................................................................................................................................................................... 9!

Maximum Freefall Speed.................................................................................................................................................................... 9!

Altitude Profile - Last Jump................................................................................................................................................................ 9!

Speed Profile - Last Jump .................................................................................................................................................................. 9!

Exit Logbook and Jump Info ............................................................................................................................................................... 9!

SETTINGS ..........................................................................................................................................................................................10!

Year .............................................................................................................................................................................................10!

Date .............................................................................................................................................................................................10!

Time.............................................................................................................................................................................................10!

Jump Counter.................................................................................................................................................................................10!

Units - Altitude...............................................................................................................................................................................11!

Units - Speed .................................................................................................................................................................................11!

Dive Type.......................................................................................................................................................................................11!

Delete Last Jump ............................................................................................................................................................................11!

Delete Log Book..............................................................................................................................................................................11!

Turn OFF........................................................................................................................................................................................12!

Exit Settings ..................................................................................................................................................................................12!

FUNCTIONALITY ..................................................................................................................................................................................13!

Automatic Calibration / Flight Mode ...................................................................................................................................................13!

Altitute Offset ................................................................................................................................................................................13!

Manual Zeroing...............................................................................................................................................................................13!

Automatic OFF ................................................................................................................................................................................13!

MAINTENANCE....................................................................................................................................................................................14!

Reset ALFA.....................................................................................................................................................................................14!

Battery Change...............................................................................................................................................................................14!

Air Filter Change .............................................................................................................................................................................14!

Trouble Shooting ............................................................................................................................................................................14!

SPECIFICATIONS .................................................................................................................................................................................15!

WARRANTY ........................................................................................................................................................................................16!

WAIVER OF LIABILITY...........................................................................................................................................................................16!

QUICK START & ROAD MAP ....................................................................................................................................................................17!

ALFA - Rev. 1.15 Page 3 of 18

INTRODUCTION

The

ALFA

is the most high-end, accurate, and reliable visual digital altimeter to be developed by LB Altimeters to

date. The

ALFA

software includes second-to-none error correction to ensure correct live altitude readings in any

application

Features

- Large high contrast, non-flicker, LCD display

- Electroluminescent backlight for night jumping

- Waterproof and shock resistant aluminum casing with reinforced glass

- Quick buttons for access to primary functions

- Jump profile playback

- Basic logbook and daily jump counter

- IR access functionality, to use with optional AltiSet2 Remote Control

Functions

- Calibration to the local elevation

- User selection of feet / meter and mph / kmh

- Stores up to 10 min of data from last jump

- Log book stores up to 200 jumps including:

o Date / time

o Exit / opening altitudes

o Free fall time

o Max / average speed

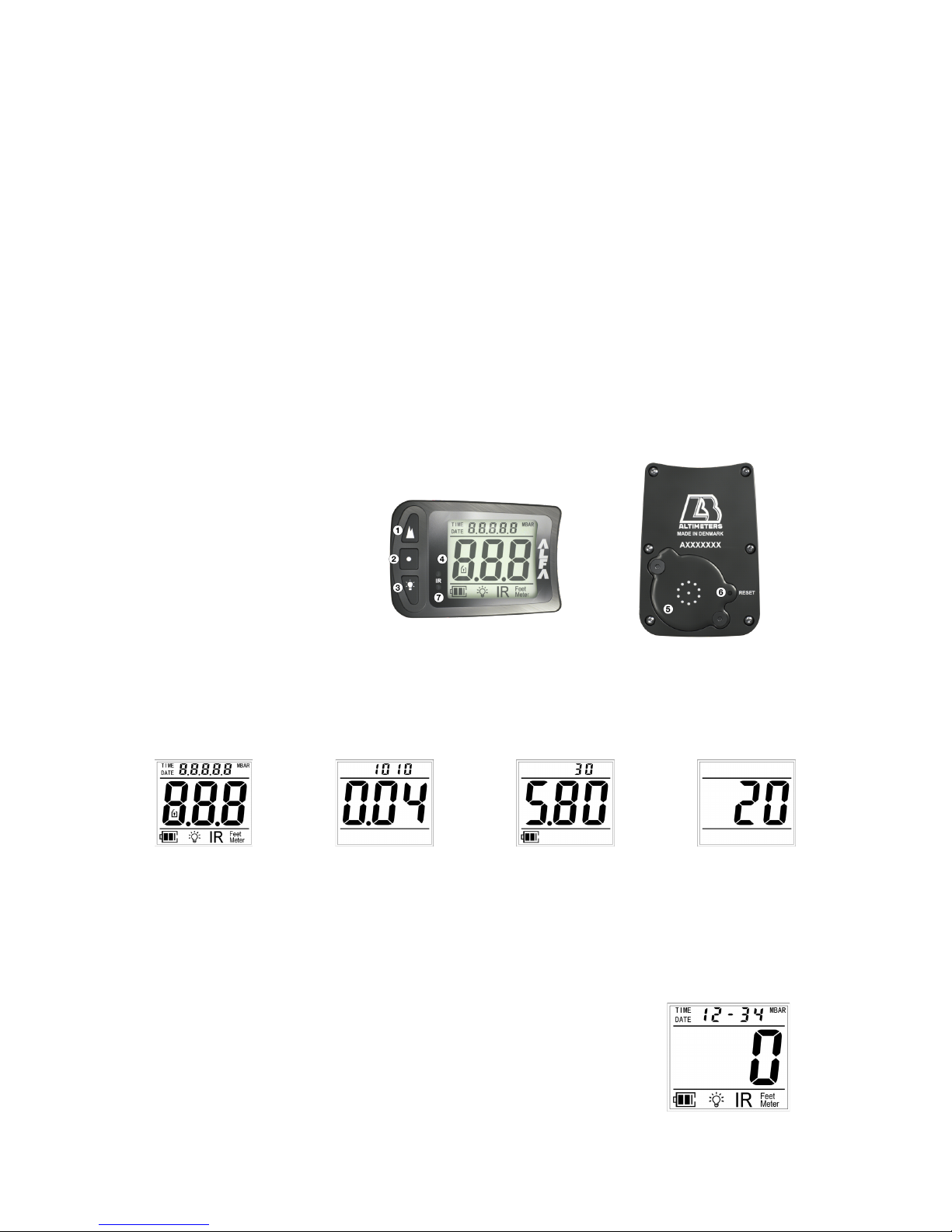

DESCRIPTION

1 Altitude Offset / Up

2 Main

3 Backlight / Down

4 Display

5 Battery cover

6 Reset button

7 IR port

DISPLAY

Startup

When turning ON ALFA, the unit will display the following during the startup self-test

Full display

Air pressure reading (mbar)

Firmware version

Temperature (Celsius)

Battery voltage (V)

Self-test control number

Main window

The main window is the default window after the unit is turned ON, and starting point for any further actions

1 Time/date indicator

2 Time/date display

3 mbar indicator

4 Altitude display (flashing when negative)

5 Battery indicator

6 Backlight indicator

7 IR Mode indicator

8 Feet / meter indicator

ALFA - Rev. 1.15 Page 4 of 18

Altitude window

Shortly after take-off, the main window will automatically display altitude readings

The displayed altitude increments (feet / meter) depend on the current altitude

0 - 990

Altitude display: Normal

Increments of 10 feet / 5 meters

1.000 – 9.990

Altitude display: 10s

Increments of 10 feet / 10 meters

10.000 and above

Altitude display: 100s

Increments of 100 feet / 100 meters

Logbook and Jump Info / Settings

Display examples, after performing ACCESS, are shown in the separate sections

Jump Profile

The jump profile window is used when playing back the last jump

1 Time display

2 Altitude display / Speed display

3 Feet/meter indicator

Battery Indicator

The battery indicator shows the current battery status

Full capacity:

Two black bars are shown inside the battery symbol

Half capacity:

One black bar is shown inside the battery symbol

Low capacity:

The battery symbol is empty. The batteries must be replaced as soon as possible

Empty:

The battery symbol is flashing. Do not continue jumping. Replace batteries immediately

Warning: Do not perform night jumps, or jumps in sub-zero temperatures (Celsius) when the battery symbol shows low capacity

ALFA - Rev. 1.15 Page 5 of 18

MENU OVERVIEW

The

ALFA

menu system consists of 3 separate areas, which include the following (use road map for reference)

Quick Buttons

Logbook and Jump Info

Settings

Turn ON unit

Altitude Offset

IR Mode

Backlight

Daily Jump Counter

Total Jumps

Exit Altitude

Opening Altitude

Freefall Time

Average Freefall Speed

Maximum Freefall Speed

Altitude Profile - Last Jump

Speed Profile - Last Jump

Year

Date

Time

Jump Counter

Units – Altitude

Units - Speed

Dive Type

Delete Last Jump

Delete Logbook

Turn OFF

PERFORMING ACCESS

In order to access each of the individual areas, the following steps must be performed from the main window (use road map for reference)

Quick Buttons

Press and hold the designated button for 5 seconds

Logbook and Jump Info

Press and release

Press

-------- hold button down-------

Release

Logbook and Jump

Info window

Settings

Perform ACCCESS to

Logbook and Jump Info

Press

--- hold for 5 seconds ---

Release

Settings

window

ALFA - Rev. 1.15 Page 6 of 18

QUICK BUTTONS

Q Quick Buttons are accessible from the Main Window and do not require ACCESS

Turn ON unit

Turn ON

ALFA

on the ground before use. The unit runs a self-test and calibrates to the current ground level

The

ALFA

will stay turned ON for 14 hours after the last jump or after last ACCESS performed

With the unit OFF, press and hold any button for 5 seconds

ALFA

is turned on during flight, the present altitude must be adjusted manually

Altitude Offset

Use Altitude Offset to adjust for altitude difference between landing zone and take-off elevation

To ensure proper ground reference on landing zone:

Select a positive altitude offset, if take-off elevation is HIGHER than the landing zone

Select a negative altitude offset, if take-off elevation is LOWER than the landing zone

Alternatively enter the absolute air pressure for the landing zone:

Select the mbar value registered/calculated for the landing zone

Press and hold for 5 seconds

Press to increase altitude/Mbar

Press to reduce altitude/Mbar

Press to confirm Altitude Offset setting

The Altitude Offset will now be displayed in the main window

(flashing when negative)

Altitude Offset must be confirmed within 15 seconds following an altitude change

Altitude Offset is cancelled if no button is pressed within 15 seconds

Note: If using Altitude Offset during flight either use the aircraft altimeter for reference, or enter the absolute air pressure for the landing zone

IR Mode

Activate/Deactivate IR Mode for communication with AltiSet2 remote control

Press and hold for 5 seconds

*IR Indicator* will flash and IR mode is active for 2 minutes

Activate IR Mode on AltiSet2

Point the AltiSet2 at the IR port

ALFA

adjusts to the AltiSet2 preset altitude and/or backlight

Press to exit IR mode

Note: Refer to the AltiSet2 manual for more information on using the AltiSet2 remote controls

ALFA - Rev. 1.15 Page 7 of 18

Backlight

Indicates if backlight is ON or OFF

Enable/disable backlight:

Press and hold for 5 seconds

The backlight intensity can be set in 10 steps after backlight is turned ON

Step 1 = lowest intensity, step 10 = highest intensity

Press to increase intensity

Press to decrease intensity

ALFA

stores the last setting

Press to continue

Backlight will turn OFF automatically after 30 seconds, if

ALFA

is not in Flight Mode

Backlight will remain ON while

ALFA

is in Flight Mode

ALFA - Rev. 1.15 Page 8 of 18

LOGBOOK AND JUMP INFO

Logbook and Jump Info contain detailed information regarding previous jumps

Perform

ACCESS

to enter the first entry of

Logbook and Jump info

Press to scroll through all the entries

ALFA

exits

Logbook and Jump info

if no button is pressed within 15 seconds

Daily Jump Counter

Displays daily jump counter for individual dates

Press to select later date(s)

Press to select earlier date(s)

Press to continue

Total Jumps

Displays total number of jumps

Select jump number to display more information

Press to select next jump

Press to select previous jump

Date and time for the selected jump is shown at the top of the screen

Press to continue

Exit Altitude

Displays exit altitude for selected jump

Press to select next jump

Press to select previous jump

Selected jump number is shown at the top of the screen

Press to continue

Opening Altitude

Displays opening altitude for selected jump

Press to select next jump

Press to select previous jump

Selected jump number is shown at the top of the screen

Press to continue

Freefall Time

Displays freefall time registered for selected jump

Press to select next jump

Press to select previous jump

Selected jump number is shown at the top of the screen

Press to continue

ALFA - Rev. 1.15 Page 9 of 18

Average Freefall Speed

Displays average speed for selected jump

Press to select next jump

Press to select previous jump

Selected jump number is shown at the top of the screen

Press to continue

Maximum Freefall Speed

Displays maximum speed for selected jump

Press to select next jump

Press to select previous jump

Selected jump number is shown at the top of the screen

Press to continue

Altitude Profile - Last Jump

Displays the altitude profile, at a given time, for the last jump

Press to scroll forward in time (seconds)

Press to scroll backwards in time (seconds)

Holding down either / will fast scroll

Time is shown at the top of the screen

Press to continue

Speed Profile - Last Jump

Displays the speed profile, at a given time, for last jump performed

Press to scroll forward in time (seconds)

Press to scroll back in time (seconds)

Holding down either / will fast scroll

Time is shown at the top of the screen

Press to continue

Note: Freefall time must be minimum 6 seconds to store a speed profile

Exit Logbook and Jump Info

is flashing

Allows manual exit from menu

Press or to exit from menu

Press to start from the beginning

ALFA - Rev. 1.15 Page 10 of 18

SETTINGS

Settings are used to customize the

ALFA

Perform

ACCESS

to enter the first entry of

Settings

Press to scroll through all settings

ALFA

will exit

Settings

if no button is pressed within 15 seconds

Year

Sets current year

Press to select next year

Press to select previous year

Year is displayed at the top of the screen

Press to continue

Date

Sets current date

Press to select next date

Press to select previous date

To change month:

Scroll DAY until reaching 31 or 1, then

ALFA

will scroll MONTH up/down

Press to continue

Time

Sets current time in 24-hour format

Press to add minutes/hours

Press to subtract minutes/hours

Holding down either / will fast scroll time

Press to continue

Jump Counter

Sets the current total number of jumps

Press to add jumps

Press to subtract jumps

Holding down either / will fast scroll

Press to continue

Autres manuels pour ALFA

Table des matières

Autres manuels LB Altimeters Instrument de mesure

LB Altimeters

LB Altimeters ARES II Manuel utilisateur

LB Altimeters

LB Altimeters ALFA Manuel utilisateur

LB Altimeters

LB Altimeters ARES II Manuel utilisateur

LB Altimeters

LB Altimeters ALFA-Q Manuel utilisateur

LB Altimeters

LB Altimeters ECHO Manuel utilisateur

LB Altimeters

LB Altimeters ARES II Manuel utilisateur

LB Altimeters

LB Altimeters ALTISET II Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 50 Caractéristiques techniques

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur
