LawnMaster GT1450 Manuel utilisateur

14” Corded Grass Trimmer GT1450

3084514

Read all safety rules and instructions carefully before operating this tool.

Distributed By Cleva North America 44 Parkway Commons Greer, SC 29650 (866)-384-8432

Veuillez lire attentivement toutes les règles et consignes de sécurité avant de faire fonctionner cet outil.

Distribué par Cleva North America 44 Parkway Commons Greer, SC 29650 (866)-384-8432

Coupe-herbe à cordon de 14 po

MNL_GT1450_V1

GB p. 2

FR p. 22

OPERATORS MANUAL / MANUEL D'UTILISATION

Contents

Product Specifications

General Safety Rules

3-5

ELECTRICAL INFORMATION 6-7

SYMBOLS 8

Know Your String Trimmer 9

Assembly 10-12

Operation 13-14

Maintenance 15-16

Troubleshooting

Warranty

Exploded View

Parts List

Notes

CONTENTS

SPECIFICATIONS

14” CORDED TRIMMER

Type Corded

Voltage

120 V~60Hz

Amp

5 A

Speed

8000 RPM

Line Size 0.065"

Cutting Swath 14”(355mm)

Weight 5.5 lbs (2.5 kg)

GENERAL SAFETY RULES

WARNING

READ ALL INSTRUCTIONS and SAVE THESE INSTRUCTIONS.

When using the grass trimmer the safety rules must be followed. For your own

safety and bystanders please read these instructions before operating the grass trimmer.

Do not use the grass trimmer without reading the instruction sheet. Please keep the

instructions safe for later use.

• This grass trimmer is designed for cutting grass, soft vegetation, and for edging.

• The device is not allowed to be used in public gardens, parks, sports centers or at roadsides as

well as in agriculture and forestry.

• This grass trimmer is not allowed to be used for cutting or chopping, otherwise, there is a risk of

injury.

- Hedges, shrubs and bushes,

- Flowers,

- In terms of composting.

• Never allow children or people unfamiliar with these instructions to use the trimmer.

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or

similarly qualified persons in order to avoid a hazard.

• Do not wear loose clothing or jewelry. They can be caught in moving parts. Use of gloves

and substantial footwear is recommended when working outdoors. Wear protective hair covering

to contain long hair.

• Stop using the grass trimmer while people, especially children, or pets are nearby.

• Only use the grass trimmer in daylight or good artificial light.

• Ground Fault Circuit Interrupter (GFCI) protection should be provided on the circuit(s) or outlet(s)

to be used for the gardening appliance. Receptacles are available having built-in GFCI protection

and may be used for this measure of safety.

• Before using the grass trimmer and after any impact, check for signs of wear or damage and

repair as necessary.

• Never operate the grass trimmer with damaged guards or without the guards in place.

• Keep hands and feet away from the cutting means at all times and especially when switching on

the motor.

GENERAL SAFETY RULES

• To reduce the risk of electric shock, use only with an extension cord intended for outdoor use,

such as an extension cord of cord type SW-A, SOW-A, STW-A, STOW-A, SJW-A, SJOW-A,

SJTW-A. or SJTOW-A.

•

Keep proper footing and balance at all times.

• Take care against injury from any device fitted for trimming the filament line length. After

extending new cutter line always return the grass trimmer to its normal operating position before

switching on.

• Never fit metal cutting elements.

• Never use replacement parts or accessories not provided or recommended by the manufacturer.

• Disconnect the grass trimmer from the outlet before checking, cleaning or working on the grass

trimmer and when it is not in use.

•

Only use identical replacement parts when servicing a tool with double insulation. Servicing

should be performed by a qualified technician.

•

Always ensure that ventilation openings are kept clear of debris.

• Avoid unintentional starting. Don't carry plugged-in appliance with finger on switch.

• Don't abuse cord. Never carry appliance by cord or yank it to disconnect from outlet.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR GRASS TRIMMER

• Do not expose to moisture.

• Use only on AC outlets supply voltage shown on the product rating label.

•

Avoid operating your trimmer in wet grass, where feasible.

• Don't use in rain.

• On slopes, be extra careful of your footing and wear nonslip footwear.

• Do not walk backwards when trimming, you could trip. Walk, never run.

• Switch off before pushing the trimmer over surfaces other than grass.

• Never pick up or carry a trimmer by the cord.

• Do not lean over the trimmer guard objects may be throw by the cutting line.

• Keep all nuts, bolts and screws tight to be sure the trimmer is in safe working condition.

• To avoid the risk of injury keep fingers and hands clear of the line cutter on the leading edge of

the guard.

WARNING

GENERAL SAFETY RULES

MAINTENANCE

• After use, disconnect the machine from the outlet and check for damage

• When not in use, appliances should be stored indoors in dry, and high or locked-up place – out

of reach of children.

• Corded powered trimmers should only be repaired by an authorized technician.

• Use only manufacturers recommended replacement parts and accessories.

The preparation for use, operation and maintenance of the appliance:

- Keep cutting edge sharp and clean for best performance and to reduce the risk of injury. Follow

instructions for lubricating and changing accessories. Inspect appliance cord periodically, and if

damaged, have it repaired by an authorized service facility. Inspect extension cords periodically

and replace if damaged. Keep handles dry, clean, and free from oil and grease.

- Read the instructions carefully.

- Be familiar with the controls and proper use of the equipment.

- Before use check the supply and extension cord for signs of damage or aging.

- If the cord becomes damaged during use, disconnect the cord from the power supply

immediately.

- Do not use the lawn trimmer (edge trimmer), if the cords are damaged or worn.

- Cutting elements continue to rotate after the motor is switched off;

- Keep extension cords away from cutting elements;

WARNING

ELECTRICAL INFORMATION

DOUBLE INSULATED

TO AVOID ELECTRICAL HAZARDS, FIRE HAZARDS, OR DAMAGE TO THE

TOOL, USE PROPER CIRCUIT PROTECTION. YOUR GRASS TRIMMER IS

WIRED AT THE FACTROY FOR 120 V OPERATION. CONNECT TO A 120 V,

15 A CIRCUIT, AND USE A 15 A TIME-DELAYED FUSE OR CIRCUIT

BIREAKER. TO AVOID SHOCK OR FIRE, IF THE EXTENSION CORD IS

WORN, CUT OR DAMAGED IN ANY WAY, REPLACE IT IMMEDIATELY.

This grass trimmer has a plug that looks like the one shown in Fig. 1

The grass trimmer is double insulated to provide a double thickness of insulation between you and

the tool’s electrical system. All exposed metal parts are isolated from the internal metal motor

components with protective insulation.

USE ONLY IDENTIFICAL REPLACEMENT PARTS WHEN SERVICING THE

GRASS TRIMMER, TO AVOID INJURY.

WARNING

DOUBLE INSULATION DOES NOT TAKE THE PLACE OF NORMAL SAFETY

PRECAUTIONS WHEN OPERATING THIS GRASS TRIMMER

Fig. 1

CAUTION

ALWAYS MAKE SURE THAT YOUR OUTLET IS PROPERLY GROUNDED.

IF UNCERTAIN, HAVE IT CHECKED BY A CERTIFIED ELECTRICIAN.

WARNING

THIS GRASS TRIMMER IS FOR OUTDOOR USE ONLY. DO NOT EXPOSE

TO RAIN OR USE IN DAMP LOCATIONS.

ELECTRICAL INFORMATION

Make sure your extension cord is properly wired and in good electrical condition. Always replace a

damaged extension cord or have it repaired by a qualified person before use. Keep extension cords

away from sharp objects, excessive heat and damp or wet areas.

GUIDELINES FOR USING EXTENSION CORDS

USE THE PROPER EXTENSION CORD. Make sure your extension cord is in good condition.

When using an extension cord, be sure to use one heavy enough to carry the current your product

will draw. An undersized cord will cause overheating. The table below shows the correct size to use

depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge.

The smaller the gauge number, the heavier the cord.

Minimum Gauge for Extension Cords (AWG)

(when using 120 V only)

Ampere Rating

More Than

Not More Than

25’ (7.6 m)

50’ (15 m)

100’ (30.4 m)

Not Recommended

150’ (45.7 m)

Total Length of Cord in Feet (meters)

WARNING

SAVE THESE INSTRUCTIONS.

ALTHOUGH THIS GRASS TRIMMER IS DOUBLE INSULATED, THE

EXTENSION CORD AND RECEPTACLE MUST STILL BE GROUNDED

WHILE IN USE TO PROTECT THE OPERATOR FROM ELECTRICAL SHOCK.

Use a separate electrical circuit for your tools. This circuit should comprise a wire of at least 12

gauge and should be protected with a 15 A time-delayed fuse. Before connecting the motor to the

power line, make sure the switch is in the OFF position and the electric current is identical to that

stamped on the motor nameplate. Running at a lower voltage will damage the motor.

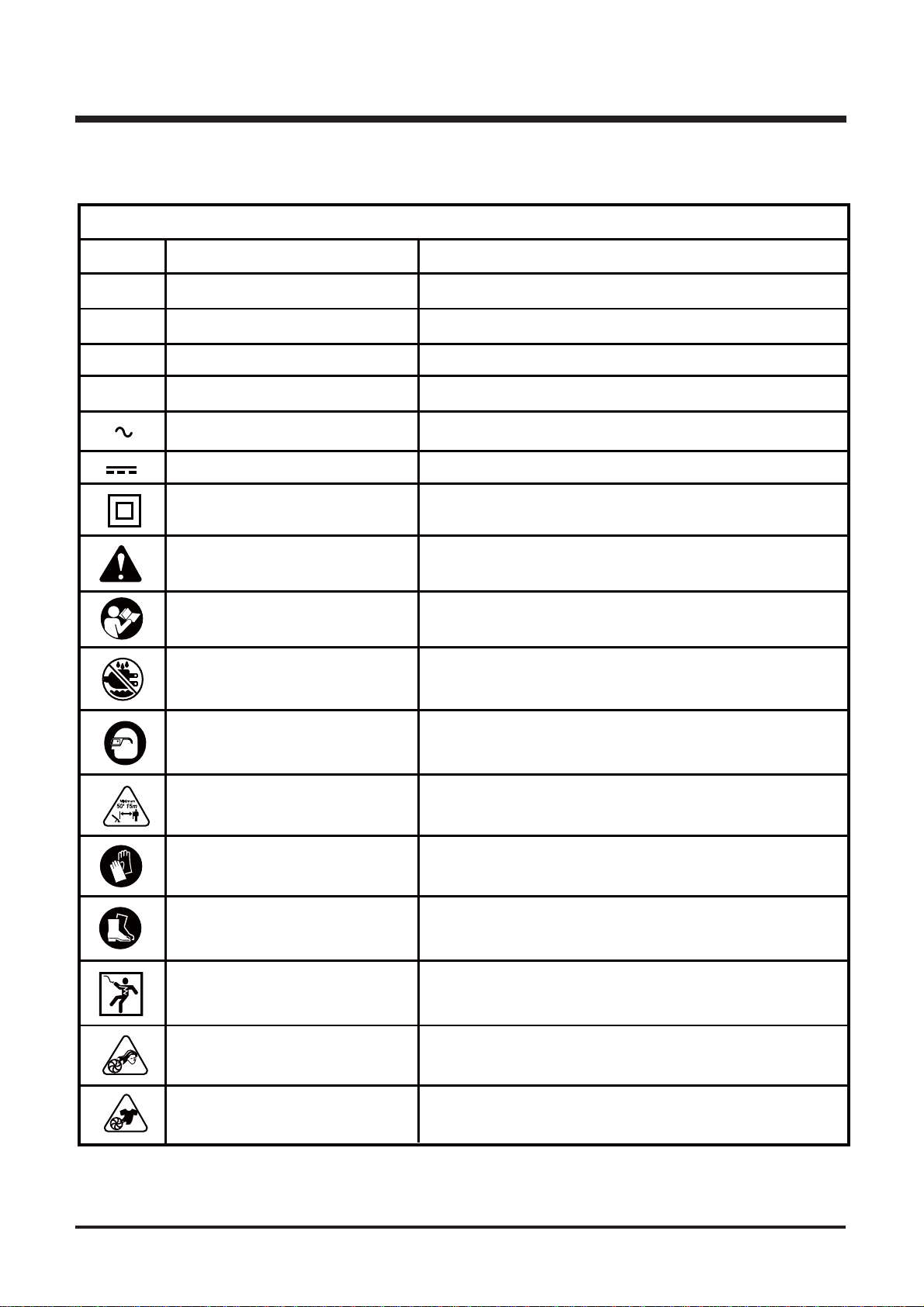

SYMBOLS

Some of the following symbols may be used on this product. Please study them and learn their meaning.

Proper interpretation of these symbols will allow you to operate the product better and safer.

SYMBOL NAME DESIGNATION/EXPLANATION

V Volts Voltage

A Amperes Current

Hz Hertz Frequency (cycles per second)

W Watts Power

min Minutes Time

Alternating Current Type of current

Direct Current Type or a characteristic of current

Class II Construction Double-insulated construction

Safety Alert Symbol Indicates a potential personal injury hazard.

Read The Operator’s Manual

To reduce the risk of injury user must read and

understand operator’s manual before using this product.

Wet Conditions Alert Do not expose to rain or use in damp locations

Eye and Hearing Protection

Always wear eye protection with side shields marked

to comply with ANSI Z87.1, along with hearing protection.

Long Hair Failure to keep long hair away from the air inlet

could result in personal injury.

Loose Clothing Failure to keep loose clothing from being drawn

into air intake could result in personal injury.

Keep Bystanders Away

Gloves Wear non-slip, heavy-duty protective gloves when

handling the grass trimmer.

Safety Footwear Wear non-slip safety footwear when using this equipment.

Electric Shock Failure to use in dry conditions and to observe safe

practices can result in electric shock.

Keep all bystanders at least 50 ft. away.

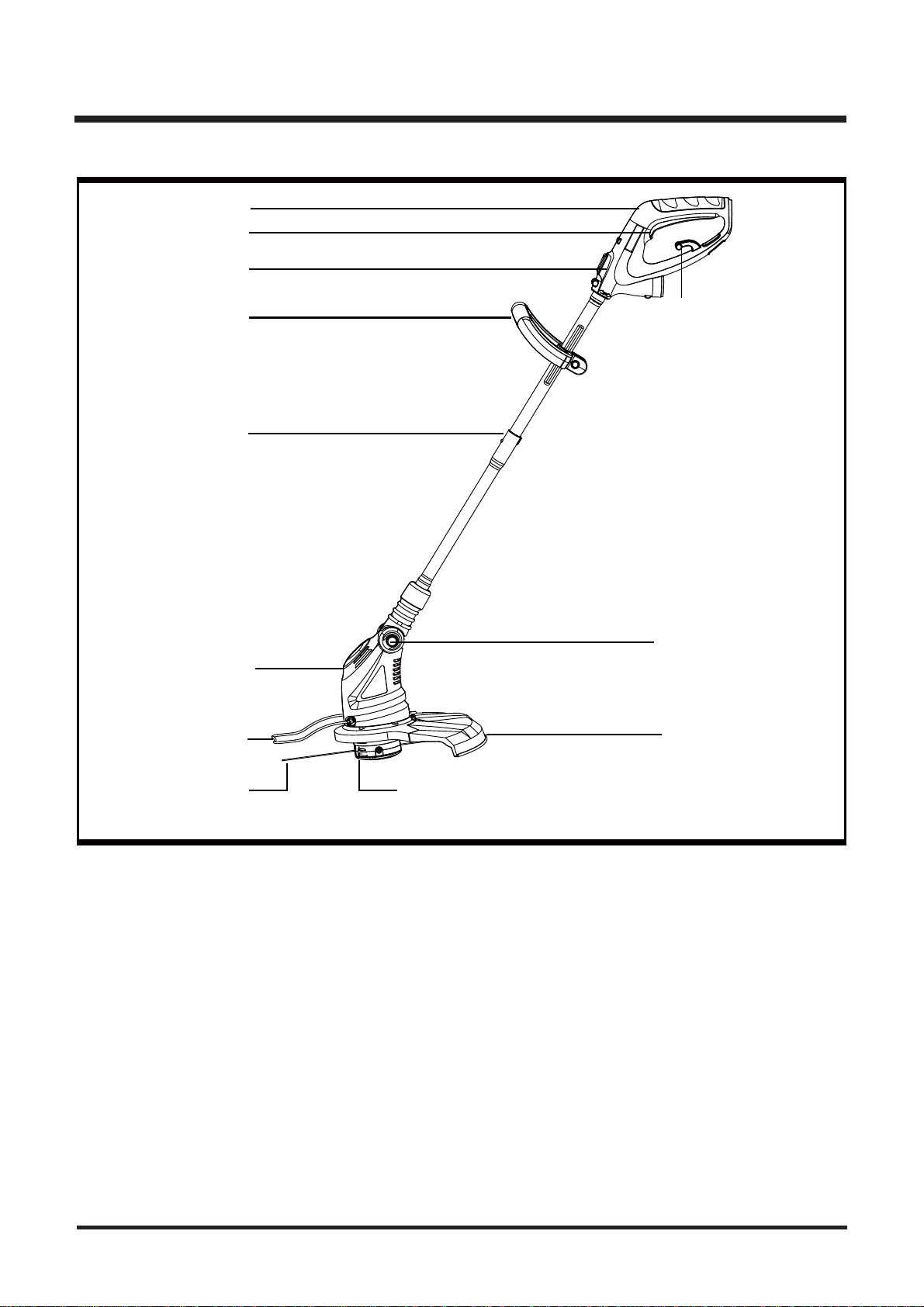

KNOW YOUR STRING TRIMMER

KNOW YOUR STRING TRIMMER (See Figure 1.)

The safe use of this product requires an understanding of the information on the product and in this

operator’s manual as well as a knowledge of the project you are attempting. Before use of this

product, familiarize yourself with all operating features and safety rules.

Fig.1

Line Spool

Flower Guard

Motor Housing

Connection Point

Lock Pin

Auxiliary Handle

ON/OFF Switch

Rotate to Edge

Button

Upper Handle

Trimming Line

Debris Guard

Pivoting Head Button

Cord Retainer Hook

WARNING

ASSEMBLY

FITTING THE GUARD (See Figure 2 & Figure 3.)

ASSEMBLE THE FLOWER GUARD (See Figure 4 & Figure 5.)

Before assembly, make sure that the grass trimmer is switched off and

unplugged.

1. Place the guard onto the grass trimmer as shown in Figure 2 and rotate the guard in position

in Figure 3.

2. Secure the guard with the screw.

1. Pull the flower guard wide enough to extend wide enough to fit over the moter housing.

2. Put both ends of the steel bar into the recessed cavities on the motor housing.

Never use the grass trimmer unless the guard is properly fitted.

Fig. 2

Fig. 4 Fig. 5

Fig. 3

Autres manuels pour GT1450

Table des matières

Langues :

Autres manuels LawnMaster Tondeuse

LawnMaster

LawnMaster NPTGSP2617A Manuel utilisateur

LawnMaster

LawnMaster NPTGSP2517A Manuel utilisateur

LawnMaster

LawnMaster GT1313 Manuel utilisateur

LawnMaster

LawnMaster CLHT2452-01 Manuel utilisateur

LawnMaster

LawnMaster GT1454 Manuel utilisateur

LawnMaster

LawnMaster LB4060001S Manuel utilisateur

LawnMaster

LawnMaster CLHT2452D Manuel utilisateur

LawnMaster

LawnMaster HT2001 Manuel utilisateur

LawnMaster

LawnMaster GT1450 Manuel utilisateur

LawnMaster

LawnMaster CLHT2218B Manuel utilisateur

LawnMaster

LawnMaster GT1018S Manuel utilisateur

LawnMaster

LawnMaster CLGT2425S Manuel utilisateur

LawnMaster

LawnMaster NPTGSP2617A Manuel utilisateur

LawnMaster

LawnMaster NPTGSS2617A Manuel utilisateur

LawnMaster

LawnMaster GT1415 Manuel utilisateur

LawnMaster

LawnMaster CLHT2218B01 Manuel utilisateur

LawnMaster

LawnMaster CLGT4012K Manuel utilisateur

LawnMaster

LawnMaster CLGT6014A Manuel utilisateur

LawnMaster

LawnMaster LML261 Manuel d'installation

LawnMaster

LawnMaster CLHT2422 Manuel utilisateur

LawnMaster

LawnMaster CLGT2425 Guide de démarrage rapide

LawnMaster

LawnMaster GT1454 Manuel utilisateur

LawnMaster

LawnMaster NPTGSP2517A Manuel utilisateur

LawnMaster

LawnMaster NPTGCP2617A Manuel utilisateur

Manuels Tondeuse populaires d'autres marques

MTD

MTD HT 51 E Manuel utilisateur

McCulloch

McCulloch T22 LS Manuel utilisateur

COCKRAFT

COCKRAFT PRO HL36-S Manuel utilisateur

Grizzly

Grizzly CT 1800 Li Manuel utilisateur

Peco

Peco Z Trimmer ZT-3000 Manuel utilisateur

Solo

Solo 116 Manuel utilisateur

Stiga

Stiga ST 1200 Manuel utilisateur

Echo

Echo GT-225 - 10-09 Manuel utilisateur

RedMax

RedMax BT17 Manuel utilisateur

GreenWorks

GreenWorks STA806 Manuel utilisateur

Parkside

Parkside PHSL 900 A3 Manuel utilisateur

Gardeo

Gardeo PRO GPTHT2560 Manuel utilisateur

Park

Park DT-810870 Manuel utilisateur

Worx

Worx WG209 Manuel utilisateur

Gardenline

Gardenline 43671/HTKS26 Manuel utilisateur

Makita

Makita 3710 Manuel utilisateur

Champion

Champion 100683 Manuel utilisateur

Stihl

Stihl FS 311 Manuel utilisateur
