User Guide for ShortCam II
一、 Product Overview and Features
（1）Product Overview
ShortCam II is the industry's innovative infrared thermal imaging folding rapid diagnosis
instrument for motherboard maintenance. It has a 256*192 high-definition thermal imaging
sensor and a 4MP high-definition visual camera. It is equipped with a Type-C interface, plug-
and-play with the software installed, making the operation more convenient. Through the
intelligent dual-spectral positioning algorithm, it can display the temperature data of the
detected motherboard chips, resistors, capacitors and other components in real time on the
software interface, and diagnose the operating status of the motherboard through the
temperature data.
The software can realize “One-click quick check” of current leakage, and locate the fault in
PCB promptly. By comparison and analysis of normal and faulty PCB, the software can
quickly find out where the problem is, and realize a great efficiency improvement to PCB
maintenance service.
（2）Product Features
The industry's innovative "One-click quick check" function, and instant fault locating to
greatly reduce clients’waiting time and improve your store operating efficiency;
Accurate fault screening to professionally eliminate minor current leakage and short
circuit faults, and greatly reduce the probability of fault misjudgment;
Plug-and-play environment-friendly process instead of using the traditional rosin
screening means, the influence of lead and other toxic compounds on personal health will
no longer exist;
Simplified cleaning process and no rosin, so no PCB cleaning needed after maintenance.
（3）Product Specifications
Specifications of Infrared Thermal Imaging Camera
Specifications of Visual Camera
Interface & Display Function

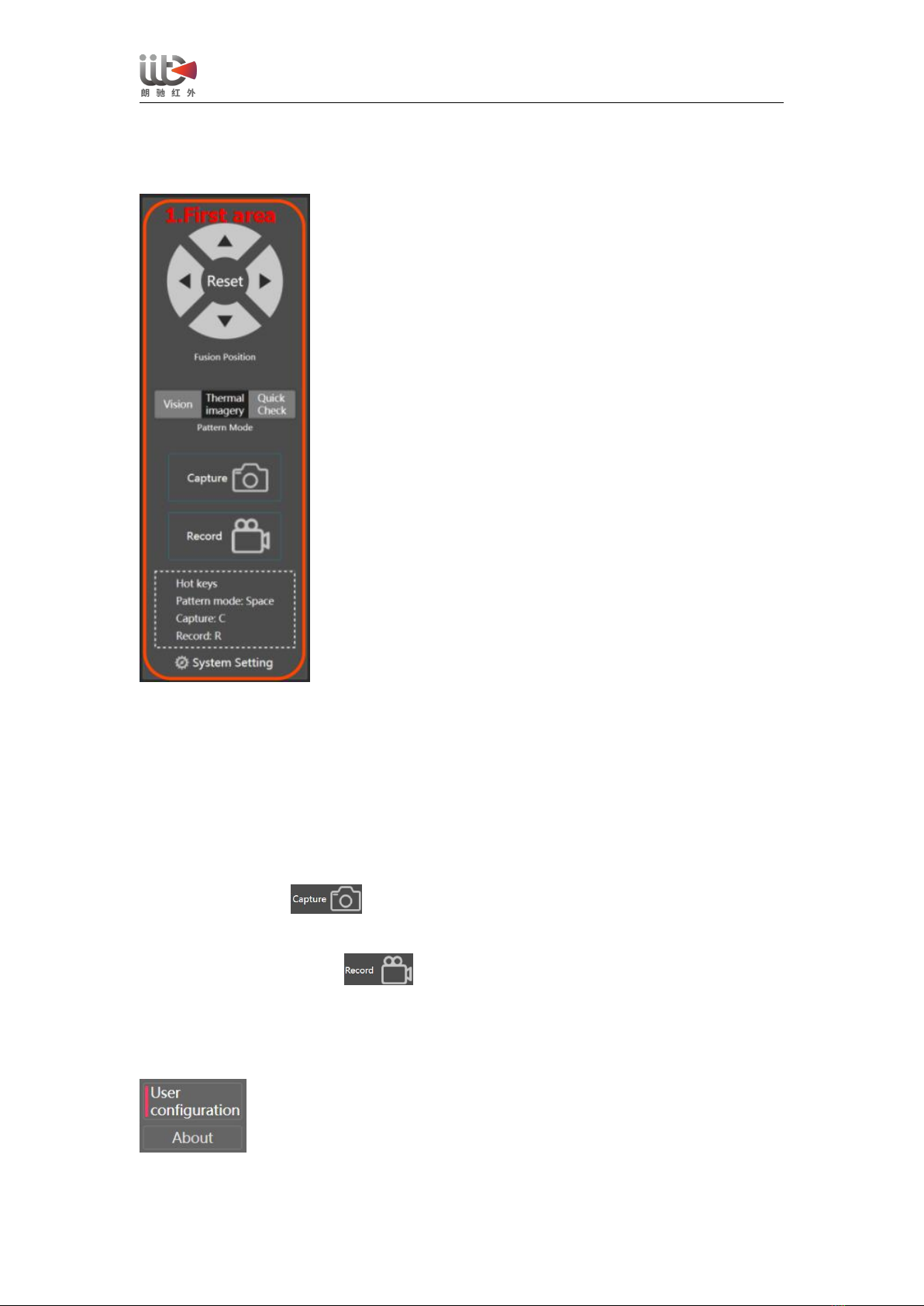

Vision/Thermal Imagery/Quick Check
