LAUNCH X-431Diagun User's Manual

of this publication may be reproduced, stored in a retrieval system, or

transmitted in any form or by any means, electronic, mechanical,

photocopying, recording or otherwise, without the prior written permission of

LAUNCH. The information contained herein is designed only for the use of

this unit. LAUNCH is not responsible for any use of this information as

applied to other units.

Neither LAUNCH nor its affiliates shall be liable to the purchaser of this unit

or third parties for damages, losses, costs, or expenses incurred by

purchaser or third parties as a result of: accident, misuse, or abuse of this

unit, or unauthorized modifications, repairs, or alterations to this unit, or

failure to strictly comply with LAUNCH operating and maintenance

instructions. LAUNCH shall not be liable for any damages or problems

arising from the use of any options or any consumable products other than

those designated as Original LAUNCH Products or LAUNCH Approved

Products by LAUNCH.

Trademark Information

LAUNCH is a registered trademark of LAUNCH TECH CO., LTD. (also

called LAUNCH for short) in China and other countries. All other LAUNCH

trademarks, service marks, domain names, logos, and company names

referred to in this manual are either trademarks, registered trademarks,

service marks, domain names, logos, company names of or are otherwise

the property of LAUNCH or its affiliates. In countries where any of the

LAUNCH trademarks, service marks, domain names, logos and company

names are not registered, LAUNCH claims other rights associated with

unregistered trademarks, service marks, domain names, logos, and

company names. Other products or company names referred to in this

manual may be trademarks of their respective owners. You may not use any

trademark, service mark, domain name, logo, or company name of LAUNCH

or any third party without permission from the owner of the applicable

trademark, service mark, domain name, logo, or company name. You may

LAUNCH X-431Diagun User's Manual

contact LAUNCH by visiting Launch at www.cnlaunch.com, or writing to

LAUNCH TECH. CO., LTD.，Launch Industrial Park, North of Wuhe Avenue,

Banxuegang, Bantian, Longgang, Shenzhen, Guangdong，P.R.China, to

request written permission to use Materials on this manual for purposes or

for all other questions relating to this manual.

General Notice

zOther product names used herein are for identification purposes only

and may be trademarks of their respective owners. LAUNCH

disclaims any and all rights in those marks.

zThere is a possibility that this unit is inapplicable to some of the

vehicle models or systems listed in the diagnostic section due to

different countries, areas, and/or years. Do not hesitate to contact

LAUNCH if you come across such questions. We are to help you

solve the problem as soon as possible

LAUNCH X-431Diagun User's Manual

iii

Contents

1 Introduction ..............................................................................1

2 X-431Diagun.............................................................................2

2.1 X-431Diagun Component Descriptions ..................................2

2.2 Port and Indicator Descriptions ............................................2

2.3 X-431Diagun General Components ......................................3

2.4 X-431Diagun Specifications ................................................6

2.5 X-431Diagun Start............................................................7

2.5.1 Power on ..............................................................7

2.5.2 Calibrate Touch Screen ............................................8

2.5.3 Taskbar ................................................................9

2.6 Charge ........................................................................10

2.6.1 Description of the Power Indicator State.....................10

2.6.2 Description of the Battery State................................10

3 Use X-431Diagun to Diagnose vehicle ..........................................13

3.1 Automotive Diagnosis Preparation and Connection.................13

3.1.1 X-431Diagun preparations ......................................13

3.1.2 TF Card Installation...............................................13

3.1.3 Connect X-431Diagun............................................14

3.2 Begin to Diagnose Vehicle................................................16

3.2.1 Diagnostic Program...............................................17

3.3 How to Diagnose............................................................19

3.3.1 Read Fault Code ..................................................20

3.3.2 Erase Fault Code..................................................22

3.3.3 Read Datastream .................................................23

3.3.4 Actuation Test ......................................................25

3.3.5 Driving Record Administration..................................27

3.5 How to diagnose two cars at the same time ..........................29

LAUNCH X-431Diagun User's Manual

3.5.1 Read the datastream of the first car...........................29

3.5.2 Read the datastream of the sencod car......................32

3.5.3 Comparison and Analysis of Datastream ....................34

4 Update of Diagnostic Software ....................................................35

4.1 User Registration ...........................................................35

4.2 Member Login ...............................................................38

4.3 Software Download.........................................................39

4.4 Software Update ............................................................42

4.4.1 Direct Update.......................................................42

4.4.2 Indirect Update.....................................................45

4.5 Software Purchase and Update .........................................47

5 FAQ......................................................................................50

LAUNCH X-431Diagun User's Manual

1 Introduction

X-431Diagun is a newly developed wireless diagnostic computer with full

color display screen. It is a product integrated with automotive electronic

technology application and information network technology. "Portable

Vehicle Fault Diagnosis Technology" is an advanced vehicle diagnosis

technology first created and advocated by Launch and represents the

highest level of vehicle diagnosis technology in the world. This is also the

development trend and the best solution of this field in the future.

X-431Diagun can test almost all the domestic cars and the imported ones

from Asia, Europe and America. X-431Diagun diagnoses two cars at the

same time, compares and analyzes the data to find the fault. Its features are

high quality test, upgrading fast any where at any time and synchronized

with the newest international models. Compared with other products, it has

high quality and performance. The printer, connected with X-431Diagun

through USB port, prints the diagnosis result in real time and the TF card

with large capacity stores the diagnosis result. Compared with other

diagnostic tools, it has better quality and performance. X-431Diagun has an

external printer to print the diagnostic result through a standard USB port.

And its TF card with large capacity can store the diagnostic result in real

time. Its features are smart design, portable, full color touch screen, easy to

operate, supporting multiple languages and wide-range use. Also wireless

connection and data communication are realized by Bluetooth and easy to

operate.

LAUNCH X-431Diagun User's Manual

2 X-431Diagun

2.1 X-431Diagun Component Descriptions

X-431Diagun includes: X-431Diagun main unit and X-431Diagun connector.

The communication between X-431Diagun main unit and X-431Diagun

connector is through wireless Blue Tooth (also supports wire connection).

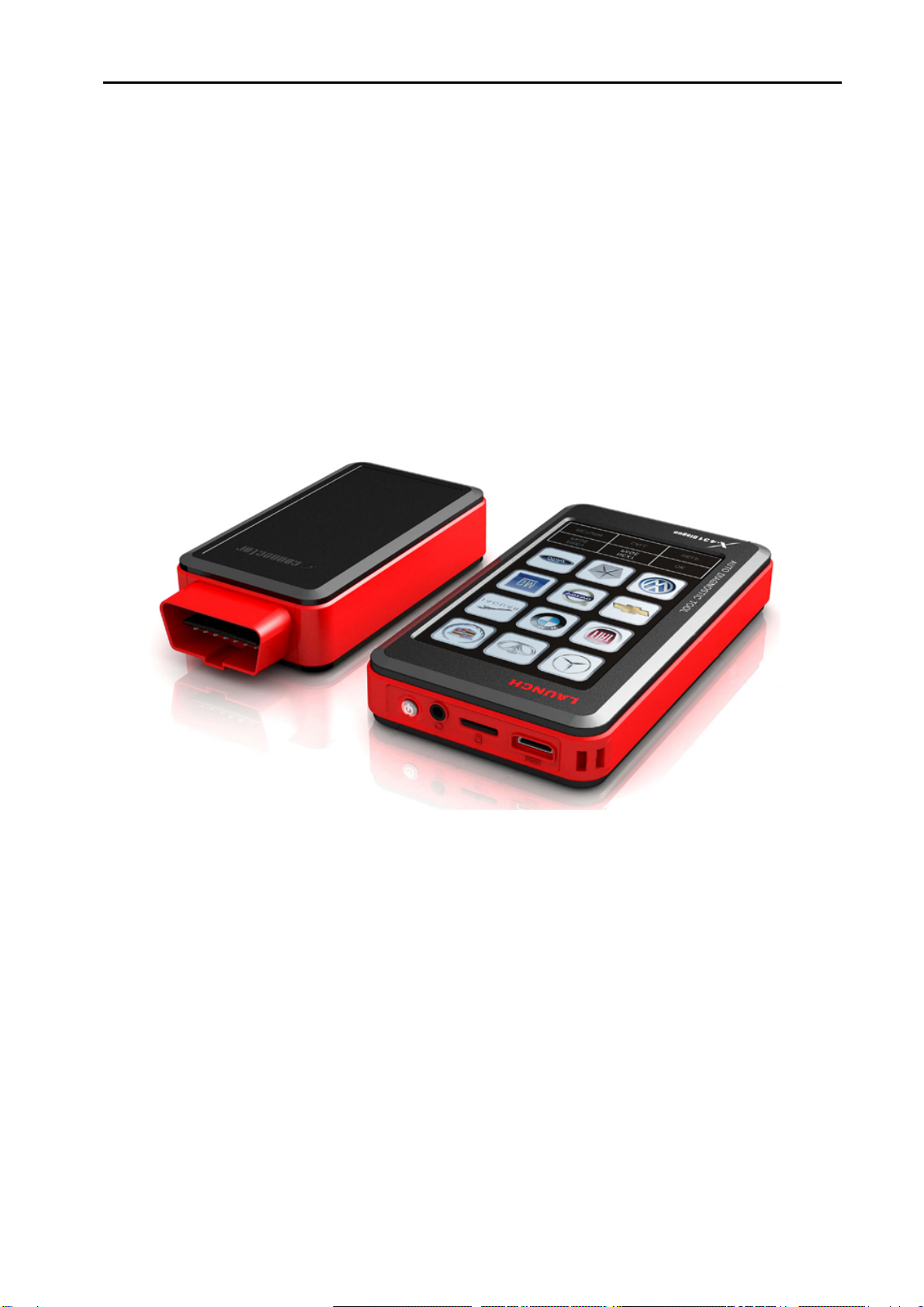

Figure 2-1X-431Diagun Front View

2.2 Port and Indicator Descriptions

Figure 2-3 is for each port and indicator of X-431Diagun:

LAUNCH X-431Diagun User's Manual

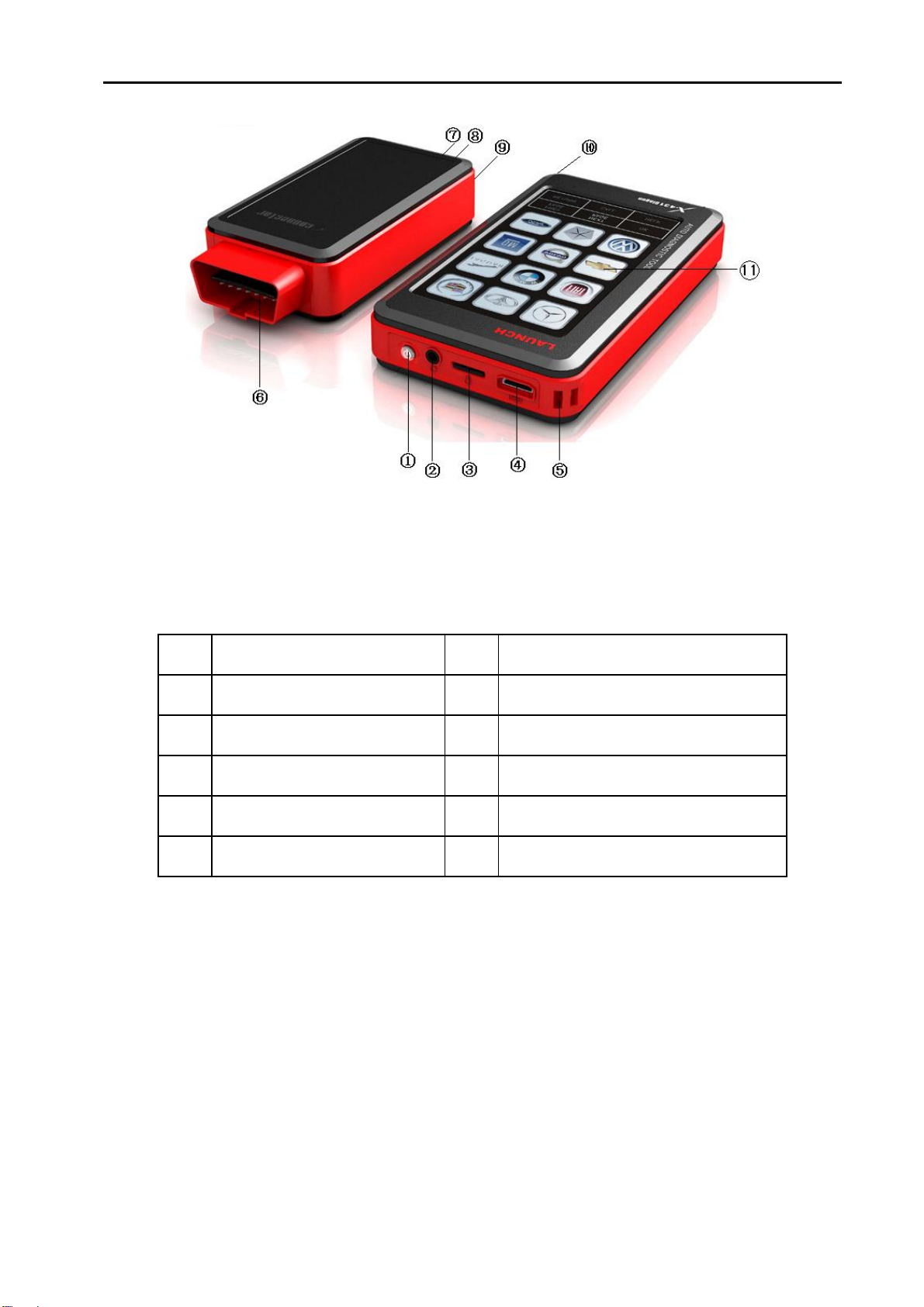

Figure 2-3 X-431Diagun main unit port and indicator

Diagram 2-1 X-431Diagun port and indicator descriptions

①Power ②

Earphone Hole

③TF card slot ④

Diagnostic Interface & USB

⑤Lanyard ⑥

Diagnostic Connector

⑦Blue tooth LED (blue)

⑧

Power LED (red)

⑨USB ⑩

Stylus

○11 Touch screen

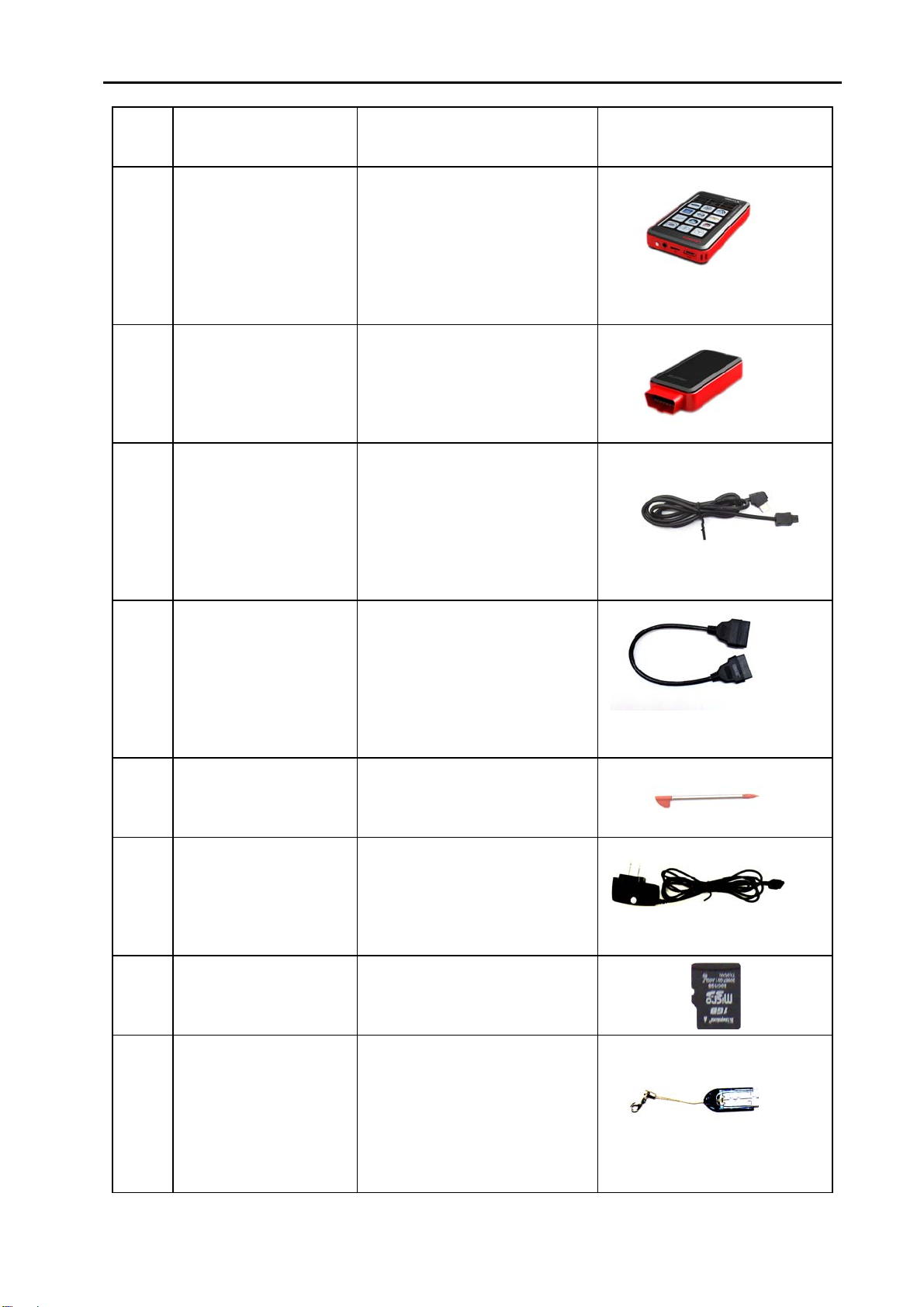

2.3 X-431Diagun General Components

Diagram 2-2 is for each component.

LAUNCH X-431Diagun User's Manual

No. Name Description Picture

1 X-431Diagun

main unit

Main unit screen

contains operation

buttons, test result

and help.

2 X-431Diagun

connector

Diagnostic box with

OBDⅡ-16

3 X-431Diagun

main unit

diagnostic cable

to connect

X-431Diagun main

unit and X-431Diagun

connector

4 Diagnostic

adaptor

to connect

X-431Diagun

connector and 16PIN

extension cable

5 Stylus for click operation of

X-431Diagun

6 Battery Charger to transform

100-240V AC to 5V

7 TF card to store diagnostic

program and data

8 TF card reader to read and store data

from TF card through

PC, used to upgrade

on the network

LAUNCH X-431Diagun User's Manual

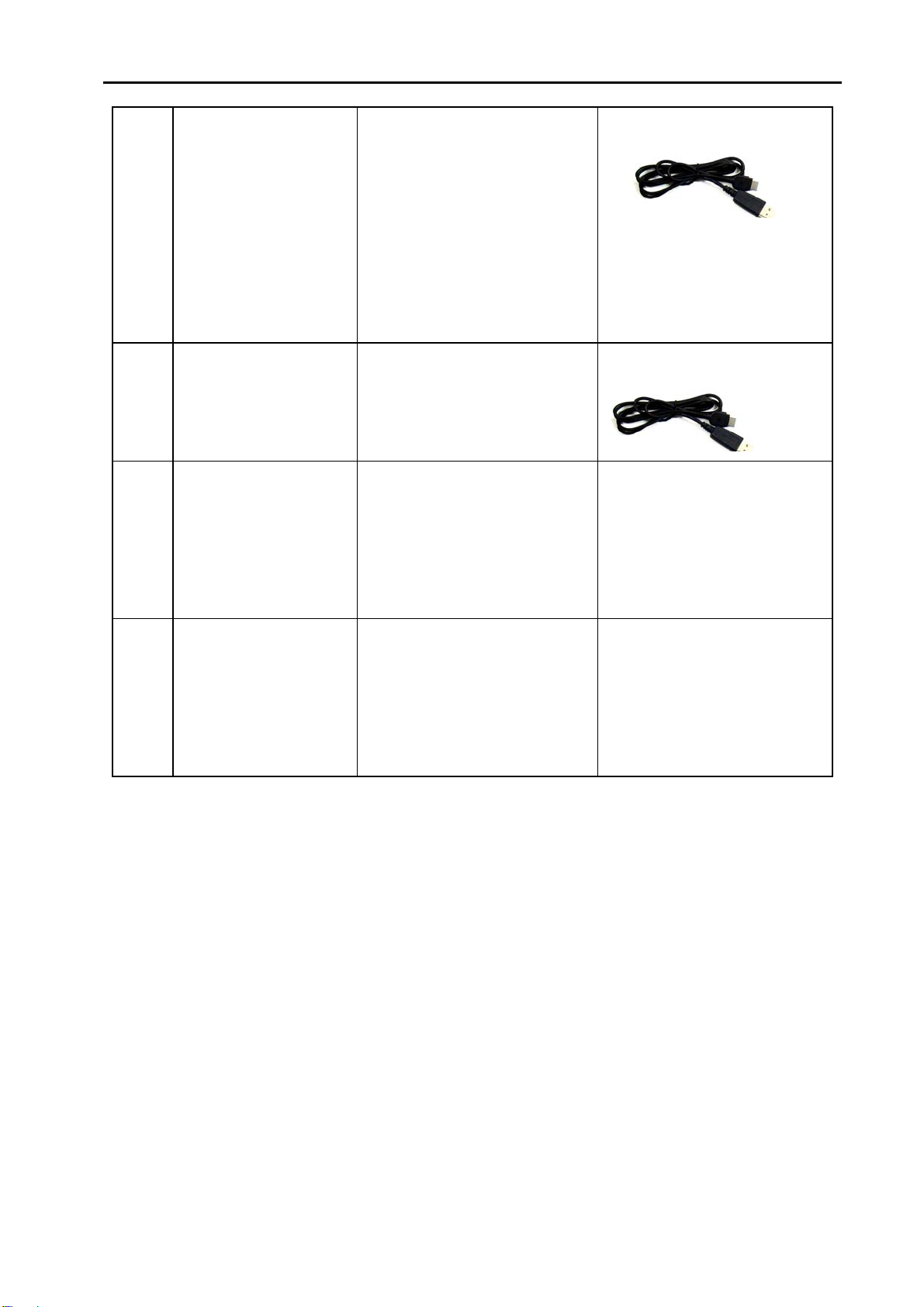

9 USB cable to connect

X-431Diagun main

unit and PC, used to

upgrade on the

network with wire

connection

10 Printer cable to connect the

X-431Diagun main

unit and the printer

11 Haversack to place X-431Diagun

main unit and

X-431Diagun

connector, etc.

(Optional)

12 non-16PIN

diagnostic

connector

(Several)

for diagnostic

connector of special

model (Optional)

(Optional)

LAUNCH X-431Diagun User's Manual

2.4 X-431Diagun Specifications

Operating System: WIN CE 5.0

CPU: 400 MHz ARM9

Memory Card: 1G TF

Main Unit: Universal Serial Bus/USB

Main Unit Power: DC5V

Printer Interface: USB

Display Screen: 480X272, 4.3-inch LCD with touch

Rechargeable Battery: 1530 mAh

Bluetooth: theoretically 100m, actually 15-20m

Upgrading Interface: USB

In addition, it also supports wire communication method and external

memory extension.
