Launch Creader Professional 129i Manuel utilisateur

Creader Professional 129i, Creader Professional 123i, Creader

Professional 233, Creader Professional 239, Millennium Master,

Creader Professional 129 EVO, Creader Professional 123X,

Creader Professional 129X

LAUNCH User Manual

this publication may be reproduced, stored in a retrieval system, or transmitted in

any form or by any means, electronic, mechanical, photocopying and recording

or otherwise, without the prior written permission of LAUNCH. The information

contained herein is designed only for the use of this unit. LAUNCH is not

responsible for any use of this information as applied to other units.

^ƚĂƚĞŵĞŶƚ>hE,ŽǁŶƐƚŚĞĐŽŵƉůĞƚĞŝŶƚĞůůĞĐƚƵĂůƉƌŽƉĞƌƚǇƌŝŐŚƚƐĨŽƌƚŚĞƐŽŌǁĂƌĞƵƐĞĚďǇ

ƚŚŝƐƉƌŽĚƵĐƚ&ŽƌĂŶǇƌĞǀĞƌƐĞĞŶŐŝŶĞĞƌŝŶŐŽƌĐƌĂĐŬŝŶŐĂĐƟŽŶƐĂŐĂŝŶƐƚƚŚĞƐŽŌǁĂƌĞ>hE,

ǁŝůůďůŽĐŬƚŚĞƵƐĞŽĨƚŚŝƐƉƌŽĚƵĐƚĂŶĚƌĞƐĞƌǀĞƚŚĞƌŝŐŚƚƚŽƉƵƌƐƵĞƚŚĞŝƌůĞŐĂůůŝĂďŝůŝƟĞƐ

Trademark Information

LAUNCH is a registered trademark of LAUNCH TECH CO., LTD. (also called

LAUNCH for short) in China and other countries. All other LAUNCH trademarks,

service marks, domain names, logos, and company names referred to in this

manual are either trademarks, registered trademarks, service marks, domain

names, logos, company names of or are otherwise the property of LAUNCH or

its af¿liates. ,n countries where any of the LAUNCH trademarks, service marks,

domain names, logos and company names are not registered, LAUNCH claims

other rights associated with unregistered trademarks, service marks, domain

names, logos, and company names. Other products or company names referred

to in this manual may be trademarks of their respective owners. You may not use

any trademark, service mark, domain name, logo, or company name of LAUNCH

or any third party without permission from the owner of the applicable trademark,

service mark, domain name, logo, or company name. You may contact LAUNCH

by visiting the website at www.cnlaunch.com, or writing to LAUNCH TECH. CO.,

LTD., Launch ,ndustrial 3ark, North of :uhe Avenue, %an[uegang, %antian,

Longgang, 6hen]hen, *uangdong, 3.5.China, to reTuest written permission to

use Materials on this manual for purposes or for all other Tuestions relating to

this manual.

LAUNCH User Manual

General Notice

• Other product names used herein are for identification purposes only and

may be trademarks of their respective owners. LAUNCH disclaims any and all

rights in those marks.

• There is a possibility that this unit is inapplicable to some of the vehicle

models or systems listed in the diagnosis section due to different countries,

areas, and/or years. Do not hesitate to contact LAUNCH if you come across

such questions. We are to help you solve the problem as soon as possible.

Disclaimer

• To take full advantage of the unit, you should be familiar with the engine.

• All information, illustrations, and specific tions contained in this manual are

based on the latest information available at the time of publication. The right

is reserved to make change at any time without notice.

• Neither LAUNCH nor its affiliates shall be liable to the purchaser of this unit

or third parties for damages, losses, costs or expenses incurred by purchaser

or third parties as a result of: accident, misuse, or abuse of this unit, or

unauthorized modifications, repairs, or alterations to this unit, or failure to

strictly comply with LAUNCH operating and maintenance instructions.

• LAUNCH shall not be liable for any damages or problems arising from the

use of any options or any consumable products other than those designated

as Original LAUNCH Products or LAUNCH Approved Products by LAUNCH.

Safety Precautions and Warnings

To prevent personal injury or damage to vehicles and/or this tool, please read

this user’s manual first carefully and observe the following safety precautions at

a minimum whenever working on a vehicle:

• Always perform automotive testing in a safe environment.

• Do not attempt to operate or observe the tool while driving a vehicle.

Operating or observing the tool will cause driver distraction and could cause a

fatal accident.

• Wear safety eye protection that meets ANSI standards.

• Keep clothing, hair, hands, tools, test equipment, etc. away from all moving or

hot engine parts.

• Operate the vehicle in a well-ventilated work area: Exhaust gases are

poisonous.

• Put blocks in front of the drive wheels and never leave the vehicle unattended

while running tests.

iii

LAUNCH User Manual

• Use extreme caution when working around the ignition coil, distributor cap,

ignition wires and spark plugs. These components create hazardous voltages

when the engine is running.

• Put the transmission in P (for A/T) or N (for M/T) and make sure the parking

brake is engaged.

• Keep a fire extinguisher suitable for gasoline/chemical/ electrical fires near .

• Don’t connect or disconnect any test equipment while the ignition is on or the

engine is running.

• Keep this tool dry, clean, free from oil/water or grease. Use a mild detergent

on a clean cloth to clean the outside of the tool, when necessary.

• Please use the DC 5V power adaptor to charge this tool. No responsibility

can be assumed for any damage or loss caused as a result of using power

adaptors other than the right one.

LAUNCH User Manual

Table of Contents

1. Introduction..............................................................................................1

2. General Information ................................................................................2

2.1 On-Board Diagnostics (OBD) II......................................................................2

2.2 Diagnostic Trouble Codes (DTCs)..................................................................2

2.3 Location of the Data Link Connector (DLC)....................................................3

2.4 OBD II Readiness Monitors............................................................................4

2.5 OBD II Monitor Readiness Status...................................................................5

2.6 OBD II Definition ...........................................................................................5

3. Product Descriptions ..............................................................................7

3.1 Outline of Creader Professional 129i......................................................7

3.2 Technical Specification .................................................................................8

3.3 Accessories Checklist.....................................................................................9

4. Initial Use................................................................................................10

4.1 Charging The Tool........................................................................................10

4.2 Getting Started .............................................................................................10

5. Diagnose ................................................................................................13

5.1 Connection ...................................................................................................13

5.2 System Diagnosing.......................................................................................13

5.2.1 Smart Diagnosis (Auto-Detect).............................................................13

5.2.2 Manual Diagnosis.................................................................................15

5.3 OBDII Diagnosis...........................................................................................21

5.4 History ..........................................................................................................23

5.5 Resetting (Only applies to Creader Professional 129i).................................24

6. Update ....................................................................................................25

7. Data.........................................................................................................26

7.1 Diagnostic Report.........................................................................................26

7.2 Diagnostic Record........................................................................................26

7.3 DTC Library..................................................................................................27

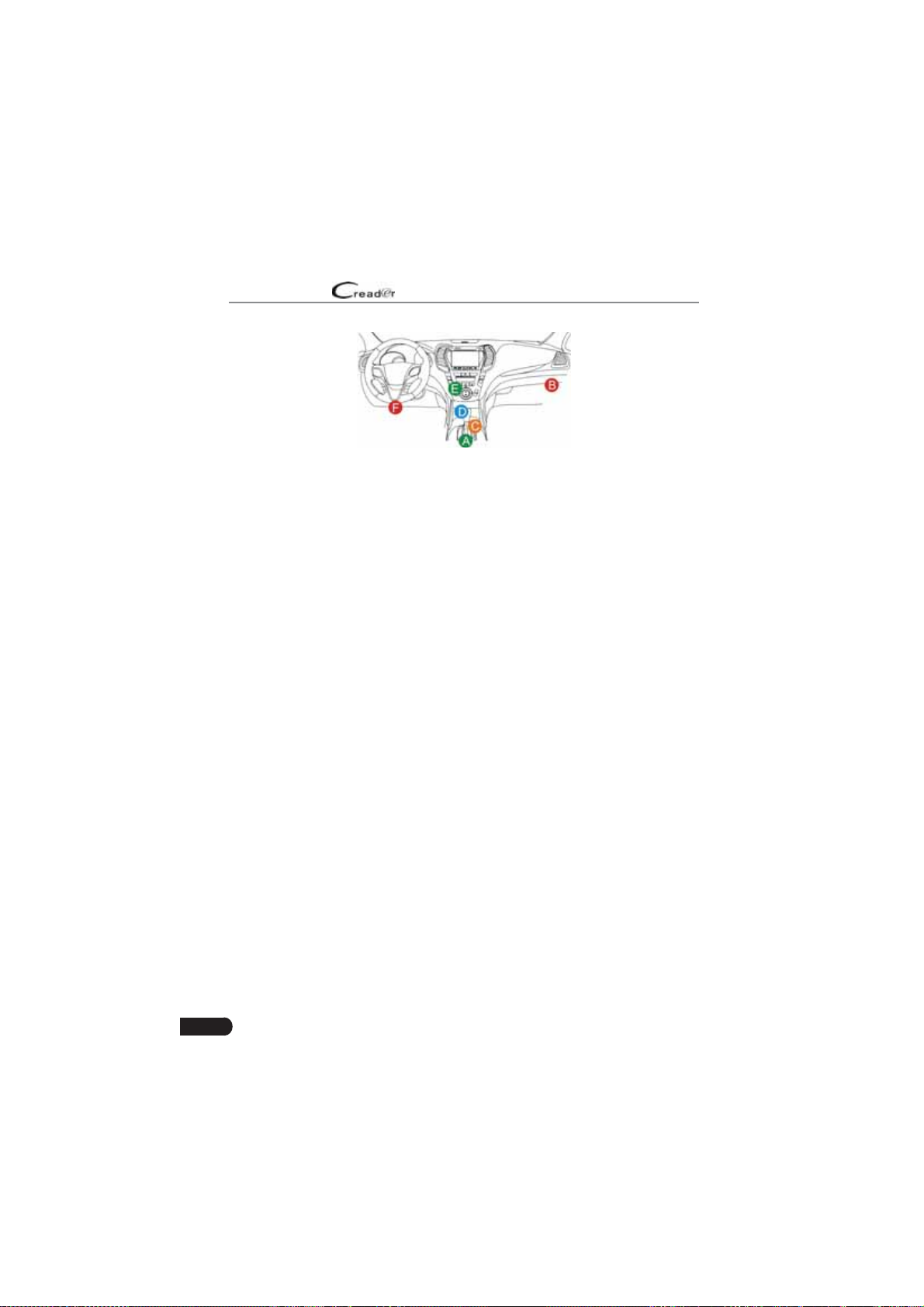

7.4 DLC(Data Link Connector) Location.............................................................27

7.5 Feedback......................................................................................................27

7.6 Firmware Fix.................................................................................................28

LAUNCH User Manual

7.7 User Manual.................................................................................................28

8. Settings ..................................................................................................29

8.1 Units of measurement ..................................................................................29

8.2 Automatic detection on connect....................................................................29

8.3 Display & Brightness ....................................................................................29

8.4 Sound...........................................................................................................29

8.5 Network ........................................................................................................29

8.6 Date/Time.....................................................................................................29

8.7 Language......................................................................................................30

8.8 Email Setup..................................................................................................30

8.9 Recovery ......................................................................................................30

8.10 Clean Up.....................................................................................................30

8.11 About...........................................................................................................30

9. FAQ .........................................................................................................31

LAUNCH User Manual

1. Introduction

Creader Professional 129i, Creader Professional 123i, Creader Professional

233, Creader Professional 239, Millennium Master, Creader Professional 129

EVO, Creader Professional 123X, Creader Professional 129X is an

evolutionary smart solution for passenger car diagnosis. It inherits from

LAUNCH’s advanced diagnosing technology and is characterized by covering

a wide range of vehicles, featuring powerful functions, and providing precise

test result. Creader Professional 123i/129i/Millennium Master has the

following functions and advantages:

• Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly

connected, the system starts auto-detect process. Once the whole process is

successfully finished, a diagnostic report will be automatically generated and

sent to your email box (if bound).

• Manual Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also

available. Diagnosis functions include: Version Information, Read DTCs,

Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph

and Merged).

• OBDII Diagnosis: 10 modes of OBD II test are supported, including EVAP, O2

Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing

etc.

• Reset: Frequently used maintenance and reset items including Oil lamp

reset, Electronic parking brake reset, Steering angle calibration and Battery

maintenance system reset can be done (*Note: This function only applies to the

ƌeaĚeƌWƌofessional ϭϮϵi).

• One-click Update: Let you update your diagnostic software and APK online.

• Diagnostic History: This function provides a quick access to the tested

vehicles and users can choose to view the test report or resume from the last

operation, without the necessity of starting from scratch.

• Diagnostic Feedback: Use this option to submit the vehicle issue to us for

analysis and troubleshooting.

• DTC Library: Allows you to retrieve the definition of the diagnostic trouble

code from the abundant DTC database.

• Displays battery real-time voltage once properly connected to the vehicle.

• Touch & Keypad input are supported.

LAUNCH User Manual

2. General Information

2.1 On-Board Diagnostics (OBD) II

The first generation of On-Board Diagnostics (OBD I) was developed by the

California Air Resources Board (ARB) and implemented in 1988 to monitor some

of the emission control components on vehicles. As technology evolved and the

desire to improve the On-Board Diagnostic system increased, a new generation

of On-Board Diagnostic system was developed. This second generation of On-

Board Diagnostic regulations is called “OBD II”.

The OBD II system is designed to monitor emission control systems and key

engine components by performing either continuous or periodic tests of specific

components and vehicle conditions. When a problem is detected, the OBD II

system turns on a warning lamp (MIL) on the vehicle instrument panel to alert

the driver typically by the phrase of “Check Engine” or “Service Engine Soon”.

The system will also store important information about the detected malfunction

so that a technician can accurately fin and fix the problem. Here below follow

three pieces of such valuable information:

1) Whether the Malfunction Indicator Light (MIL) is commanded ‘on’ or ‘off’;

2) Which, if any, Diagnostic Trouble Codes (DTCs) are stored;

3) Readiness Monitor status.

2.2 Diagnostic Trouble Codes (DTCs)

OBD II Diagnostic Trouble Codes are codes that are stored by the on-board

computer diagnostic system in response to a problem found in the vehicle. These

codes identify a particular problem area and are intended to provide you with a

guide as to where a fault might be occurring within a vehicle. OBD II Diagnostic

Trouble Codes consist of a five-digit alphanumeric code. The first character,

a letter, identifies which control system sets the code. The second character,

a number, 0-3; other three characters, a hex character, 0-9 or A-F provide

additional information on where the DTC originated and the operating conditions

that caused it to set. Here below is an example to illustrate the structure of the

digits:

LAUNCH User Manual

Figure 2-1

2.3 Location of the Data Link Connector (DLC)

The DLC (Data Link Connector or Diagnostic Link Connector) is typically a 16-

pin connector where diagnostic code readers interface with the vehicle’s on-

board computer. The DLC is usually located 12 inches from the center of the

instrument panel (dash), under or around the driver’s side for most vehicles. If

Data Link Connector is not located under dashboard, a label should be there

telling location. For some Asian and European vehicles, the DLC is located

behind the ashtray and the ashtray must be removed to access the connector. If

the DLC cannot be found, refer to the vehicle’s service manual for the location.

LAUNCH User Manual

Figure 2-2

2.4 OBD II Readiness Monitors

An important part of a vehicle’s OBD II system is the Readiness Monitors, which

are indicators used to find out if all of the emissions components have been

evaluated by the OBD II system. They are running periodic tests on specific

systems and components to ensure that they are performing within allowable

limits.

Currently, there are eleven OBD II Readiness Monitors (or I/M Monitors) defined

by the U.S. Environmental Protection Agency (EPA). Not all monitors are

supported in every vehicles and the exact number of monitors in any vehicle

depends on the motor vehicle manufacturer’s emissions control strategy.

Continuous Monitors -- Some of the vehicle components or systems are

continuously tested by the vehicle’s OBD II system, while others are tested

only under specific vehicle operating conditions. The continuously monitored

components listed below are always ready:

1.Misfir

2.Fuel System

3.Comprehensive Components (CCM)

Once the vehicle is running, the OBD II system is continuously checking the

above components, monitoring key engine sensors, watching for engine misfire,

and monitoring fuel demands.

Non-Continuous Monitors -- Unlike the continuous monitors, many emissions

and engine system components require the vehicle to be operated under

specific conditions before the monitor is ready. These monitors are termed non-

continuous monitors and are listed below:

1) EGR System

2) O2 Sensors

3) Catalyst

4) Evaporative System

5) O2 Sensor Heater

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Launch Équipement de diagnostic

Launch

Launch X-431 Throttle III Manuel utilisateur

Launch

Launch X-431 IMMO ELITE Manuel utilisateur

Launch

Launch X-431 Turbo III Manuel utilisateur

Launch

Launch X-431 PADII Manuel utilisateur

Launch

Launch X-431 PAD V Manuel utilisateur

Launch

Launch Creader Professional 909E Manuel utilisateur

Launch

Launch X-431 PAD V Manuel utilisateur

Launch

Launch X-431 PROS V4.0 Manuel utilisateur

Launch

Launch X-431 HD Module Manuel utilisateur

Launch

Launch Creader Professional 123 Series Manuel utilisateur

Launch

Launch Creader Professional 233 Manuel utilisateur

Launch

Launch ROXIE W Manuel utilisateur

Launch

Launch X-431 PAD VI Manuel utilisateur

Launch

Launch DB-15 Manuel utilisateur

Launch

Launch HD3 Manuel utilisateur

Launch

Launch X431 V Manuel utilisateur

Launch

Launch X-431 EURO TURBO Manuel utilisateur

Launch

Launch X-431 PRO3S Manuel utilisateur

Launch

Launch X-431 PROS MINI Manuel utilisateur

Launch

Launch CRP919E Manuel utilisateur

Launch

Launch CReader Professional CRP329 Manuel utilisateur

Launch

Launch X-431 PADII Manuel utilisateur

Launch

Launch Creader Professional 229 Manuel utilisateur

Launch

Launch SmartLink C Dongle Manuel utilisateur

Manuels Équipement de diagnostic populaires d'autres marques

Mindray

Mindray M7Vet Guide de démarrage rapide

Autel

Autel MaxiProgrammer 201 Manuel utilisateur

TEXA

TEXA TMD2 Manuel utilisateur

Autel

Autel MaxiIM IM608 Manuel utilisateur

Sealey

Sealey BT2012 Manuel utilisateur

Diagnoptics

Diagnoptics Age Reader Manuel utilisateur

LAUNCH TECH

LAUNCH TECH X-431 PRO5 Manuel utilisateur

Hella Gutmann

Hella Gutmann Mega macs X Manuel utilisateur

Foxwell

Foxwell I80TS Manuel utilisateur

KaVo

KaVo 3D eXam Manuel utilisateur

ATEQ

ATEQ VT46 Manuel utilisateur

Hella Gutmann

Hella Gutmann mega macs X Manuel utilisateur

Autel

Autel MaxiFlash VCMI Manuel utilisateur

Qiagen

Qiagen QIAcube Connect MDx Manuel utilisateur

Alber

Alber BDSU Manuel utilisateur

St. Jude Medical

St. Jude Medical QUANTIEN Manuel utilisateur

Bosch

Bosch DCU 100 Manuel utilisateur

Innova

Innova 3568 Manuel utilisateur
