Lascar Electronics PanelPilot M Manuel utilisateur
M
M
M
Further Information
Visit www.lascarelectronics.com/panelpilot for further
information on the PanelPilot platform and to download
a datasheet for your particular display. This will include
specic information about pin congurations, wiring
instructions and mounting method.

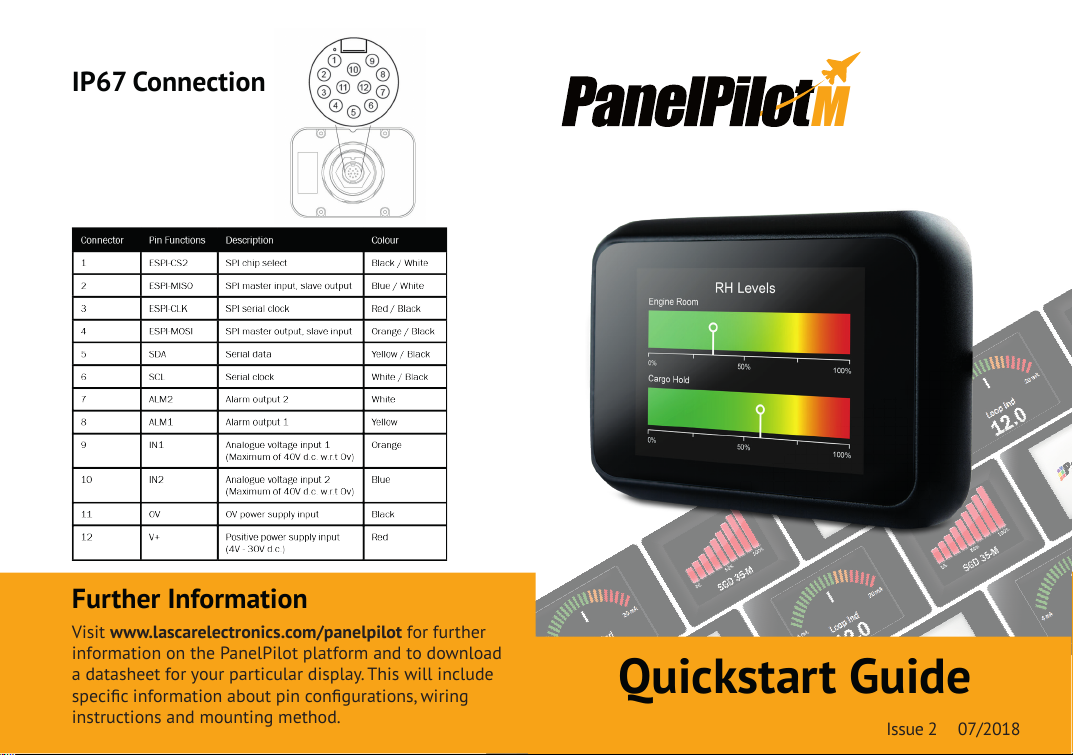

IP67 Connection
Quickstart Guide
Issue 2 07/2018
All manuals and user guides at all-guides.com
all-guides.com
1Visit www.lascarelectronics.com/software/
panelpilot-m to download PanelPilot M
software onto your PC.
2Remove rear panel to access USB port
and connect the device to your PC using the
CABLE IP-12W-RA (not supplied).
3Open up the software on your PC and
follow step-by-step instructions for
conguring your display.

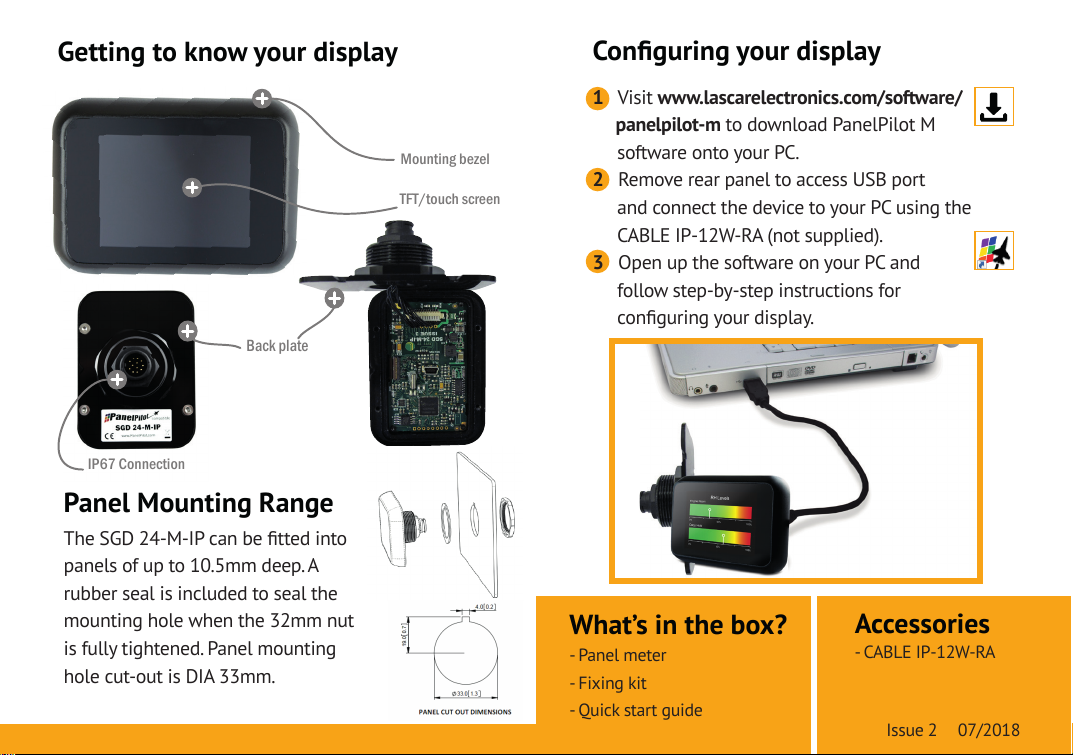

Conguring your display
Getting to know your display
Accessories
What’s in the box?
- Panel meter
- Fixing kit
- Quick start guide
- CABLE IP-12W-RA
Panel Mounting Range
The SGD 24-M-IP can be tted into
panels of up to 10.5mm deep. A
rubber seal is included to seal the
mounting hole when the 32mm nut
is fully tightened. Panel mounting
hole cut-out is DIA 33mm.
Mounting bezel
TFT/touch screen
IP67 Connection
Back plate
Issue 2 07/2018
All manuals and user guides at all-guides.com
