Larson Electronics IL-LED-27R Manuel utilisateur

LLP-JD-TR-8320

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 2

LED Light Package for John Deere 8320 Tractors - (2)

LED25WRE-CPR - (4) IL-LED-27R

Instruction Manual

Familiarize yourself with all procedures outlined within this instruction sheet.

WARNING:

READ CAREFULLY BEFORE OPERATING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

Never place spotlight face down when light is on. Doing so could burn/ignite surfaces such as seats, carpeting,

etc. and cause major property damage. Always turn spotlight off when not in use.

To prevent serious damage to eyesight, never look into spotlight when light is on.

DO NOT shine light into the face of someone else.

DO NOT touch lens of spotlight when light is on or if it was recently on. The lens will be hot.

DO NOT allow children to handle or operate this spotlight.

DO NOT use this product for other than its intended use.

DO NOT operate in close proximity of combustible or flammable materials.

DO NOT attempt to operate this spotlight if cord, plug, battery, bulb or any part of the spotlight is damaged or

corroded.

The LED25WRE-CPR is shipped with selected cord for powering the fixture. Images shown may vary depending

upon options selected.

POWER

1. The spotlight is designed to work on 12-32 volts DC. This variable voltage

allows the light to be connected to consumer vehicles and other non-standard

power supplies such as military vehicles and heavy equipment.

PLEASE NOTE: There is no difference in light output between voltages.

2. Power transformers (DCP-11-DP) can be purchased through our website to run

this spotlight from household wall outlets.

MOUNTING

The LED25WRE-CPR is suspended within a form fitting trunnion (yoke-type)

mount. This trunnion mount has two screws that can be loosened, allowing the

LED light to be adjusted vertically, then re-tightened to lock the light into the

desired position. A single stainless steel stud protrudes from the bottom of the

mount, enabling the operator to install the light using a simple through-hole mount,

allowing the unit to be installed anywhere a 1/2-inch hole can be drilled.

DETACHABLE CORDS

Power is attached via a weatherproof 2-pin Deutsch connector.

The cords are detachable by depressing the tab on the top of the connectors.

This enables the operator to leave the cord connected to the power source

and remove to store the light.

Additional or replacement cords can be ordered from our website.

*We offer 16 foot coil cords with a cigarette plug (C-16-CC-CP), 21 foot cords with ring terminals (C-21- RT), 16

foot cords with battery clamps (C-16-BC), and 16 foot straight cords with cigarette plugs (C-16 CP).

-LENS

REFLECTOR

Mounting Bolt

Deutsch -

Connector

Adjustment

Screws-

*LAMP STYLE MAY VARY

High Intensity LED Light 25 Watt LED - 12-32V DC - 1000ft Spot Beam

The IL-LED-27R LED Flood Light offers high light output from a compact form factor and is ideal for a wide range of uses

including heavy equipment, boating, vehicle, military, law enforcement and industrial manufacturing applications. This unit

produces a 2160 lumen light output with very low amp draw, 30,000 hour service life and 10 to 30 volt compatibility which

provides operators with a compact and powerful LED lighting solution.

POWER

•The flood light is designed to work on 10-32 volts DC. This variable voltage

allows the light to be connected to consumer vehicles and other non-standard

power supplies such as military vehicles and heavy equipment.

PLEASE NOTE: There is no difference in light output between voltages.

Power transformers (DCP-11-DP) can be purchased through our website to run

this flood light from household wall outlets.

MOUNTING

The IL-LED-27R is suspended within a form fitting trunnion (yolk-type) mount. This

trunnion mount has a single bolt that can be loosened, allowing the LED light to be

adjusted vertically, and then re-tightened to lock the light into the desired position. A

single stainless steel stud protrudes from the bottom of the mount, enabling the

operator to install the light using a simple through-hole mount.

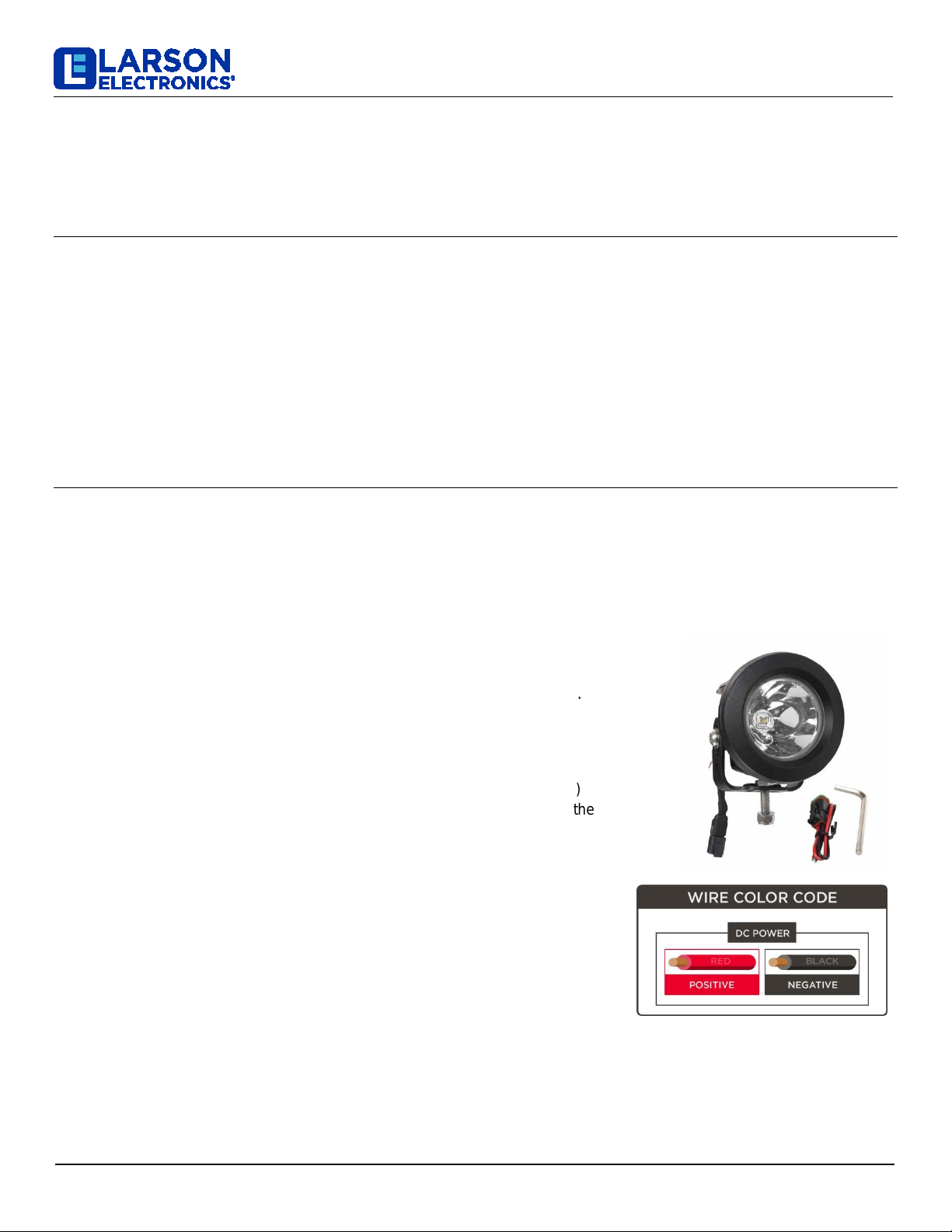

WIRING

•Power is attached via cord on back of light.

•See wire diagram for connecting power. Red is positive and Black is negative.

•Take appropriate measures for waterproofing connections when installed in an

area prone to getting wet. The LED lamp is IP67 rated waterproof and can

withstand immersion up to 1m.

Mounting Bolt Flying Leads

Adjustment

Screw

-LENS

Amps:2.2 (on 12 volts)

Operating Temp Range: -40°C to +85°C

Waterproof Rating: IP67

Watts: 27 W

Lumens: 2,160

27 Watt Round LED Flood Light 2160 Lumens - Nine 3-Watt LEDs - 10-32 Volt

DC - IP67 Waterproof

LLP-JD-TR-8320

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com 2of 2

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION

REQUIREMENTS. SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT

LARSON ELECTRONICS BY EMAIL AT SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER

ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.
