Larson Electronics HL-85-3W1-IR Manuel utilisateur

Larson Electronics LLC www.LarsonElectronics.com sales@larsonelectronics.com

9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364

HL‐85-3W1-IR

INFRARED LIGHT

1. These handheld spotlights are offered in 850 nanometer and 940 nanometer configurations. A

night vision system (i.e. night vision goggles or an infrared camera) is required to be able to use

the infrared light output of this handheld spotlight.

2. 850NM can be seen by GEN 2 night vision systems. Typical night vision goggles are GEN 2.

3. 940NM can be seen by GEN 3 night vision systems. Most 940NM systems are government use

equipment.

POWER

1. The spotlight can be plugged into cigarette plug sockets, attached directly to 12 volt DC

batteries, etc.

2. Each unit is configured for either 12 volts or 24 volts. They are multi-voltage and can operate on

any low voltage power supply from 9 to 32 volts DC.

3. Power transformers (DCP-5-DP) can be purchased through our website to run this LED spotlight

from household wall outlets.

DETACHABLE CORDS

1. Each cord is attached via a weatherproof 2-pin Deutsch connector.

2. The cords are detachable by depressing the tab on the top of the connectors. This enables the

operator to leave the cord connected to the power source and remove and store the light.

3. Additional or replacement cords can be ordered from our website. We offer 16 foot coil cords

with a cigarette plug (C-16-CC-CP), 21 foot cords with ring terminals (C-21-RT), 16 foot cords

with battery clamps (C-16-BC), and 16 foot straight cords with cigarette plugs (C-16-CP).

MOUNTING

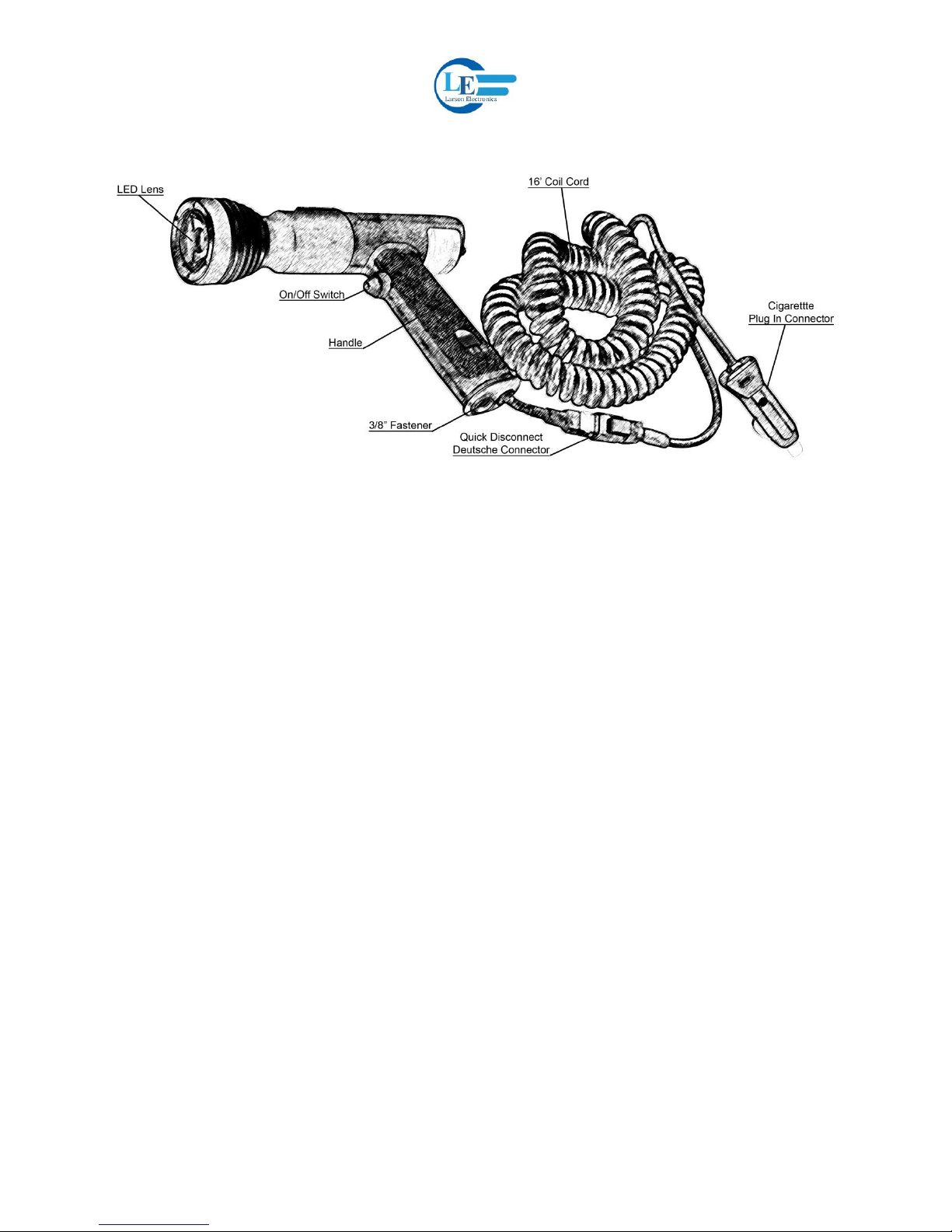

1. These units are handheld via the pistol grip handle, but can be mounted via the 3/8-16” brass

nut fastener embedded into the base of the handle.

2. We offer a 100lb magnetic base (MM-2) for magnetic mounting, and a permanent mounting

plate with swiveling and tilting bracket (PMB-4X4) for permanent mounting.

Larson Electronics LLC www.LarsonElectronics.com sales@larsonelectronics.com

9419 E US HWY 175, Kemp, TX 75143 - P: (800) 369-6671 - F: (903) 498-3364
