Larson Electronics EPL-120-150-EPP Manuel utilisateur

EPL-120-150-EPP

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 4

Explosion Proof Hand Lamp with Explosion Proof Plug

150' SOOW Cord -Incandescent Lamp - 120VAC

Instruction Manual

Thank you for your purchase of the Larson Electronics EPL-120-150-EPP.

)

WARNING:

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN THESE INSTRUCTIONS FOR FUTURE REFERENCE.

CRITICAL SAFETY INSTRUCTIONS:

•INSTALLATION SHOULD ONLY BECONDUCTED BY A QUALIFIED ELECTRICIAN IN ACCORDANCE WITH NEC AND ANY

RELEVANT LOCAL BUILDING CODES.

•RISK OFFIRE OR ELECTRIC SHOCK. FIXTURE INSTALLATION REQUIRES KNOWLEDGE OF FIXTURE'S ELECTRICAL

SYSTEMS. IFNOTQUALIFIED, CONTACT A QUALIFIED ELECTRICIAN.

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•MAKE SURE THE SUPPLY VOLTAGE IS THE SAME AS THE FIXTURE'S RATED VOLTAGE.

•TO PREVENT WIRING DAMAGE OR ABRASION, DO NOT EXPOSE WIRING TO EDGES OF SHEET METAL OR SHARP

OBJECTS. SUITABLE FOR DAMP LOCATIONS.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE EPL-120-150-EPP MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE

AND ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. THIS LINE

CORD IS INTENDED TO ALLOW OPERATORS TO EXTEND POWER TO EQUIPMENT WHEN STATIONARY OUTLETS ARE NOT

READILY AVAILABLE.

IMPROPER USE OF THIS CORD, PLUG, AND RECEPTACLE CAN LEAD TO SERIOUS INJURIES OR DEATH TO

PERSONNEL.

PERIODIC INSPECTION OF THE CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY ARE FOUND,

THE CORD MUST BE REPLACED BEFORE RESUMING USE.

EPL-120-150-EPP

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 4

WARNING

TO AVOIDTHE RISKOF FIRE,EXPLOSION OR ELECTRIC SHOCK, THIS PRODUCT SHOULD BE INSTALLED,

INSPECTEDAND MAINTAINEDBY A QUALIFIED ELECTRICIANONLY, IN ACCORDANCEWITHALL

APPLICABLEELECTRICAL CODES.

TO AVOIDELECTRIC SHOCK:

•BE CERTAIN ELECTRICAL POWER IS OFF BEFORE AND DURING INSTALLATION AND MAINTENANCE.

•PRODUCT MUST BE CONNECTED TO A WIRING SYSTEM WITH AN EQUIPMENT-GROUNDING

CONDUCTOR.

TO AVOID EXPLOSION:

•MAKE SURE THE SUPPLY VOLTAGE IS WITHIN THE VOLTAGE RATING.

•ENSURE THE MARKED T RATING IS LESS THAN THE IGNITION TEMPERATURE OF THE HAZARDOUS

ATMOSPHERE.

•DO NOT OPERATE IN AMBIENT TEMPERATURES ABOVE THOSE INDICATED ON THE PRODUCT

NAMEPLATE.

•DO NOT OPERATE IF THE LENS, CORD, SEALS, HOUSING, RECEPTACLES, ETC. IS CRACKED OR

DAMAGED. IF SO, DISCONTINUE USE AND CONTACT MANUFACTURER FOR REPLACEMENT PARTS.

•ALL FASTENERS SHOULD BE PROPERLY SEATED.

WARNING:

USER SHOULD BE TRAINED IN THE PROPER USE AND MAINTENANCE OF THIS DEVICE. WHEN EXTENSION

CORD IS CONNECTED TO A POWER SOURCE IN HAZARDOUS AREA, PLUG AND MATCHING RECEPTACLE

MUST BE SUITABLE FOR HAZARDOUS LOCATION INVOLVED. IMPROPER USE OF THIS DEVICE, ASSOCIATED

PLUG, RECEPTACLE, AND CORD CAN LEAD TO SERIOUS INJURIES OR DEATH TO PERSONNEL.

PERIODIC INSPECTION OF THE RECEPTACLE AND CORD IS NECESSARY.

THE CORD MUST BE ROUTINELY CHECKED FOR CUTS, BREAKS, OR ANY SEVERE ABRASIONS, AND IF ANY

ARE FOUND, THE CORD MUST BE REPLACED BEFORE RESUMING USE OF THE UNIT.

ELECTRICAL POWER SUPPLY MUST BE “OFF” BEFORE AND DURING INSTALLATION AND MAINTENANCE.

INSTALLATION AND MAINTENANCE PROCEDURE MUST BE PERFORMED BY A TRAINED AND COMPETENT

ELECTRICIAN.

IF ANY PARTS OF THE RECEPTACLE OR PLUG APPEAR TO BE MISSING, BROKEN, OR SHOW SIGNS OR

DAMAGE, DISCONTINUE USE IMMEDIATELY. REPLACE WITH THE PROPER REPLACEMENT PART(S) BEFORE

CONTINUING SERVICE.

The EPL-120-150-EPP from Larson Electronics is an Explosion Proof Hand Lamp that is UL Listed Class I Division 1

Groups C & D and is ideal for general work activities in hazardous locations requiring explosion proof protection.

WIRING

This explosion proof hand lamp is equipped with 150 feet of 16/3 chemical and abrasion resistant SOOW cord that is fitted

with an explosion proof cord cap for easy connection to explosion proof outlets. Plug options include a 5-15 15 amp straight

blade plug for use with 120V explosion proof outlets, or a 5-20 20 amp straight blade plug for use with 120V explosion proof

outlets. **PLEASE NOTE** voltage ratings on plugs and outlets are MAXIMUM voltage. For low voltage applications,

proper voltage must be applied to the outlet or damage to the light fixture will occur.

We strongly encourage a licensed electrician install this product,in all locations especially in outdoor areas

where weatherproofing may be required. Universal voltage driver permits operation at 100V - 277V AC, 50 or 60Hz.

EPL-120-150-EPP

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

3of 4

Exp Cord Cap

Position device near work area for operation. Run cable to nearby power

source. Insert and twist-lock explosion-proof plug into a compatible receptacle within

the hazardous environment. See plug operation below.

PLUG OPERATION

Electrical connection between plug and compatible receptacle is accomplished

after plug fully inserts into receptacle and rotated clockwise.

1. Lift receptacle door and locate polarization on mating plug pin and

receptacle face. Insert plug straight all the way into receptacle until it

cannot go further.

2. Rotate plug clockwise limit (37º), this closes internal contacts and

completes circuit. This also mechanically locks plug into receptacle so it

cannot be pulled out.

3. To remove plug, push plug inward and turn to counterclockwise, pull plug

straight out.

OPERATION

1. Position light head in desired location using swivel hook.

2. Run cable, transformer, and plug OUTSIDE HAZARDOUS AREA.

3. Attach power cord from transformer to Voltage: 120V/277V AC

compatible receptacle.

WARNING: Check product label for correct voltage! Failure to comply could

result in damage to the fixture which may not be covered by warranty. The bulb itself

runs on low voltage specified upon purchase.

The LED lamp in this hand lamp is “instant-on” and will illuminate once power is supplied.

LAMP REPLACEMENT

1. Loosen set screw. ⑧

2. Unscrew Guard/Globe assembly ⑨from handle assembly.

3. Replace with matching lamp.

4. Inspect o-ring seal ⑪. If worn or damaged, it must be replaced to

insure watertight seal.

5. Screw globe assembly completely onto lamp base.

6. Tighten set screw securely to 6 in-lbs.

EPL-120-150-EPP

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

4of 4

MAINTENANCE

Caution: To avoid personal injury, disconnect power to the light and allow the unit to cool down before

performing maintenance.

Warning: No user serviceable parts inside of fixture. Risk of electric shock. Removal of the lens will void

the warranty.

1. Perform visual, mechanical and electrical inspections on a regular basis. We recommend routine

checks to be made on a yearly basis. Frequency of use and environment should determine this. It is

recommended to follow an Electrical Preventive Maintenance Program as described in NFPA 70B:

Recommended practice for Electrical Equipment.

2. The lens should be cleaned periodically as needed to ensure continued photometric performance.

Clean the lens with a damp, non-abrasive, lint-free cloth. If not sufficient, use mild soap or a liquid

cleaner.

3. Inspect the cooling fins on the luminaire to ensure that they are free of any obstructions or

contamination (i.e. excessive dust build-up). Clean with a non-abrasive cloth if needed.

4. Do not operate if the lens is cracked or damaged. All fasteners should be properly seated.

USE AND CARE

Unauthorized modification may impair the function and/or safety of this device and could affect the life of the equipment.

Always check for damaged or worn out parts before using the device. Store it in a secure place out of the reach of

children when not in use.Inspect for good working condition prior to storage and before re-use.

REPLACEMENT PARTS

The EPL-120-150-EPP is designed to provide years of reliable performance. Should the need for replacement parts

arise, please contact Larson Electronics.

THESE INSTRUCTIONS MAY NOT COVER ALL DETAILS OR VARIATIONS OF THIS PRODUCT FOR YOUR EQUIPMENT OR INSTALLATION REQUIREMENTS.

SHOULD FURTHER INFORMATION NOT COVERED BY THESE INSTRUCTIONS BE REQUIRED, PLEASE CONTACT LARSON ELECTRONICS BY EMAIL AT

SALES@LARSONELECTRONICS.COM OR BY PHONE AT 1-800-369-6671 FOR FURTHER ASSISTANCE.

PLEASE VISIT LARSONELECTRONICS.COM FOR WARRANTY AND RETURN INFORMATION.

Table des matières

Autres manuels Larson Electronics Équipement d'éclairage

Larson Electronics

Larson Electronics IND-RL-HDB-BX9-120V Manuel utilisateur

Larson Electronics

Larson Electronics HALD-24-1X150LED-V3 Manuel utilisateur

Larson Electronics

Larson Electronics HAL-48-33W-LED-1227-70C Manuel utilisateur

Larson Electronics

Larson Electronics EPL-TL-1X10W-C-PA-XFSW Manuel utilisateur

Larson Electronics

Larson Electronics EPL-50W-120x12-50 Manuel utilisateur

Larson Electronics

Larson Electronics HAL-LED-SOL12-STCHN.25 Manuel utilisateur

Larson Electronics

Larson Electronics EPL-QP-2X150RT Manuel utilisateur

Larson Electronics

Larson Electronics TPM-GL20004-12C-1227-10C Manuel utilisateur

Larson Electronics

Larson Electronics EPL-AMB-150LED-50 Manuel utilisateur

Larson Electronics

Larson Electronics EPL-LB-50LED-RT-180B Manuel utilisateur

Larson Electronics

Larson Electronics GSLEDIP6-C1D2 Manuel utilisateur

Larson Electronics

Larson Electronics SL-ALM Manuel utilisateur

Larson Electronics

Larson Electronics EPL-HB-150LED-RT-JB2-25-BCE Manuel utilisateur

Larson Electronics

Larson Electronics EPL-16C-150LED-RT Manuel utilisateur

Larson Electronics

Larson Electronics EXHL-TRN-LE4-FKWL Series Manuel utilisateur

Larson Electronics

Larson Electronics PTB-1-75FT Manuel utilisateur

Larson Electronics

Larson Electronics TPM-2XWP60E-10C Manuel utilisateur

Larson Electronics

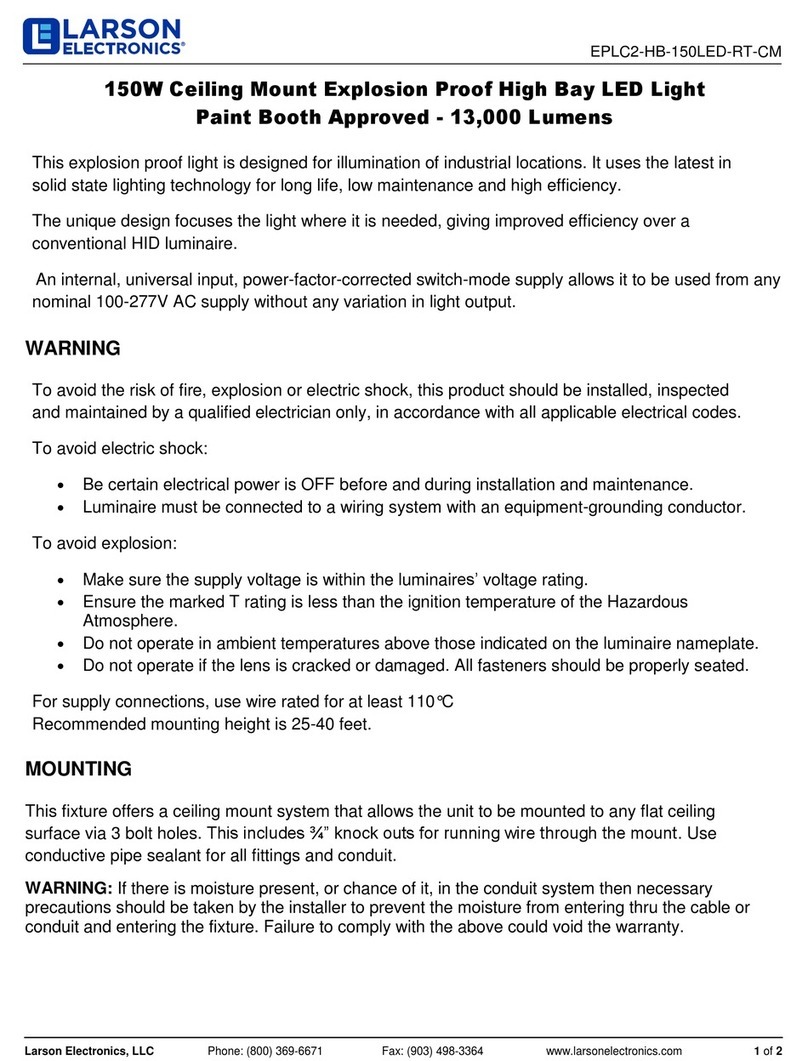

Larson Electronics EPLC2-HB-150LED-RT-CM Manuel utilisateur
