Larson Electronics LEDWP-600E-E2E-10C Manuel utilisateur

LEDWP-600E-E2E-10C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

1of 2

60 Watt LED Low Profile Wall Pack Light With Glare Shield

Daisy Chain Capable - U Bracket Mount

Thank you for your purchase of the Larson Electronics LEDWP-600E-E2E-10C Wall Pack Light. Please follow

the steps below in order to install, operate and maintain this product.

MOUNTING

The LED wall pack includes the necessary hardware for installing the mounting bracket, cord grip, and glare

shield. Follow the guideline below to properly assemble and install the unit.

The wall pack light includes the LED light, trunnion mount, glare shield, and hardware for installing the center

cord grip. Some models may omit hardware depending on selected options.

Ambient Temperature Range: -25°C to +60°

1. Begin by choosing a location to install the fixture. This LED wall pack is IP68 waterproof, vapor proof,

and built to resist the damaging effects of an outdoor environment. This fixture should not be used in areas

with no ventilation or extreme ambient temperatures.

2. Affix the mount to your chosen surface. There are 3 predrilled holes on the trunnion bracket. 2 for

mounting and 1 for the cord grip. These can be used any way suitable for the location. Plan a way for

wiring to connect such as using a separate junction box and utilize the cord grip where necessary.

3. Attach lamp.The trunnion mount can be attached to the lamp in two locations, the lower area or middle

area on the back of the wall pack. Use the included ( 2 screws ❶) and ( 2 lock washers ❷) for

attaching the mount as shown in the diagram on page 2. The fixture can be placed in any direction.

WIRING

We strongly encourage a licensed electrician install this product, especially in outdoor locations where

weatherproofing may be required. Universal voltage driver permits operation at 100V - 277V AC, 50 or 60Hz.

Warning: Check product label for correct input voltage!

Attach supply line wires to the appropriate light

fixture wires as shown in the diagram



This unit comes pre-wired from factory with the

selected cord cap. Plug into matching receptacle

outputting voltage on nameplate. Take precautionary

steps for weatherproofing all connections if installed in

a location where water may come in contact with the

unit. Ensure the unit is properly grounded.

IMPORTANT

READ CAREFULLY BEFORE INSTALLING THIS FIXTURE. SAVE THESE INSTRUCTIONS FOR FUTURE

REFERENCE. THE LEDWP-600E MUST BE WIRED IN ACCORDANCE WITH NATIONAL ELECTRICAL CODE AND

ALL APPLICABLE LOCAL CODES. PROPER GROUNDING IS REQUIRED FOR SAFETY.

WE STRONGLY ENCOURAGE ONLY A LICENSED ELECTRICIAN INSTALL, OPERATE AND MAINTAIN THIS

PRODUCT. IF YOU ARE NOT QUALIFIED OR UNFAMILIAR WITH ANY ASPECT OF THIS INSTRUCTION SHEET,

CONSULT AN ELECTRICIAN. THERE ARE NO SERVICEABLE PARTS INSIDE.

RISK OF FIRE/ELECTRIC SHOCK –DISCONNECT POWER AT BREAKER BEFORE INSTALLING OR SERVICING.

RISK OF PERSONAL INJURY –FIXTURE MAY BECOME UNSTABLE OR DAMAGED IF NOT INSTALLED PROPERLY.

RISK OF BURN –ALLOW FIXTURE TO COOL BEFORE SERVICING.

WARNING: MAKE SURE POWER IS TURNED OFF BEFORE STARTING THE

INSTALLATION OR PERFORMING ANY MAINTENANCE.

LEDWP-600E-E2E-10C

Larson Electronics, LLC Phone: (800) 369-6671 Fax: (903) 498-3364 www.larsonelectronics.com

2of 2

ASSEMBLY

Use the table below for assembling the hardware including the glare shield.

Note: Some hardware shown may not be included depending on final product configuration.

DAISY CHAIN

Daisy chain multiple fixtures by connecting ends. Plug the male cord

cap from next lamp to the female cord cap of first lamp and repeat for

each additional lamp. Plug the first lamp in the daisy chain to a power

outlet to illuminate all attached lamps.

MAINTENANCE

There are no serviceable parts inside the fixture. However, it is good practice to routinely clean and check the

fixture for proper function.

•Disconnect power running to the lamp and be sure the fixture is cool to the touch.

•Use a non-abrasive glass cleaning solution to clean the lens.

Note: It is not necessary to open the fixture and clean or touch the LED’s.

Should further information not covered by these instructions be required, please contact Larson Electronics at

1-800-369-6671 for further assistance.

CORD GRIP

MOUNT SCREW

ASSEMBLED UNIT w/Glare Shield

Table des matières

Autres manuels Larson Electronics Luminaire

Larson Electronics

Larson Electronics LED25WRE-LENSCOVER Manuel utilisateur

Larson Electronics

Larson Electronics EPL-LP-70W-LED-WALL Manuel

Larson Electronics

Larson Electronics HAL-PT-LED-CPR-C-100 Manuel utilisateur

Larson Electronics

Larson Electronics HALD-24-1X150LED-V3-DIMM Manuel utilisateur

Larson Electronics

Larson Electronics LEDWL-STRB-RED-1227 Manuel utilisateur

Larson Electronics

Larson Electronics EPLC-48-432 Manuel utilisateur

Larson Electronics

Larson Electronics GAU-HB-12L-LED-WP-WCM Manuel utilisateur

Larson Electronics

Larson Electronics EPLC2-AMB-70LED-50 Manuel

Larson Electronics

Larson Electronics EPLC2-LED-400W Manuel utilisateur

Larson Electronics

Larson Electronics HALP-96-2L-LED Manuel utilisateur

Larson Electronics

Larson Electronics EPL-AMB-150LED-250 Manuel utilisateur

Larson Electronics

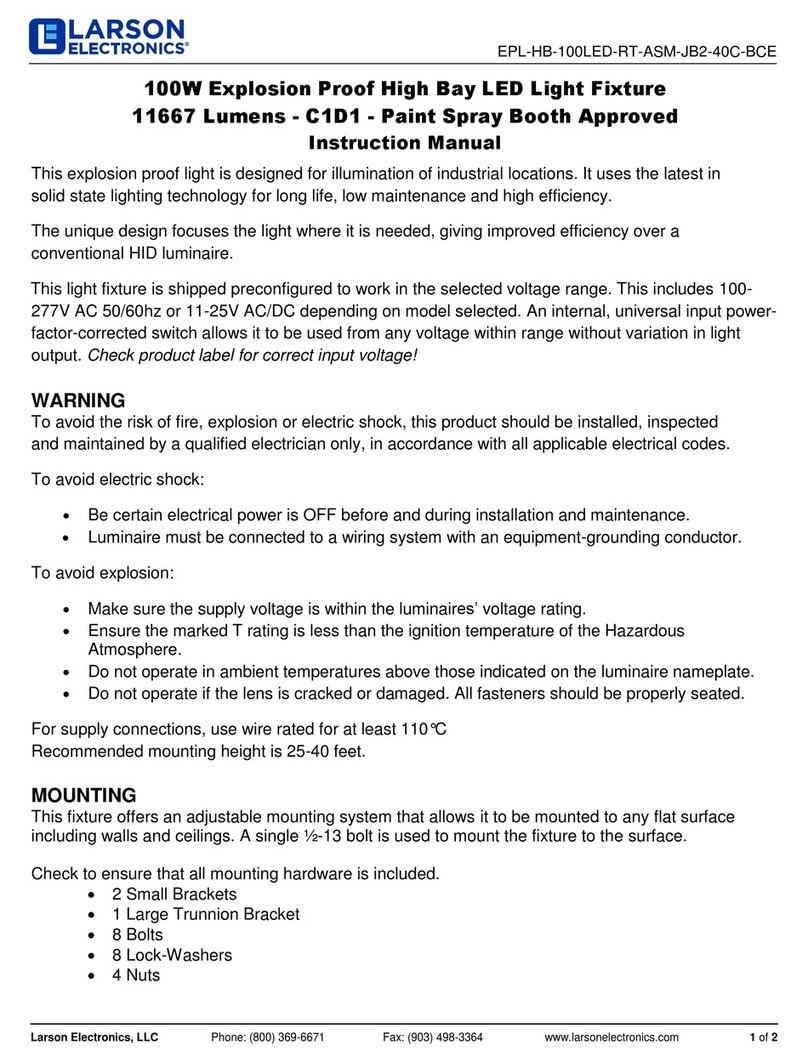

Larson Electronics EPL-HB-100LED-RT-ASM-JB2-40C-BCE Manuel utilisateur
