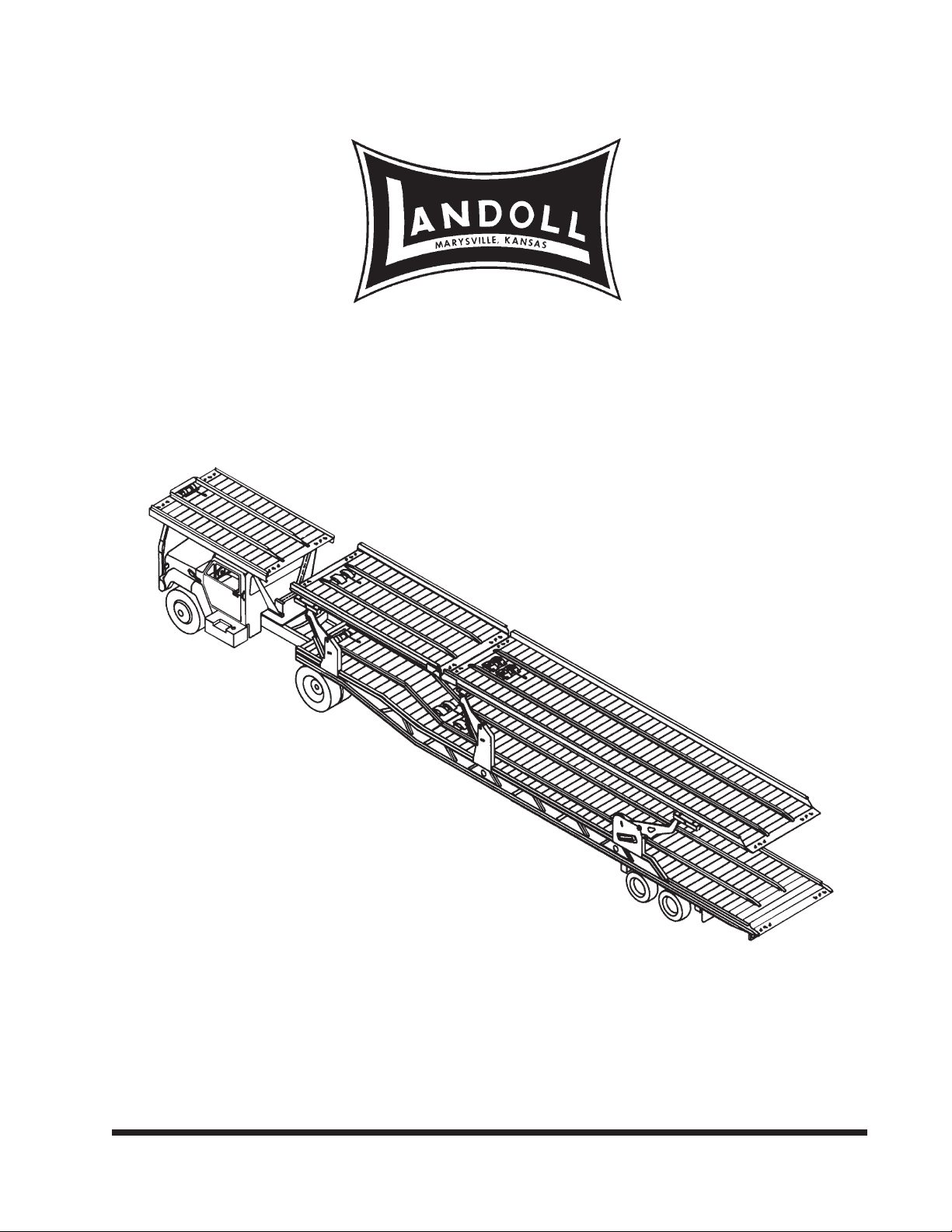

MODEL 336C
CAR CARRIER
OPERATOR’S MANUAL
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
(785) 562-5381
F-276-1299 12/99
WARRANTY
MANUFACTURER’S GUARANTEE POLICY
LANDOLL CORPORATION WARRANTY
LANDOLL warrants each new and unused LANDOLL machine, when properly
assembled, adjusted, and operated, to be free of defects in material and work-
manship, in normal use and when properly serviced, for a period of twelve
(12) months after date of delivery by the Dealer to the original retail purchaser.
LANDOLL shall repair or replace, at its option, freight on board (f.o.b.) at its
factory or designated DEALER location, any part or parts of such new and un-
used machine which shall have been reported in writing to LANDOLL within
thirty (30) days from date of failure thereof and which LANDOLL inspection
shall disclose to have been defective. Defective parts must be returned to the
LANDOLL factory, freight prepaid. LANDOLL will not be liable for labor, trans-
portation, or any other charges resulting from replacement of a defective part.
This warranty is void if any part not supplied by LANDOLL is used in assem-
bly or repair, or if the machine has been altered, abused, or neglected. LAN-
DOLL repair parts are warranted for ninety (90) days from date of replacement
or for the unexpired warranty period of the applicable LANDOLL machine,
whichever period is longer. LANDOLL makes no warranty, whatsoever, as to
purchased component parts and other trade accessories, except to the extent
that such items are warranted by the manufacturer thereof. THIS WARRANTY
IS EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, WHETHER EX-
PRESSED, IMPLIED, OR STATUTORY (INCLUDING WARRANTIES OF MER-
CHANTABILITY AND FITNESS FOR PURPOSE), AND LANDOLL SHALL NOT
BE LIABLE FOR SPECIAL OR CONSEQUENTIAL DAMAGES OF ANY KIND ON
ACCOUNT OF ANY LANDOLL PRODUCT.
NO EMPLOYEE OR REPRESENTATIVE IS AUTHORIZED TO CHANGE THIS
WARRANTY, VERBALLY OR IN WRITING, OR GRANT ANY OTHER WAR-
RANTY.
LANDOLL CORPORATION, WHOSE POLICY IS ONE OF CONTINUOUS IM-
PROVEMENT, RESERVES THE RIGHT TO MAKE CHANGES WITHOUT OBLI-
GATION TO MODIFY PREVIOUSLY PRODUCED EQUIPMENT.
MODEL 336C
CAR CARRIER
OPERATOR’S MANUAL
PURCHASED FROM: DATE /
ADDRESS:
PHONE NO.: SERIAL NO.:
REPORTING SAFETY DEFECTS
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway Traffic
Safety Administration (NHTSA) in addition to notifying Landoll Manufacturing.
If NHTSA receives similar complaints, it may open an investigation, and if it
finds that a safety defect exists in a group of vehicles, it may order a recall and
remedy campaign. However, NHTSA cannot become involved in individual prob-
lems between you, your dealer, or Landoll Manufacturing.
To contact NHTSA, you may either call the Auto Safety Hotline toll-free at 1-800-
424-9393 (or 366-0123 in Washington, D.C. area) or write to: NHTSA, U.S. Depart-
ment of Transportation, Washington, D.C. 20590. You can also obtain other infor-
mation about motor vehicle safety from the Hotline.
In the event of a defect or problem with your LANDOLL equipment, please notify
LANDOLL CORPORATION:
LANDOLL CORPORATION
SALES AND SERVICE
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
OR PHONE:
1-800-HAULOLL
(1-800-428-5655)
FAX NO.: (785)562-3240
FOR REPLACEMENT PARTS:
(785)562-4650
1-800-423-4320
FAX NO.: (785) 562-4654
i
TABLE OF CONTENTS
SECTION DESCRIPTION PAGE NO.
1 INTRODUCTION
2 STANDARD SPECIFICATIONS
3 OPERATING INSTRUCTIONS
3-1 GENERAL ...........................................3-1
3-2 PRE-COUPLING OF SEMITRAILER AND TRACTOR ...........3-2
3-3 COUPLING OF THE TRACTOR TO THE SEMITRAILER .........3-3
3-4 CONNECTING TRACTOR SERVICES TO THE SEMITRAILER ....3-3
3-5 TRACTOR AND SEMITRAILER CHECK-OUT .................3-4
3-6 TOWING THE SEMITRAILER .............................3-5
3-7 PARKING THE SEMITRAILER ............................3-6
3-8 UNCOUPLING TRACTOR FROM SEMITRAILER...............3-6
3-9 HYDRAULIC AND AIR LOCK CONTROLS ...................3-7
3-10 WINCH CONTROLS ....................................3-8
3-11 REMOTE CONTROL OPERATION .........................3-9
3-12 ADJUSTING ADJUSTMENT ARMS........................3-10
3-13 PREPARATION FOR LOADING PROCEDURE ...............3-11
3-14 LOADING THE 331 OVER-THE-CAB DECK .................3-13
3-15 LOADING THE UPPER DECK ...........................3-14
3-16 LOADING THE LOWER DECK ...........................3-15
3-17 SECURING THE LOAD.................................3-17
3-18 UNLOADING THE LOWER DECK.........................3-18
3-19 UNLOADING UPPER DECK .............................3-18
3-20 UNLOADING THE 331 OVER-THE-CAB DECK ...............3-19
3-21 REAR IMPACT GUARD SYSTEM .........................3-19
3-22 ANTI-LOCK BRAKE SYSTEM (ABS) ......................3-21
3-23 COLD WEATHER OPERATION ..........................3-22
3-24 HOT WEATHER OPERATION............................3-22
4 MAINTENANCE AND LUBRICATION
4-1 MAINTENANCE SCHEDULE. .............................4-1
4-2 MAINTENANCE PROCEDURES. ..........................4-4
4-3 FRAME, AND DECK....................................4-4
4-4 HYDRAULIC SYSTEM ..................................4-5
4-5 ELECTRICAL SYSTEM .................................4-8
4-6 REMOTE CONTROL ...................................4-8
4-7 SUSPENSION MAINTENANCE ............................4-9
4-8 ALIGNMENT ........................................4-10
4-9 BRAKE SYSTEM MAINTENANCE ........................4-13
4-10 HUB AND DRUM MAINTENANCE ........................4-19
4-11 WHEEL BEARING LUBRICATION AND ADJUSTMENT.........4-22
4-12 TIRE MAINTENANCE. .................................4-23
4-13 WINCHES ..........................................4-24
4-14 AIR SYSTEM FILTER AND LUBRICATOR ..................4-26
5 TROUBLESHOOTING GUIDE
ii
SAFETY PRECAUTIONS
THIS IS THE SAFETY ALERT SYMBOL. IT IS USED TO ALERT YOU
TO POTENTIAL INJURY HAZARDS. OBEY ALL SAFETY MESSAGES
THAT FOLLOW THIS SYMBOL TO AVOID POSSIBLE INJURY OR
DEATH.
DANGER DANGER INDICATES AN IMMINENTLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, WILL RESULT IN DEATH OR
SERIOUS INJURY.
WARNING WARNING INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, COULD RESULT IN DEATH OR
SERIOUS INJURY.
CAUTION CAUTION INDICATES A POTENTIALLY HAZARDOUS SITUA-
TION WHICH, IF NOT AVOIDED, MAY RESULT IN MINOR OR
MODERATE INJURY.
CAUTION CAUTION USED WITHOUT THE SAFETY ALERT SYMBOL INDI-
CATES A POTENTIALLY HAZARDOUS SITUATION WHICH, IF
NOT AVOIDED, MAY RESULT IN PROPERTY DAMAGE.
iii
1INTRODUCTION
This manual provides operating, servicing, and maintenance instructions, with detailed parts lists for
Model 336C car carrier, manufactured by Landoll Corporation, Marysville, Kansas 66508.
SECTION 1 gives basic instructions on the use of this manual.
SECTION 2 gives specifications for the semitrailer, including measurements and component
specifications. A Standard Bolt Torque Table is provided to give guidelines for
bolt torques to be used when servicing this product.
SECTION 3 gives instructions for the proper operation of the equipment.
SECTION 4 gives general maintenance procedures, a maintenance schedule, and a lubrication
schedule. Improper maintenance will void your warranty.
IF YOU HAVE ANY QUESTIONS CONTACT:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
or phone:
(785) 562-5381 or
(800) 428-5655
or FAX:
(785) 562-3240
SECTION 5 is a troubleshooting guide to aid in diagnosing and solving problems with the
semitrailer.
PARTS LIST is a separate manual showing the various assemblies, subassemblies, and sys-
tems. Refer to that manual when ordering Landoll replacement parts. Order parts
from your Landoll dealer or call the Landoll Parts Distribution Center at:
(785) 562-4650 or
(800) 423-4320 or
FAX: (785) 562-4654
WARRANTY The Warranty Registration Card is located with the product documents. Fill it out
and mail it within 15 days of purchase. The Warranty is printed inside the front
cover.
NOTE: IMPROPER ASSEMBLY, MODIFICATION, OR MAINTENANCE OF YOUR
LANDOLL EQUIPMENT CAN VOID YOUR WARRANTY.
COMMENTS Address comments or questions regarding this publication to:
LANDOLL CORPORATION
1900 NORTH STREET
MARYSVILLE, KANSAS 66508
ATTENTION: PUBLISHING -DEPT. 55
1-1
2STANDARD SPECIFICATIONS
MODEL 331 - SINGLE CAR CARRIER (OVER-THE-CAB)
DECK:
LENGTH ............................................................13’-0"
OUTSIDE WIDTH ........................................................92"
INSIDE WIDTH..........................................................84"
CAPACITY ..........................................................1CAR
WINCH:
QUANTITY ..............................................................1
CAPACITY ........................................................8,000 LB.
CABLE LENGTH ........................................................65’
FRONT OVERHANG ....................................................24"TO36"
MODEL 336C - 6 CAR CARRIER
OVERALL LENGTH: ....................................................48’OR52’
OVERALL WIDTH: .......................................................... 102"
WEIGHT: .......................................................19,100-19,400 LB.
UPPER DECK:
INSIDE WIDTH..........................................................87"
DECK HEIGHT (TRANSPORT POSITION) ................................98"-119"
LOWER DECK:
INSIDE WIDTH..........................................................94"
DECK HEIGHT (TRANSPORT POSITION) .....................................34"
WINCH:
QUANTITY ..............................................................6
CAPACITY ........................................................8,000 LB.
CABLE LENGTH ........................................................65’
PIN SETTING:...............................................................15"
SWING CLEARANCE:.........................................................75"
CAPACITY:
VEHICLES...............................................................6
TOTAL VEHICLE WEIGHT ALLOWED .................................. 24,000 LB.
GAWR ........................................................18,160 LB.
GVWR ........................................................44,000 LB.
LOADING ANGLES:
UPPER DECK ....................................................17°TO23°
LOWER DECK .................................................... 8°TO12°
CONTROL .......................................MANUAL AND REMOTE HYDRAULIC
2-1
HYDRAULIC HOOKUP:
QUICK COUPLERS......................................................3/4"
MAXIMUM OPERATING PRESSURE** ....................................2500 PSI
OPERATING FLOW** .................................................17GPM
ELECTRICAL HOOKUP:.....................................7-WAY CONNECTOR
AIR HOOKUP:..................................................GLAD HANDS
SPECIFIC BOLT TORQUES
AIR RIDE SUSPENSION:
EQUALIZER BEAM PIVOT BOLT: ....................................800FT.-LBS.
SHOCK ABSORBER MOUNTING: ....................................150FT.-LBS.
AIR SPRING MOUNTING: 1/2" ......................................35FT.-LBS.
3/4" ......................................35FT.-LBS.
WHEEL FASTENERS - ALL MODELS:
OUTER SPINDLE NUTS ........................................250-400 FT.-LBS.
PILOT WHEEL NUTS.......................................... 450-500 FT.-LBS.
DISK WHEEL INNER WHEEL NUTS ...............................450-500 FT.-LBS.
DISK WHEEL OUTER WHEEL NUTS .............................. 450-500 FT.-LBS.
* TIRE, BRAKE, AXLE, OR WHEEL SELECTION MAY LIMIT CAPACITY.
** TRACTOR HYDRAULIC POWER SUPPLY MUST BE CAPABLE OF OPERATING AT THIS PRES-
SURE AND FLOW RATE AND BE EQUIPPED WITH A PRESSURE RELIEF VALVE SET AT THIS
PRESSURE.
2-2
Table des matières
Autres manuels Landoll Camion
